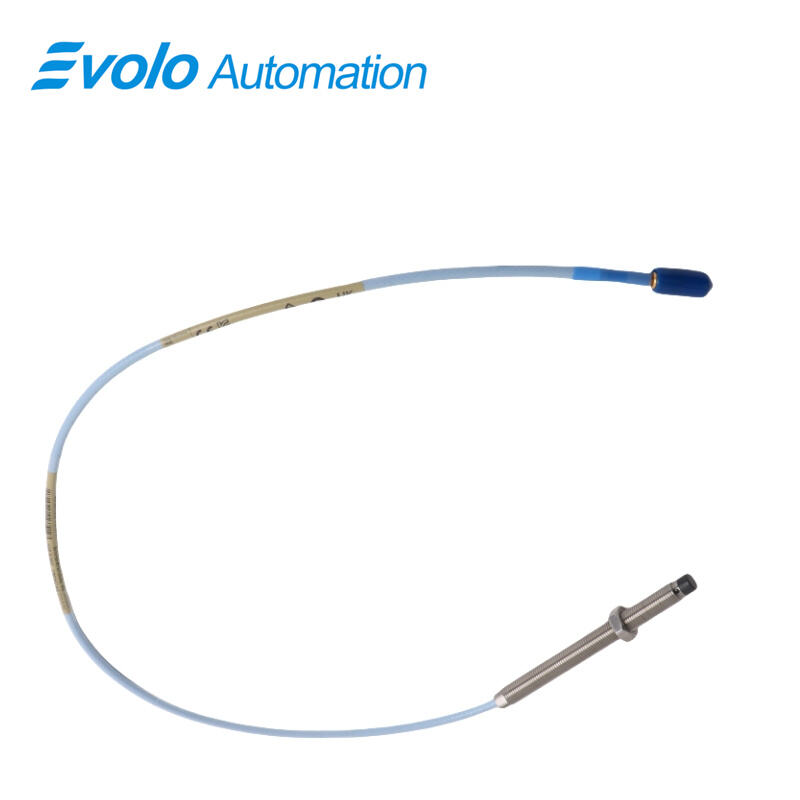

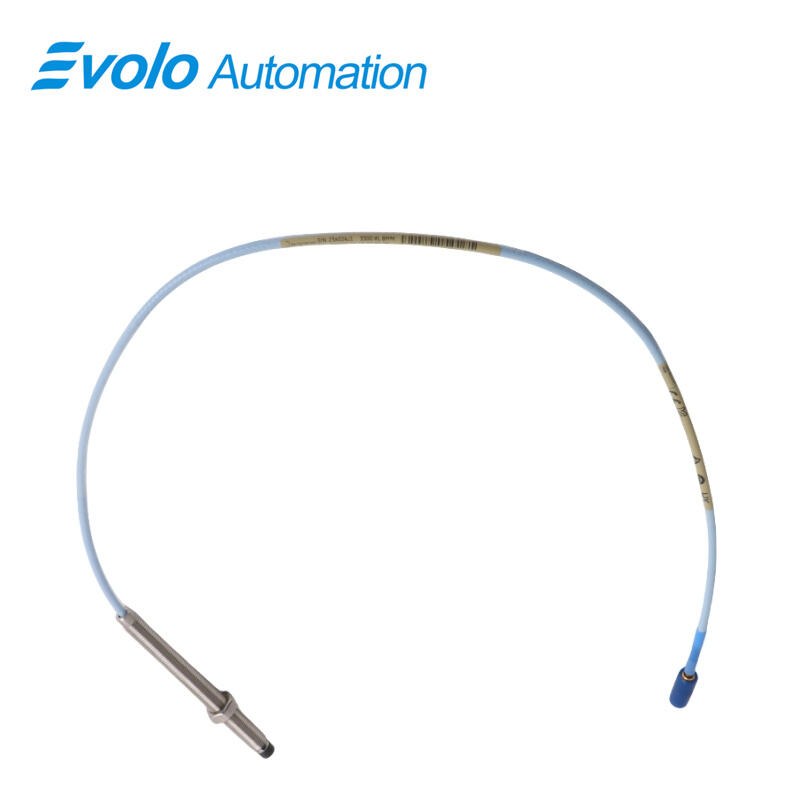

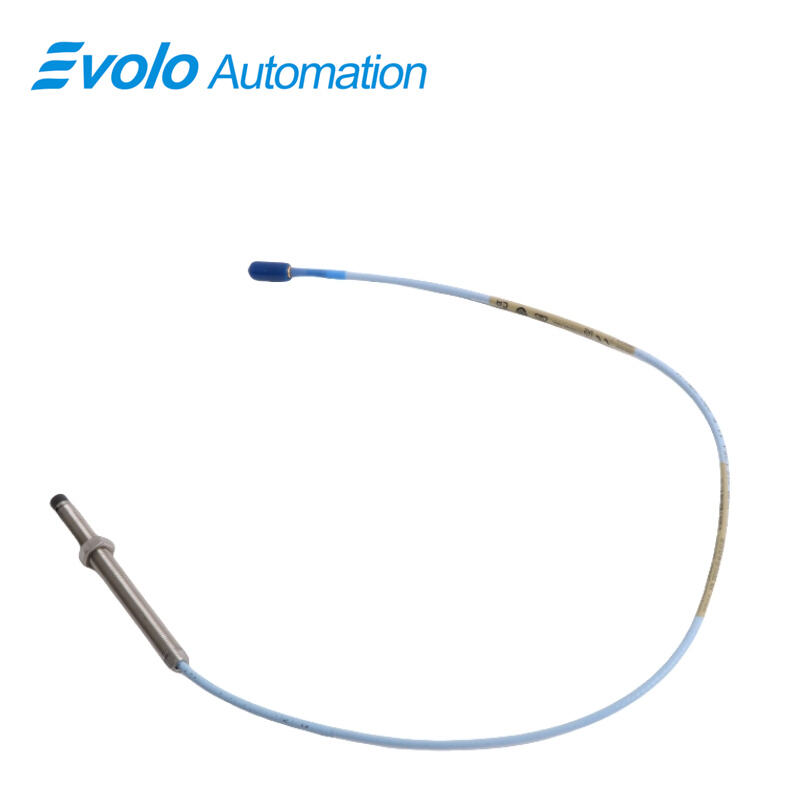

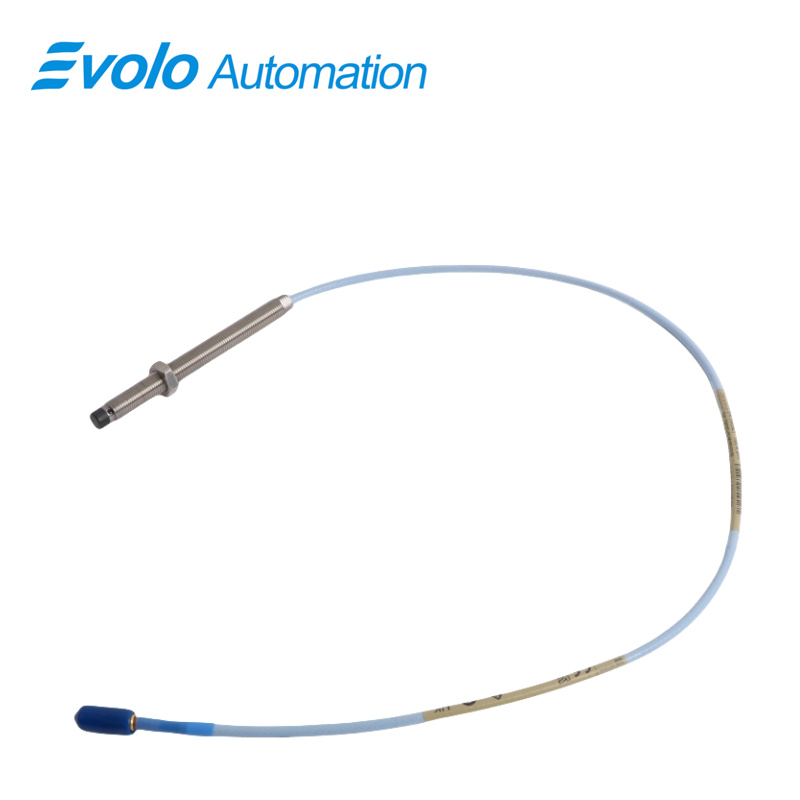

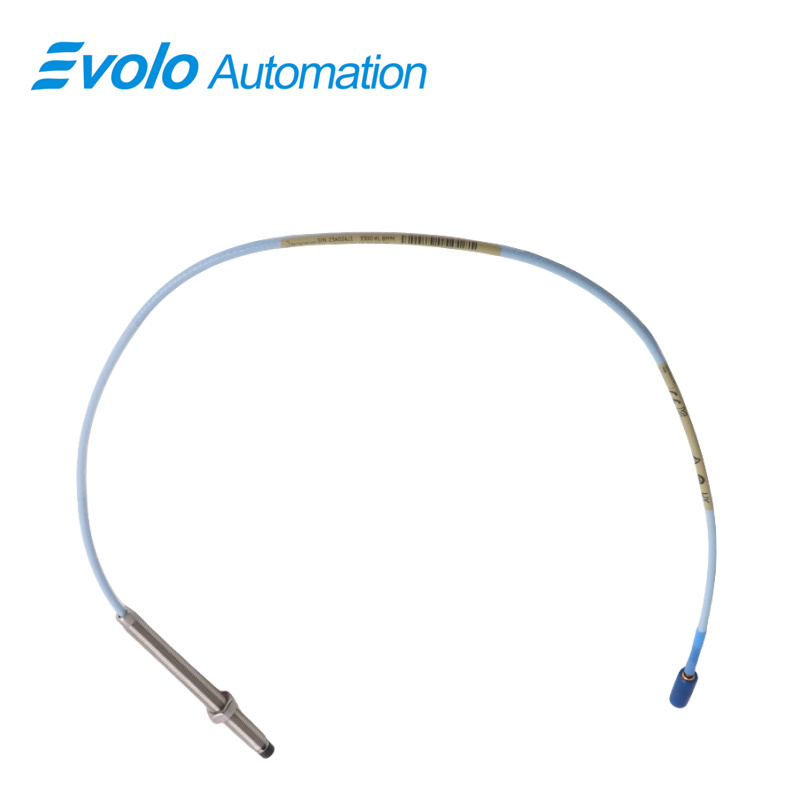

330101-00-40-05-01-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-40-05-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-40-05-01-00 3300 XL 8 mm Proximity Probe is a high-precision eddy-current transducer designed for industrial automation and condition monitoring applications. It provides an output voltage directly proportional to the distance between the probe tip and the monitored conductive surface, enabling precise static position and dynamic vibration measurements on fluid-film bearing machinery. Featuring a 3/8-24 UNF probe thread, a linear range of 2 mm (80 mils), and extension cable capacitance of 69.9 pF/m, the probe ensures highly reliable measurement data. Its operating temperature range of -52°C to +177°C allows deployment in extreme industrial environments, while the ClickLoc connector with protector ensures secure and contamination-resistant connections. The 3300 XL 8 mm system fully complies with API 670 standards for accuracy, mechanical configuration, and temperature stability, offering backward compatibility with non-XL 3300 series probes, extension cables, and Proximitor sensors. Patented TipLoc molding and CableLoc designs enhance probe durability and connection integrity, and the optional FluidLoc cable prevents fluid leakage, making this probe ideal for demanding machinery monitoring in automation and energy sectors.

Applications

1. Vibration Monitoring of Fluid-Film Bearings
Measures dynamic vibrations on turbines and compressors, supporting predictive maintenance and reducing unplanned downtime.

2. Shaft Position Measurement
Provides high-resolution position data for shafts in pumps, generators, and rotating machinery to maintain operational precision.

3. Keyphasor Reference and Speed Sensing
Used to generate accurate phase reference signals for vibration monitoring and speed calculations in automated systems.

4. Industrial Process Control Integration
Integrates with SCADA or PLC systems to provide real-time feedback for control of critical rotating equipment.

5. Harsh Environment Machinery Monitoring
Operates reliably in extreme temperatures (-52°C to +177°C) and high-vibration industrial environments, including petrochemical plants and power stations.

Specifications

Competitive Advantage

1. High Precision and Reliability
Linear range of 2 mm and output resistance of 50 Ω ensures stable, repeatable measurements with minimal error (<2 mV per volt change in input voltage).

2. Rugged Mechanical Design
316L stainless steel probe body, patented TipLoc and CableLoc designs, and 330 N pull strength ensure robustness in heavy industrial conditions.

3. Backward Compatibility
Compatible with non-XL 3300 series probes, extension cables, and Proximitor sensors, allowing seamless upgrades without replacing existing infrastructure.

4. Optional Fluid Containment
FluidLoc cable option prevents oil and liquid leakage from the machine, maintaining process safety and reducing maintenance issues.

5. API 670 Standard Compliance
Meets mechanical configuration, accuracy, linear range, and temperature stability standards, ensuring trusted performance in critical rotating machinery monitoring.
