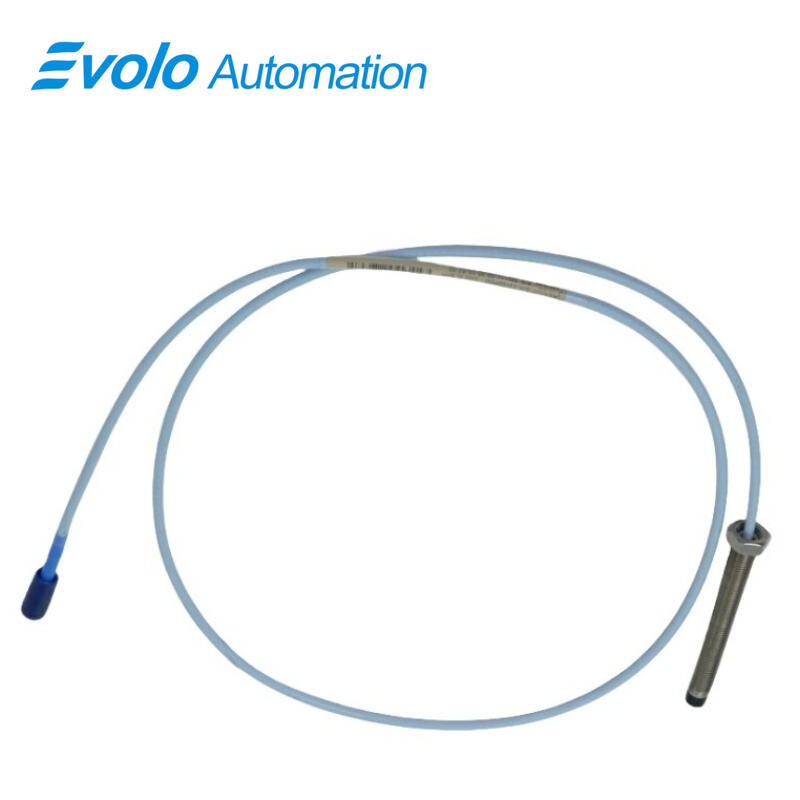

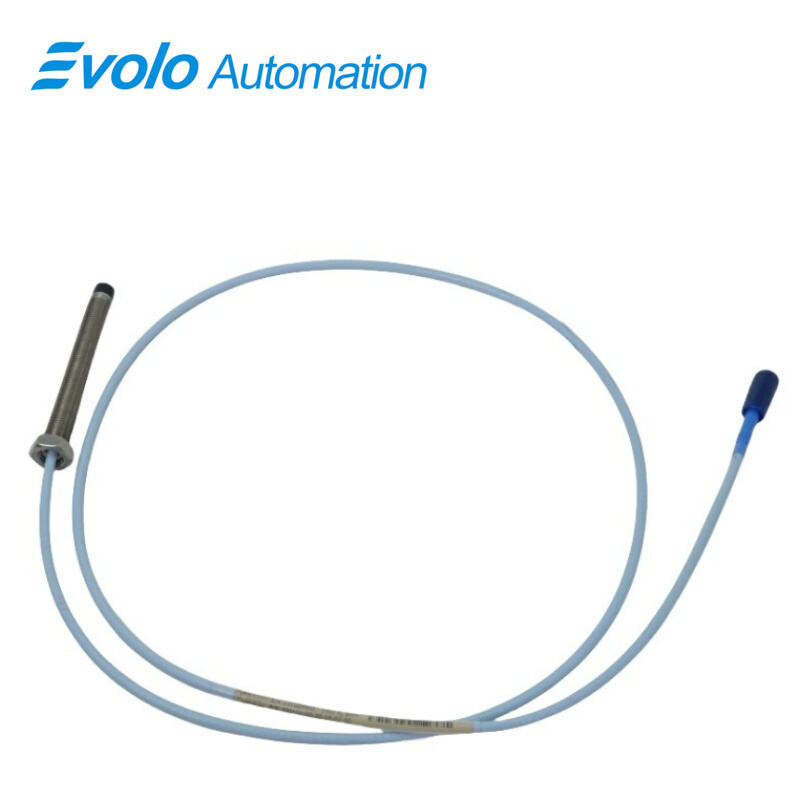

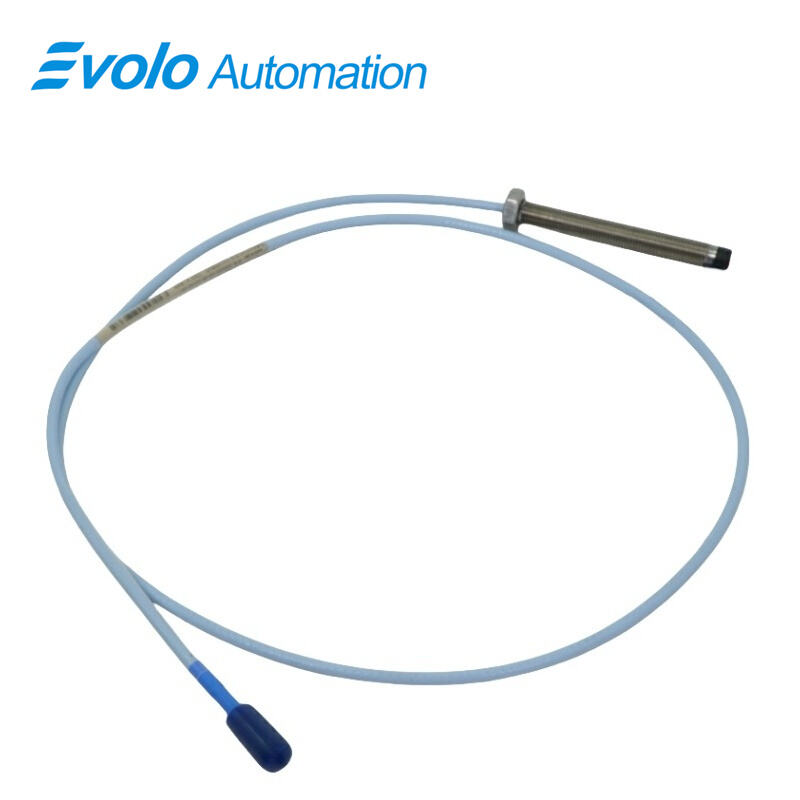

330101-00-30-10-11-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-30-10-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-30-10-11-00 3300 XL 8 mm Proximity Probe provides precise voltage output proportional to the distance between the probe tip and the measured conductive surface, enabling both static position and dynamic vibration monitoring. Designed for fluid-film bearing machines, the 330101-00-30-10-11-00 3300 XL 8 mm Proximity Probe supports Keyphasor reference and speed measurements in automated systems. With a 3/8-24 UNF thread, 3.0 in overall case length, and 1.0-meter FluidLoc cable, this probe withstands operating temperatures from -52°C to +177°C while maintaining less than 2 mV/V supply sensitivity. The 330101-00-30-10-11-00 3300 XL 8 mm Proximity Probe features a 2 mm linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, allowing accurate signal transmission through 16–24 AWG field wiring. Its patented TipLoc and CableLoc designs secure the probe tip and cable with 330 N pull strength, preventing cable detachment and minimizing liquid ingress. Backward compatible with non-XL 3300 series probes, the 330101-00-30-10-11-00 3300 XL 8 mm Proximity Probe integrates seamlessly into existing automated monitoring setups, delivering high-precision displacement data for industrial vibration and position control applications.

Applications

Measure Radial Vibration on Shafts
The 330101-00-30-10-11-00 3300 XL 8 mm Proximity Probe detects radial vibration on fluid-film bearing machine shafts with diameters above 50 mm. Its 2 mm linear range and high sensitivity (<2 mV/V) provide accurate displacement readings for automated vibration monitoring.

Monitor Axial (Thrust) Position
With a 3/8-24 UNF thread and 3.0 in overall case length, the 330101-00-30-10-11-00 3300 XL 8 mm Proximity Probe measures axial position of rotating components, supporting automated thrust control in compressors and turbines.

Keyphasor and Speed Measurement
Using the miniature coaxial ClickLoc connector and 1.0-meter FluidLoc cable, the 330101-00-30-10-11-00 3300 XL 8 mm Proximity Probe delivers signals for Keyphasor reference and shaft speed detection, enabling precise timing and synchronization in automated machinery.

Integration with Automation Systems
The probe’s 69.9 pF/m extension cable capacitance and 16–24 AWG field wiring support seamless integration with Proximitor sensors and existing monitoring modules, reducing setup time in automated plant environments.

Specifications

Competitive Advantage

High Pull Strength Cable Connection
Patented CableLoc design provides 330 N pull strength, ensuring secure connection of the 330101-00-30-10-11-00 3300 XL 8 mm Proximity Probe cable to the probe tip for continuous automated operation without detachment.

Robust Probe Tip Bonding
TipLoc molding method reinforces the probe tip-to-body connection, enabling the 330101-00-30-10-11-00 3300 XL 8 mm Proximity Probe to withstand industrial vibrations and extend service life in automated monitoring systems.

Fluid Protection in Harsh Environments
The optional FluidLoc cable prevents oil and other liquids from entering the probe interior, maintaining signal accuracy in automated fluid-film bearing machinery.

Backward Compatibility for Easy Upgrades
The 330101-00-30-10-11-00 3300 XL 8 mm Proximity Probe is compatible with existing 3300 series probes and extension cables, allowing automated systems to upgrade without replacing monitoring modules or sensors.

Wide Temperature Operation
Operating from -52°C to +177°C, the 330101-00-30-10-11-00 3300 XL 8 mm Proximity Probe reliably functions in extreme industrial environments, ensuring continuous automated data acquisition.
