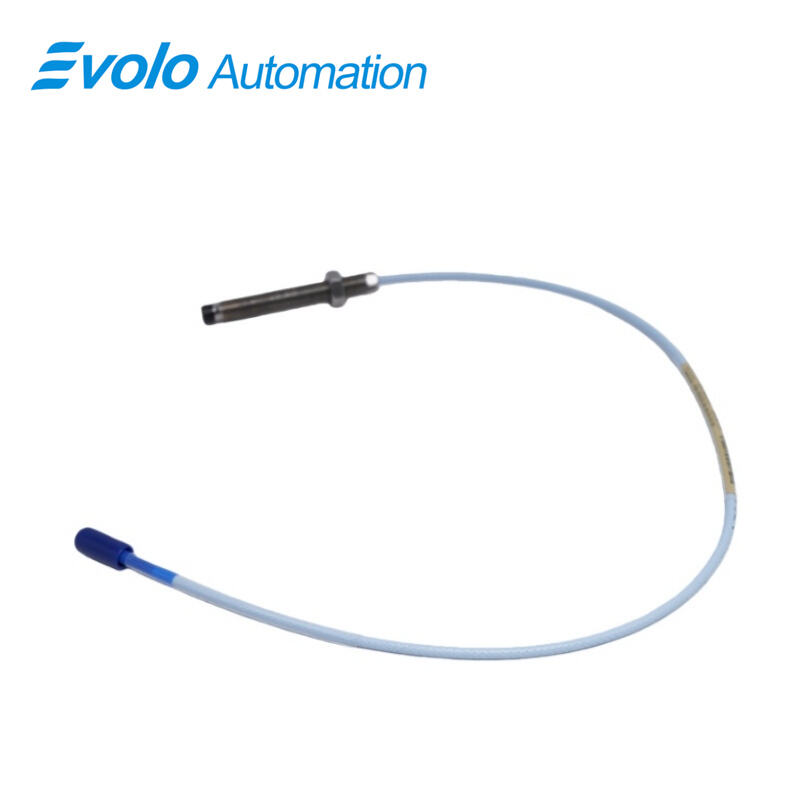

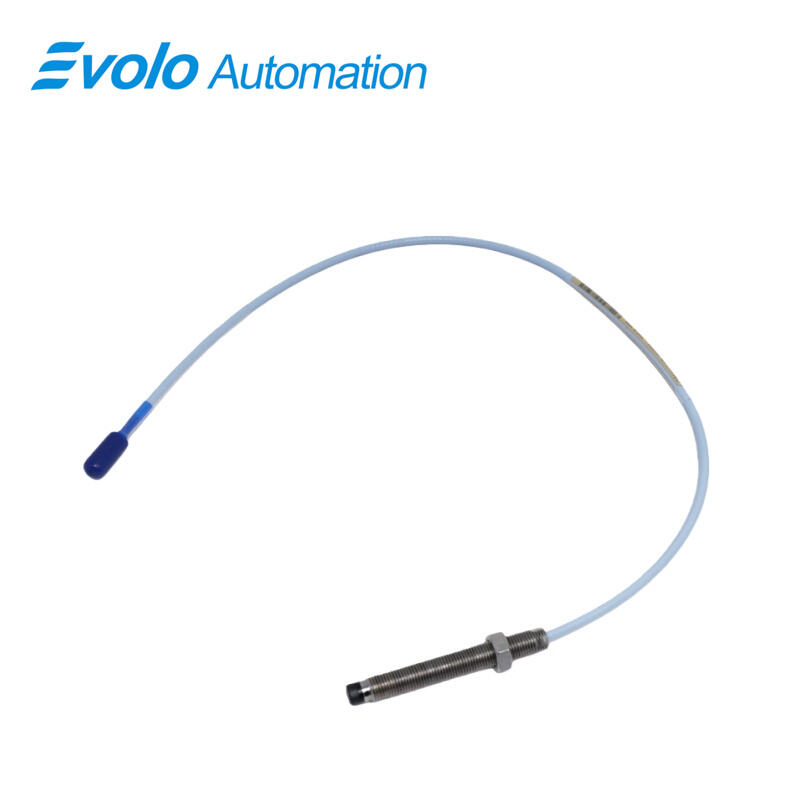

330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-28-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes feature a 2.8-inch overall case length and 0.5-meter (1.6-foot) total length, designed for precise position and vibration monitoring in automated machinery. Equipped with a Miniature coaxial ClickLoc connector and standard 3/8-24 UNF threaded case, the 330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes provide linear displacement measurements across a 2 mm (80 mils) range. Operating and storage temperatures range from -52°C to +177°C (-62°F to +350°F), and field wiring supports 16 to 24 AWG with a 69.9 pF/m extension cable capacitance.

The 330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes deliver voltage proportional to the distance between probe tip and conductive surfaces, ideal for vibration tracking on fluid-film bearings, shaft position detection, and Keyphasor reference monitoring. Patented TipLoc molding secures the probe tip, while CableLoc design ensures 330 N (75 lbf) pull strength for robust cable attachment. Optional FluidLoc cabling prevents oil leakage from equipment. Fully interchangeable with other 3300 XL probes, the 330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes simplify maintenance and integration into existing automated monitoring systems.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes measure dynamic vibration with a 2 mm (80 mils) linear range, supporting accurate monitoring on rotating machinery such as turbines and compressors.

Position Detection for Shaft Alignment
Using output voltage proportional to probe-to-surface distance, the 330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes track shaft position in fluid-film bearing systems and automated assemblies.

Keyphasor Reference and Speed Sensing
The 330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes integrate with Keyphasor systems, providing precise reference signals for rotational speed monitoring with field wiring support of 0.2–1.5 mm² (16–24 AWG).

Compact Installation in Constrained Spaces
With a 0.5-meter total length and 2.8-inch case length, the 330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes fit in tight mounting areas while delivering high-performance measurements.

Specifications

Competitive Advantage

Patented TipLoc Probe Bonding
The 330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes use TipLoc molding to provide a stronger connection between probe tip and body for long-term durability in automated systems.

CableLoc Design with 330 N Pull Strength
Integrated CableLoc design secures the probe cable, supporting automated equipment that experiences mechanical vibration or movement.

Wide Operating Temperature Range
Rated for -52°C to +177°C (-62°F to +350°F), the 330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes perform reliably in extreme industrial environments.

Optional FluidLoc Cable
The 330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes can include a FluidLoc cable, preventing oil or fluid leakage from machinery, ensuring cleaner installations.

Interchangeable System Components
Compatible with other 3300 XL probes and extension cables, the 330101-00-28-05-02-00 3300 XL 8 mm Proximity Probes simplify maintenance and reduce downtime in automated systems.
