Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-27-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
2.7 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
20.5x22.4x3.3cm |
|
Weight: |
0.1kg |
Description

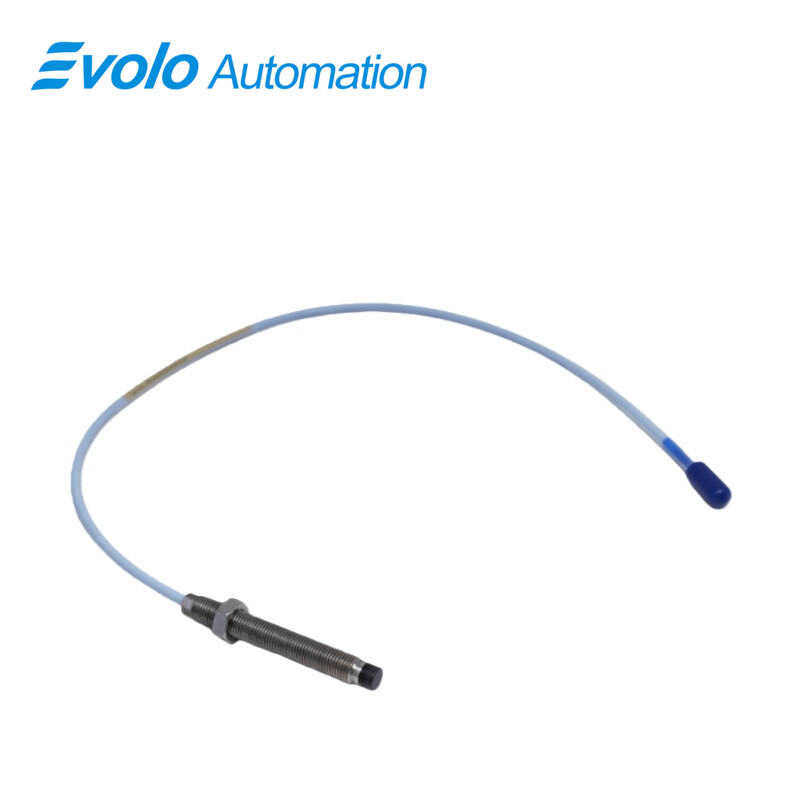

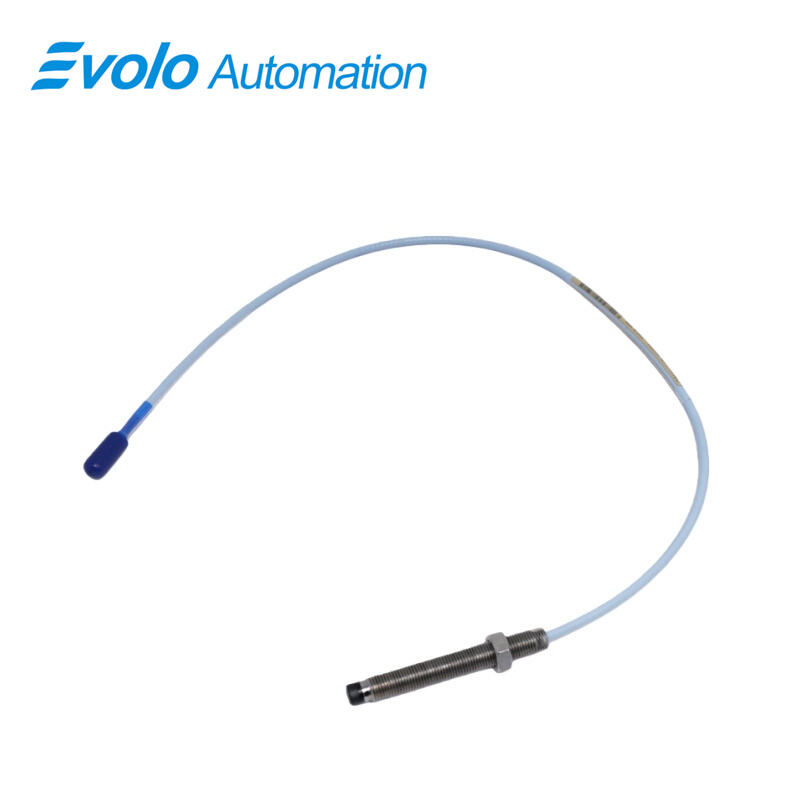

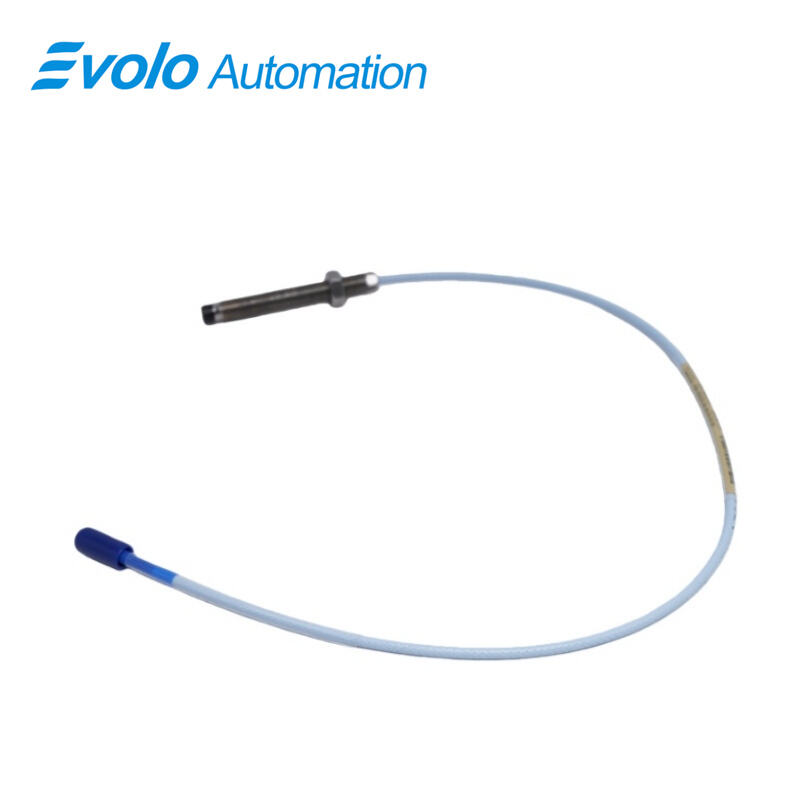

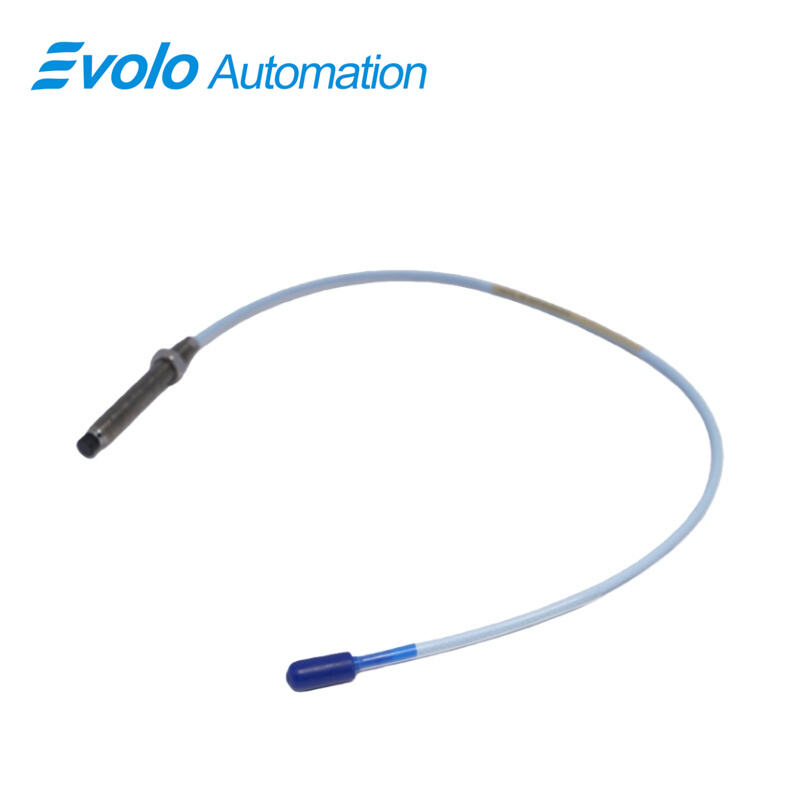

The 330101-00-27-10-02-00 3300 XL 8 mm Proximity Probe provides a voltage output directly proportional to the distance between its probe tip and the target conductive surface. Designed for both static position and dynamic vibration measurements, the 330101-00-27-10-02-00 3300 XL 8 mm Proximity Probe features a 2 mm linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance. Operating over a temperature range of -52°C to +177°C (-62°F to +350°F), it is suitable for fluid-film bearing machines and supports Keyphasor reference and speed monitoring. The probe comes with a 3/8-24 UNF thread, 1.0-meter standard cable, and a miniature coaxial ClickLoc connector. Patented TipLoc molding and CableLoc designs provide a secure connection with 330 N pull strength, while the optional FluidLoc cable prevents oil or liquid leakage. Fully compatible with 3300 XL system components, the 330101-00-27-10-02-00 3300 XL 8 mm Proximity Probe meets API 670 mechanical configuration and linear range requirements, enabling easy integration and interchangeable use with existing 5 mm and 8 mm 3300 series probes and extension cables.
Applications
Measure Bearing Vibration on Fluid-Film Machines
The 330101-00-27-10-02-00 3300 XL 8 mm Proximity Probe captures dynamic vibration with a 2 mm linear range and outputs voltage proportional to tip displacement, enabling operators to monitor bearing vibration in pumps, turbines, and motors accurately.
Monitor Shaft Position for Keyphasor Signals
Equipped with a 3/8-24 UNF probe thread and ClickLoc connector, the 330101-00-27-10-02-00 3300 XL 8 mm Proximity Probe provides precise shaft position measurements to generate Keyphasor reference signals for rotational speed control and predictive maintenance systems.
Track Axial and Radial Displacement
With 50 Ω output resistance and extension cable capacitance of 69.9 pF/m, the 330101-00-27-10-02-00 3300 XL 8 mm Proximity Probe measures axial and radial displacement on rotating equipment, allowing fine adjustment of alignment and gap clearances.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Temperature Endurance
Operating from -52°C to +177°C (-62°F to +350°F), the 330101-00-27-10-02-00 3300 XL 8 mm Proximity Probe withstands extreme industrial conditions without affecting output, ensuring reliable measurement under high heat environments.
Robust Mechanical Connection
The patented TipLoc and CableLoc designs secure the probe tip and cable with 330 N pull strength, preventing accidental disconnection and ensuring consistent signal transmission during machine operation.
Flexible System Integration
Fully compatible with existing 5 mm and 8 mm 3300 series probes and extension cables, the 330101-00-27-10-02-00 3300 XL 8 mm Proximity Probe supports API 670 standards for mechanical configuration and linear range, simplifying upgrades and reducing commissioning time.
