Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-19-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
1.9 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
122x1.5x1.2cm |
|
Weight: |
0.06kg |
Description

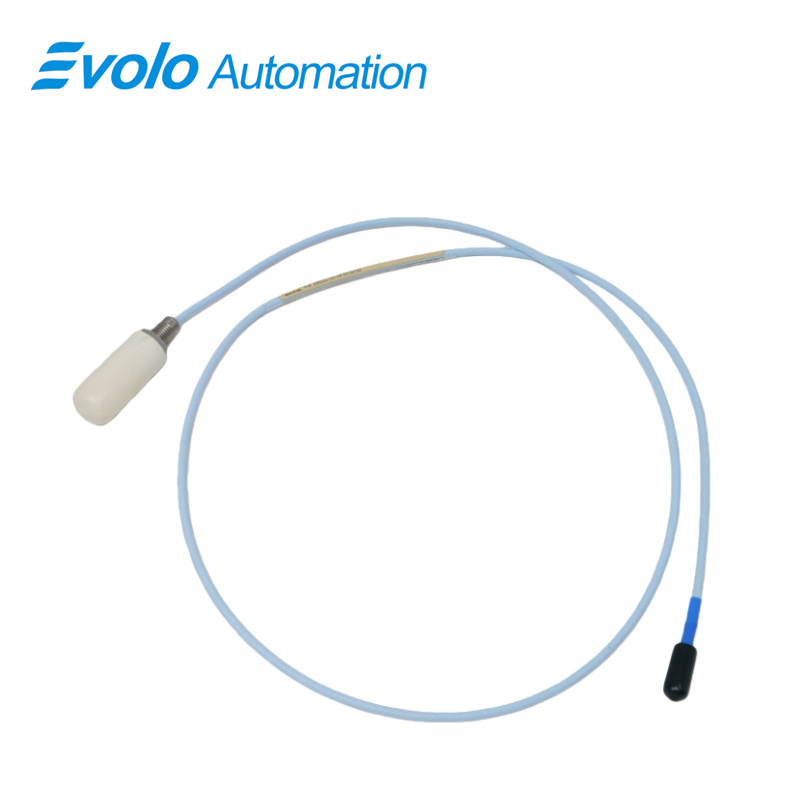

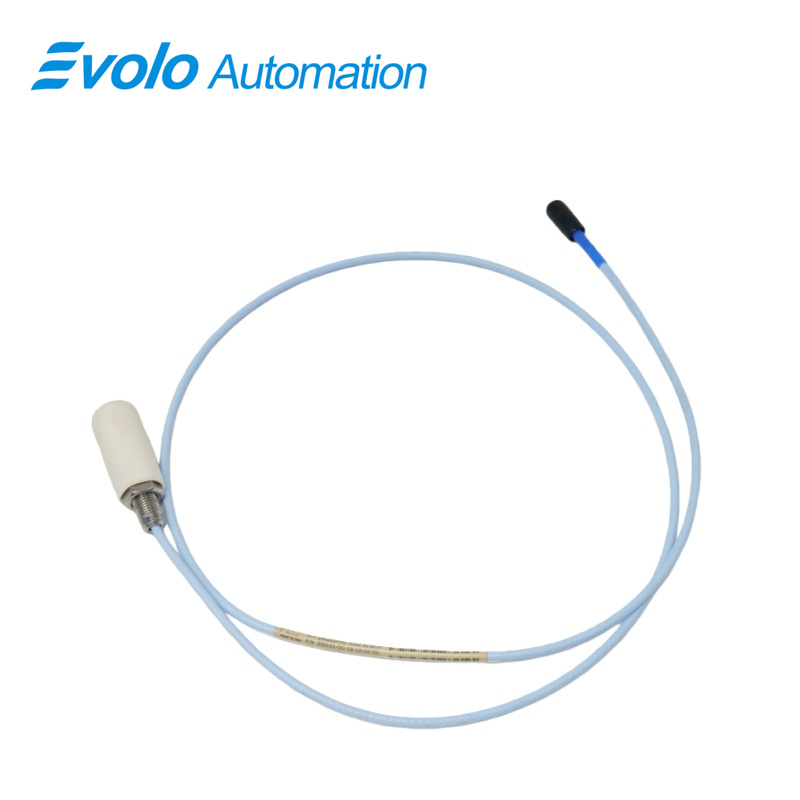

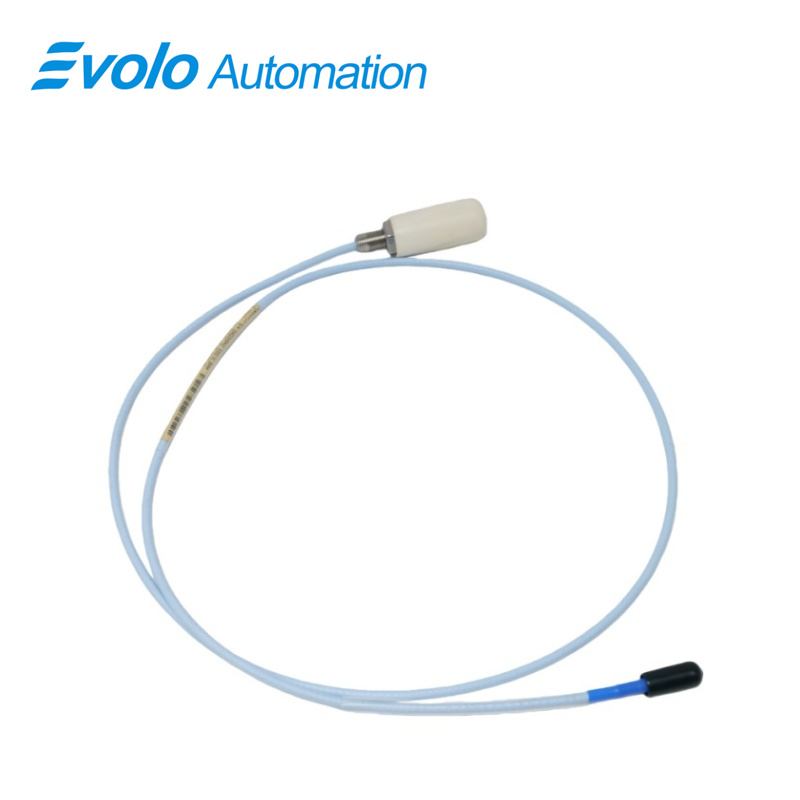

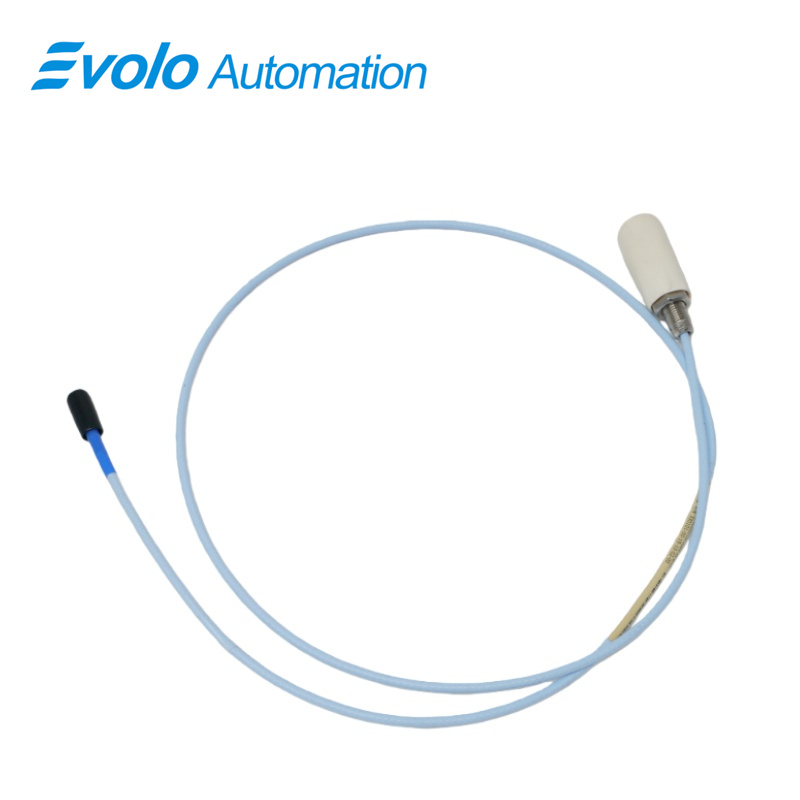

330101-00-19-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for industrial automation and machinery monitoring. The 330101-00-19-10-02-05 3300 XL 8 mm probe produces an output voltage proportional to the distance between the probe tip and conductive surfaces, supporting both static position and dynamic vibration measurements. With a 2 mm (80 mils) linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt, it ensures reliable performance across -52°C to +177°C (-62°F to +350°F).
The 330101-00-19-10-02-05 3300 XL 8 mm probe features a 1.0-meter Miniature ClickLoc coaxial cable, 3/8-24 UNF threaded case (0.563 in max engagement), and extension cable capacitance of 69.9 pF/m (21.3 pF/ft), supporting field wiring of 0.2–1.5 mm² (16–24 AWG). Fully API 670 compliant, the 330101-00-19-10-02-05 3300 XL 8 mm probe is backward compatible with 3300 series 5 mm and 8 mm probes. Patented TipLoc and CableLoc designs provide robust probe-tip bonding and 330 N (75 lbf) cable pull strength, while optional FluidLoc cables prevent fluid leakage, ensuring precise and durable automated monitoring.
Applications
Vibration Monitoring on Fluid-Film Bearings
The 330101-00-19-10-02-05 3300 XL 8 mm probe measures dynamic vibration on fluid-film bearing machines. Its 2 mm linear range and 3/8-24 UNF threaded case ensure precise gap measurements and stable automated monitoring in high-speed rotating machinery.
Static Position Measurement
The 330101-00-19-10-02-05 3300 XL 8 mm probe provides accurate static position readings, with output resistance of 50 Ω and supply sensitivity below 2 mV per volt, supporting automated process control and machinery alignment tasks.
Keyphasor and Speed Sensing
With its 1.0-meter Miniature ClickLoc coaxial cable and extension cable capacitance of 69.9 pF/m (21.3 pF/ft), the 330101-00-19-10-02-05 3300 XL 8 mm probe reliably delivers Keyphasor reference and rotor speed signals for industrial automation systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Accuracy and Extended Temperature Range
The 330101-00-19-10-02-05 3300 XL 8 mm probe operates from -52°C to +177°C (-62°F to +350°F), maintaining linearity and accuracy under extreme conditions, ideal for continuous automated monitoring.
Robust Mechanical and Cable Design
Patented TipLoc molding ensures a strong probe-tip bond, and CableLoc design provides 330 N (75 lbf) pull strength. Optional FluidLoc cables prevent oil or liquid leakage, enhancing the durability of the 330101-00-19-10-02-05 3300 XL 8 mm probe in harsh industrial environments.
