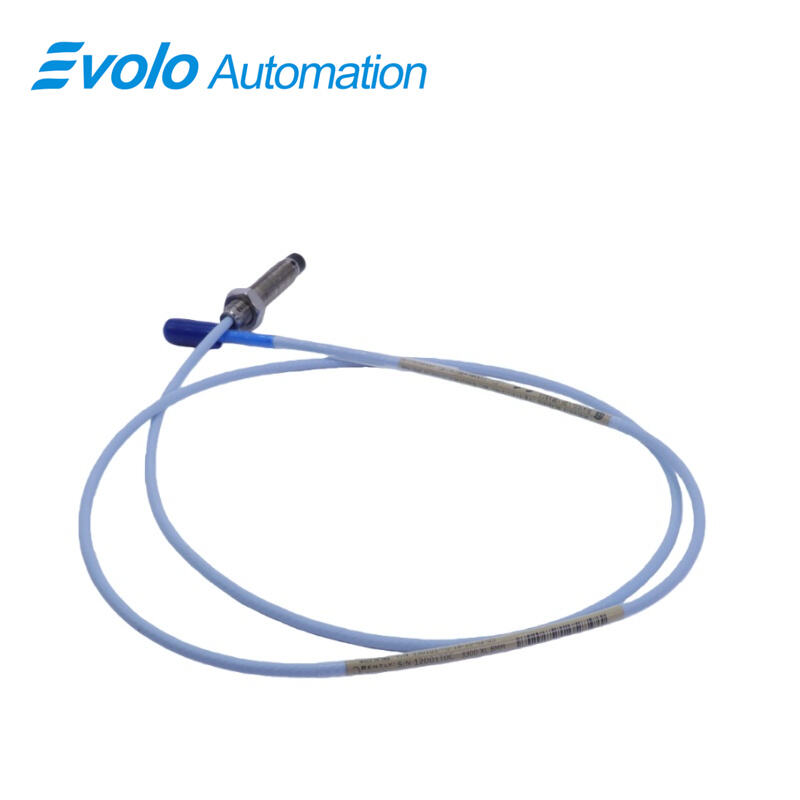

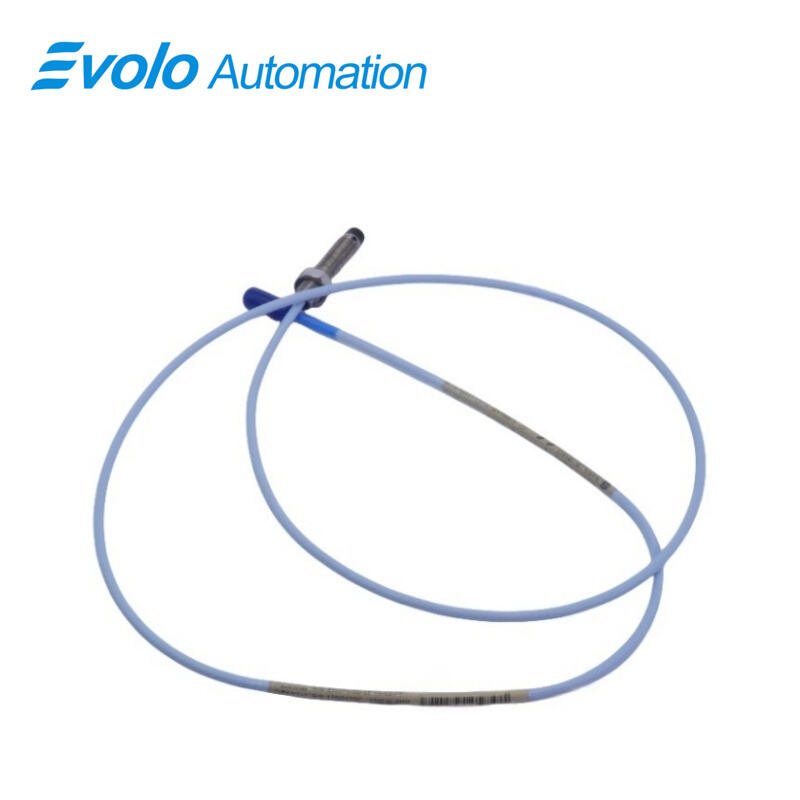

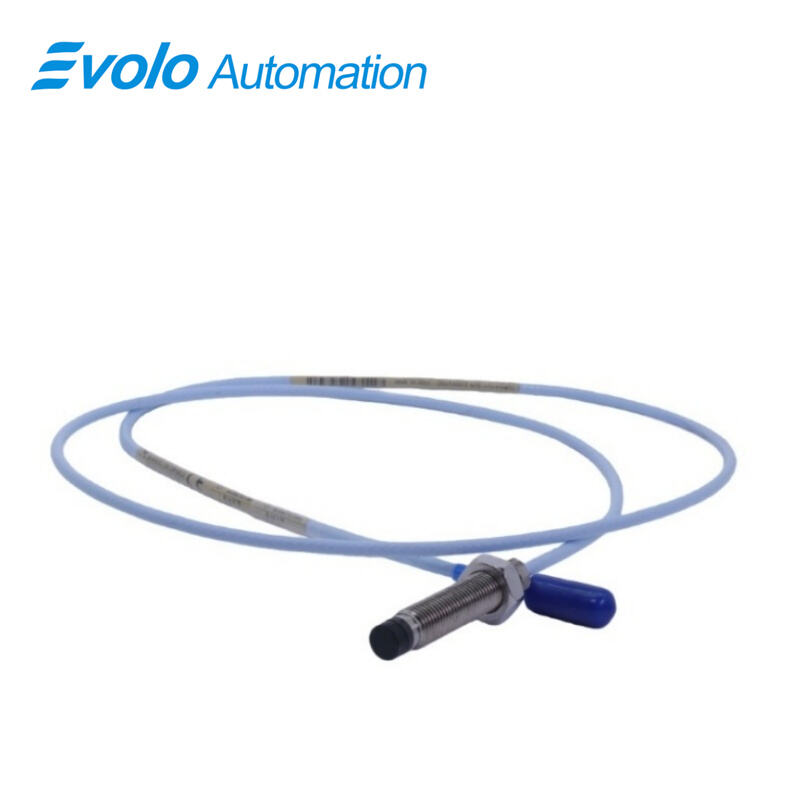

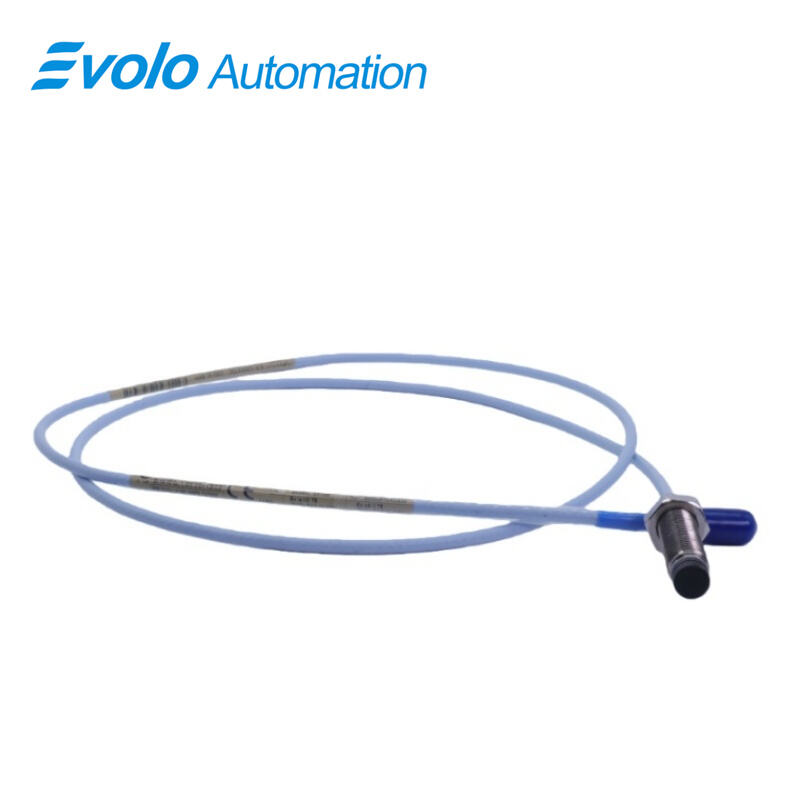

330101-00-18-10-12-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-18-10-12-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-18-10-12-00 3300 XL 8 mm Proximity Probe delivers output voltage directly proportional to the distance between its probe tip and the target conductive surface, enabling precise measurement of both static position and dynamic vibration. With a linear range of 2 mm (80 mils) and 3/8-24 UNF threading with 0.563 in maximum thread engagement, the 330101-00-18-10-12-00 3300 XL 8 mm supports accurate positioning on fluid-film bearing machines. The probe’s miniature coaxial ClickLoc connector and FluidLoc cable provide secure connections with 330 N (75 lbf) pull strength, while the extension cable capacitance of 69.9 pF/m ensures minimal signal distortion. Operating and storage temperatures range from -52°C to +177°C, making the 330101-00-18-10-12-00 3300 XL 8 mm suitable for extreme industrial environments. Supply sensitivity remains below 2 mV per volt of input change, and output resistance is 50 Ω, ensuring stable signal transmission. Designed for automation applications, the 330101-00-18-10-12-00 3300 XL 8 mm Proximity Probe supports Keyphasor reference and speed measurements, and is fully compatible with standard 3300 series probes, extension cables, and Proximitor sensors, enabling easy interchangeability and maintenance in automated vibration and position monitoring systems.

Applications

Measure Bearing Vibration and Position
The 330101-00-18-10-12-00 3300 XL 8 mm Proximity Probe provides output voltage directly proportional to the distance between the probe tip and conductive surfaces. Its 2 mm (80 mils) linear range supports precise static position and dynamic vibration measurements on fluid-film bearing machines.

Monitor Keyphasor Reference and Machine Speed
Equipped with a miniature coaxial ClickLoc connector and FluidLoc cable, the 330101-00-18-10-12-00 3300 XL 8 mm delivers reliable signals for Keyphasor reference and rotational speed measurements, enabling automated vibration monitoring in industrial systems.

Operate in Extreme Temperatures
With an operating range from -52°C to +177°C (-62°F to +350°F), the 330101-00-18-10-12-00 3300 XL 8 mm Proximity Probe performs accurately in extreme environments while maintaining output resistance at 50 Ω and minimal voltage variation (<2 mV per volt input change).

Specifications

Competitive Advantage

Secure Probe-Cable Connection
The patented TipLoc molding and CableLoc designs of the 330101-00-18-10-12-00 3300 XL 8 mm provide a 330 N (75 lbf) pull strength, ensuring a robust attachment of probe tip to cable and minimizing maintenance in automated systems.

Easy System Integration
The 330101-00-18-10-12-00 3300 XL 8 mm Proximity Probe is backward compatible with 3300 series 5 mm and 8 mm probes, extension cables, and Proximitor sensors, allowing full interchangeability without recalibration.

Prevent Fluid Leakage
Optional FluidLoc cables on the 330101-00-18-10-12-00 3300 XL 8 mm prevent oil and liquids from exiting machinery, enabling safer installation and long-term performance in lubrication-intensive equipment.

Compact Threaded Mounting
The probe’s 3/8-24 UNF thread with 0.563 in maximum engagement allows installation in tight spaces, supporting automated vibration and position measurement in constrained machine housings.
