330101-00-13-15-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-13-15-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

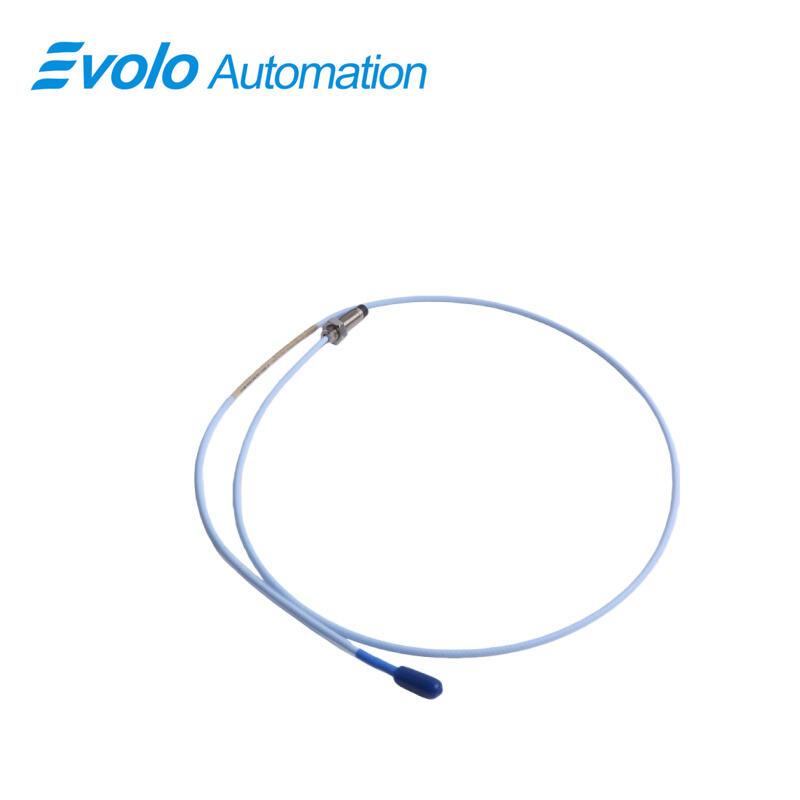

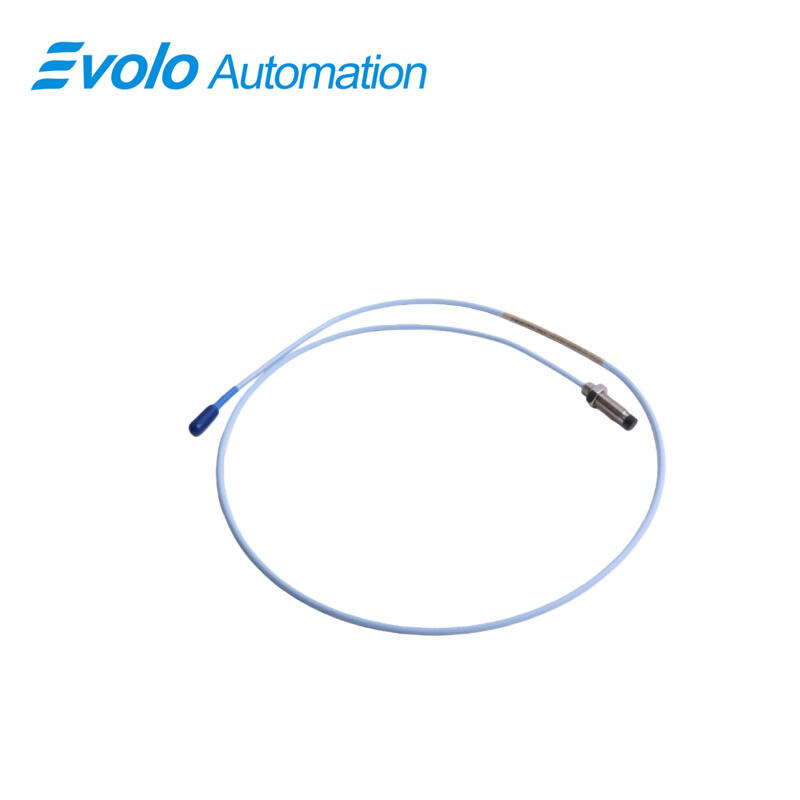

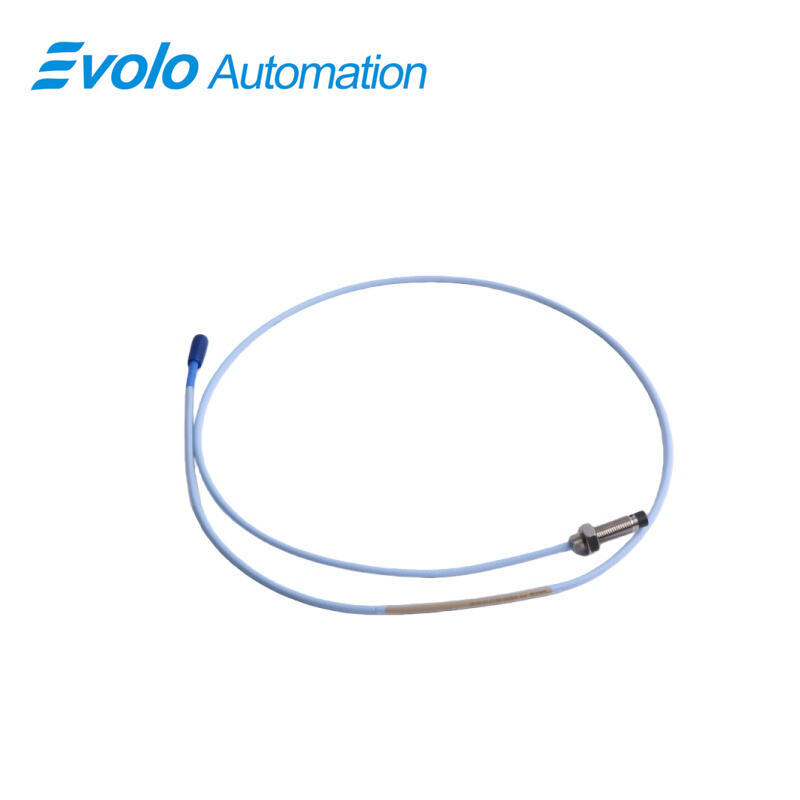

The 330101-00-13-15-02-00 3300 XL 8 mm Proximity Probes are precision non-contact eddy current sensors designed to deliver reliable and long-term machinery condition monitoring in demanding industrial environments. As an integral part of the 3300 XL transducer family, the 3300 XL 8 mm Proximity Probes accurately convert the physical gap between the probe tip and a conductive target into a stable, linear voltage signal, enabling precise measurement of shaft displacement, vibration, and dynamic movement in rotating machinery.

A defining feature of the 3300 XL 8 mm Proximity Probes is their mechanically reinforced construction, which is specifically engineered to withstand continuous vibration, thermal cycling, and mechanical stress. The patented TipLoc molding process permanently bonds the probe tip to the probe body, significantly reducing the risk of separation or loosening over time. This design improvement ensures consistent probe geometry and measurement accuracy throughout the service life of the 3300 XL 8 mm Proximity Probes, even in high-vibration applications such as turbines, compressors, and pumps.

The cable assembly of the 3300 XL 8 mm Proximity Probes further enhances reliability through the patented CableLoc retention system. With a pull strength of up to 330 N, the CableLoc design securely anchors the cable to the probe body, protecting the signal path from accidental tension, installation strain, or maintenance-related handling. For installations where fluid containment is critical, an optional FluidLoc cable configuration is available to prevent oil, coolant, or process fluids from migrating along the cable interior, preserving both sensor performance and equipment integrity.

Applications

The 330101-00-13-15-02-00 3300 XL 8 mm Proximity Probes are widely applied in rotating machinery to measure shaft displacement, radial vibration, and dynamic movement in turbines, compressors, motors, and pumps. By providing a linear voltage output proportional to the probe-to-target gap, the probes support early detection of imbalance, misalignment, and bearing wear, enabling effective predictive maintenance and machinery protection strategies.

Thanks to their compact mechanical design, including a 0 in unthreaded length and a short 1.3 in probe case, the probes are well suited for installations in confined spaces where traditional sensors cannot be accommodated. The 1.5 meter standard cable and miniature ClickLoc connector allow flexible routing and secure installation in densely packed equipment layouts without compromising signal integrity.

Designed for harsh operating conditions, the 3300 XL 8 mm Proximity Probes operate reliably across a wide temperature range from -55°C to +175°C and maintain stable performance in environments exposed to oil, vibration, and temperature extremes. Their electrical stability, low supply sensitivity, and compatibility with standard monitoring systems make them suitable for both new installations and retrofit projects across power generation, petrochemical processing, and heavy industrial facilities.

Specifications

Competitive Advantage

1.Reinforced Mechanical Design for Long-Term Reliability

The integration of patented TipLoc probe-tip bonding and CableLoc cable retention with up to 330 N pull strength provides superior resistance to vibration, mechanical stress, and cable strain. This reinforced construction significantly reduces failure risk and extends service life compared with conventional proximity probes.

2.High Measurement Stability in Harsh Environments

With a defined 2 mm linear range, low supply sensitivity, and stable electrical output, the 3300 XL 8 mm Proximity Probes deliver consistent and accurate measurement data even under fluctuating temperatures and continuous vibration. This stability supports reliable long-term trend analysis and early fault detection.

3.Compact Form Factor with Flexible Installation

The short probe case, zero unthreaded length, and lightweight structure allow installation in tight spaces without modifying existing machinery. Combined with a secure miniature ClickLoc connector and standard cable options, the probes simplify installation while maintaining dependable signal transmission.
