Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-13-10-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
1.3 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.6x1.4x112cm |
|
Weight: |
0.06kg |
Description

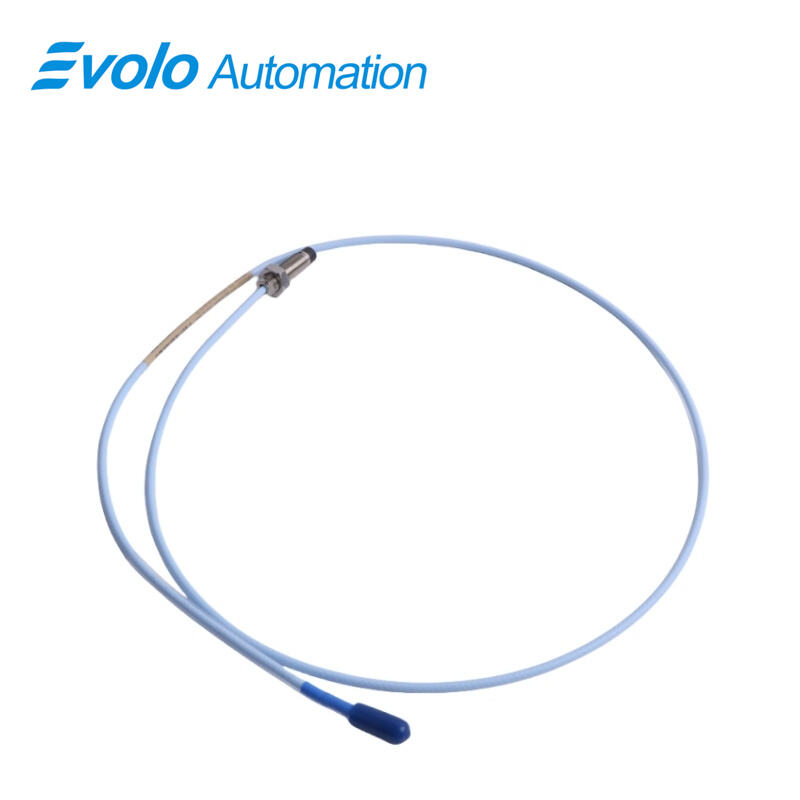

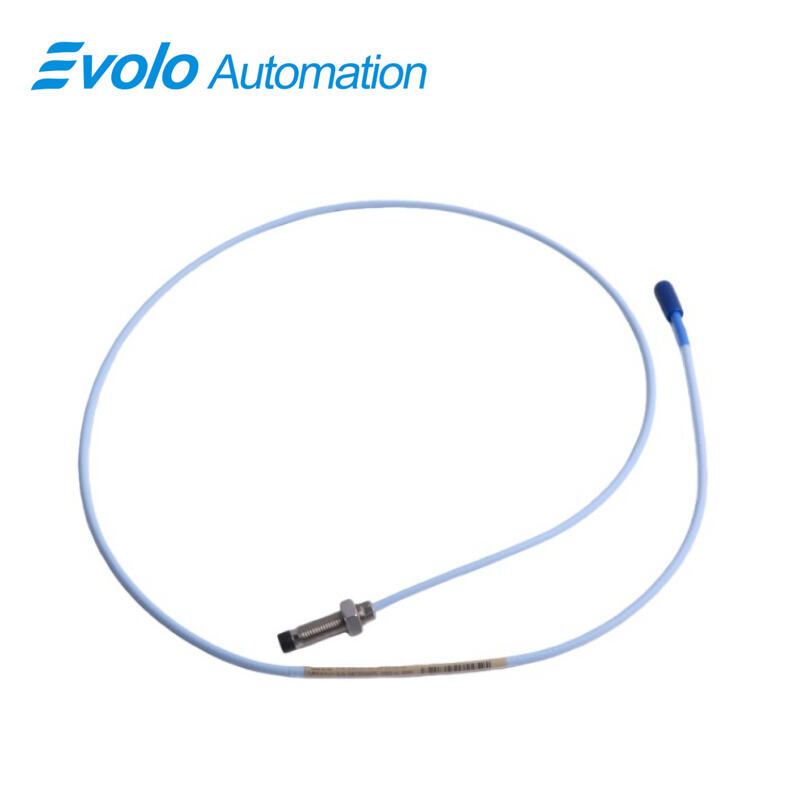

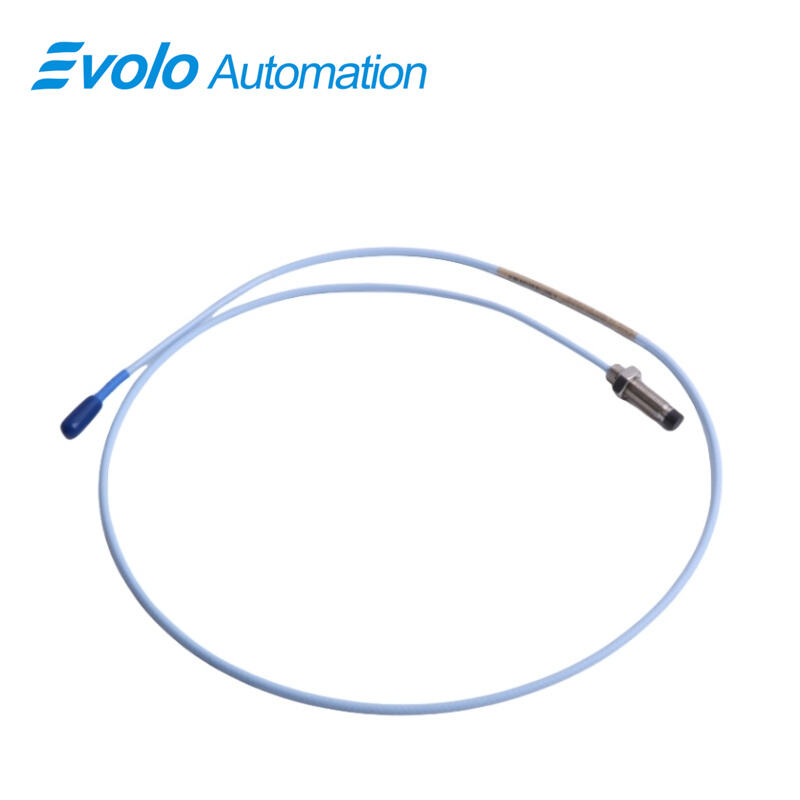

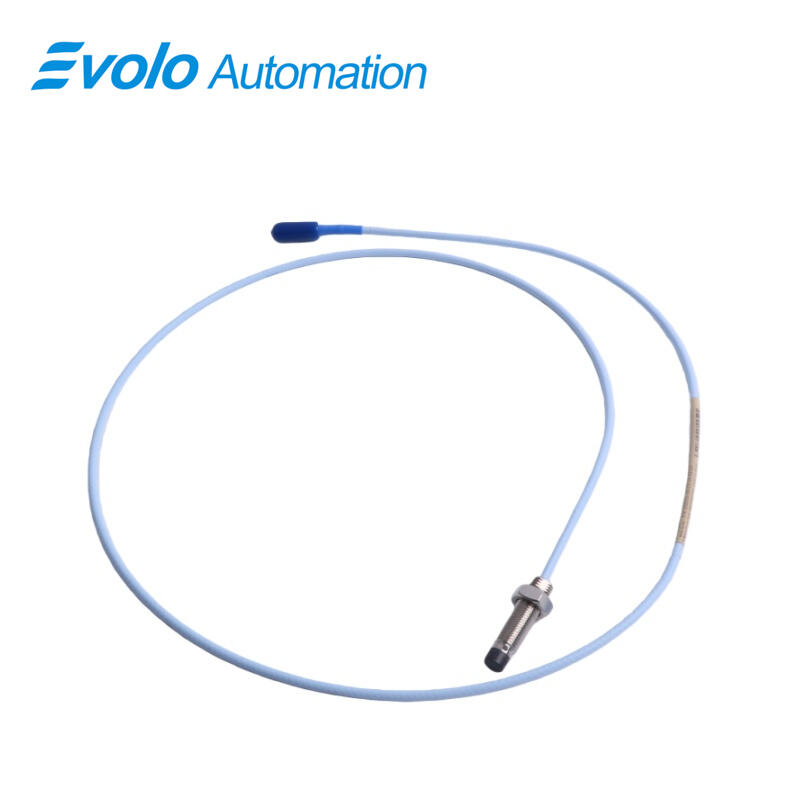

The 330101-00-13-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for advanced industrial automation applications. The 330101-00-13-10-02-05 probe provides a voltage output directly proportional to the distance between the probe tip and the measured conductive surface, enabling both static position and dynamic vibration measurements. With an overall case length of 1.3 in, a 3/8-24 UNF thread, and 1.0 meter total cable length, the 330101-00-13-10-02-05 3300 XL probe integrates seamlessly into SCADA, PLC, and DCS systems. Certified with CSA, ATEX, and IECEx approvals, it maintains high performance across extreme conditions from −52°C to +177°C, while offering supply sensitivity below 2 mV/V, output resistance of 50 Ω, and a 2 mm linear range. The 330101-00-13-10-02-05 probe ensures automated process monitoring, predictive maintenance, and precise control of rotating machinery.
Applications
Keyphasor Reference and Speed Measurement
Using the 330101-00-13-10-02-05 probe, industrial systems obtain accurate Keyphasor signals for shaft rotation speed and phase synchronization. The 1.0-meter ClickLoc cable supports seamless integration with DCS and PLC systems.
Axial and Radial Shaft Position Sensing
The 330101-00-13-10-02-05 3300 XL 8 mm probe provides real-time shaft displacement feedback using its 3/8-24 UNF threaded probe for secure mounting and repeatable measurements under extreme temperatures from −52°C to +177°C.
Integration with DCS and PLC Automation
With miniature coaxial ClickLoc connectors and extension cable capacitance of 69.9 pF/m, the 330101-00-13-10-02-05 probe can transmit stable signals for automated control, predictive maintenance, and process optimization.
Predictive Maintenance in High-Speed Machinery
The 330101-00-13-10-02-05 3300 XL probe allows early fault detection in compressors, turbines, and rotating equipment. Its supply sensitivity of <2 mV/V ensures consistent performance for automated alarms and data logging in industrial environments.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Robust Mechanical Design
Patented TipLoc molding creates a strong bond between probe tip and body, while CableLoc provides 330 N pull strength, ensuring secure connection in automated machinery.
High Reliability Across Harsh Environments
CSA, ATEX, and IECEx approvals, with operation from −52°C to +177°C, make the 330101-00-13-10-02-05 probe ideal for extreme industrial conditions.
Plug-and-Play Connector System
Miniature coaxial ClickLoc connectors with optional FluidLoc cables prevent leakage and allow rapid integration into automation systems.
API 670 Compliance
Ensures linearity, accuracy, and temperature stability, providing dependable automated monitoring and control for process-critical machinery.
