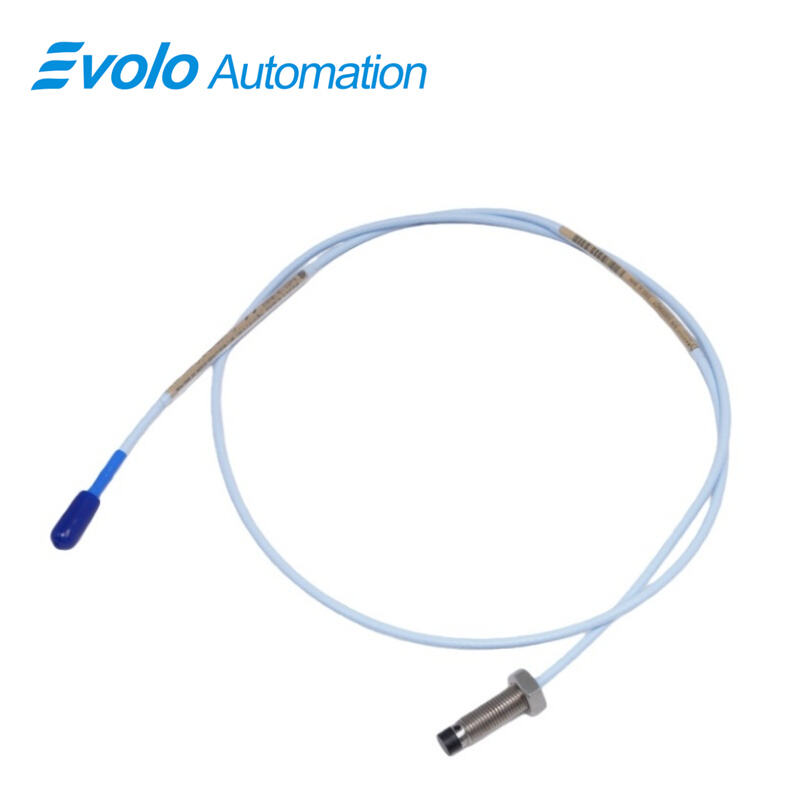

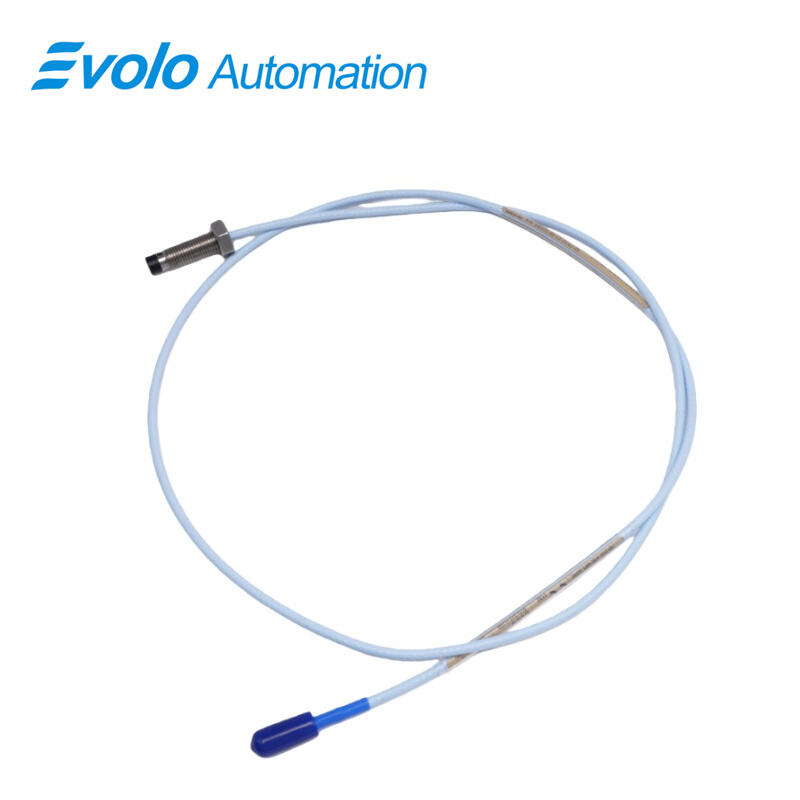

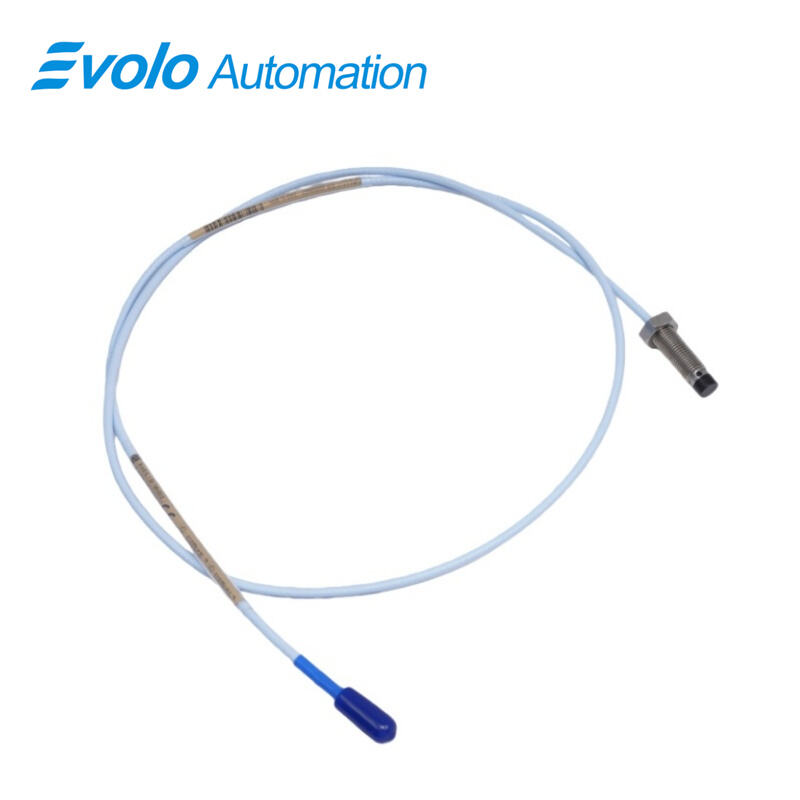

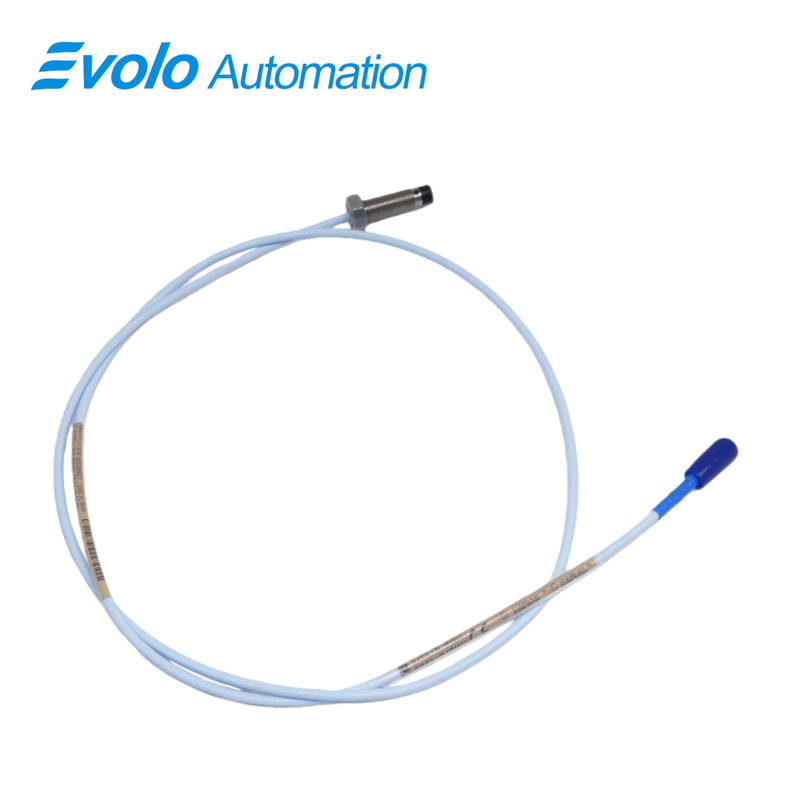

330101-00-12-05-02-02 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-12-05-02-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-12-05-02-02 3300 XL 8 mm Proximity Probe provides precise position and vibration measurement on fluid-film bearing machines. With 1.2 in case length, 0.5-meter total cable, 3/8-24 UNF probe thread, 2 mm linear range, and 50 Ω output, the 330101-00-12-05-02-02 3300 XL 8 mm Proximity Probe delivers voltage proportional to shaft displacement for automated monitoring. The miniature coaxial ClickLoc connector and standard cable enable integration into Proximitor sensors and industrial automation systems. Operating from -52°C to +177°C with less than 2 mV output variation per volt supply change, the 330101-00-12-05-02-02 3300 XL 8 mm Proximity Probe supports Keyphasor signals, speed measurements, and vibration detection. TipLoc molded probe tip and CableLoc cable with 330 N pull strength secure the probe, and optional FluidLoc cable prevents oil or liquid leakage during automated operation.

Applications

Measure Shaft Vibration on Fluid-Film Bearings
The 330101-00-12-05-02-02 3300 XL 8 mm Proximity Probe measures shaft vibration using its 2 mm linear range and 50 Ω output, feeding automated systems with real-time amplitude data to detect misalignment, imbalance, or abnormal motion in high-speed rotating machinery.

Track Shaft Position for Speed Control
The 330101-00-12-05-02-02 3300 XL 8 mm Proximity Probe provides voltage directly proportional to shaft displacement, allowing automated controllers to monitor Keyphasor signals and adjust pump or turbine speeds with precision.

Integrate with Automated Monitoring Systems
The 330101-00-12-05-02-02 3300 XL 8 mm Proximity Probe features a miniature coaxial ClickLoc connector and 0.5-meter total cable, enabling direct connection to Proximitor sensors and industrial automation controllers for continuous vibration and position monitoring.

Specifications

Competitive Advantage

High-Precision Signal Output
The 330101-00-12-05-02-02 3300 XL 8 mm Proximity Probe delivers a 2 mm linear range output with less than 2 mV variation per volt input, providing automated systems with accurate and repeatable vibration and displacement data.

Robust Probe Attachment
TipLoc molded probe tip and CableLoc cable with 330 N pull strength ensure the 330101-00-12-05-02-02 3300 XL 8 mm Proximity Probe remains securely attached during high-vibration operations, reducing installation errors in automated monitoring setups.

Wide Operating Temperature for Industrial Automation
The 330101-00-12-05-02-02 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C, enabling installation on machinery exposed to extreme temperature ranges without adjustment.

Easy Integration with Controllers and Sensors
The 330101-00-12-05-02-02 3300 XL 8 mm Proximity Probe provides 50 Ω output through ClickLoc connector and 0.5-meter cable, allowing direct connection to Proximitor sensors and automation controllers for seamless system integration.
