Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-11-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
1.1 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.6x1.3x120cm |
|
Weight: |
0.05kg |
Description

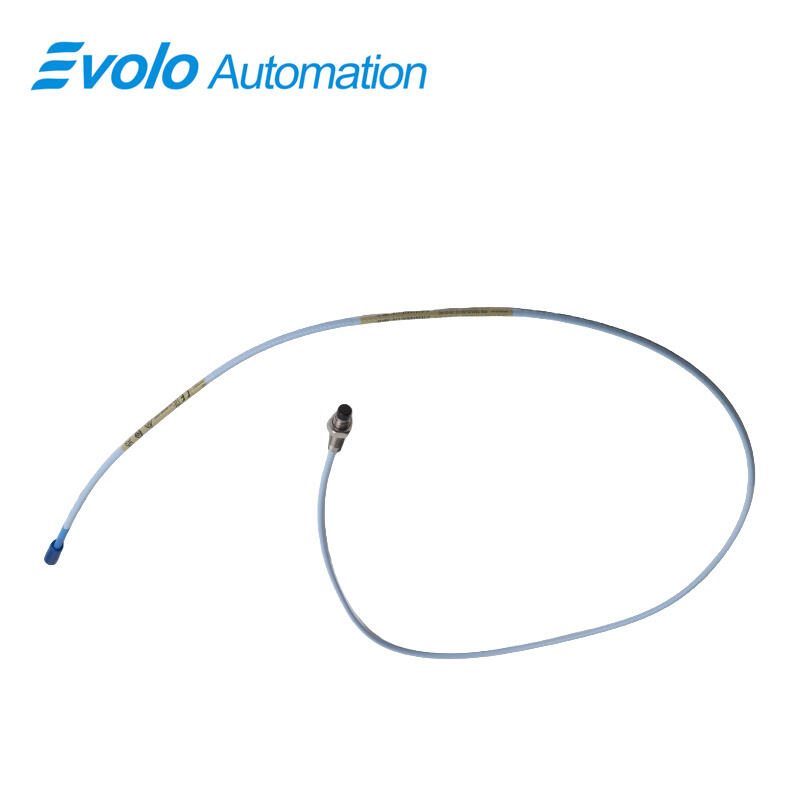

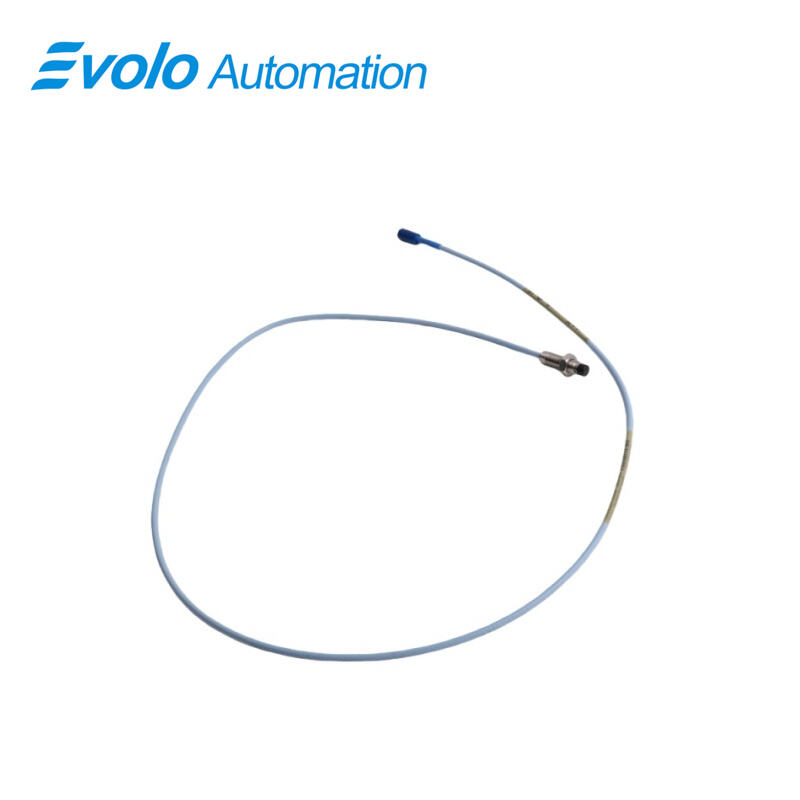

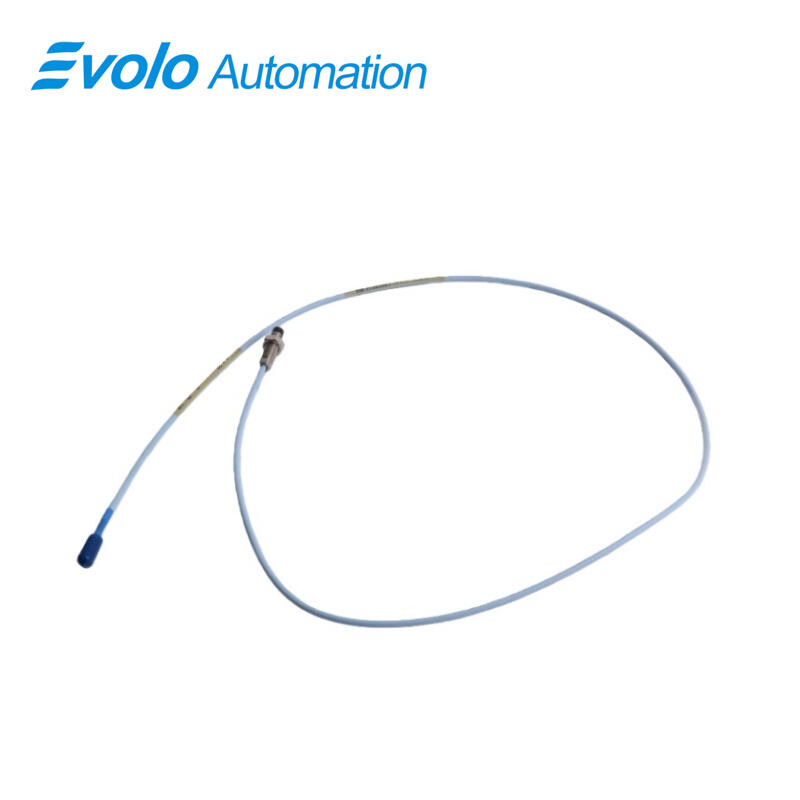

The 330101-00-11-10-02-00 3300 XL 8 mm Proximity Probe delivers an output voltage proportional to the distance between the probe tip and the measured conductive surface. The 330101-00-11-10-02-00 3300 XL 8 mm measures static position and dynamic vibration on fluid-film bearing machines with a 2 mm linear range and 50 Ω output resistance. Its operating range spans -52°C to +177°C, and the 3/8-24 UNF probe case supports precise mounting with 0.563 in thread engagement. The miniature coaxial ClickLoc connector and 1.0-meter standard cable allow easy integration into automation systems. The 330101-00-11-10-02-00 3300 XL 8 mm is compatible with 5 mm and 8 mm 3300 series components and supports Keyphasor reference and speed measurement applications while maintaining interchangeability with existing probes and extension cables.
Applications
Vibration Measurement on Fluid-Film Bearings
The 330101-00-11-10-02-00 3300 XL 8 mm measures dynamic shaft vibration with a linear range of 2 mm and output resistance of 50 Ω, enabling precise monitoring of radial vibration in fluid-film bearing machines.
Position Tracking on Rotating Shafts
Use the 330101-00-11-10-02-00 3300 XL 8 mm to measure static shaft positions with accuracy across a temperature range of -52°C to +177°C, ensuring reliable detection of shaft displacement in tight mechanical setups.
Speed and Keyphasor Reference
The 330101-00-11-10-02-00 3300 XL 8 mm outputs DC voltage proportional to the gap, supporting Keyphasor signal generation and shaft speed calculation in automated monitoring systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Direct Integration with Automation Systems
The 330101-00-11-10-02-00 3300 XL 8 mm features a miniature coaxial ClickLoc connector and 1.0-meter standard cable, simplifying installation into existing control systems without custom cabling.
Interchangeable with Existing 3300 Series Components
All 330101-00-11-10-02-00 3300 XL 8 mm probes can directly replace 5 mm and 8 mm 3300 series probes and extension cables, reducing maintenance downtime and component matching efforts.
Durable Operation in Extreme Environments
The 330101-00-11-10-02-00 3300 XL 8 mm operates from -52°C to +177°C and supports 3/8-24 UNF thread mounting, providing reliable performance in high-temperature or industrial conditions.
High Precision Output
With 2 mm linear range and output sensitivity less than 2 mV change per volt input, the 330101-00-11-10-02-00 3300 XL 8 mm delivers accurate gap measurement, enabling precise control and diagnostics of rotating equipment.
