Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-08-05-12-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
0.8 in |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x1.2x58cm |
|
Weight: |
0.04kg |
Description

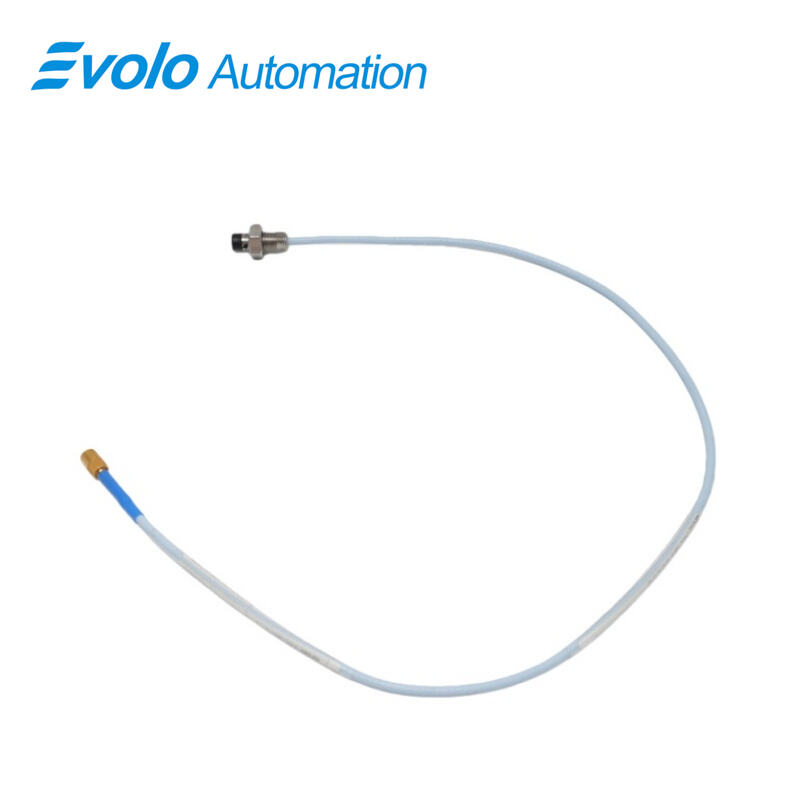

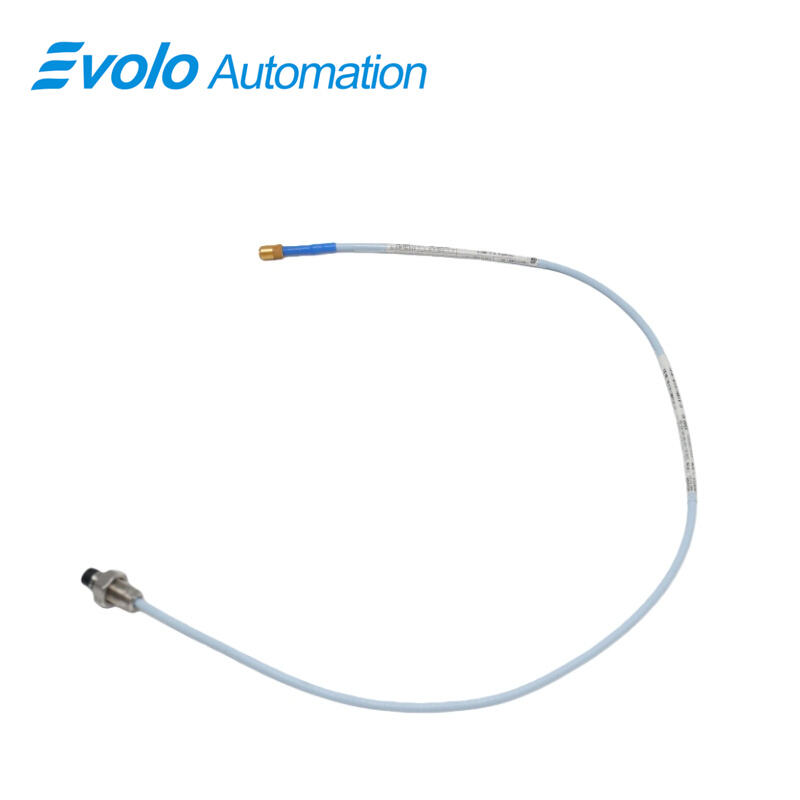

The 330101-00-08-05-12-CN 3300 XL 8 mm Proximity Probe measures both static shaft position and dynamic vibration in automated rotating machinery. The 330101-00-08-05-12-CN converts the distance between the probe tip and a conductive surface into a proportional voltage signal for real-time condition monitoring.
The 330101-00-08-05-12-CN features a compact overall case length of 0.8 in and a total cable length of 0.5 meter, ideal for restricted installation spaces. Its 3/8-24 UNF threaded case with 0.563 in maximum engagement allows secure mounting in bearing housings. With a 2 mm linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, the 330101-00-08-05-12-CN delivers precise voltage output to automation controllers. The miniature ClickLoc connector with FluidLoc cable reduces fluid migration along the cable path. Operating between -52°C and +177°C, the 330101-00-08-05-12-CN is CSA, ATEX, and IECEx approved for use in industrial and hazardous environments.
Applications
Radial Vibration Measurement on Small Shafts
The 330101-00-08-05-12-CN transfers radial vibration signals from shafts under 51 mm diameter to monitoring systems, supporting precise condition measurement in compact machinery.
Axial Position Monitoring in Tight Bearing Spaces
The 330101-00-08-05-12-CN measures axial displacement near thrust bearings. The 0.5-meter cable allows direct connection to control panels without additional adapters.
Keyphasor Reference Signal Input
The 330101-00-08-05-12-CN outputs phase reference signals for automation controllers, enabling rotational speed and zero-speed detection. Its supply sensitivity below 2 mV/V ensures repeatable measurements under power fluctuations.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Secure Mounting in Restricted Spaces
The 3/8-24 UNF threaded case with 0.563 in engagement allows the 330101-00-08-05-12-CN to be installed in compact bearing housings without adapters.
Accurate Signal Transmission to Controllers
With 50 Ω output resistance, 69.9 pF/m extension cable capacitance, and 2 mm linear range, the 330101-00-08-05-12-CN ensures precise voltage output to automation systems.
Reduced Oil Migration in Cable Path
The miniature ClickLoc connector and FluidLoc cable on the 330101-00-08-05-12-CN prevent oil and liquid from entering control systems, supporting clean signal paths.
Operation in High-Temperature Industrial Zones
The 330101-00-08-05-12-CN operates from -52°C to +177°C, allowing installation near hot bearings or compressors without extending cable distance.
Compliance with Hazardous Area Standards
CSA, ATEX, and IECEx approvals make the 330101-00-08-05-12-CN suitable for regulated process plants and industrial automation environments.
