Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
32000-16-05-08-130-03-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
3300 XL 8 mm probe |
|
Probe Cable Length: |
0.5 m (20 in) |
|
Standoff Adapter Length (Option C Dimension): |
80 mm |
|
Probe Penetration Option (Option D Dimension): |
130 mm |
|
Fittings: |
Two plugs, one M20 fitting One cable seal grip with grommets for armored probe cable |
|
Mounting Thread Option: |
3/4-14 NPT (Required if ordering Standoff Adapter Option.) |
|
Dimension: |
37x9x8cm |
|
Weight: |
1.5kg |
Description

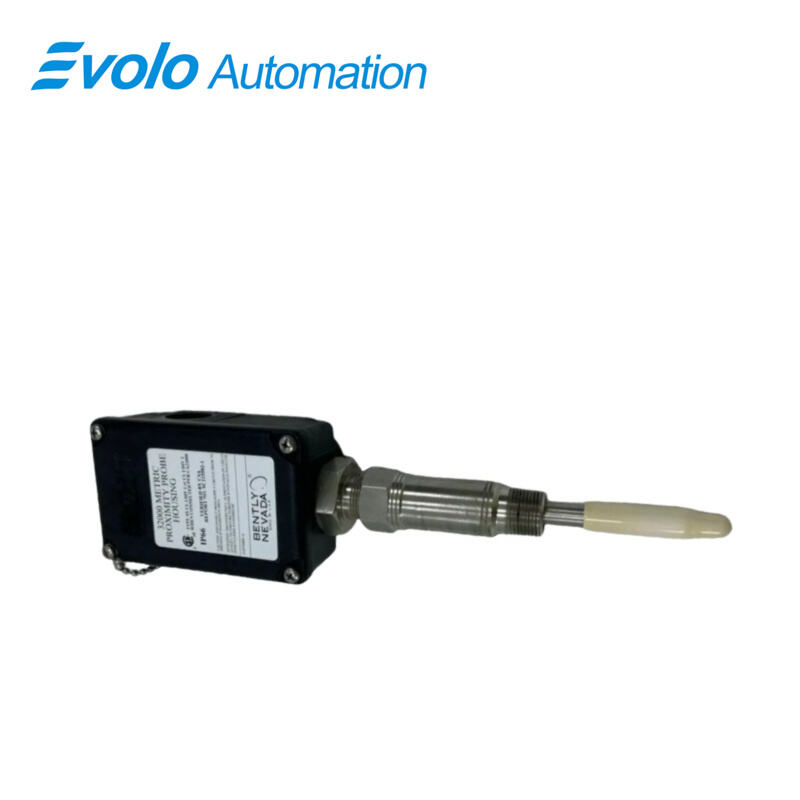

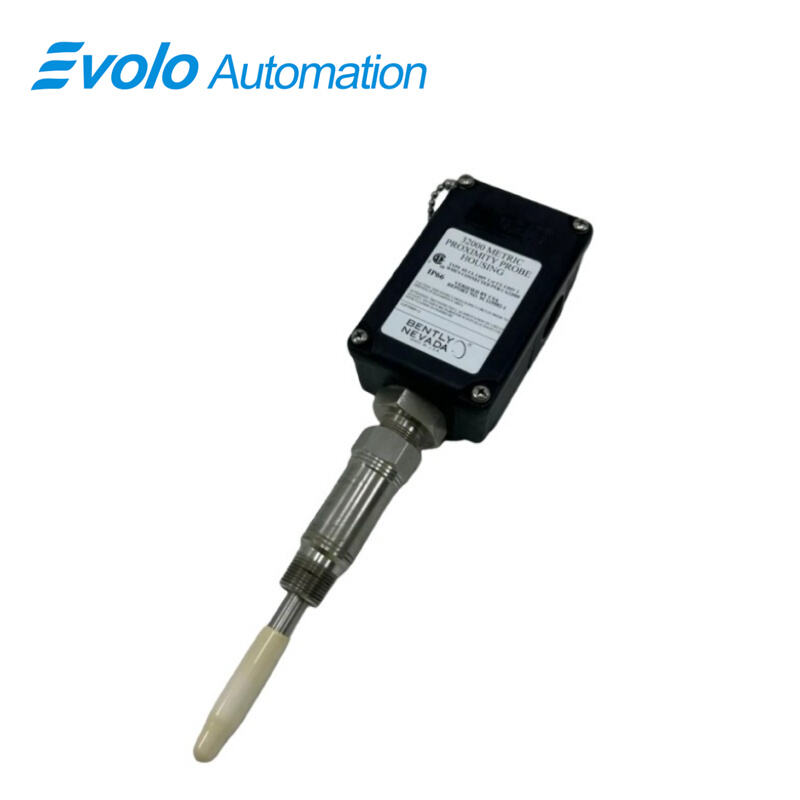

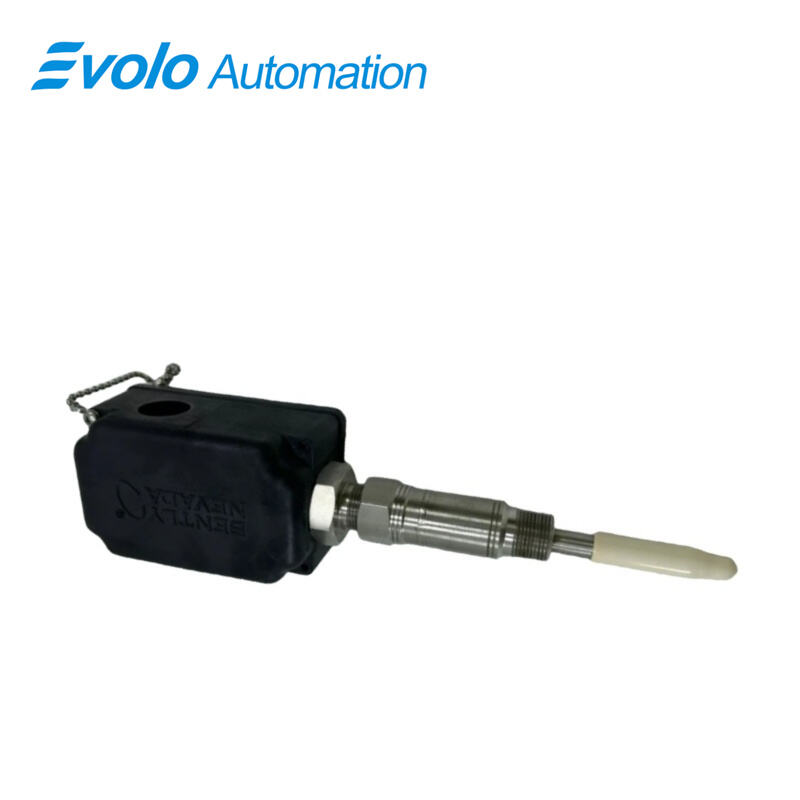

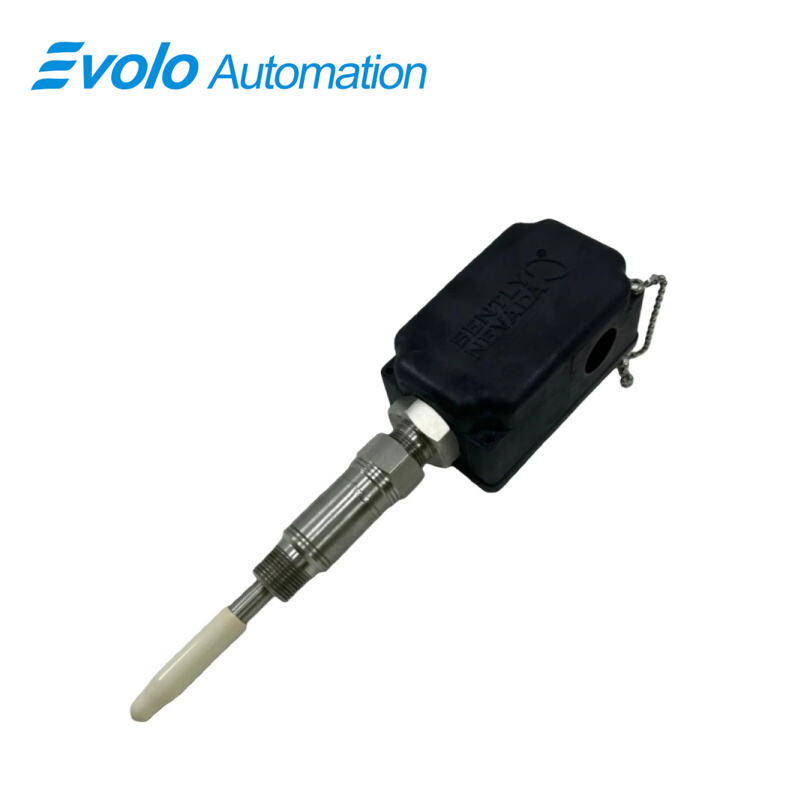

The 32000-16-05-08-130-03-02 Proximity Probe Housing Assemblies provide secure mounting for 3300 XL 8 mm probes in automated machinery. Featuring a 0.5 m probe cable, 80 mm standoff adapter, and 130 mm probe penetration, the 32000-16-05-08-130-03-02 Proximity Probe Housing Assemblies allow precise radial vibration and Keyphasor measurements. The housing uses glass-reinforced PPS thermoplastic with conductive fibers, AISI 304 stainless steel sleeve and chain, AISI 303 stainless steel screws, and neoprene O-rings. Certified Type 4X by CSA, the 32000-16-05-08-130-03-02 Proximity Probe Housing Assemblies withstand two 4 Joule impacts at -39°C and 115°C. Fittings include two plugs, one M20 fitting, and a cable seal grip for armored probe cables. The 3/4-14 NPT mounting thread ensures secure installation. These 32000-16-05-08-130-03-02 Proximity Probe Housing Assemblies allow external access for probe gap adjustment or replacement, maintaining automated monitoring while complying with API 670 standards.
Applications
Application – Mount 3300 XL Probes for Bearing Vibration Monitoring
The 32000-16-05-08-130-03-02 Proximity Probe Housing Assemblies position 3300 XL 8 mm probes over turbines and pump shafts. With 130 mm penetration and 80 mm standoff adapter, the assemblies provide precise radial distance readings, enabling automated vibration analysis based on measured probe displacement.
Application – Adjust Probe Gap Without Machine Disassembly
The 32000-16-05-08-130-03-02 Proximity Probe Housing Assemblies allow external access to 3300 XL probes and armored cables. The 0.5 m probe cable and M20 fitting enable rapid gap adjustments, supporting accurate automated monitoring without opening the machine.
Application – Capture Keyphasor Speed Signals
Use the 32000-16-05-08-130-03-02 Proximity Probe Housing Assemblies to mount 3300 XL probes for Keyphasor signal generation. The Type 4X rated housing and reinforced PPS thermoplastic maintain probe position while transmitting reliable signals for automated systems.
Specifications
|
Protection Ratings : |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material: |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain: |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws: |
AISI 303 stainless steel |
|
O-Ring Material : |
Neoprene |
|
Recommended Torque(retaining nut) : |
29.4 N·m (260 in·lb) |
|
Housing Strength (typical): |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength: |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Competitive Advantage
Competitive Advantage – Protect Probes in Extreme Temperatures
The 32000-16-05-08-130-03-02 Proximity Probe Housing Assemblies withstand two 4 Joule impacts at -39°C and 115°C, ensuring 3300 XL probes maintain accurate readings in automated machinery exposed to high or low temperatures.
Competitive Advantage – Prevent Fluid Entry
The 32000-16-05-08-130-03-02 Proximity Probe Housing Assemblies use a cable seal grip with grommets for armored cables, blocking oil or liquid ingress while allowing automated probe monitoring.
Competitive Advantage – Quick Probe Replacement
The 32000-16-05-08-130-03-02 Proximity Probe Housing Assemblies enable 3300 XL probe removal and replacement through external access. The 0.5 m probe cable and standoff adapter reduce maintenance time in automated systems.
Competitive Advantage – High-Strength Construction for Accurate Positioning
The 32000-16-05-08-130-03-02 Proximity Probe Housing Assemblies combine glass-reinforced PPS thermoplastic, AISI 304 sleeve, and neoprene O-rings to maintain 3300 XL probe alignment under mechanical stress, ensuring automated measurements remain precise.
