Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	31000 SC115582-1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Probe Option With Connector	16 = 3300XL 8 mm probe
Probe Cable Length Option	10 = 1.0 metre (39 in)
Standoff Adapter Option	00 = No standoff adapter
Probe Penetration Option	085 = 8.5 in
Fittings Option	03 = Two plugs, one 3/4-14 NPT fitting, one 3/4-14 to 1/2-14 NPT SST reducer, cable seal grip with grommets (1/8-3/16 in, 1/4-5/16 in, 5/16-3/8 in)
Mounting Thread Option	02 = 3/4-14 NPT (required if ordering standoff adapter)
Protection Ratings	Type 4X (CSA certified), IP66 (SC115582-1e), EN50014 electrostatic dissipation rating
Housing Material	Glass-reinforced PPS thermoplastic with conductive fibers
Dimension:	28x9.2x7.5cm
Weight:	1kg

Description

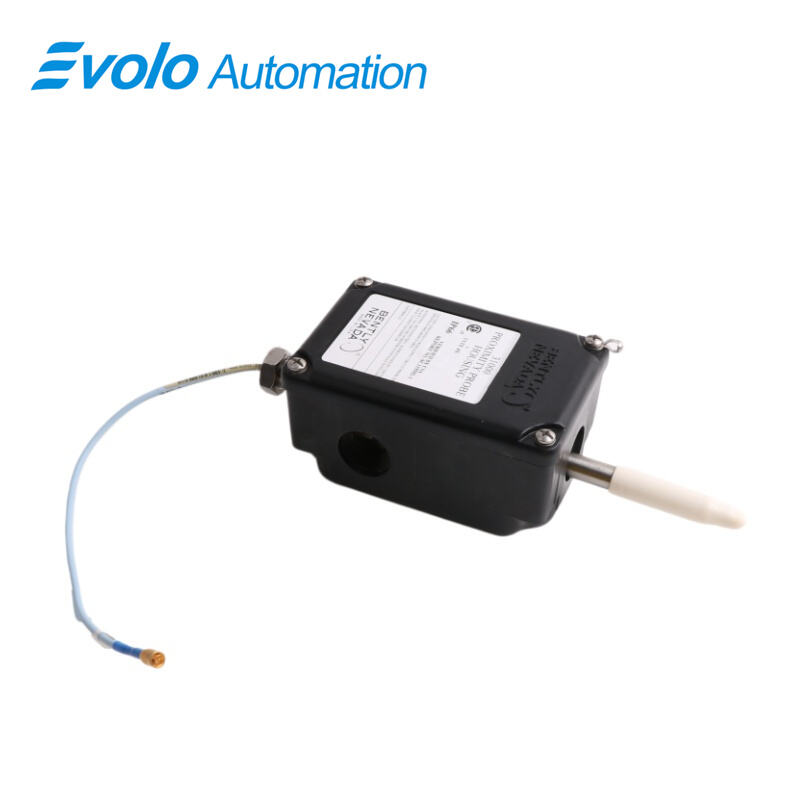

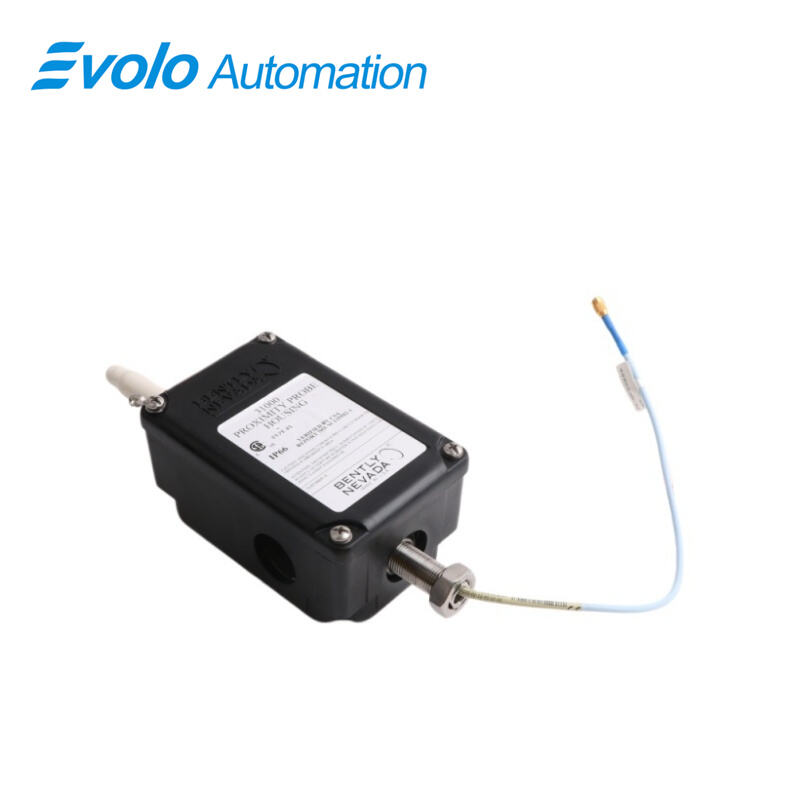

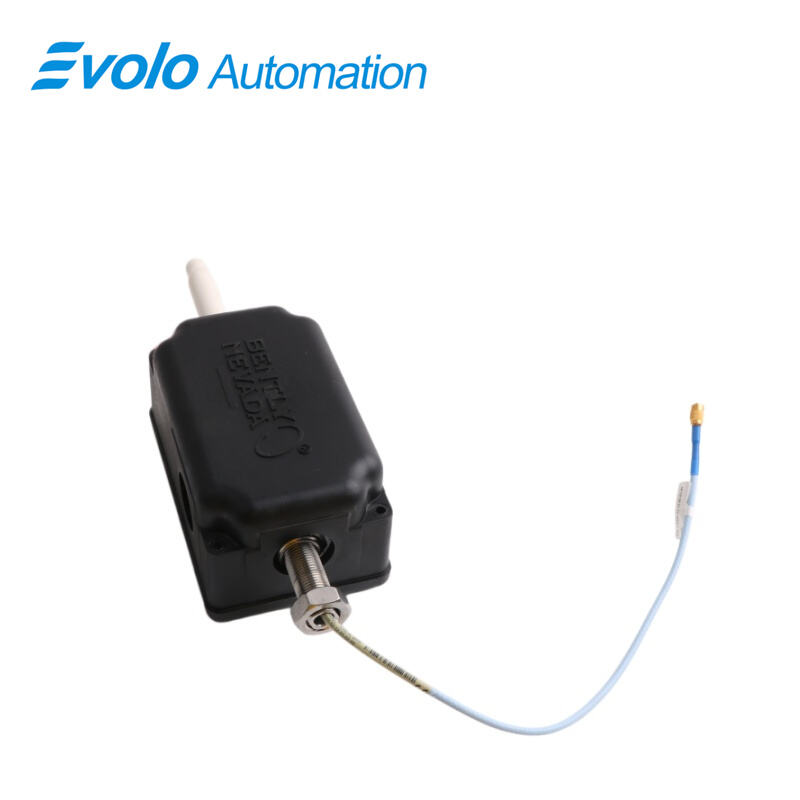

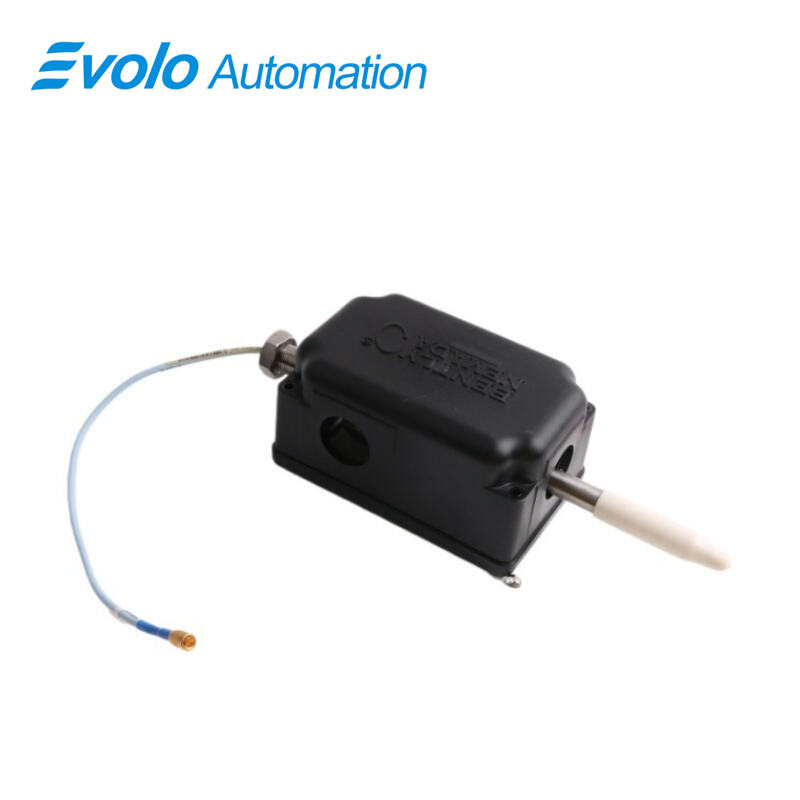

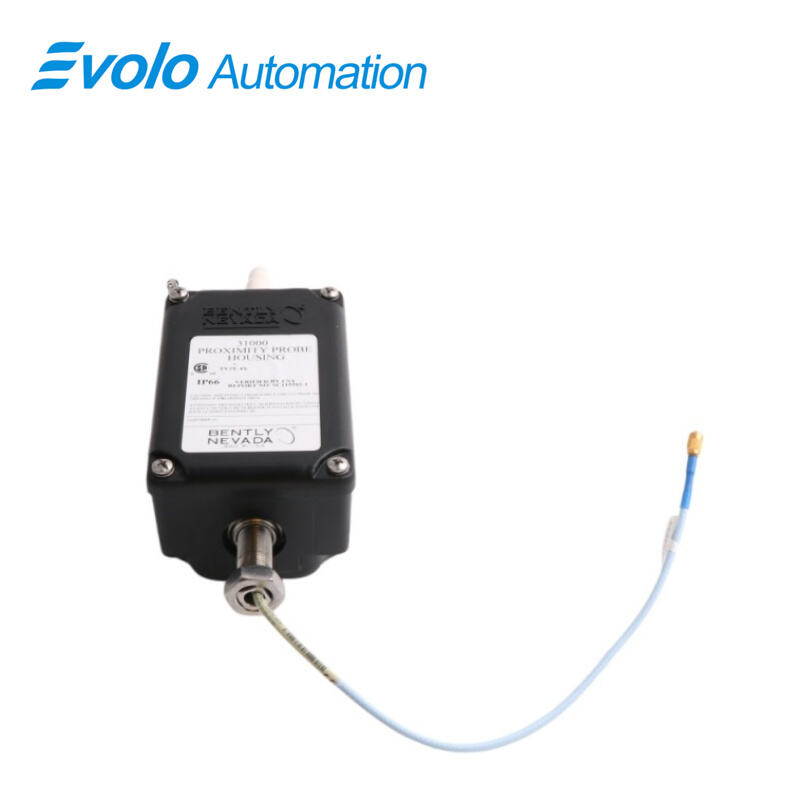

The 31000 SC115582-1 Proximity Probe Housing Assembly is designed for industrial vibration and position monitoring systems in rotating machinery. The 31000 SC115582-1 supports a 3300XL 8 mm probe with a 1.0 metre cable, enabling direct installation in turbine, compressor, and motor applications.

The 31000 SC115582-1 features a 3/4-14 NPT mounting thread and includes two plugs, one 3/4-14 NPT fitting, one 3/4-14 to 1/2-14 NPT stainless steel reducer, and a cable seal grip with multiple grommet sizes. Built with glass-reinforced PPS thermoplastic housing and AISI 304/303 stainless steel sleeve components, the 31000 SC115582-1 withstands 2 × 4 J impacts at -39°C and +115°C, and 7 J at ambient temperature.

With Type 4X and IP66 protection, the 31000 SC115582-1 operates from -51°C to +105°C, providing sealed probe routing and mechanical protection in automation cabinets and hazardous industrial areas.

Applications

Install vibration probes in turbine bearing housings
The 31000 SC115582-1 secures a 3300XL 8 mm probe inside turbine casings for continuous shaft vibration measurement and signal routing to monitoring systems.

Mount shaft position probes on large compressors
Using the 3/4-14 NPT thread and 8.5 inch penetration depth, the 31000 SC115582-1 positions probes at precise clearance points to measure axial displacement.

Seal probe cables in outdoor motor installations
With IP66 and Type 4X protection, the 31000 SC115582-1 prevents dust and water ingress in motor control centers and outdoor pump stations.

Route probe wiring through hazardous area enclosures
The conductive PPS housing and stainless steel fittings of the 31000 SC115582-1 support installation in classified industrial zones with electrostatic dissipation requirements.

Specifications

Sleeve Material and Retaining Chain	AISI 304 stainless steel
Outer Sleeve and Exterior Screws	AISI 303 stainless steel
O-Ring Material	Neoprene
Housing Impact Strength	BASEEFA certified 2 × 4 J impacts at -39°C and +115°C; CSA verified 7 J impact at ambient temperature
Temperature Rating	-51°C to +105°C (-60°F to +221°F)

Competitive Advantage

Withstand high and low temperature exposure
The 31000 SC115582-1 operates from -51°C to +105°C and resists impact at extreme temperatures, supporting equipment installed in cold storage or high-heat process plants.

Provide complete fitting kit for direct installation
The 31000 SC115582-1 includes NPT fittings, reducer, plugs, and multi-size cable grommets, reducing the need for additional accessories during field mounting.

Protect probes with reinforced thermoplastic housing
The 31000 SC115582-1 uses glass-reinforced PPS and stainless steel components to guard internal probes against mechanical shock and environmental exposure.

Support certified enclosure requirements
The 31000 SC115582-1 meets Type 4X, IP66, CSA, and EN50014 electrostatic dissipation ratings for integration into industrial automation monitoring systems.
