Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
31000-16-10-00-050-03-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
3300 XL 8 mm probe |
|
Probe Cable Length: |
1.0 m (39 in) |
|
Standoff Adapter Length (Option C Dimension): |
No standoff adapter |
|
Probe Penetration Option (Option D Dimension): |
5.0 in |
|
Fittings: |
Two plugs, one 3/4-14 NPT fitting One 3/4-14 to 1/2-14 NPT SST reducer One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches |
|
Mounting Thread Option: |
3/4-14 NPT (Required if ordering Standoff Adapter Option). |
|
Dimension: |
37x9x8cm |
|
Weight: |
1.5kg |
Description

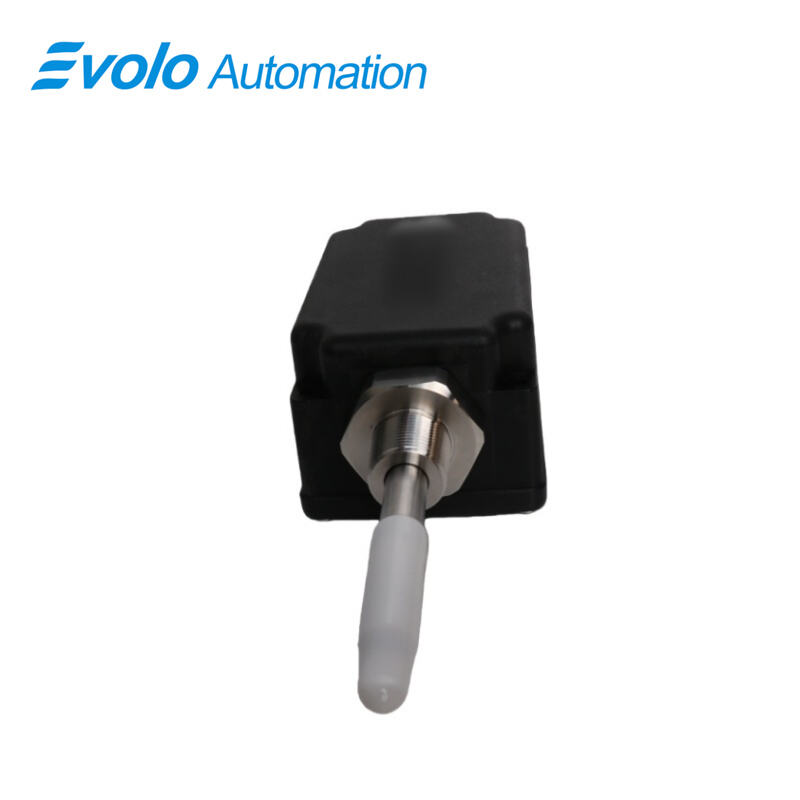

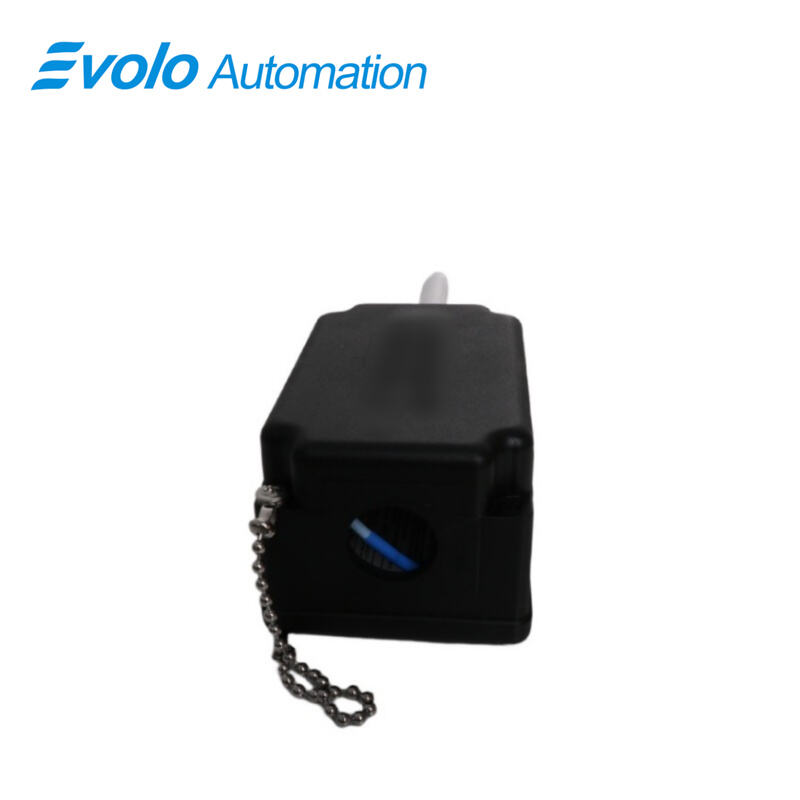

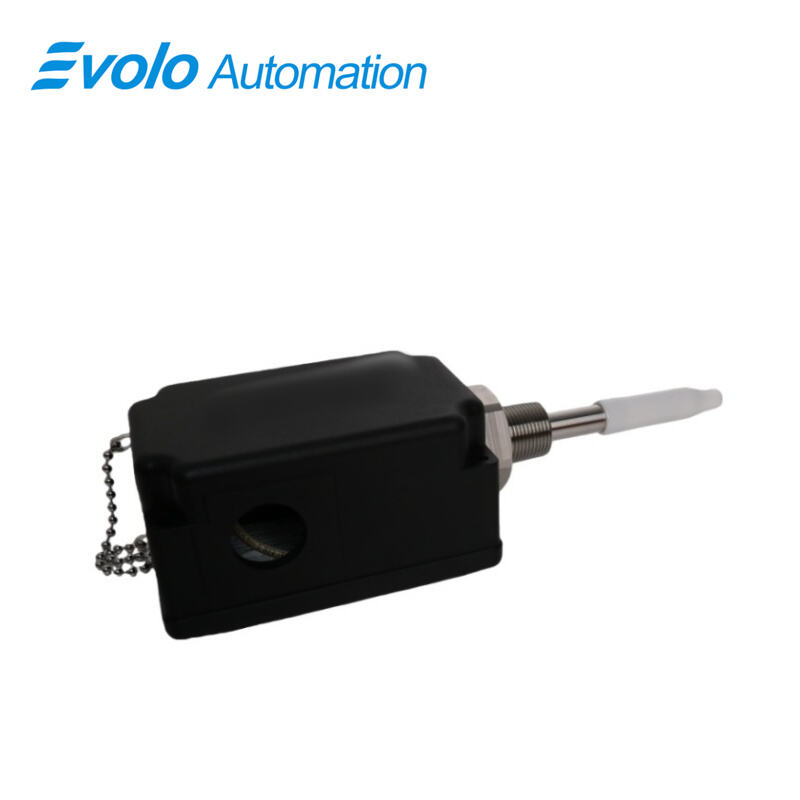

The 31000-16-10-00-050-03-02 Proximity Probe Housing Assembly is designed for safe and precise installation of proximity probes through machine casings, supporting automated vibration and Keyphasor measurements. This assembly is compatible with 3300 XL 8 mm probes and accommodates a 1.0 m (39 in) probe cable with 5.0 in penetration, allowing external gap adjustment or probe replacement without disassembling machinery. The housing features a 3/4-14 NPT mounting thread, Type 4X CSA-certified protection, and is constructed from high-strength, corrosion-resistant glass-reinforced polyphenylene sulfide (PPS) with conductive fibers. Critical components including the sleeve, retaining chain, and exterior screws are made from AISI 303/304 stainless steel, and neoprene O-rings ensure reliable sealing. The housing is rated for 29.4 N·m (260 in·lb) retaining nut torque and demonstrates impact resistance certified by BASEEFA, withstanding two 4 Joule impacts at temperatures from -39°C to 115°C (-38°F to 239°F).
The 31000-16-10-00-050-03-02 Housing Assembly ensures full compliance with API 670 standards for externally mounted probe housings and can be integrated with intrinsically safe transducer systems for hazardous area automation. This robust design simplifies maintenance, improves probe alignment accuracy, and enhances overall system reliability in demanding industrial environments.
Applications
Vibration and Position Monitoring
The 31000-16-10-00-050-03-02 Proximity Probe Housing Assembly is ideal for radially mounted transducers in fluid-film bearing machines, enabling accurate vibration and axial position measurements. When paired with 3300 XL 8 mm probes, the assembly allows precise dynamic gap adjustments and Keyphasor signal generation for automated monitoring systems.
External Machine Access
With a 1.0 m (39 in) 3300 XL 8 mm probe cable and 5.0 in probe penetration, the 31000-16-10-00-050-03-02 housing provides external access to probes and extension cables. This design simplifies maintenance and allows probe replacement or recalibration without disassembling the machine, reducing downtime in automated industrial processes.
Hazardous Area Installation
The 31000-16-10-00-050-03-02 housing is fully compliant with API 670 standards and can integrate with intrinsically safe systems when combined with approved transducers and I.S. barriers, enabling deployment in hazardous areas.
Specifications
|
Protection Ratings : |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material: |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain: |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws: |
AISI 303 stainless steel |
|
O-Ring Material : |
Neoprene |
|
Recommended Torque(retaining nut) : |
29.4 N·m (260 in·lb) |
|
Housing Strength (typical): |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength: |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Competitive Advantage
High-Strength Construction
Constructed from PPS thermoplastic with conductive fibers and AISI 303/304 stainless steel components, the 31000-16-10-00-050-03-02 housing delivers superior corrosion resistance, mechanical durability, and long-term reliability in automated industrial environments.
Impact and Temperature Resistance
Certified by BASEEFA, the 31000-16-10-00-050-03-02 housing withstands two 4 Joule impacts at -39°C to 115°C (-38°F to 239°F), ensuring consistent performance in extreme operating conditions.
Secure and Precise Installation
The assembly provides a 3/4-14 NPT mounting thread, 29.4 N·m (260 in·lb) recommended torque, and Type 4X CSA protection. Together with the 3300 XL 8 mm probe, it guarantees secure, precise positioning, minimizing signal drift and ensuring accurate automated measurements.
