Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
31000-00-00-00-000-00-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
Probe not required |
|
Probe Cable Length: |
Probe cable not required (Option A must also be 00) |
|
Standoff Adapter Length (Option C Dimension): |
No standoff adapter |
|
Probe Penetration Option (Option D Dimension): |
No probe sleeve |
|
Fittings: |
Without fittings |
|
Mounting Thread Option: |
No outer sleeve, retainer, or retaining nut |
|
Dimension: |
32.02x12x9.14cm |
|
Weight: |
1.2 kg |
Description

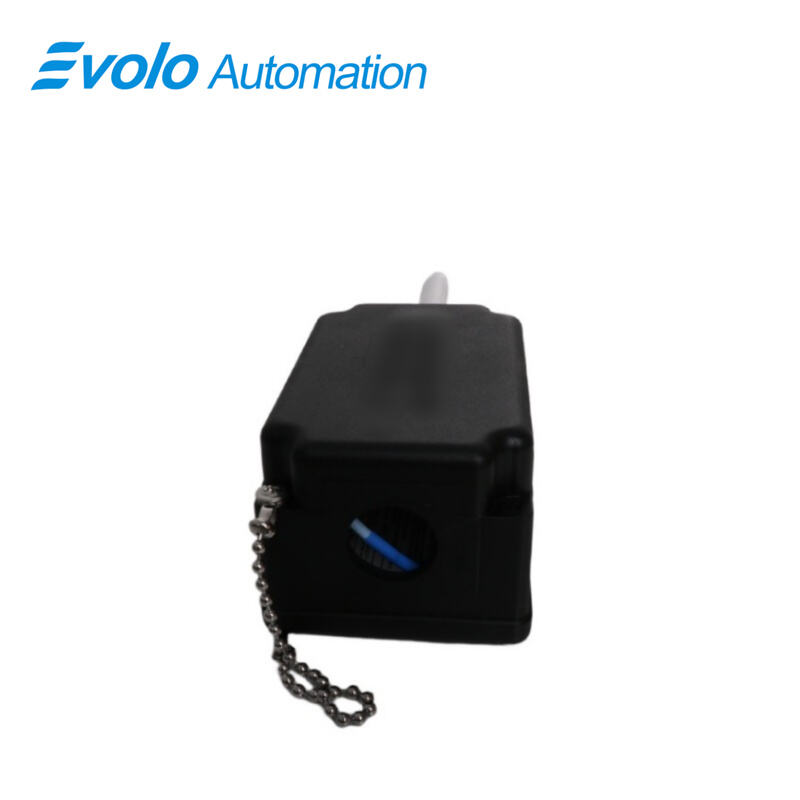

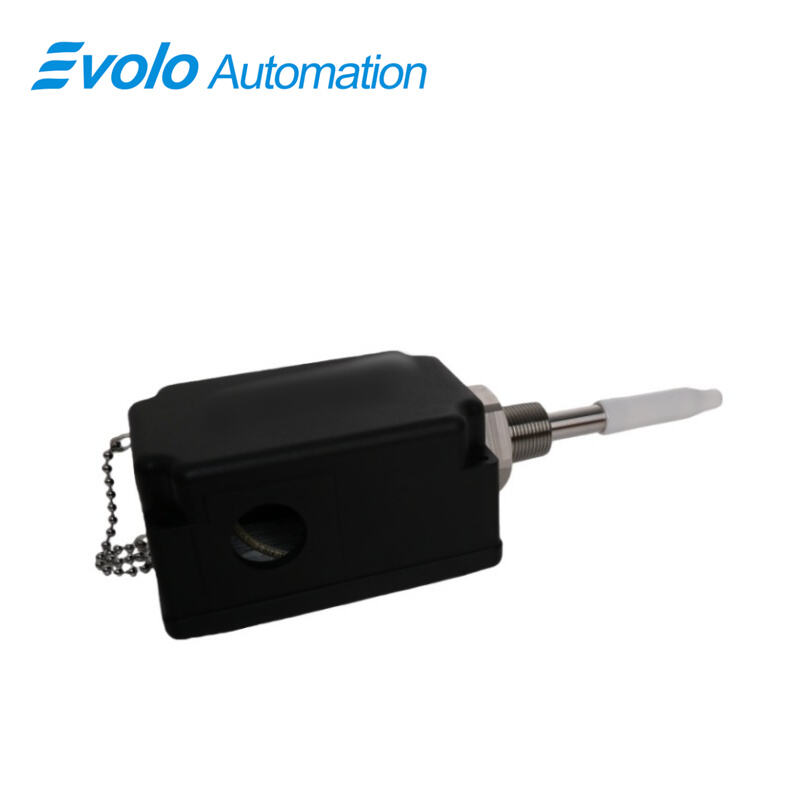

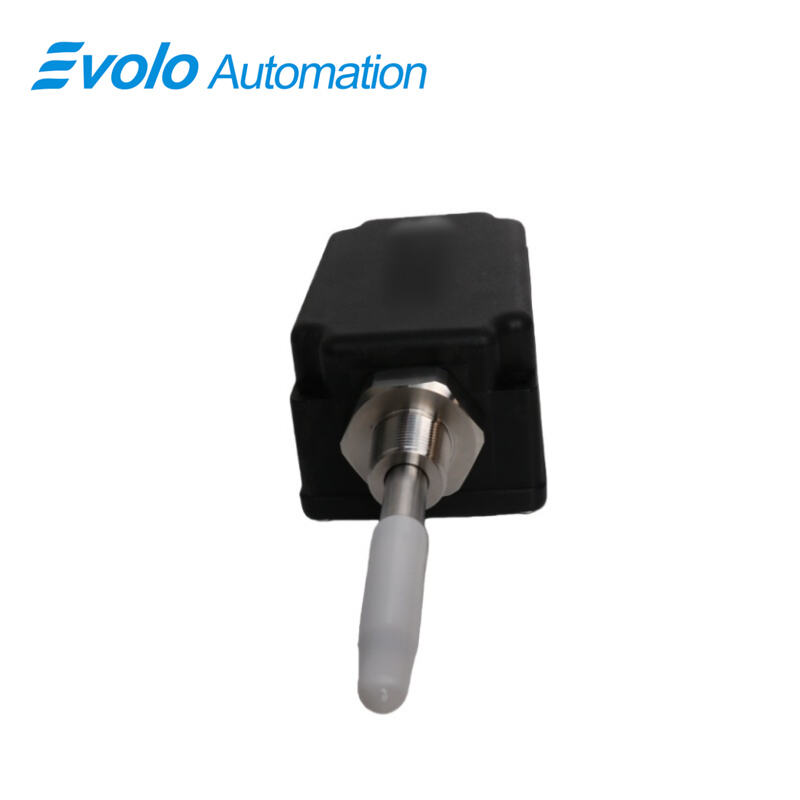

The 31000-00-00-00-000-00-00 Proximity Probe Housing Assembly is a high-strength, Type 4X certified enclosure designed for radially mounted proximity transducers used in vibration monitoring, Keyphasor measurements, and position detection in industrial machinery. Constructed from glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers, the housing combines mechanical durability, chemical resistance, and electrostatic dissipation, while the outer sleeve, retaining chain, and screws are made from corrosion-resistant stainless steel (AISI 303/304). The housing accommodates proximity probes and their extension cables, enabling external access for gap adjustments or probe replacement without disassembling the machine. The assembly has been certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at extreme temperatures (-39°C to 115°C). Its design ensures compliance with API 670 standards and allows integration with intrinsically safe systems in hazardous environments when combined with approved transducers and I.S. barriers. The housing does not require a probe or cable by default, providing a flexible platform for customized installations.
Applications
Rotating Machinery Housing Protection
The 31000-00-00-00-000-00-00 provides protective housing for proximity sensing elements in turbines, compressors, and pumps. Its reinforced PPS material with conductive fibers, stainless-steel hardware, and CSA Type 4X certification protect against moisture, dust, and chemical exposure.
Compressor and Pump Skid Installations
The 31000-00-00-00-000-00-00 supports compact installations without probe sleeves or fittings, while the 29.4 N·m retaining torque ensures secure mounting under vibration and lubricant contamination typical in skids and pump stations.
Refinery and Petrochemical Equipment
With BASEEFA-certified impact resistance to 4 Joules at -39°C and 115°C and corrosion-resistant PPS and stainless-steel construction, the 31000-00-00-00-000-00-00 is suitable for refinery and petrochemical units subject to harsh environmental and mechanical stress.
Predictive Maintenance and Condition Monitoring
The 31000-00-00-00-000-00-00 provides a stable mounting platform for displacement and vibration sensing within machinery protection and predictive maintenance systems, benefiting from Type 4X sealing, neoprene O-ring protection, and simplified mechanical integration.
Specifications
|
Protection Ratings : |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material: |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain: |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws: |
AISI 303 stainless steel |
|
O-Ring Material : |
Neoprene |
|
Recommended Torque(retaining nut) : |
29.4 N·m (260 in·lb) |
|
Housing Strength (typical): |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength: |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Competitive Advantage
Durable Housing Material
Glass-reinforced PPS thermoplastic with conductive fibers provides high-strength, chemical resistance, and electrostatic dissipation, ensuring long-term reliability.
Corrosion-Resistant Stainless Steel Components
AISI 303/304 outer sleeves, retaining chains, and screws resist corrosion, maintaining structural integrity even in wet or chemically aggressive environments.
API 670 Compliant
Meets industry standards for mechanically robust, externally mounted proximity probe housings, ensuring compatibility with approved monitoring systems.
Impact-Resistant Certification
BASEEFA-certified to withstand 4 Joule impacts at extreme temperatures, providing added reliability in environments subject to shocks or vibrations.
