24701-28-10-35-027-03-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	24701-28-10-35-027-03-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

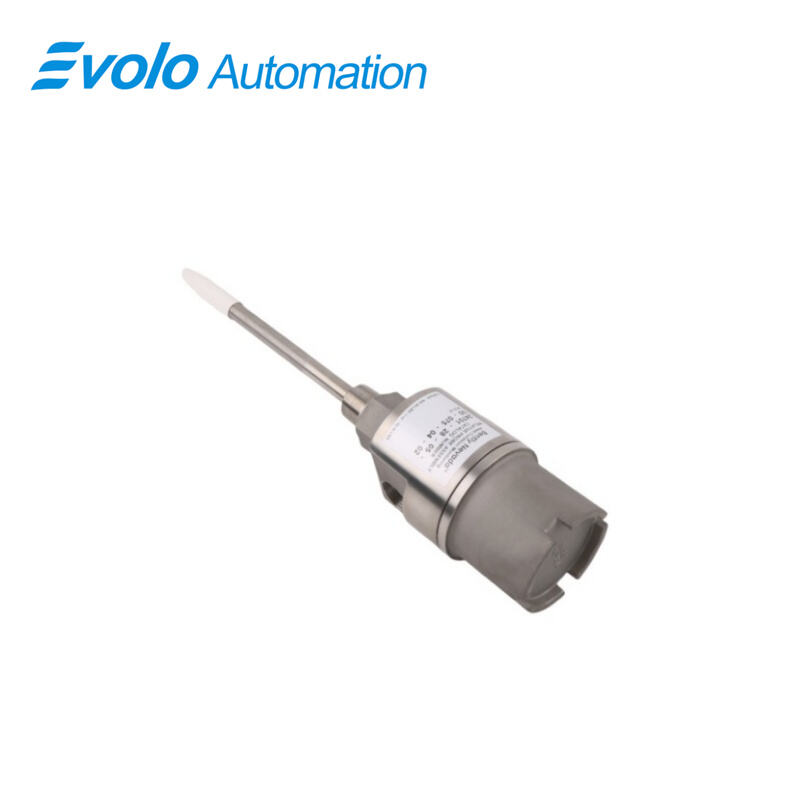

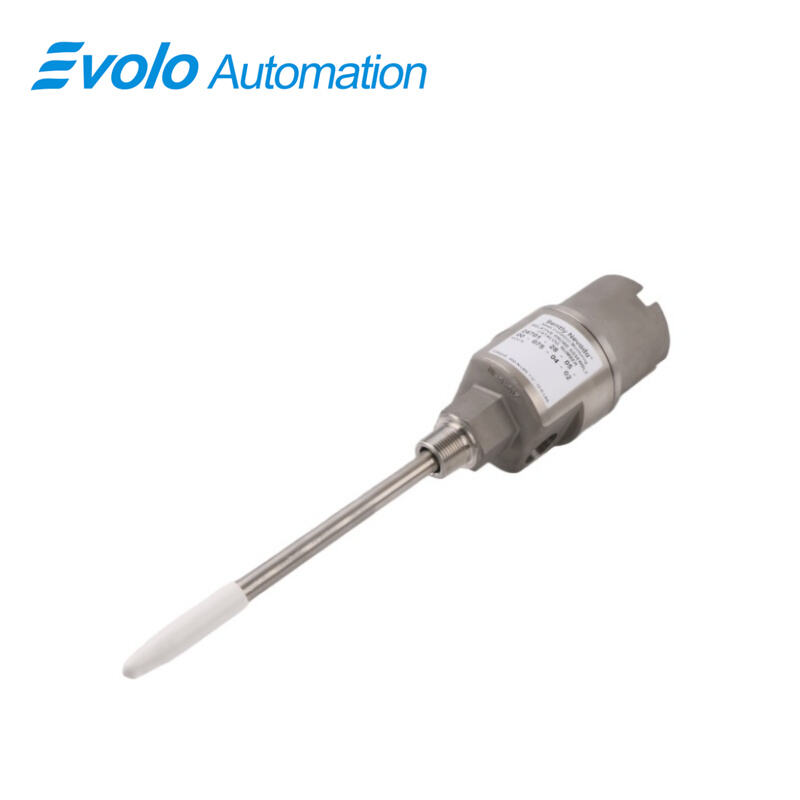

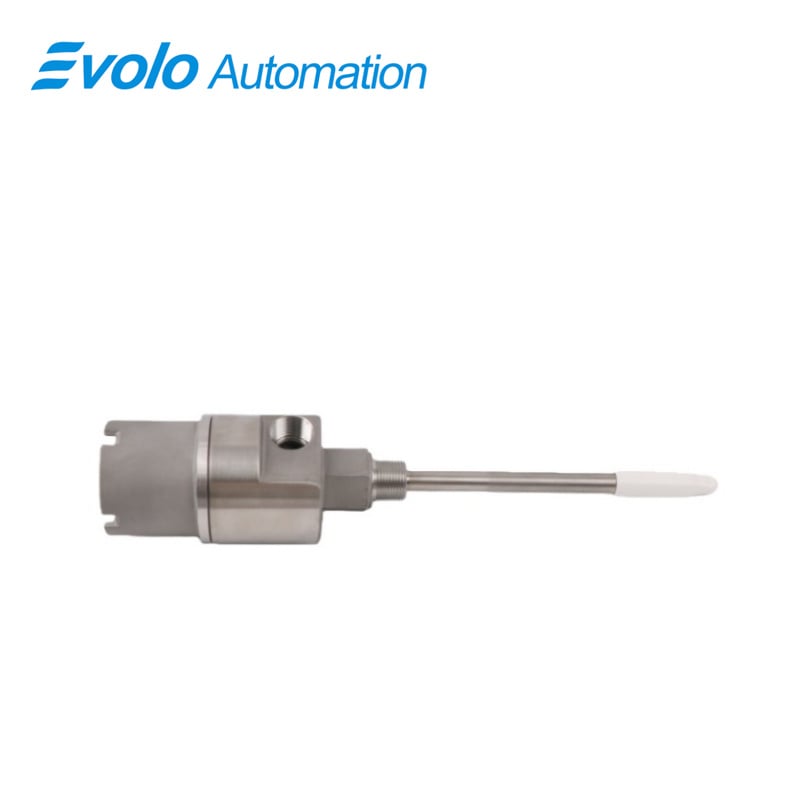

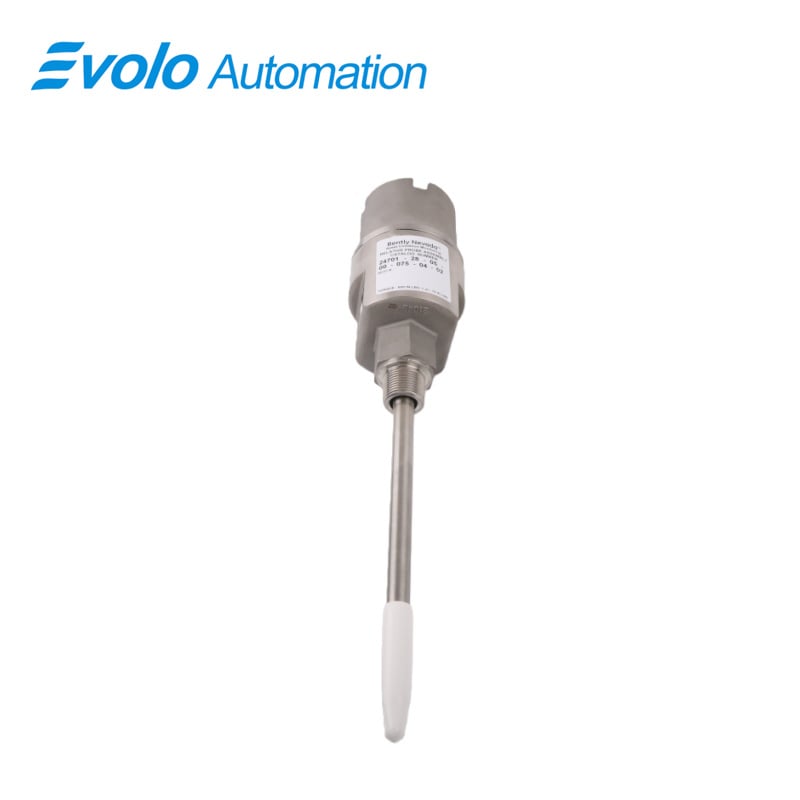

24701-28-10-35-027-03-02 Proximity Probe Housing Assemblies are designed for external mounting of 3300 XL 8 mm proximity probes in automated machinery monitoring systems. 24701-28-10-35-027-03-02 includes a 1.0 m (39 in) probe cable, a 3.5 in standoff adapter, and a 2.7 in probe penetration, enabling precise positioning for vibration and shaft position measurements.

The 24701-28-10-35-027-03-02 housing features a 3/4-14 NPT mounting thread, aluminum body, and 304 stainless steel sleeve, providing mechanical protection while allowing conduit connections via a 3/4-14 NPT plug, a 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip for 1/8 to 3/8 in cable diameters. The typical weight of 24701-28-10-35-027-03-02 is 1.1 kg without fittings.

Certified CSA Type 4 and API 670 compliant, 24701-28-10-35-027-03-02 supports hazardous area installation with explosion-proof ratings and intrinsically safe applications. The housing allows probe access and gap adjustment without disassembling the machine, while optional sleeve supports ensure accurate measurement on shafts with long unsupported sleeves.

Applications

External Shaft Vibration Measurement
24701-28-10-35-027-03-02 is used to mount 3300 XL 8 mm proximity probes externally on turbines, compressors, and pumps to measure radial vibration. The 2.7 in probe penetration and 3.5 in standoff adapter ensure correct positioning on bearing housings while maintaining automated monitoring signal accuracy.

Keyphasor Reference Signal Generation
24701-28-10-35-027-03-02 enables Keyphasor measurements for speed and phase detection. The 1.0 m probe cable and integrated conduit fittings allow direct routing to PLCs or machinery protection systems for automated rotational monitoring.

Probe Access and Gap Adjustment
Technicians can adjust the probe gap or replace the 3300 XL probe without disassembling the machine casing using 24701-28-10-35-027-03-02, reducing downtime during maintenance of automated equipment.

Installation in Hazardous Areas
24701-28-10-35-027-03-02 is CSA Type 4 rated and API 670 compliant, supporting intrinsically safe installations in explosive or high-risk environments, allowing safe automated monitoring in oil, gas, and chemical plants.

Specifications

Competitive Advantage

Mechanical Protection for Proximity Probe
The aluminum body with 304 stainless steel sleeve protects the 24701-28-10-35-027-03-02 3300 XL probe from mechanical contact and corrosion while maintaining precise probe penetration.

Flexible Conduit and Cable Installation
24701-28-10-35-027-03-02 includes a 3/4-14 NPT plug, 3/4-14 to 1/2-14 NPT reducer, and cable seal grip with grommets for 1/8 to 3/8 in cables, allowing direct integration into automated plant wiring without extra field fittings.

Support for Long Sleeve Applications
For sleeve lengths exceeding 12 in, 24701-28-10-35-027-03-02 can be used with optional probe supports or oil seals to reduce vibration effects, ensuring accurate shaft measurements in automated machinery.

Certified for Hazardous and Industrial Environments
CSA and API 670 approvals allow 24701-28-10-35-027-03-02 to operate in hazardous zones while maintaining safe and reliable automated monitoring performance.
