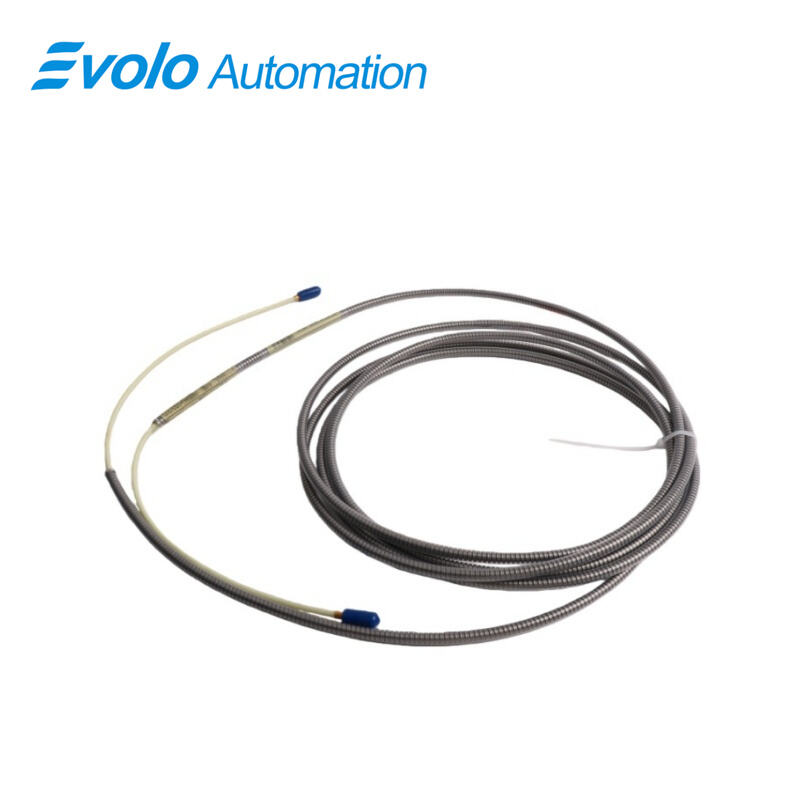

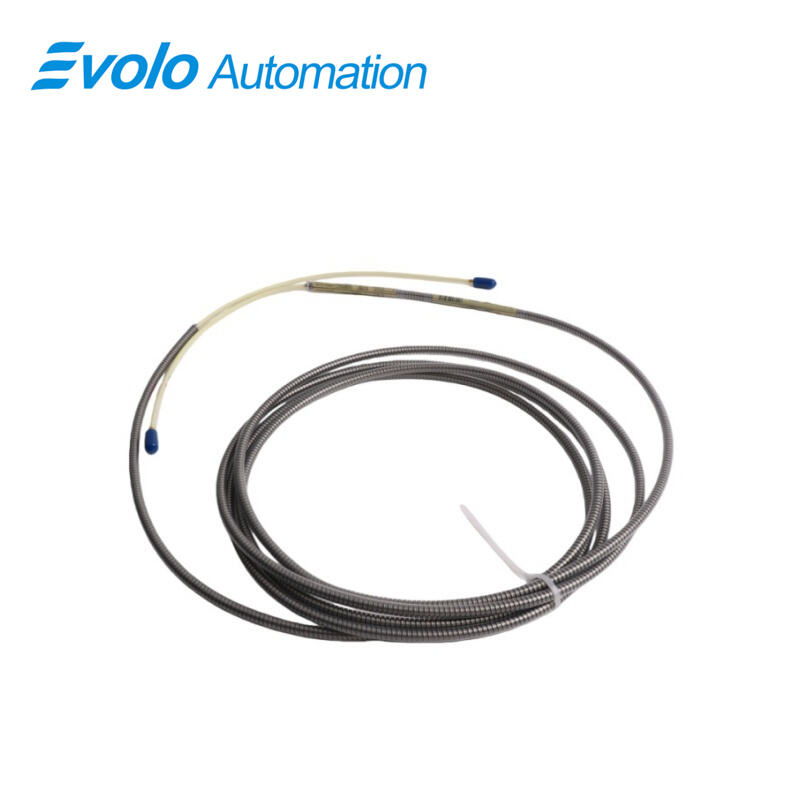

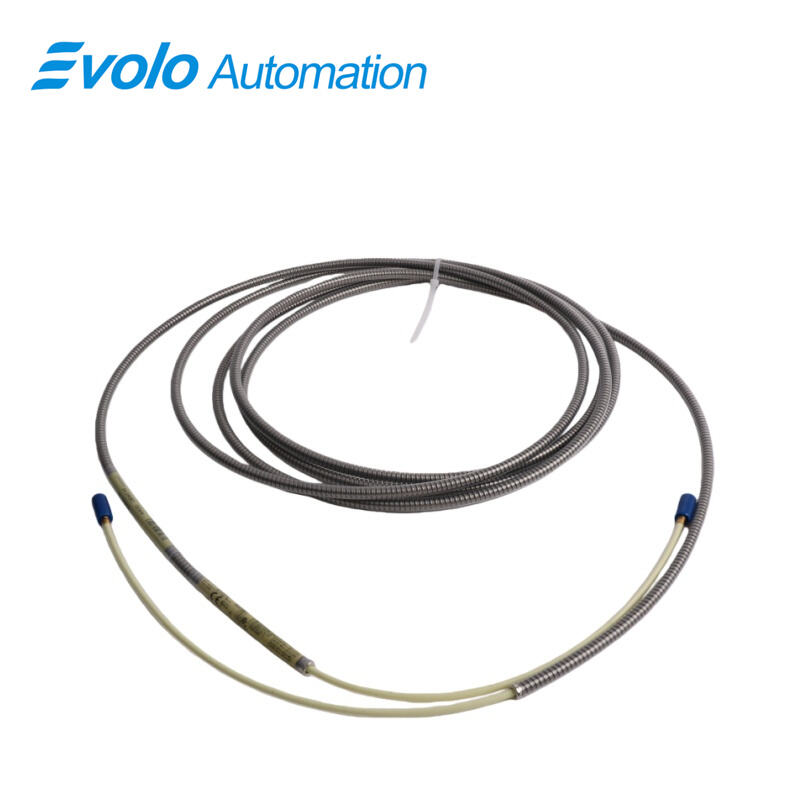

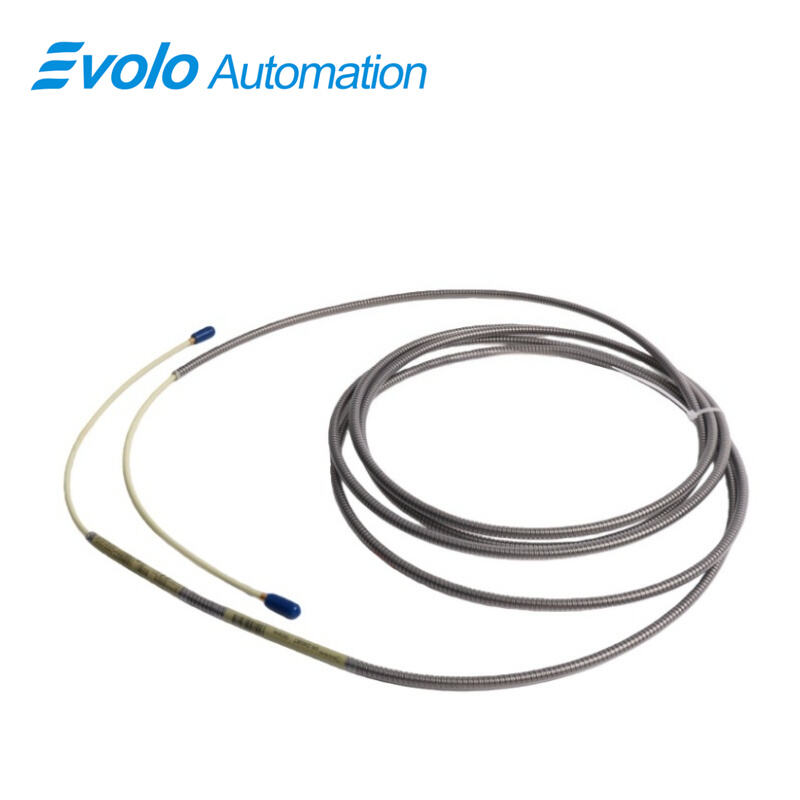

21747-045-00 Proximitor Probe Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21747-045-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

21747-045-00 is a Proximitor Probe Extension Cable manufactured by Bently Nevada and used in proximity transducer systems. The non-contacting, gap-to-voltage Bently Nevada 7200 5mm / 8mm Series Proximity Transducer Systems assess both static and dynamic distances between the probe tip and the target being viewed. Wide use in any situation where precise, non-contact displacement measurement is required. However, shaft position and vibration measurements on rotational and reciprocating machinery are the most frequent uses. They are made to work with almost any kind of machine, including gas and steam turbines, pumps, centrifuges, compressors, and electric motors and generators. The system is API 670 compliant and has a linear measuring range of 80 mils (2 millimeters).

The system length from the probe tip to the proximitor is intended to be either five or nine meters when the probe with integral lead and extension cable are combined. To match the typical extension cable lengths, probes are provided with incorporated leads in a variety of lengths. Proximitors with the same part number, as well as probes and cables of the same length, can be used interchangeably. Armor made of stainless steel is available for enhanced protection. It offers better protection against physical abuse.

Applications

Connect 21747-045-00 Cable to Extend Probe Signal Transmission
The 21747-045-00 Proximitor Probe Extension Cable links Bently Nevada 7200 Series probes to Proximitor modules, transmitting displacement signals up to 80 mils (2.0 mm) across 4.5 meters for automated vibration and shaft position monitoring.

Position 21747-045-00 Cable for Flexible Probe Installation
The 21747-045-00 cable allows 7200 Series probes to be installed at a distance from Proximitor inputs, enabling precise placement on turbines, pumps, compressors, motors, generators, and centrifuges for automated monitoring.

Support Automated Shaft Position Monitoring with 21747-045-00
The 21747-045-00 Proximitor Probe Extension Cable delivers continuous static and dynamic displacement data, feeding real-time automated control systems and triggering predictive maintenance alerts for rotating and reciprocating machinery.

Transmit High-Frequency Signals Using 21747-045-00 Cable
The 21747-045-00 cable ensures DC–10 kHz vibration and displacement signals are reliably delivered from 7200 Series probes to monitoring systems, enabling automated diagnostics and performance tracking in industrial automation.

Specifications

Competitive Advantage

Ensure Accurate Signal Transfer with 21747-045-00
The 21747-045-00 Proximitor Probe Extension Cable maintains precise DC–10 kHz signal transmission for up to 80 mils displacement, enabling automated measurement of vibration and shaft position.

Simplify Industrial Installation with 21747-045-00
With a 4.5-meter length and direct connection to 7200 Series probes and Proximitors, the 21747-045-00 cable allows fast installation without adapters, reducing setup time in automated systems.

Enable Continuous Automated Monitoring with 21747-045-00
The 21747-045-00 Proximitor Probe Extension Cable allows real-time collection of displacement and vibration data from turbines, compressors, pumps, motors, and generators, feeding predictive maintenance software.

Support API 670 Compliance Using 21747-045-00
The 21747-045-00 cable fully supports API 670 compliant 7200 Series systems, ensuring accurate non-contact displacement measurement for industrial automation applications.
