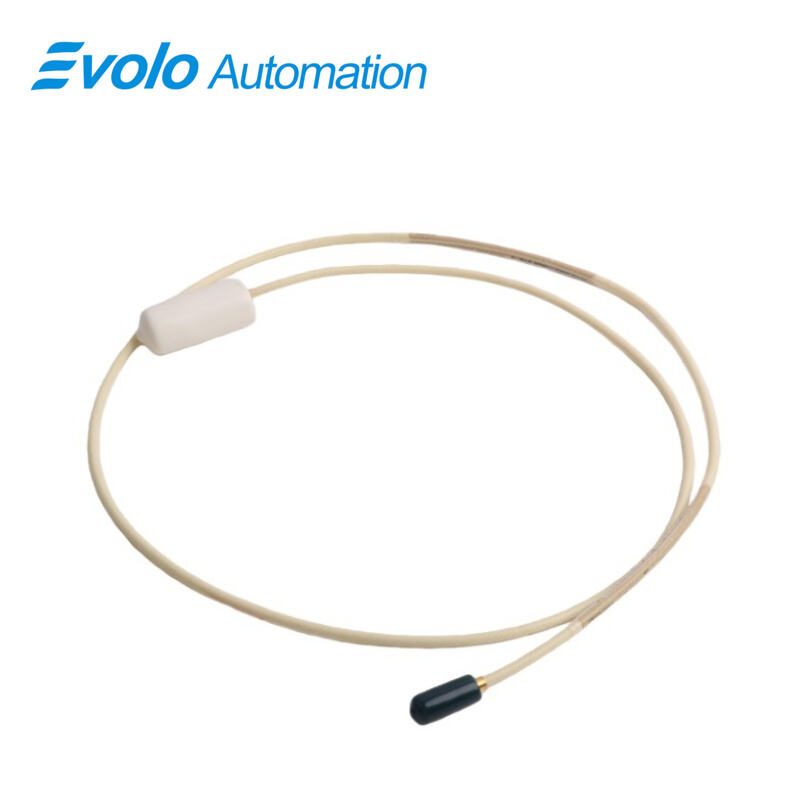

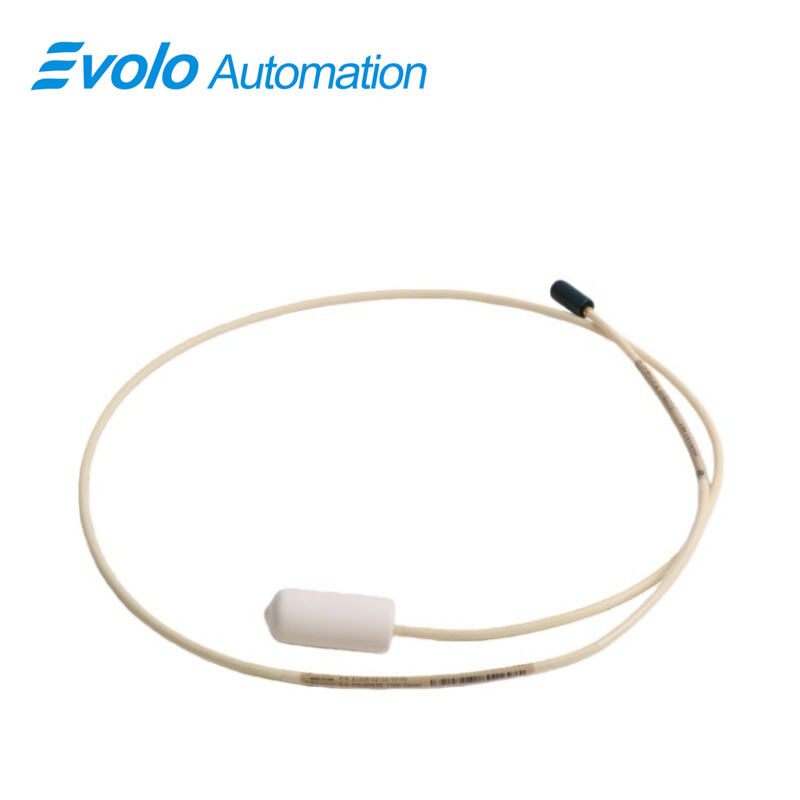

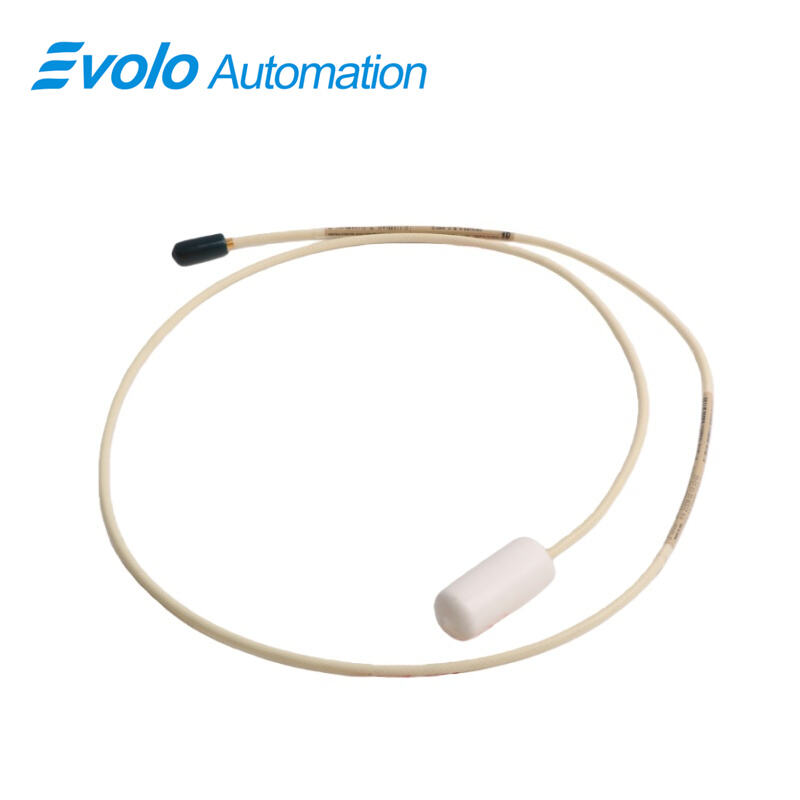

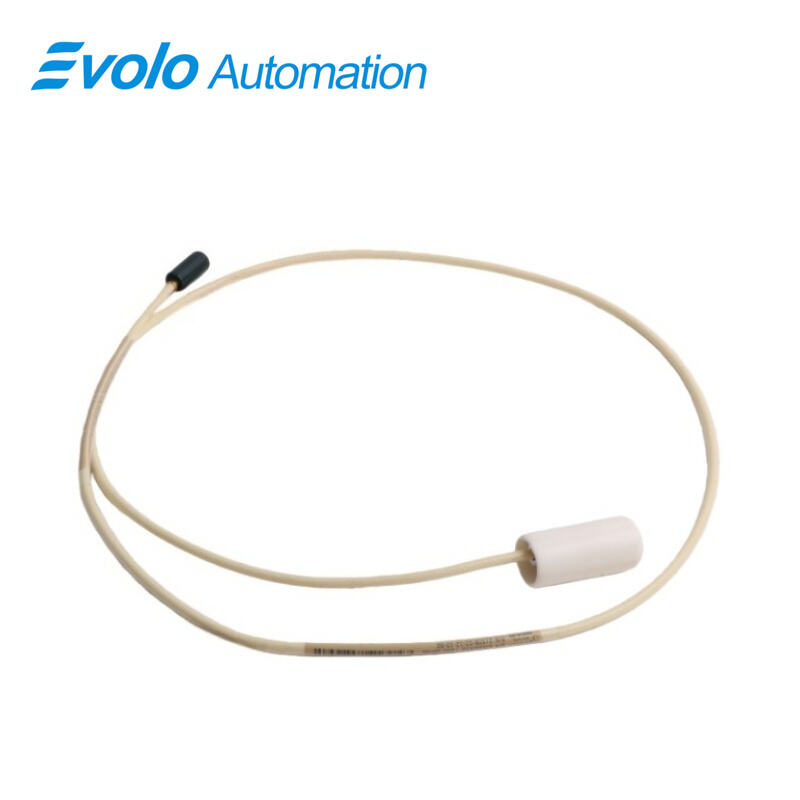

21508-02-12-50-02 Probe Proximity Vibration

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21508-02-12-50-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

21508-02-12-05-02 is a Probe Proximity Vibration developed by Bently Nevada. It is a part of the Bently Nevada 7200 5mm / 8mm Series Proximity Transducer System. The Bently Nevada 7200 5mm / 8mm Series Proximity Transducer Systems are non-contacting, gap-to-voltage transducer systems that measure static and dynamic distances between the probe tip and the observed target. The general use is any circumstance requiring an accurate, non-contact displacement measurement. However, the most prevalent application is for shaft position and vibration measurements on rotating and reciprocating machinery. They are intended for use with nearly any machine type, including gas and steam turbines, compressors, pumps, centrifuges, electric motors, and generators. The system has an 80 mil (2 mm) linear measuring range and is API 670 compliant.

Applications

Mount 21508-02-12-50-02 Probe on Rotating Shafts for Vibration Measurement
The 21508-02-12-50-02 Probe Proximity Vibration mounts directly on turbines, compressors, pumps, motors, or generators to measure static and dynamic displacement up to 80 mils (2.0 mm). Its DC–10 kHz frequency response supports automated vibration monitoring and high-speed shaft position tracking in industrial automation systems.

Connect 21508-02-12-50-02 Probe to Proximitor Inputs for Data Collection
The 21508-02-12-50-02 probe transmits 200 mV/mil signals through its 0.5 m integrated miniature coaxial cable to Proximitor or data acquisition modules, enabling real-time analysis for automated diagnostics.

Monitor Industrial Machinery with 21508-02-12-50-02 Probe
The 21508-02-12-50-02 Probe Proximity Vibration continuously records displacement and vibration data from turbines, pumps, compressors, motors, and generators, feeding automated monitoring systems for predictive maintenance.

Trigger Automated Maintenance Alerts Using 21508-02-12-50-02 Probe Data
The 21508-02-12-50-02 probe allows automated systems to detect abnormal shaft movement or vibration deviations (up to 600,000 cpm) and initiate maintenance actions before equipment failures occur.

Specifications

Competitive Advantage

Provide High-Frequency Accurate Signals with 21508-02-12-50-02 Probe
The 21508-02-12-50-02 Probe Proximity Vibration outputs precise DC–10 kHz signals with ±4% scale factor accuracy and 0.02 mm linearity, supporting automated vibration and displacement measurement for industrial machinery.

Install 21508-02-12-50-02 Probe Quickly on Shafts and Housings
With 0.5 m integrated cable, miniature coaxial connector, and reverse mount design, the 21508-02-12-50-02 probe mounts directly on turbines, compressors, pumps, motors, or generators without adapters, reducing setup time in automation systems.

Operate in Extreme Industrial Conditions with 21508-02-12-50-02 Probe
The 21508-02-12-50-02 Probe Proximity Vibration functions from -34 °C to +177 °C, resists corrosion from air, water, oils, and mild acids, and supports continuous automated shaft position and vibration monitoring on rotating and reciprocating machinery.

Integrate Seamlessly with Bently Nevada 7200 Systems
The 21508-02-12-50-02 probe connects directly to 7200 series Proximitor inputs, providing automated systems with real-time displacement and vibration data for diagnostics, predictive maintenance, and machinery performance tracking.
