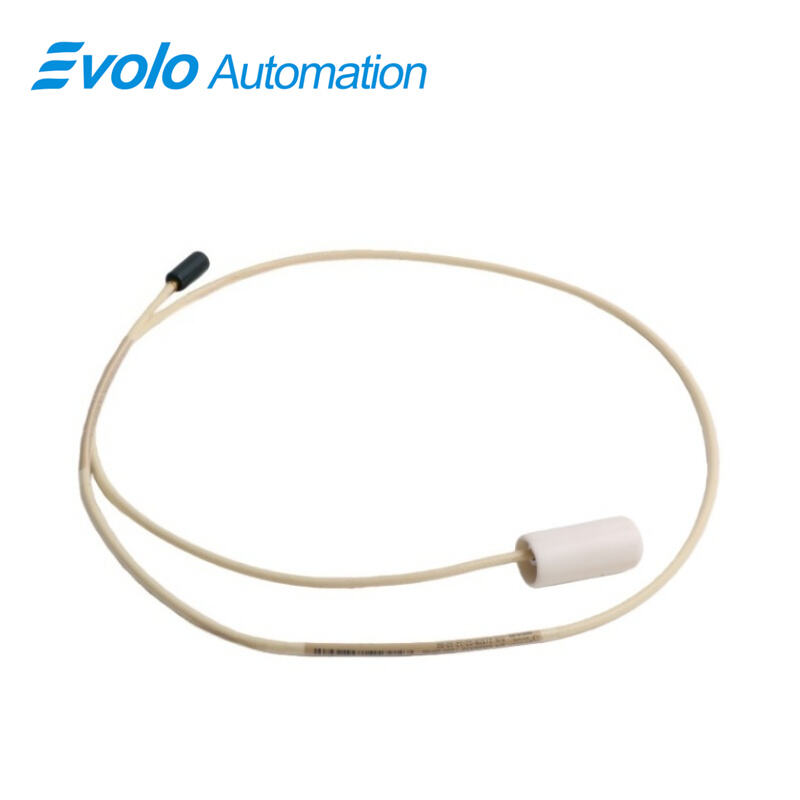

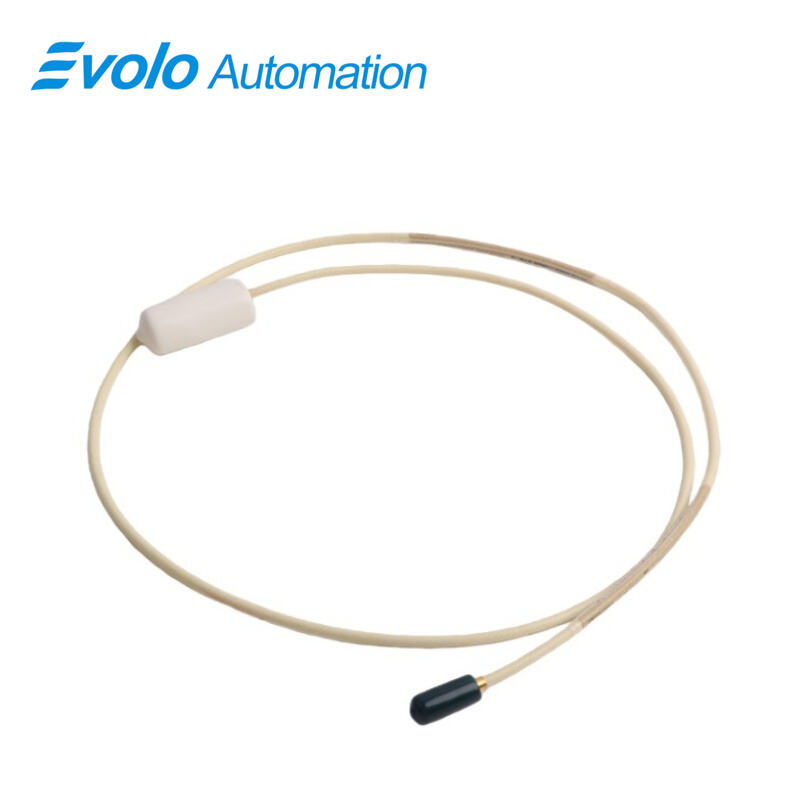

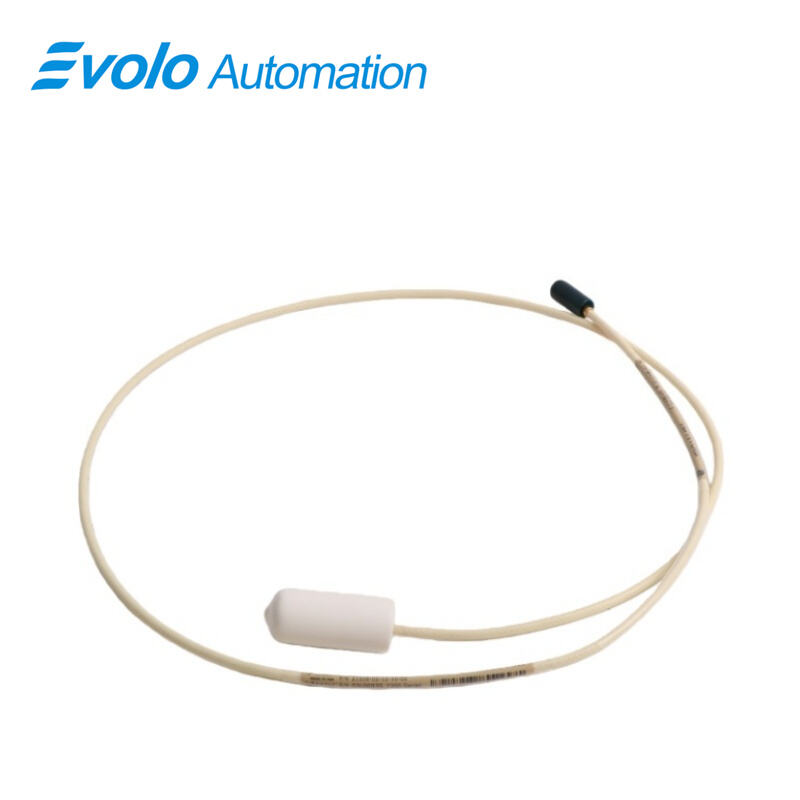

21508-02-12-10-02 3300 XL 8mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21508-02-12-10-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

21508-02-12-10-02 is a 3300 XL 8mm Proximity Probes manufactured by Bently Nevada and used in Proximity Transducer System. The Proximity Transducer System and Sensors of the 3300 XL series work with replaceable probes of different lengths, armor, and connectors made by Bently Nevada The non-contacting, gap-to-voltage Bently Nevada 7200 5mm/ 8mm Series Proximity Transducer Systems measure both static and dynamic distances between the probe tip and the target being observed. General use in any situation where precise, non-contact displacement measurement is required. Shaft position and vibration measurements on rotating and reciprocating machinery are the most frequent uses. They are made to work with almost any kind of machine, including gas and steam turbines, pumps, centrifuges, compressors, and electric motors and generators. The system is API 670 compliant and has a linear measuring range of 80 mils (2 millimeters).

Applications

Mount 21508-02-12-10-02 Probe on Rotating Shafts for Distance Measurement
The 21508-02-12-10-02 3300 XL 8mm Proximity Probe mounts directly on turbines, pumps, compressors, motors, or generators to measure static and dynamic distances up to 80 mils (2.0 mm), providing high-frequency signals (DC–10 kHz) for automated vibration monitoring.

Connect 21508-02-12-10-02 Probe to Proximitor Inputs
The 21508-02-12-10-02 3300 XL probe uses its miniature male coaxial connector to transmit distance and vibration data to Proximitor or data acquisition modules, enabling real-time analysis in automated control systems.

Monitor Industrial Machinery with 21508-02-12-10-02 Probe
The 21508-02-12-10-02 3300 XL 8mm Proximity Probe collects continuous displacement and vibration data from pumps, motors, compressors, and generators, feeding automated diagnostic software for performance tracking.

Trigger Predictive Maintenance Using 21508-02-12-10-02 Probe Data
By using the 21508-02-12-10-02 3300 XL probe measurements, automated systems can flag abnormal shaft movements or vibration levels, initiating maintenance actions before failures occur.

Specifications

Competitive Advantage

Provide High-Frequency Signal Transmission with 21508-02-12-10-02 Probe
The 21508-02-12-10-02 3300 XL 8mm Proximity Probe delivers accurate DC-to-10 kHz signals with ±4% scale factor accuracy, ensuring precise data for automated shaft position and vibration analysis.

Install 21508-02-12-10-02 Probe Quickly on Shafts
With 1.0 m probe length, 12-inch case, and miniature coaxial connector, the 21508-02-12-10-02 3300 XL probe mounts directly on machinery without adapters, simplifying setup in automated systems.

Operate in Industrial Environments with 21508-02-12-10-02 Probe
The 21508-02-12-10-02 3300 XL 8mm Proximity Probe works from -51 °C to +177 °C, suitable for turbines, pumps, compressors, motors, and generators, providing continuous automated monitoring under harsh industrial conditions.

Integrate Seamlessly with 21508-02-12-10-02 Probe in 3300 XL Systems
The 21508-02-12-10-02 3300 XL probe connects directly to 3300 XL Proximitor inputs, allowing automated control systems to capture real-time shaft position and vibration data for diagnostics and predictive maintenance.
