Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
21508-02-12-05-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Model Type: |
Reverse Mount Probe |
|
Measurement Principle: |
Non-contacting |
|
System Type: |
Gap-to-Voltage Transducer System |
|
Measured Quantities: |
Static and dynamic distances |
|
Calibrated Range: |
80 mils (2.0 mm) |
|
Measurement Start Point: |
Approximately 30 mils (0.25 mm) from probe face |
|
Scale Factor: |
200 mV/mil (7.87 V/mm) |
|
Dimension: |
1.2x1x60cm |
|
Weight: |
0.04kg |
Description

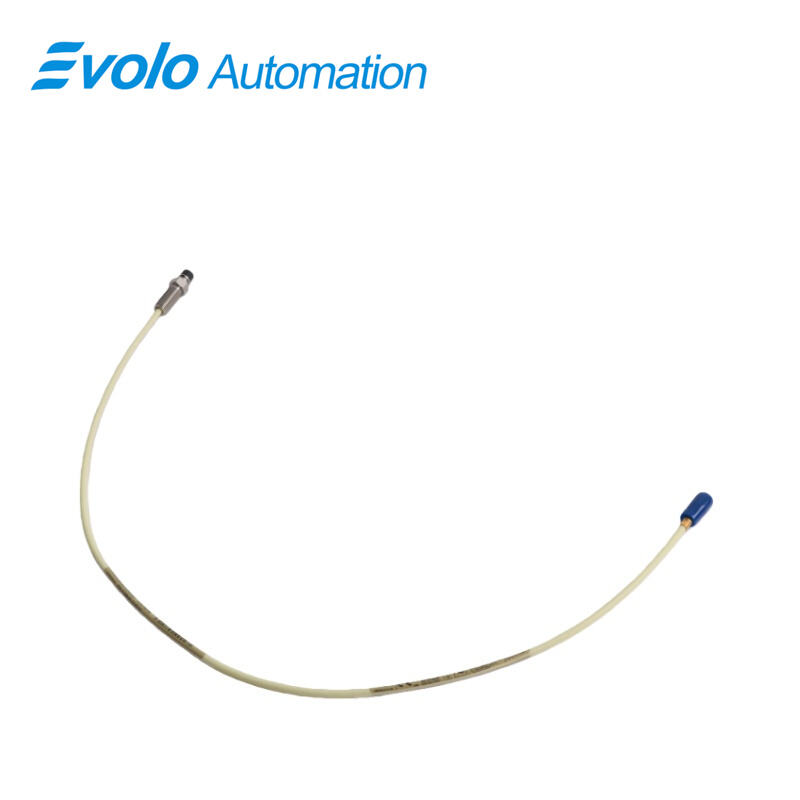

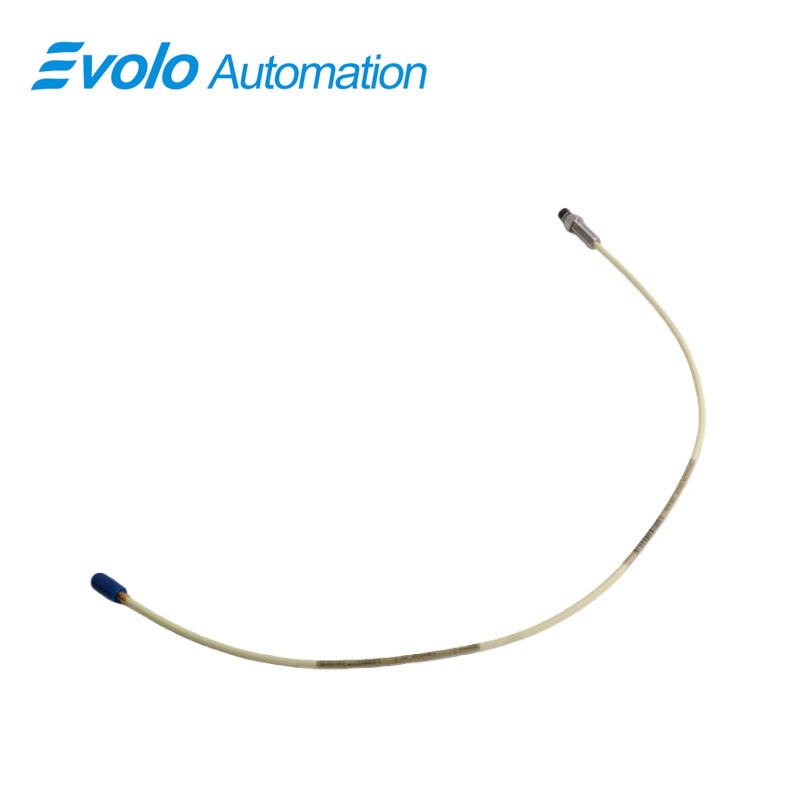

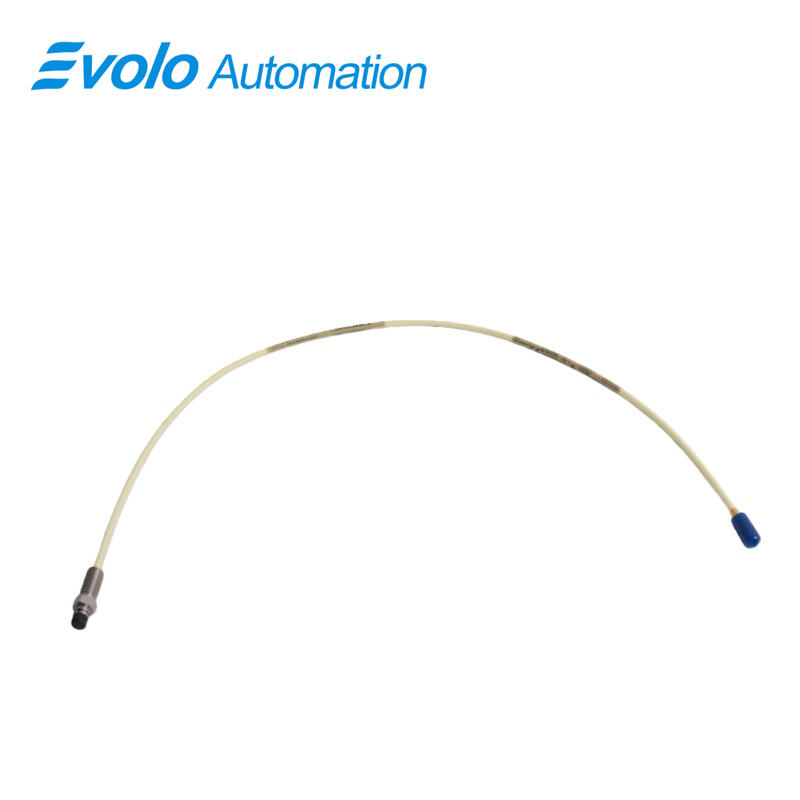

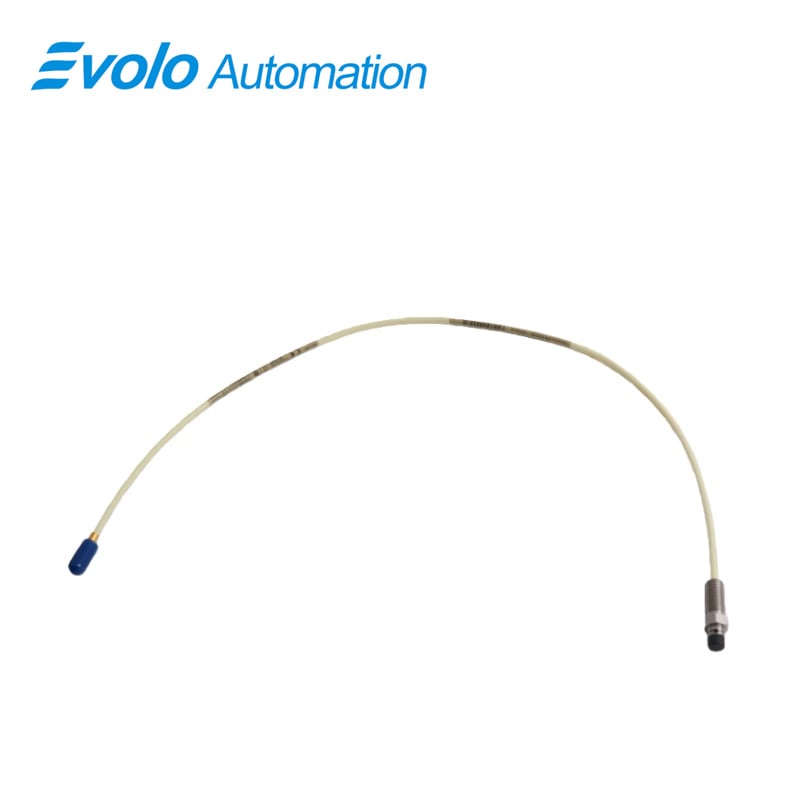

21508-02-12-05-02 is a Probe Proximity Vibration developed by Bently Nevada.It is a part of the Bently Nevada 7200 5mm / 8mm Series
Proximity Transducer System.The Bently Nevada 7200 5mm / 8mm Series Proximity Transducer Systems are non-contacting, gap-to-voltage
transducer systems that measure static and dynamic distances between the probe tip and the observed target.
Applications
Mount on Rotating Shafts for Distance Monitoring
The 21508-02-12-05-02 3300 XL 8mm Proximity Probe mounts directly on shafts or machinery housings to measure static and dynamic distances up to 80 mils, feeding real-time vibration data to automated monitoring systems.
Connect to Data Acquisition Modules
The 21508-02-12-05-02 3300 XL probe transmits 0–10 kHz vibration signals through its 0.5 m coaxial cable to Proximitor or data acquisition inputs for automated diagnostic analysis.
Monitor Industrial Pumps and Motors
Using the 21508-02-12-05-02 3300 XL 8mm Proximity Probe, vibration and distance data from pumps and motors can be logged continuously to track operational performance in automated control systems.
Enable Predictive Maintenance Alarms
The 21508-02-12-05-02 3300 XL probe provides high-frequency measurements and accurate scale factor data, allowing automated systems to trigger maintenance alerts before machinery failures occur.
Specifications
|
Scale Factor Accuracy: |
±4% when calibrated as a system |
|
Overall Accuracy Including Interchangeability: |
Within ±29.5% |
|
Linearity (System Calibrated): |
Within 0.8 mils (0.02 mm) |
|
Linearity Including Interchangeability: |
Within 2.3 mils (0.06 mm) |
|
Frequency Response: |
0 Hz (DC) to 10 kHz |
|
Amplitude Deviation at 10 kHz: |
-5% |
|
Speed Equivalent: |
Up to 600,000 cpm |
|
Input Power Supply: |
-175 Vdc to -26 Vdc |
|
Maximum Current Consumption: |
12 mA |
|
Cable Length: |
0.5 metre (20 inches) |
|
Cable Type: |
Integrated probe cable |
|
Connector Type: |
Miniature male coaxial connector |
|
Operating Temperature Range: |
-30 °F to +350 °F (-34 °C to +177 °C) |
|
Temperature Sensitivity: |
Typically -3% scale factor change at +150 °F (+65 °C) at 50 mil gap |
|
Relative Humidity: |
Up to 95%, non-condensing |
|
Corrosion Resistance: |
Resistant to air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, DMF |
|
Applicable Probe Size: |
8 mm probes only |
|
System Weight: |
1.3 lbs (0.59 kg) |
Competitive Advantage
Provide Accurate High-Frequency Vibration Signals
The 21508-02-12-05-02 3300 XL 8mm Proximity Probe outputs 200 mV/mil with ±4% accuracy and maintains linearity within 0.02 mm, ensuring precise high-speed measurement up to 600,000 cpm.
Operate in Harsh Industrial Environments
The 21508-02-12-05-02 3300 XL probe works from -34 °C to +177 °C and resists corrosion from air, water, oils, and mild acids, making it suitable for direct installation on rotating industrial machinery.
Install Quickly on Shafts and Housings
With reverse mount design and 0.5 m integrated cable, the 21508-02-12-05-02 3300 XL 8mm Proximity Probe can be installed directly without adapters, reducing setup time in automated systems.
Integrate Directly with Proximitor Systems
The 21508-02-12-05-02 3300 XL probe miniature male coaxial connector enables seamless connection to 3300 XL Proximitor inputs, allowing continuous vibration and distance monitoring for automated analysis.
