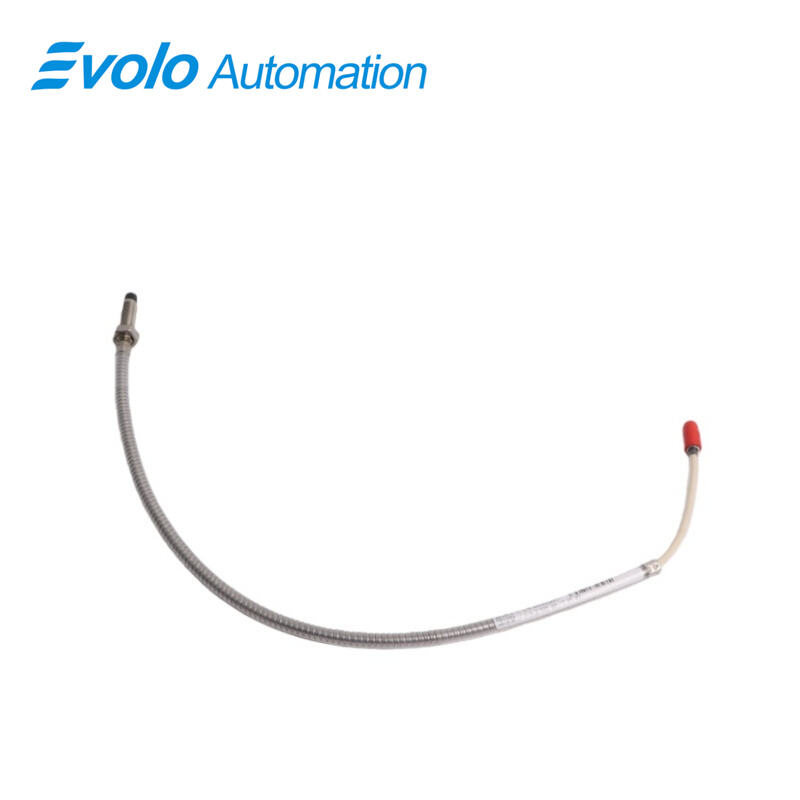

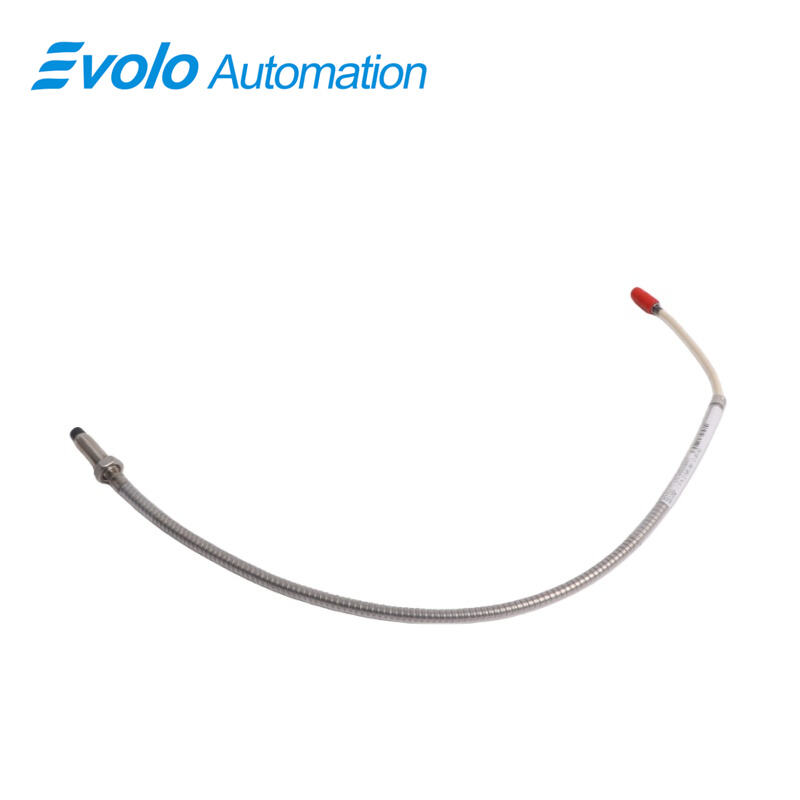

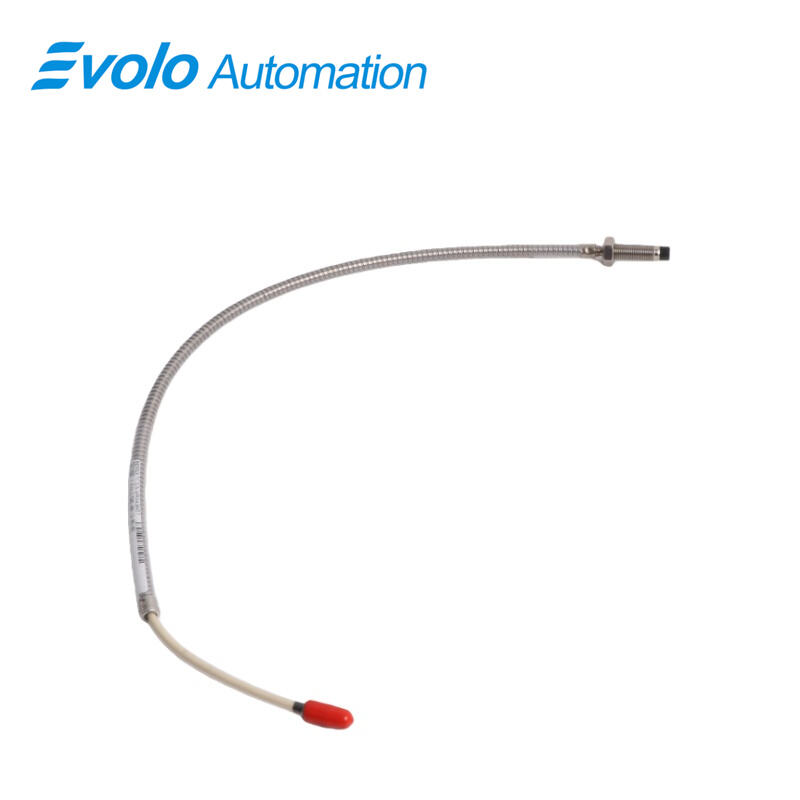

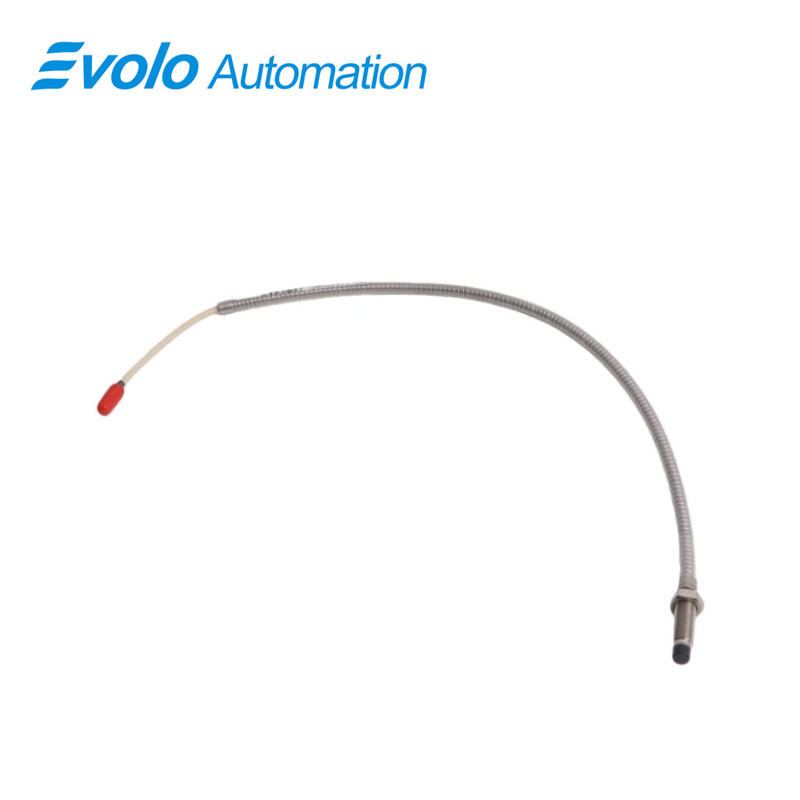

21505-00-12-10-02 Vibration Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21505-00-12-10-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 21505-00-12-10-02 Vibration Probe measures vibration up to 80 mils (2.0 mm) from a 0.25 mm start with ±0.02 mm linearity. Its output sensitivity of 200 mV/mil (±4%) and frequency response of 0–10 kHz allow precise monitoring of machinery in automated systems. The 21505-00-12-10-02 Vibration Probe operates from -34 °C to +177 °C and mounts directly on equipment with a 120 mm case length. Equipped with a 1.0 m armored cable and miniature male coaxial connector, this 21505-00-12-10-02 Vibration Probe delivers consistent vibration data for pumps, motors, and rotating equipment in automated diagnostic and predictive maintenance applications. Its robust design supports high-temperature industrial environments while maintaining accurate signal output.

Applications

Install on Pumps and Motors for Vibration Measurement
The 21505-00-12-10-02 Vibration Probe is mounted directly on pump and motor housings to capture vibration signals up to 80 mils, feeding automated monitoring systems for real-time performance tracking.

Connect to Data Acquisition Systems
The 21505-00-12-10-02 Vibration Probe uses its 1.0 m armored cable and miniature coaxial connector to transmit high-frequency signals (0–10 kHz) to data acquisition modules in automated diagnostics setups.

Monitor Rotating Equipment in Industrial Plants
The 21505-00-12-10-02 Vibration Probe provides linear vibration measurements with ±0.02 mm accuracy, enabling continuous monitoring of rotating shafts and bearings in automated control systems.

Specifications

Competitive Advantage

Deliver High-Frequency Vibration Signals Accurately
Braided armored cable and 200 mV/mil sensitivity of the 21505-00-12-10-02 Vibration Probe ensure that 0–10 kHz vibrations are transmitted without signal loss.

Operate in High-Temperature Environments
The 21505-00-12-10-02 Vibration Probe supports equipment temperatures from -34 °C to +177 °C, allowing installation on engines, turbines, and industrial machinery.

Mount Directly for Fast Installation
With a 120 mm case length and direct-mount design, the 21505-00-12-10-02 Vibration Probe can be installed quickly on machinery without additional adapters.
