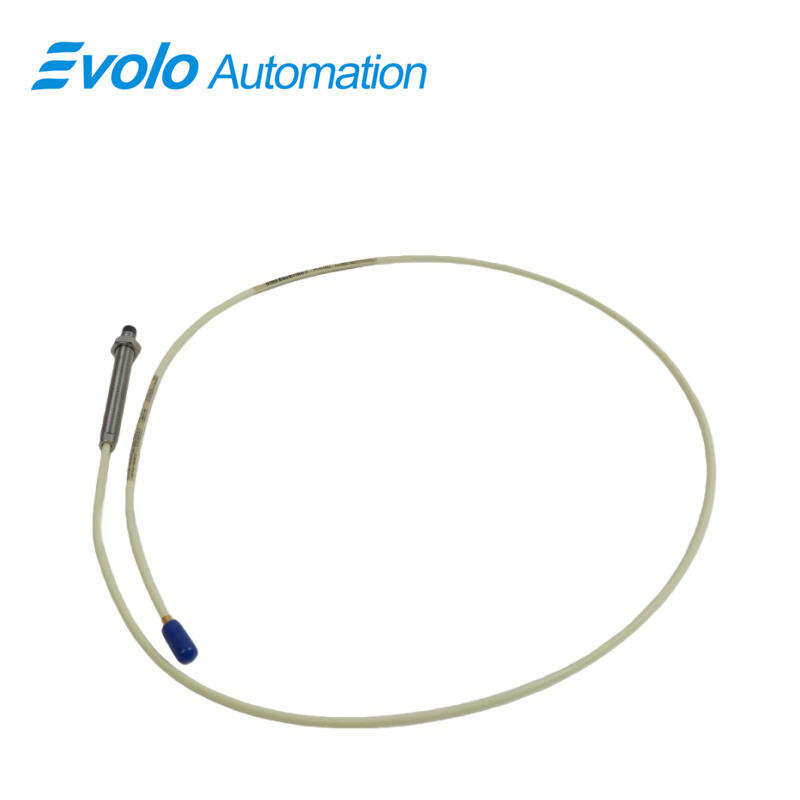

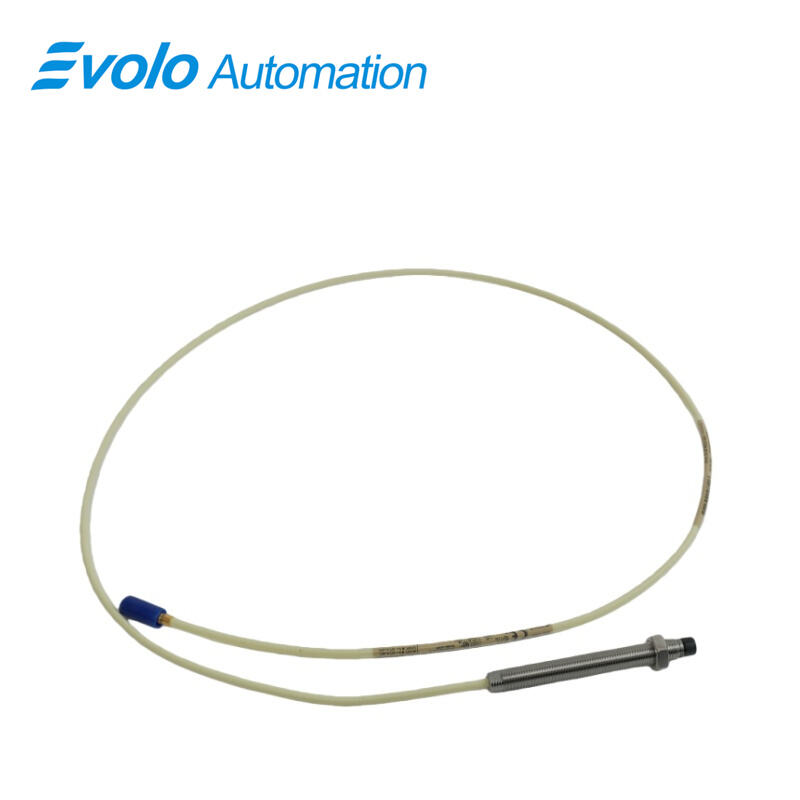

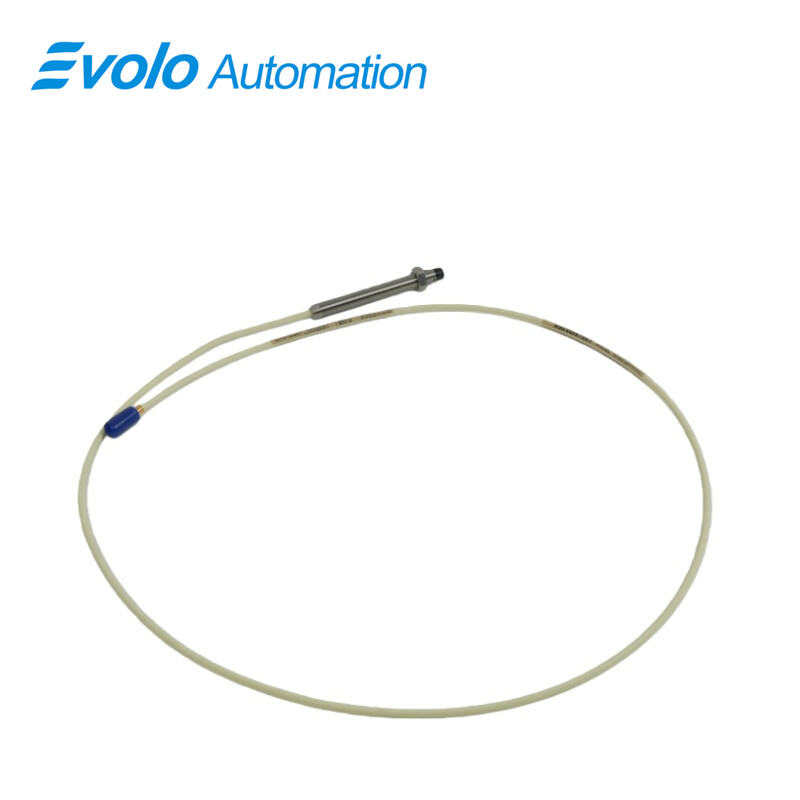

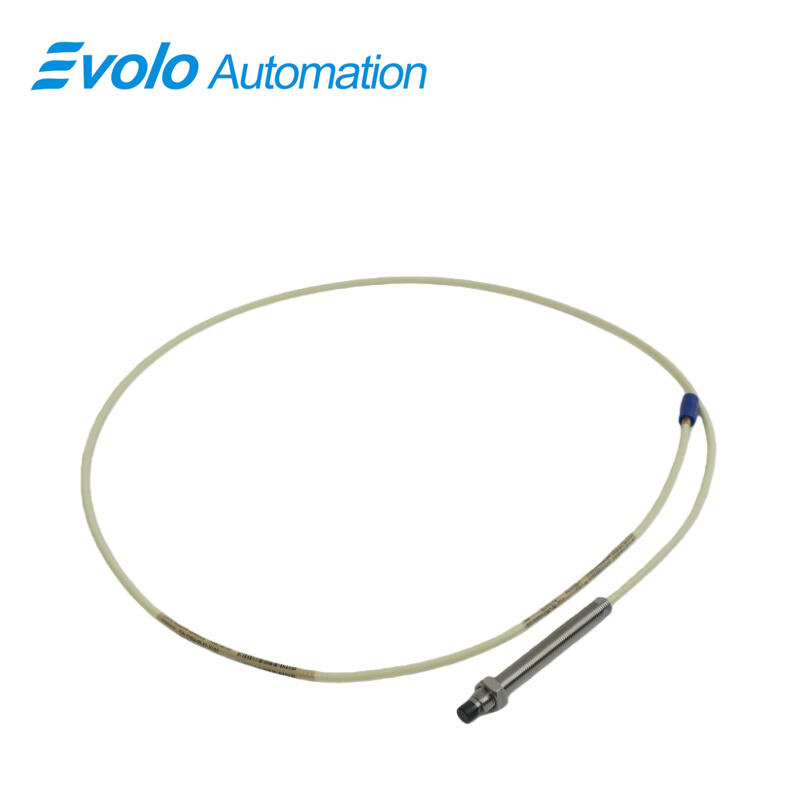

21504-00-32-10-02 5mm and 8mm Standard Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21504-00-32-10-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The Bently Nevada 7200 5mm / 8mm Series Proximity Transducer Systems are noncontacting, gap-to-voltage transducer systems that measure static as well as dynamic distances between the probe tip and the observed target. The general application in any requirement for an accurate, noncontacting displacement measurement. However, the most common use is for shaft position and vibration measurements on rotating and reciprocation machinery. They are designed for use with virtually any machine type including gas and steam turbines, compressors, pumps, centrifuges, electric motors and generators. The system offer 80 mils (2mm) of linear measuring range and are compatible with API 670 requirements. A system consists of a probe with integral coaxial cable, an extension cable, and Proximitor. All 7200 proximity transducer systems are compatible with 3300 and 9000 Monitoring Systems.

Applications

Measure Rotor Vibration on Turbines and Motors
Install the 21504-00-32-10-02 on turbine or motor shafts to monitor rotor vibration. The 2 mm linear range and 1.0 m cable length allow precise measurement in automated industrial machinery.

Monitor Shaft Position in Compressors and Pumps
Use the 21504-00-32-10-02 to measure axial and radial movement of rotating shafts. The 32 mm overall case length and standard 3/8-24 thread provide secure installation in compact equipment.

Track Reciprocating Motion in Industrial Machinery
Integrate the 21504-00-32-10-02 with Proximitor systems to measure piston or rod travel. The noncontact gap-to-voltage design supports accurate automated monitoring without machine interruption.

Specifications

Competitive Advantage

Secure Cable and Connector Attachment
The 21504-00-32-10-02 miniature male coaxial connector provides reliable electrical connection while the integrated cable ensures stable installation in automated environments.

Operate Across Wide Frequency Range
With DC to 10 kHz frequency response, the 21504-00-32-10-02 captures both slow and fast motions, enabling precise vibration and position measurement in automation systems.

Integrate Quickly with Existing Automation Systems
The 21504-00-32-10-02 is fully compatible with API 670, extension cables, and Proximitor sensors, reducing setup time and simplifying installation in turbines, motors, and pumps.

Measure Both Static and Dynamic Distances
The 2 mm linear range of 21504-00-32-10-02 allows automated measurement of both stationary shaft positions and dynamic vibrations, providing reliable data for control and monitoring systems.
