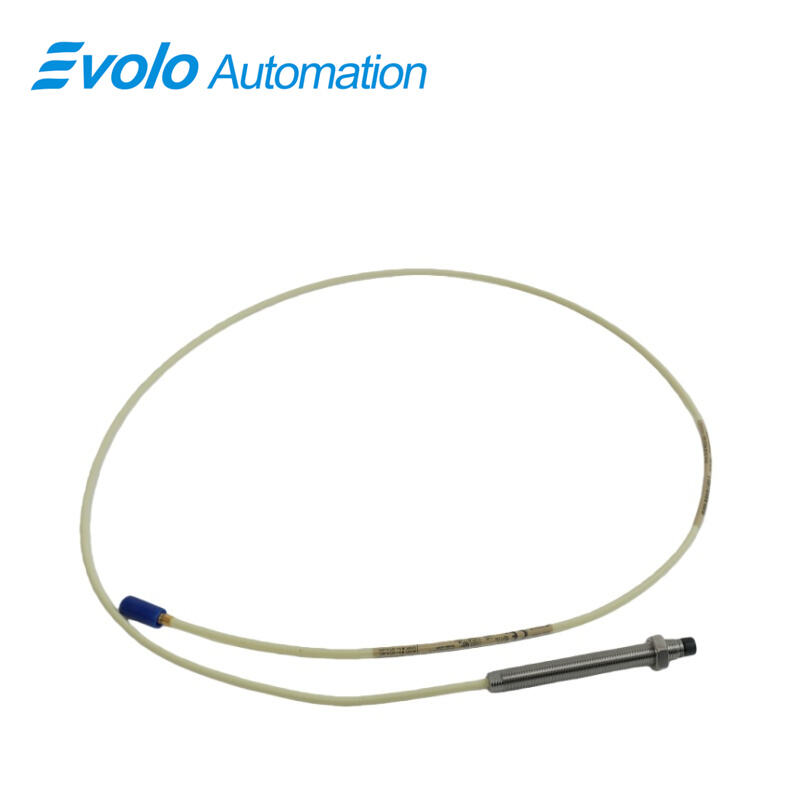

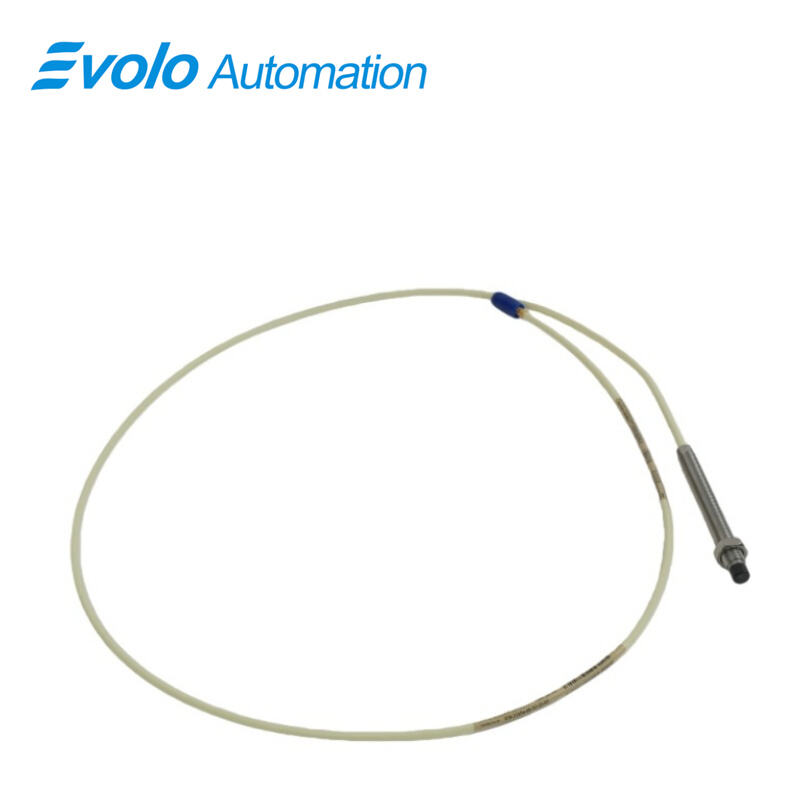

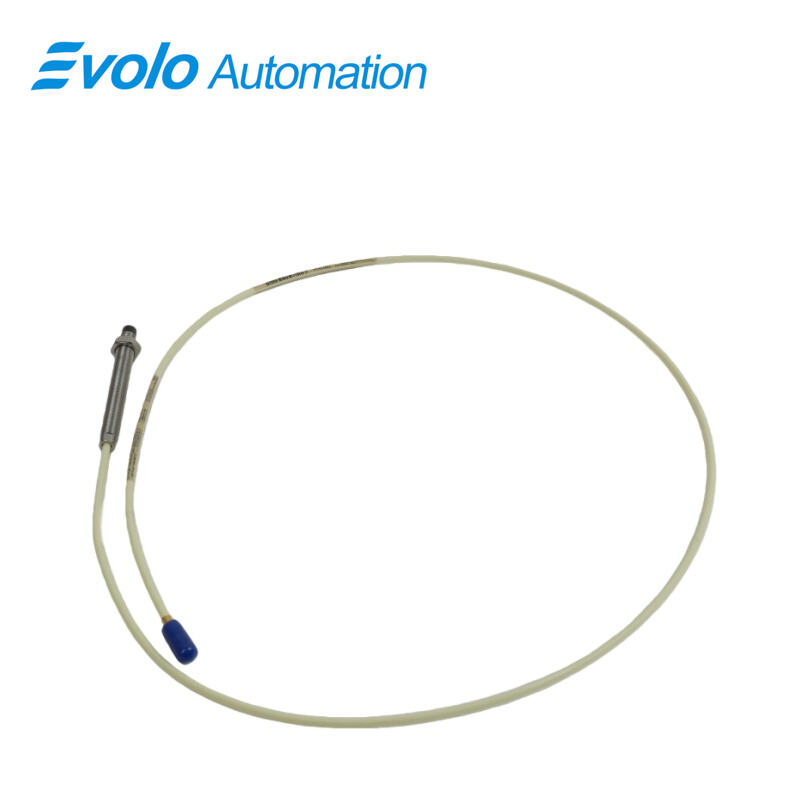

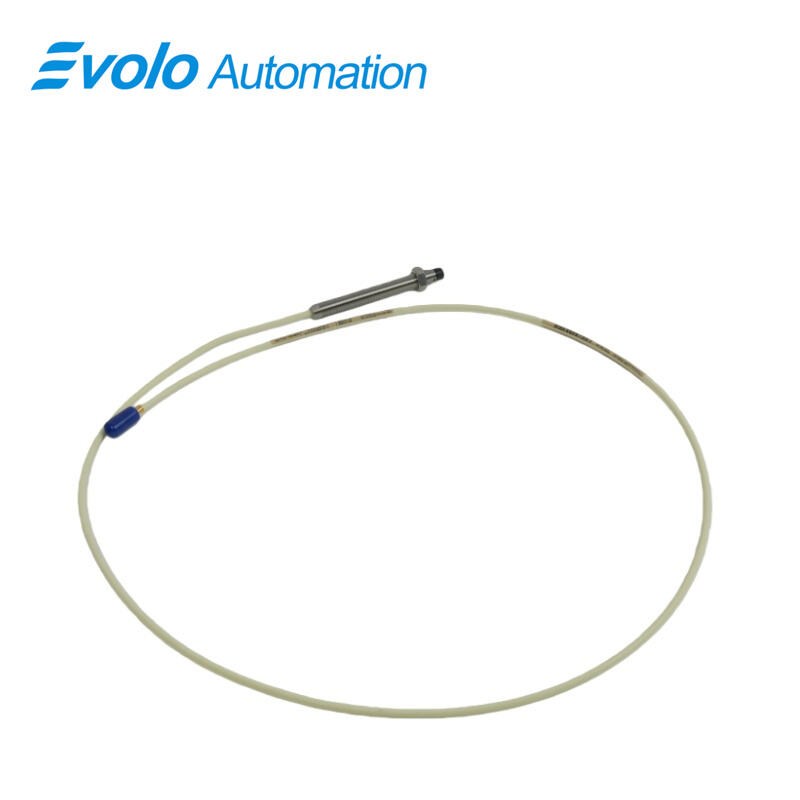

21504-00-28-10-02 8 mm Standard Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21504-00-28-10-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The Bently Nevada 7200 5mm / 8mm Series Proximity Transducer Systems are noncontacting, gap-to-voltage transducer systems that measure static as well as dynamic distances between the probe tip and the observed target. The general application in any requirement for an accurate, noncontacting displacement measurement. However, the most common use is for shaft position and vibration measurements on rotating and reciprocation machinery. They are designed for use with virtually any machine type including gas and steam turbines,compressors,pumps,centrifuges,electric motors and aenerators.The system offer 8O mils (2mm) of linear measuring range and are compatible with API 670 requirements A system consists of a probe with integral coaxial cable, an extension cable, and Proximitor. All 7200 proximity transducer systems are compatible with 3300 and 900O Monitoring Systems.

Applications

Measure turbine shaft displacement
The 21504-00-28-10-02 8 mm Standard Mount Probe can be mounted on turbine shafts to measure rotational displacement. Its frequency response up to 10 kHz captures high-speed oscillations for automated monitoring systems.

Monitor pump axial and radial movement
Install the 21504-00-28-10-02 8 mm Standard Mount Probe on centrifugal and positive displacement pumps. The 280 mm case and miniature male coaxial connector enable precise measurement of shaft movement in tight spaces.

Track compressor rotor position
The 21504-00-28-10-02 8 mm Standard Mount Probe measures compressor shaft displacement during startup and operational cycles, providing real-time data for automated control and vibration analysis.

Analyze motor and generator vibration
Use the 21504-00-28-10-02 8 mm Standard Mount Probe on electric motors and generators to capture dynamic displacement and vibration, feeding accurate data to industrial automation systems.

Specifications

Competitive Advantage

High-frequency measurement capability
The 21504-00-28-10-02 8 mm Standard Mount Probe supports DC to 10 kHz, capturing high-speed vibrations with 8 mils (0.2 mm) linear range.

Integration with monitoring systems
Compatible with 3300 and 9000 series monitoring systems, the 21504-00-28-10-02 8 mm Standard Mount Probe allows seamless integration into existing automated setups.

Compact and durable design
The 280 mm stainless steel case of the 21504-00-28-10-02 8 mm Standard Mount Probe enables installation in confined mechanical spaces while protecting the coaxial connector.

Supports API 670 requirements
The 21504-00-28-10-02 8 mm Standard Mount Probe meets API 670 gap-to-voltage standards, ensuring accurate displacement measurement for industrial rotating machinery.

Noncontacting measurement
By measuring gap-to-voltage without physical contact, the 21504-00-28-10-02 8 mm Standard Mount Probe reduces wear and enables long-term automated monitoring.
