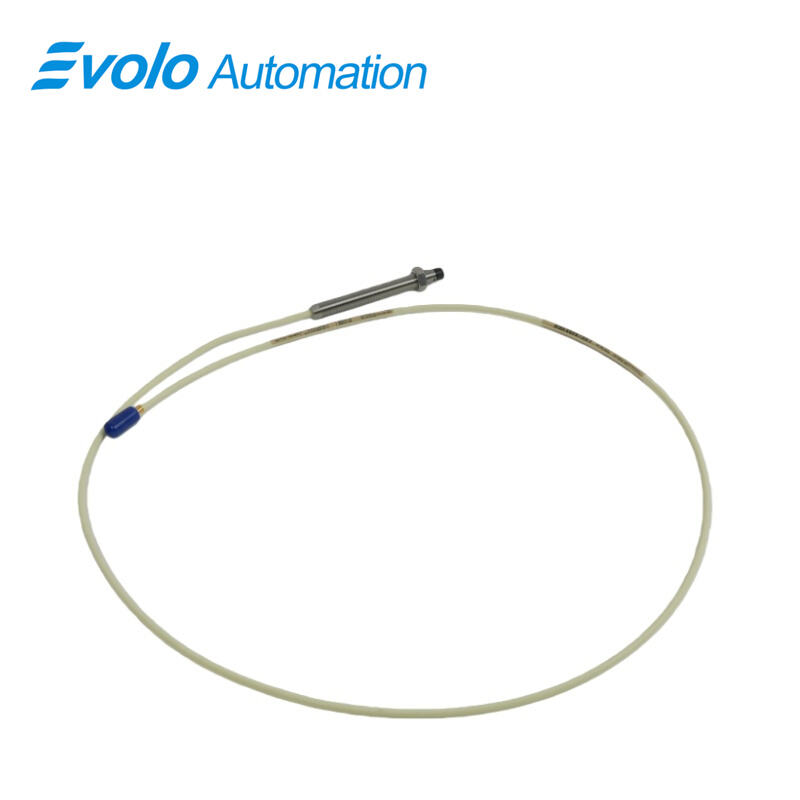

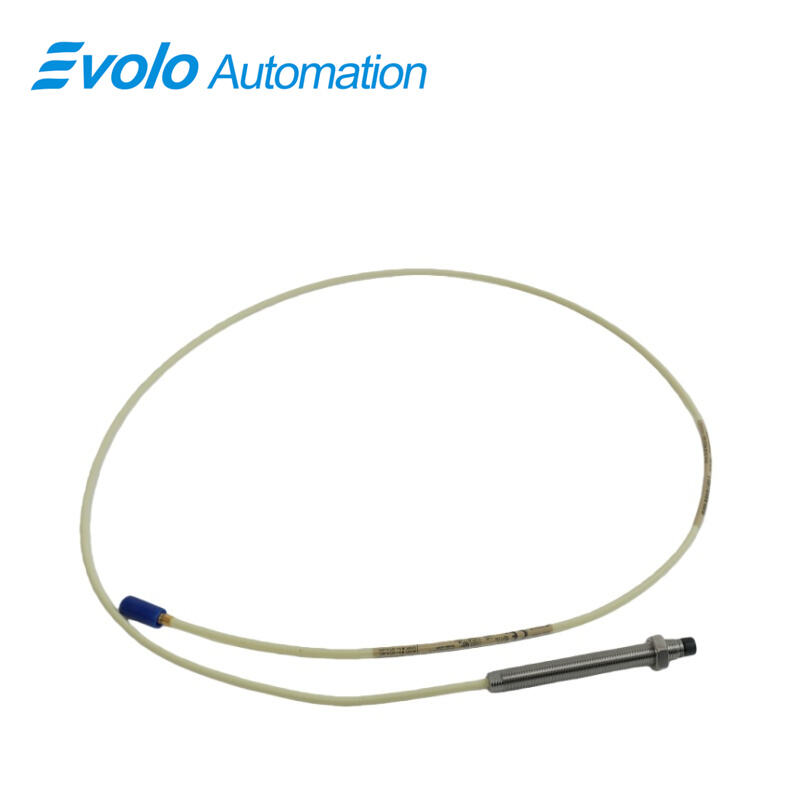

21504-00-08-10-02 Proximity Sensor Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21504-00-08-10-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The Bently Nevada 7200 5mm / 8mm Series Proximity Transducer Systems are noncontacting, gap-to-voltage transducer systems that measure static as well as dynamic distances between the probe tip and the observed target. The general application in any requirement for an accurate, noncontacting displacement measurement. However, the most common use is for shaft position and vibration measurements on rotating and reciprocation machinery. They are designed for use with virtually any machine type including gas and steam turbines, compressors, pumps, centrifuges, electric motors and generators. The system offer 80 mils (2mm) of linear measuring range and are compatible with API 670 requirements. A system consists of a probe with integral coaxial cable, an extension cable, and Proximitor. All 7200 proximity transducer systems are compatible with 3300 and 9000 Monitoring Systems.

Applications

With a frequency response of 0 Hz (DC) to 10 kHz, the 21504-00-08-10-02 Proximity Sensor Probe can be used to perform the following types of measurements:

Radial vibration is used to detect bad bearings and mechanical issues such as rotor imbalance and misalignment.

Axial thrust position for assessing the wear or potential failure of the thrust bearings.

Average shaft radial position, used to calculate attitude angle, is a sign of rotor stability.

Vibration amplitude and phase angle for Polar and Bode formats of plotting diagnostic data.

Using eccentricity, calculate the rotor bow.

Specifications

Competitive Advantage

Direct Integration with 3300 XL Sensors: 21504-00-08-10-02 Proximity Sensor Probe connects directly to 3300 XL Proximitor Sensors, eliminating extra cabling and calibration steps.

High-Precision Linear Range: The 80 mils (2 mm) calibrated output of 21504-00-08-10-02 ensures accurate measurement of both static and dynamic shaft movement.

Flexible Mounting Options: Standard 3/8-24 thread and 0.8 in case length of 21504-00-08-10-02 allow installation in various industrial environments without modifications.

API 670 Compliant for Automation: 21504-00-08-10-02 meets API 670 requirements, ensuring measurement consistency across automated monitoring systems.

Low Power Consumption for Continuous Monitoring: At 12 mA max, 21504-00-08-10-02 Proximity Sensor Probe supports long-term automated data acquisition without stressing power supply circuits.
