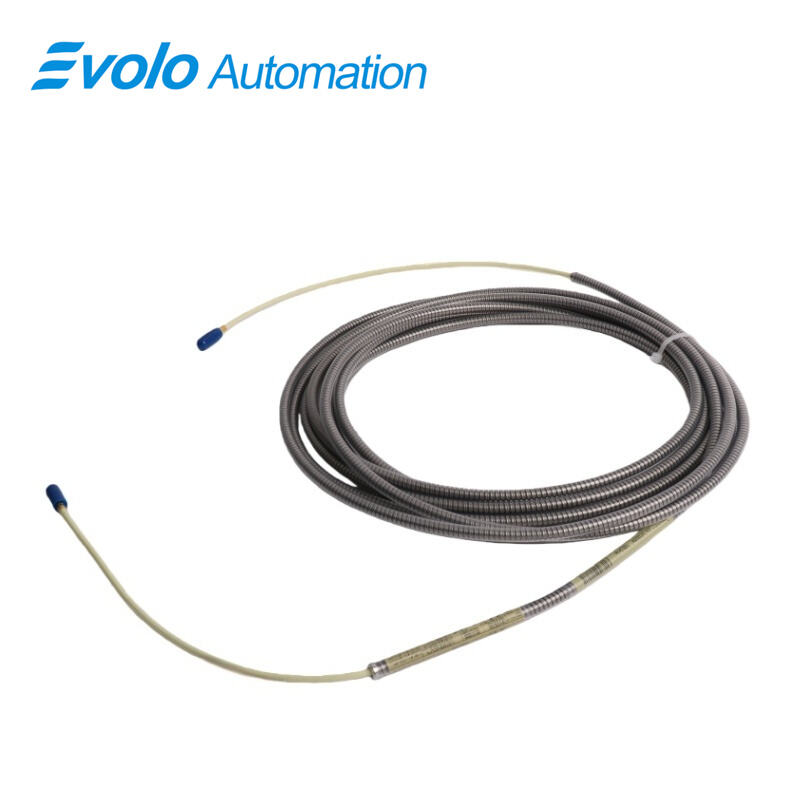

21474-075-00 Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21474-075-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 21474-075-00 Extension Cable is a 2-conductor twisted, shielded, armored cable designed for industrial automation monitoring. With a 22 AWG conductor and stainless steel braid over a PVC-insulated jacket, the 21474-075-00 ensures precise signal transmission between probes and monitors over a 20 ft length, with custom lengths available. One end features a moisture-resistant female connector, and the other uses terminal lugs, supporting 300V and 3A operation. Rated for -40°C to 105°C and bend radius 5x cable diameter minimum, the 21474-075-00 performs reliably in harsh environments, including oil- and moisture-prone areas. The 21474-075-00 Extension Cable is specifically used with Bently Nevada 7200 Series Proximity Transducer Systems for accurate shaft position and vibration measurements on rotating machinery such as turbines, compressors, pumps, and electric motors. With foil and braid shielding, the 21474-075-00 minimizes interference, maintaining clean signals for API 670-compliant automation systems, and integrates seamlessly with 3300 and 9000 monitoring setups.

Applications

Measure Turbine Shaft Vibration Accurately
Use 21474-075-00 to connect 7200 Series Proximity Transducers to turbine shafts. Its 20 ft (6.1 m) armored cable with 22 AWG twisted conductors and foil plus braid shielding ensures minimal signal loss and precise vibration monitoring.

Monitor Compressor Rotor Position in Industrial Systems
Deploy 21474-075-00 for compressor rotor displacement measurement. The stainless steel armored cable and PVC insulation allow operation from -40°C to 105°C, enabling reliable automated monitoring in high-temperature and mechanical stress environments.

Integrate Pumps and Motors with Transducer Systems
Install 21474-075-00 Extension Cable for pump and motor monitoring. The 2-conductor shielded design reduces electromagnetic interference, preserving voltage output for 300V-rated systems and up to 3A current.

Specifications

Competitive Advantage

Maintain Signal Integrity over Long Distances
The 20 ft length of 21474-075-00 combined with armored shielding and 22 AWG conductors minimizes voltage drop and signal distortion for accurate vibration and position measurements.

Ensure Secure Connections under Harsh Conditions
The moisture-resistant female connector and stainless steel armor of 21474-075-00 prevent accidental disconnections and protect against environmental contaminants.

Handle High Power Requirements Safely
Rated for 300V and 3A, 21474-075-00 supports high-power proximity transducer systems without risk of cable overheating or voltage loss.

Resist Mechanical Wear and Environmental Damage
PVC insulation and stainless steel braid provide abrasion resistance and protection from oil, enabling long-term operation in industrial environments.
