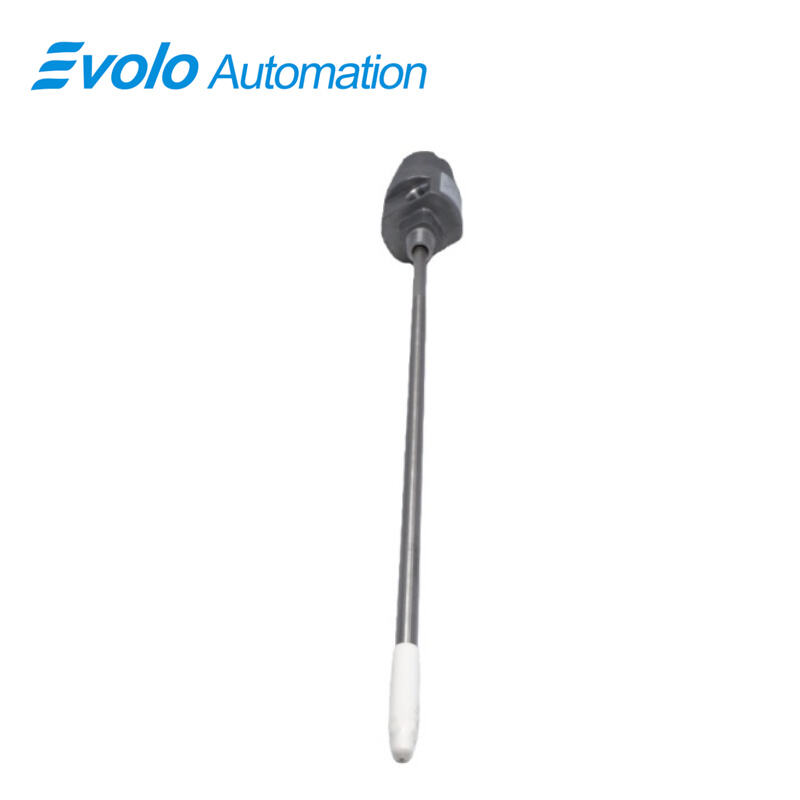

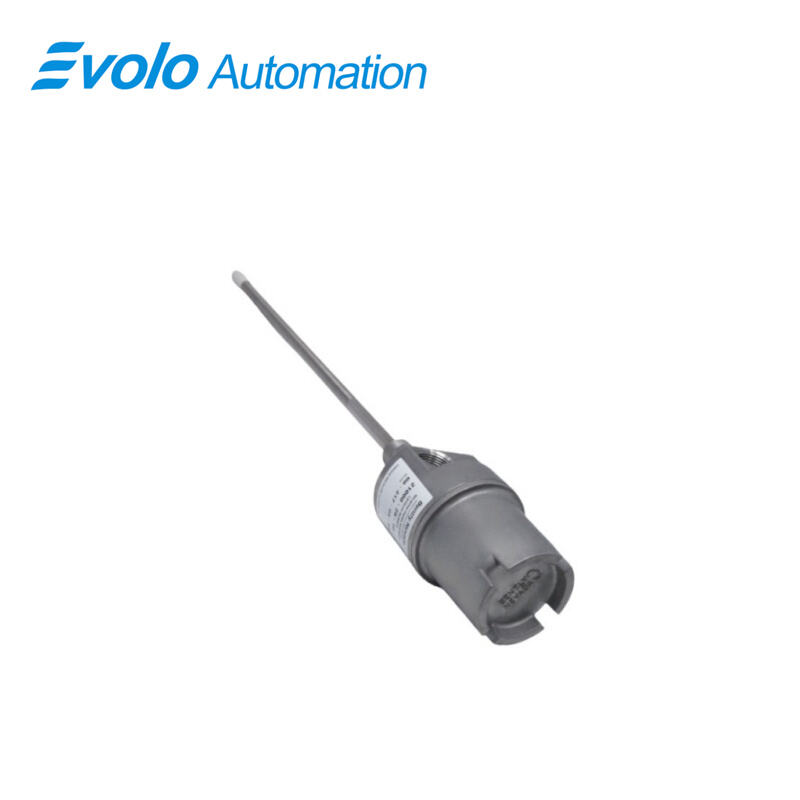

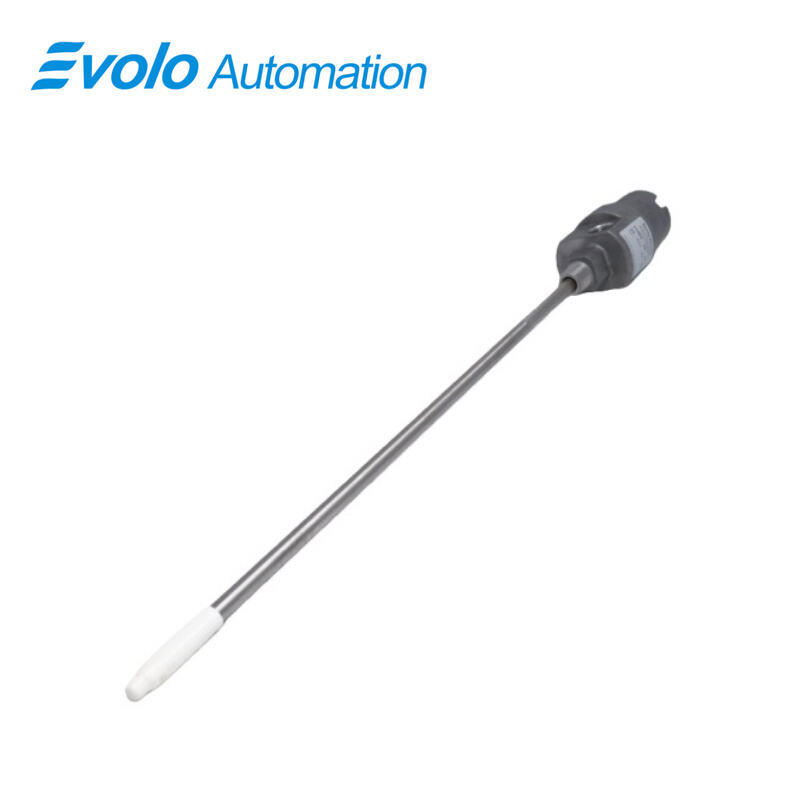

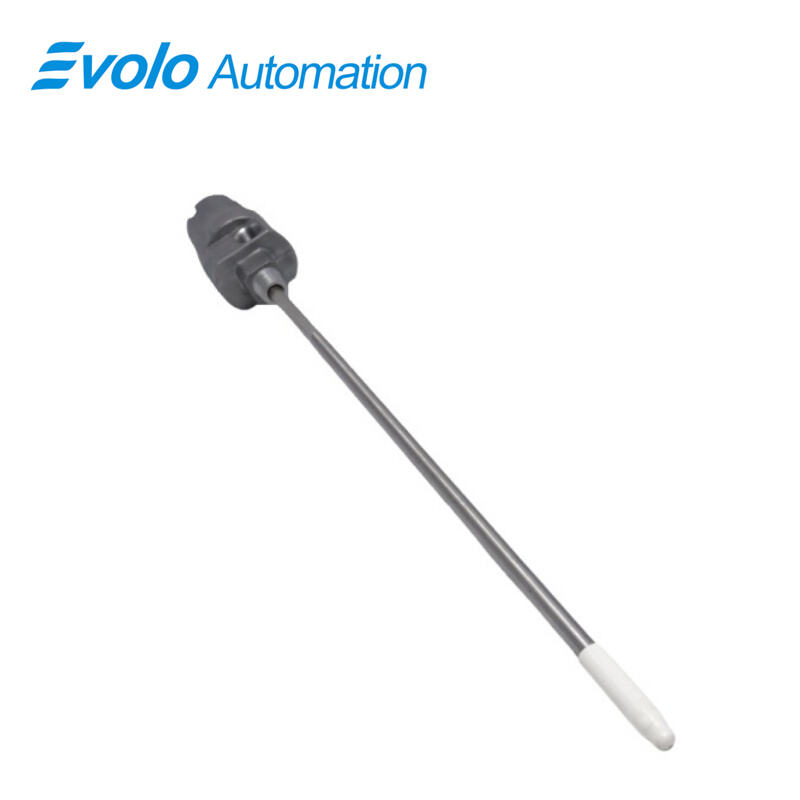

21000-28-10-20-102-01-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21000-28-10-20-102-01-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

21000-28-10-20-102-01-02 Proximity Probe Housing Assemblies provide a reliable, externally mounted solution for 3300 XL 8 mm proximity probes in automated systems. This assembly includes a 1.0 m (39 in) probe cable, 2.0 in standoff adapter, and 10.2 in probe penetration, with one 3/4-14 NPT explosion-proof fitting and one 3/4-14 NPT plug. The mounting thread is 3/4-14 NPT, and the body combines aluminum with a 304 stainless steel sleeve, weighing 1.1 kg without fittings. The 21000-28-10-20-102-01-02 assembly meets CSA hazardous area approvals and CSA Type 4 enclosure requirements. It fully supports API 670-compliant automation for externally mounted proximity probes. Optional standoff adapters and conduit fittings allow 21000-28-10-20-102-01-02 to adapt to various installation locations. Sleeve length is customizable; for lengths over 304 mm (12 in), additional supports reduce probe vibration. 21000-28-10-20-102-01-02 Proximity Probe Housing Assemblies integrate seamlessly with 3300 XL probes for real-time shaft position and vibration monitoring in turbines, compressors, pumps, and generators.

Applications

Application – Mount Proximity Probe for Shaft Monitoring
Install 21000-28-10-20-102-01-02 Proximity Probe Housing Assemblies with 3300 XL 8 mm probes to measure shaft vibration and position on turbines, compressors, pumps, and generators. With a 1.0 m (39 in) probe cable and 10.2 in penetration, 21000-28-10-20-102-01-02 ensures the 3300 XL 8 mm probe tip is positioned for accurate readings in real-time monitoring systems.

Application – Extend Probe Reach in Confined Areas
Use the 2.0 in standoff adapter and optional sleeve on 21000-28-10-20-102-01-02 to install 3300 XL 8 mm probes in tight machine locations. Sleeve lengths longer than 304 mm (12 in) can be supported with additional accessories to maintain measurement precision.

Application – Operate Safely in Hazardous Environments
Deploy 21000-28-10-20-102-01-02 Proximity Probe Housing Assemblies with explosion-proof fittings to allow 3300 XL 8 mm probes to function in CSA-certified hazardous areas. The aluminum body and 304 stainless steel sleeve provide mechanical protection for automated monitoring.

Specifications

Competitive Advantage

Competitive Advantage – Rapid Integration into Automated Systems
21000-28-10-20-102-01-02 features standard 3/4-14 NPT mounting thread and conduit ports, enabling fast installation of 3300 XL 8 mm probes. The 1.0 m probe cable simplifies connection to Proximitor sensors and automation controllers.

Competitive Advantage – Adjustable Sleeve Supports Accurate Placement
Customizable sleeve lengths on 21000-28-10-20-102-01-02 allow precise positioning of 3300 XL 8 mm probes. The combination of standoff adapter and optional sleeve ensures the linear measuring range of 2 mm is fully utilized for vibration and position measurements.

Competitive Advantage – Durable Materials Protect Probe and Reduce Maintenance
The aluminum body with 304 stainless steel sleeve on 21000-28-10-20-102-01-02 shields 3300 XL 8 mm probes from dust, water, and mechanical wear. This protects sensitive automated measurements and minimizes downtime.
