21000-28-05-00-105-04-026 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21000-28-05-00-105-04-026
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

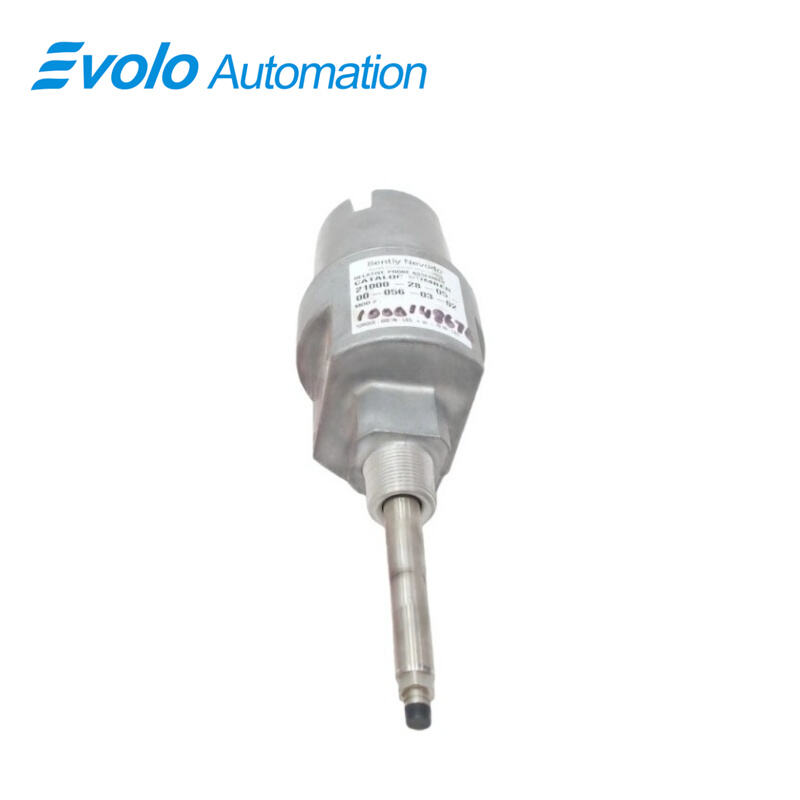

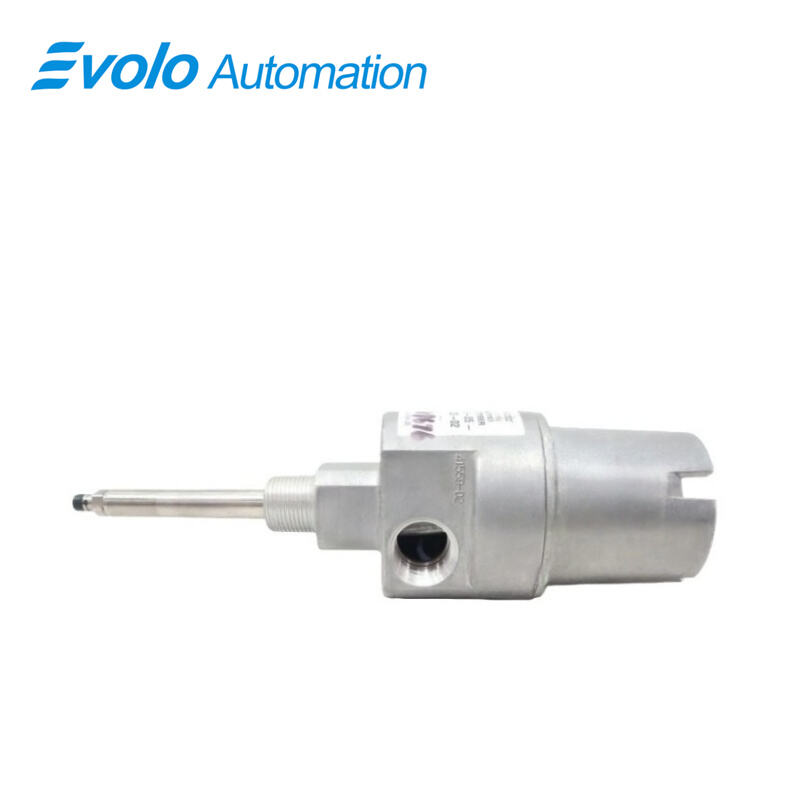

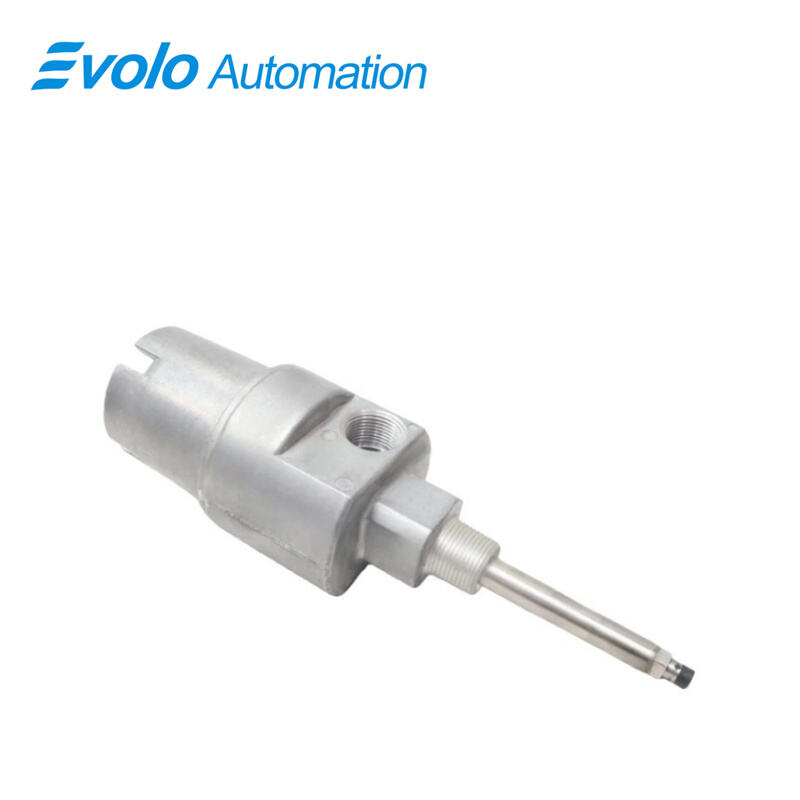

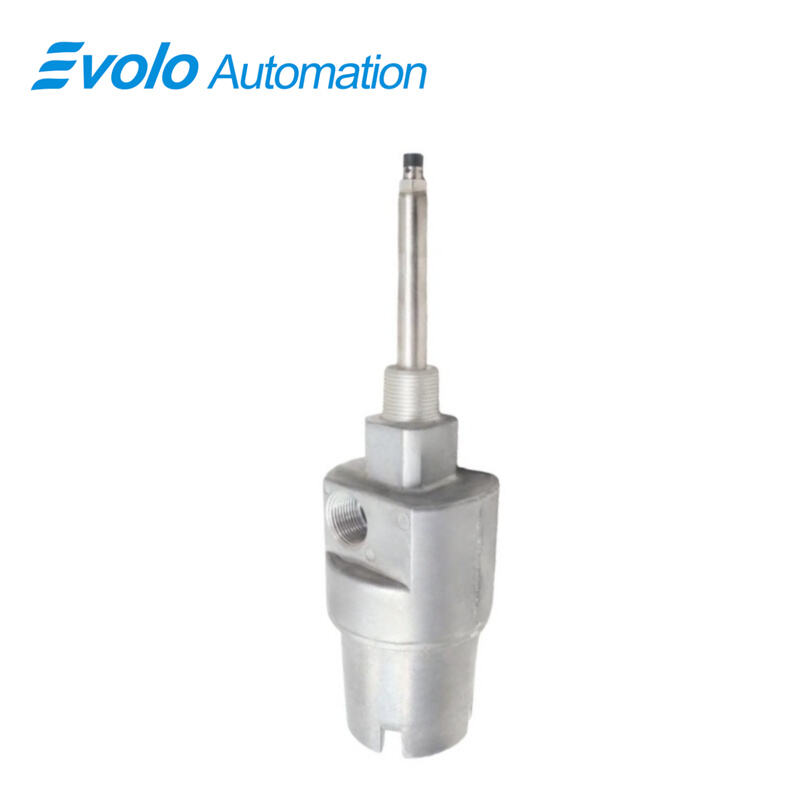

The 21000-28-05-00-105-04-026 Proximity Probe Housing Assembly accommodates a 3300 XL 8 mm probe with selectable hazardous area approvals. The assembly features a 0.5 m (20 in) probe cable, 10.5 in probe penetration, 3/4-14 NPT mounting thread, and an aluminum body with a 304 stainless steel sleeve. Typical weight is 1.1 kg (2.4 lb) without fittings. The housing is CSA approved, rated for hazardous areas, and meets API 670 Standard for externally mounted proximity probe housings. Sleeve lengths can be customized based on installation, and additional supports are available for sleeves over 304 mm (12 in) to reduce vibration in automated systems.

Applications

Externally Mount 3300 XL 8 mm probe for Vibration Monitoring
The 21000-28-05-00-105-04-026 assembly enables the installation of a 3300 XL 8 mm probe outside bearing housings for automated shaft vibration and position monitoring. The 10.5 in probe penetration ensures the 3300 XL 8 mm probe tip reaches the measurement target accurately.

Deploy 3300 XL 8 mm probe in Hazardous Environments
This assembly supports CSA-approved 3300 XL 8 mm probes in explosive or flammable areas. The aluminum and 304 stainless steel sleeve protect the probe while maintaining precise measurement output for automated control systems.

Customize Sleeve Length for Automated Systems
The 21000-28-05-00-105-04-026 allows adjustable sleeve lengths for 3300 XL 8 mm probes, ensuring correct positioning. Sleeves longer than 304 mm (12 in) can use optional supports to minimize probe vibration, preserving measurement accuracy.

Specifications

Competitive Advantage

Protect 3300 XL 8 mm probe in Harsh Conditions
The combination of aluminum housing and 304 stainless steel sleeve shields the 3300 XL 8 mm probe in the 21000-28-05-00-105-04-026 assembly from mechanical damage and chemical exposure, maintaining consistent output for automated monitoring systems.

Ensure Accurate Signal for 3300 XL 8 mm probe
The 10.5 in probe penetration and precise alignment within the 21000-28-05-00-105-04-026 assembly reduce measurement errors and maintain reliable data for automation.

Simplify Automated Installation
Threaded dome covers, conduit ports, and optional standoff adapters in the 21000-28-05-00-105-04-026 assembly allow quick setup of 3300 XL 8 mm probes, minimizing downtime and installation effort in automated plants.

Reduce Vibration in Long Sleeve Configurations
Optional supports for sleeves over 304 mm in the 21000-28-05-00-105-04-026 assembly keep the 3300 XL 8 mm probe steady, preserving accurate vibration and position readings in long-reach automated installations.
