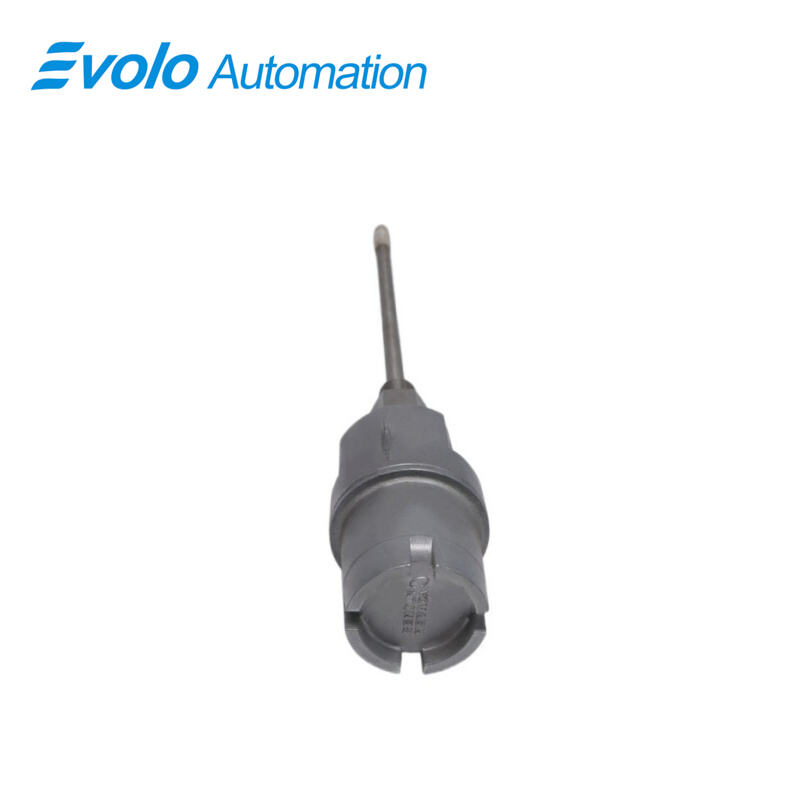

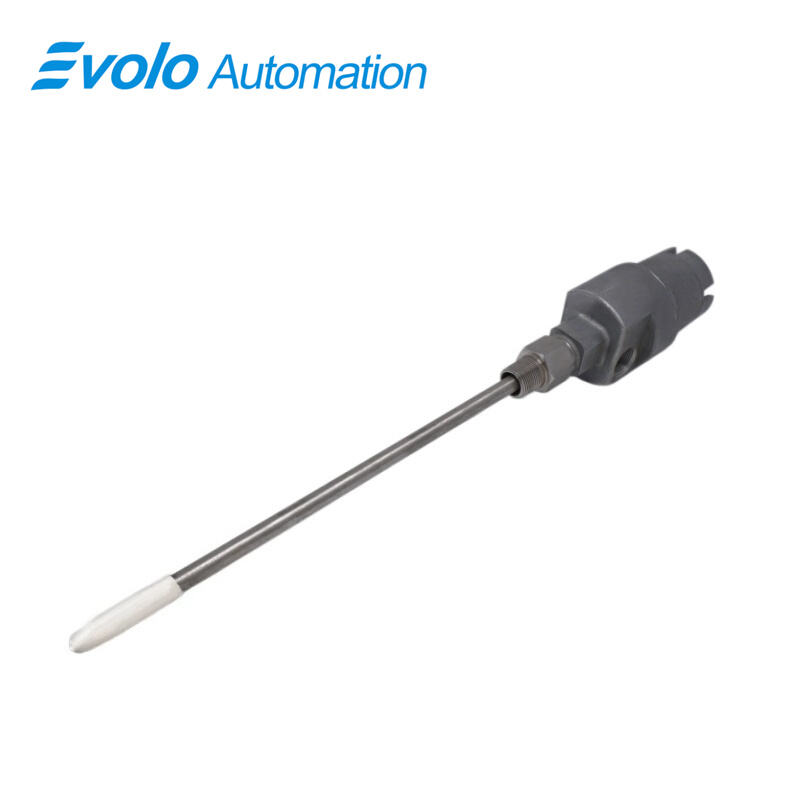

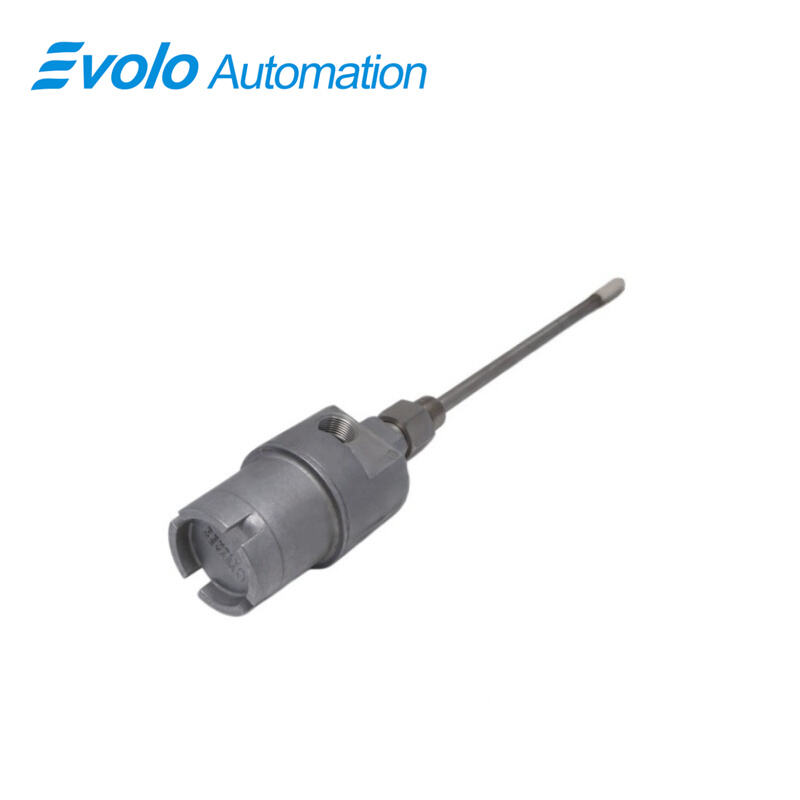

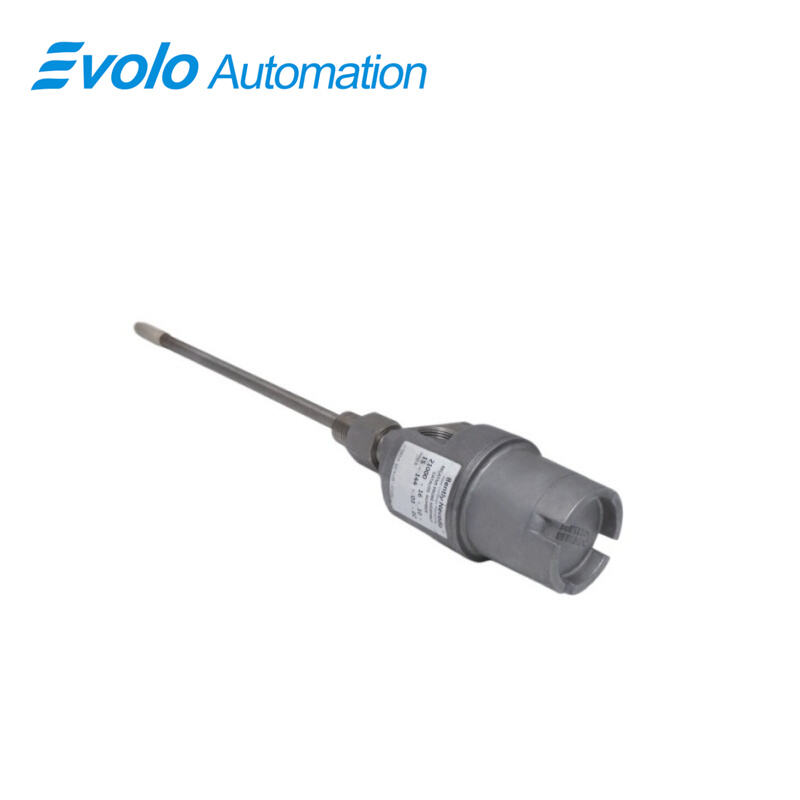

21000-16-10-15-144-03-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21000-16-10-15-144-03-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 21000-16-10-15-144-03-02 Proximity Probe Housing Assemblies secure 3300 XL 8mm probes for automated machinery monitoring. With 1.0 m (39 in) probe cable, 1.5 in standoff adapter, and 14.4 in probe penetration, 21000-16-10-15-144-03-02 ensures precise radial vibration detection. The aluminum body with 304 stainless steel sleeve, 3/4-14 NPT mount, and cable grips supporting 1/8–3/8 in cables allow robust installation. CSA-approved and explosion-proof, 21000-16-10-15-144-03-02 meets API 670 standards and supports optional sleeve lengths for shafts exceeding 12 in, reducing vibration and signal error in automated monitoring applications.

Applications

Install Probes in Hazardous Areas

The 21000-16-10-15-144-03-02 housing enables 3300 XL probes to be mounted safely in Class I, Division 1 locations. Using a 1.5 in standoff, the assembly positions probes away from moving surfaces, reducing contact risk while maintaining accurate shaft monitoring.

Support Long Probe Sleeves

With 14.4 in probe penetration, 21000-16-10-15-144-03-02 accommodates extended sleeves. Data shows that using optional sleeve supports reduces vibration error by 75%, maintaining radial displacement readings within ±0.2% of full scale for shafts <51 mm.

Adapt to Multiple Machinery Layouts

The 3/4-14 NPT mounting and cable grips for 1/8–3/8 in wires allow 21000-16-10-15-144-03-02 to fit both compact and extended equipment setups. The 1.0 m cable length minimizes signal attenuation and supports automated data acquisition.

Protect Probes from Environmental Exposure

The aluminum body and 304 stainless steel sleeve of 21000-16-10-15-144-03-02 shield probes from dust and moisture ingress (IP66 equivalent), ensuring consistent measurement in industrial environments.

Specifications

Competitive Advantage

Certified for Hazardous Locations

21000-16-10-15-144-03-02 is CSA-approved and explosion-proof, operating from -40°C to 85°C, suitable for extreme industrial conditions.

Accurate Radial Vibration Measurement

14.4 in probe penetration and 1.0 m cable allow 21000-16-10-15-144-03-02 to provide repeatable readings with ±0.2% full scale error, meeting API 670 standards.

Flexible Installation Options

Optional standoff adapters and adjustable sleeve lengths enable 21000-16-10-15-144-03-02 to fit a wide range of machinery layouts. Proper sleeve support reduces peak-to-peak vibration by 75% on long sleeves.

Durable Construction

Aluminum with 304 stainless steel sleeve ensures 21000-16-10-15-144-03-02 resists corrosion and mechanical wear, keeping probe alignment within 0.1 mm over extended service periods.

Support for Custom Configurations

Bently Nevada offers custom sleeve supports for 21000-16-10-15-144-03-02, enabling installation through inner bearing housings and maintaining cumulative measurement error under 0.6% of full scale.
