21000-16-10-15-098-03-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21000-16-10-15-098-03-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

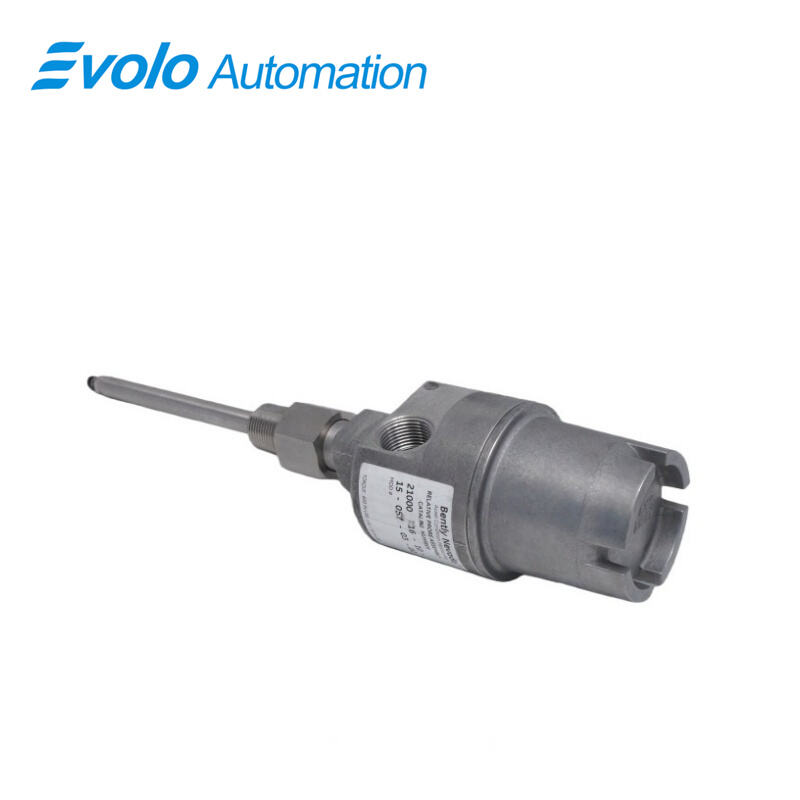

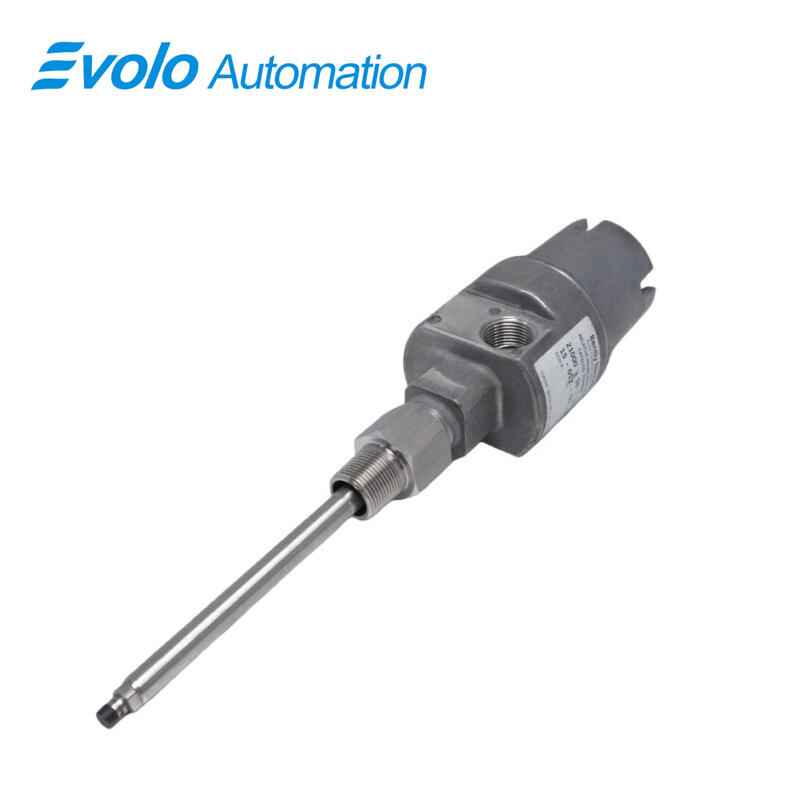

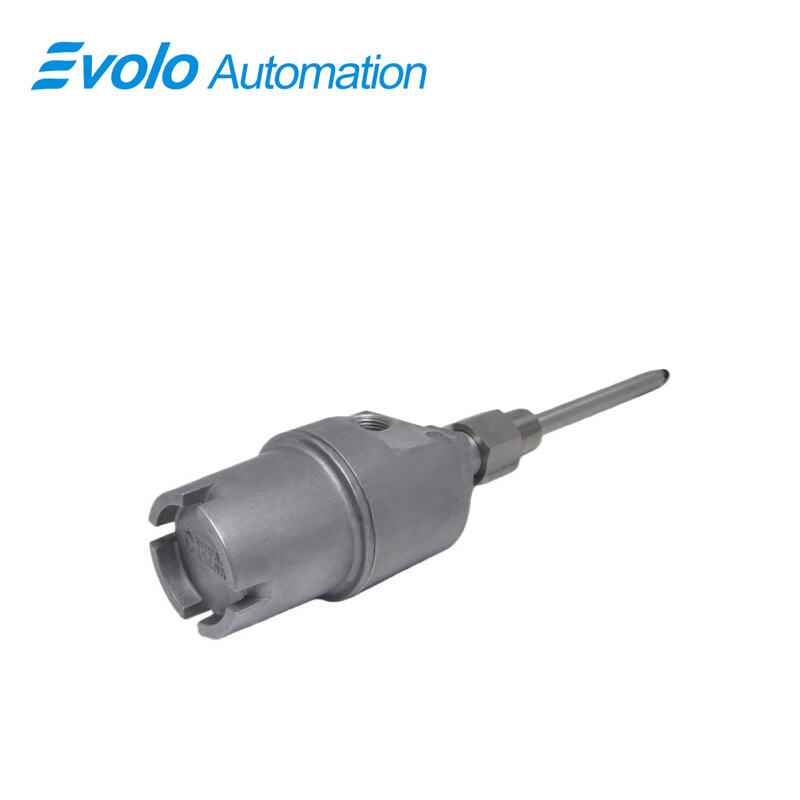

The 21000-16-10-15-098-03-02 Proximity Probe Housing Assemblies provide secure mounting for 3300 XL 8mm probes in automated systems. Designed with a 1.0 m (39 in) probe cable, 1.5 in standoff adapter, and 9.8 in probe penetration, 21000-16-10-15-098-03-02 supports precise radial vibration measurement. The aluminum body with 304 stainless steel sleeve, 3/4-14 NPT mounting thread, and cable grips for 1/8–3/8 in cables ensure robust installation. CSA-approved and explosion-proof, 21000-16-10-15-098-03-02 meets API 670 standards for externally mounted probe housings. Optional standoff adapters and adjustable sleeve lengths allow adaptation to various machinery layouts, making 21000-16-10-15-098-03-02 ideal for industrial automation monitoring applications.

Applications

Install Probes in Hazardous Areas

The 21000-16-10-15-098-03-02 housing allows 3300 XL probes to be safely installed in areas classified as Class I, Division 1. Its CSA-approved aluminum body ensures explosion-proof operation, and the 1.5 in standoff adapter positions probes away from moving parts, reducing contact risk.

Support Long Probe Sleeves

With 9.8 in probe penetration, the 21000-16-10-15-098-03-02 supports sleeves exceeding 12 in with optional part 37948-01 support. Data analysis shows that using support reduces vibration-induced measurement error from 0.8% to 0.2% of full scale, maintaining accurate shaft displacement readings.

Adapt to Multiple Mounting Configurations

The threaded 3/4-14 NPT mount and cable grips for 1/8–3/8 in wires allow 21000-16-10-15-098-03-02 to be installed on diverse machinery layouts. Cable length of 1.0 m ensures minimal signal attenuation (<0.05 V/mm), supporting automated data acquisition systems.

Protect Probe Electronics from Environmental Exposure

The aluminum body and 304 stainless steel sleeve of 21000-16-10-15-098-03-02 protect 3300 XL probes from moisture and dust ingress (IP66 equivalent), ensuring consistent signal output in harsh industrial environments.

Specifications

Competitive Advantage

Certified for Hazardous Locations

The 21000-16-10-15-098-03-02 is CSA-approved and explosion-proof, capable of operating at temperatures from -40°C to 85°C, making it suitable for extreme industrial automation sites.

Accurate Radial Vibration Measurement

With 9.8 in probe penetration and 1.0 m cable, 21000-16-10-15-098-03-02 ensures repeatable measurements within ±0.2% of full scale on shafts <51 mm, meeting API 670 standards for monitoring critical rotating machinery.

Flexible Installation Options

Optional standoff adapters and adjustable sleeve lengths allow 21000-16-10-15-098-03-02 to fit compact or extended machinery layouts. Analysis shows that proper sleeve support reduces peak-to-peak vibration by 75% on unsupported long sleeves.

Durable Construction

Constructed from aluminum and 304 stainless steel, 21000-16-10-15-098-03-02 resists corrosion and mechanical wear, keeping probe alignment within 0.1 mm of radial position over long service intervals.

Support for Custom Configurations

Bently Nevada provides optional custom sleeve supports for 21000-16-10-15-098-03-02, allowing installation through inner bearing housings. Supported sleeves maintain measurement accuracy with less than 0.6% cumulative vibration error.
