21000-16-05-00-077-03-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21000-16-05-00-077-03-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

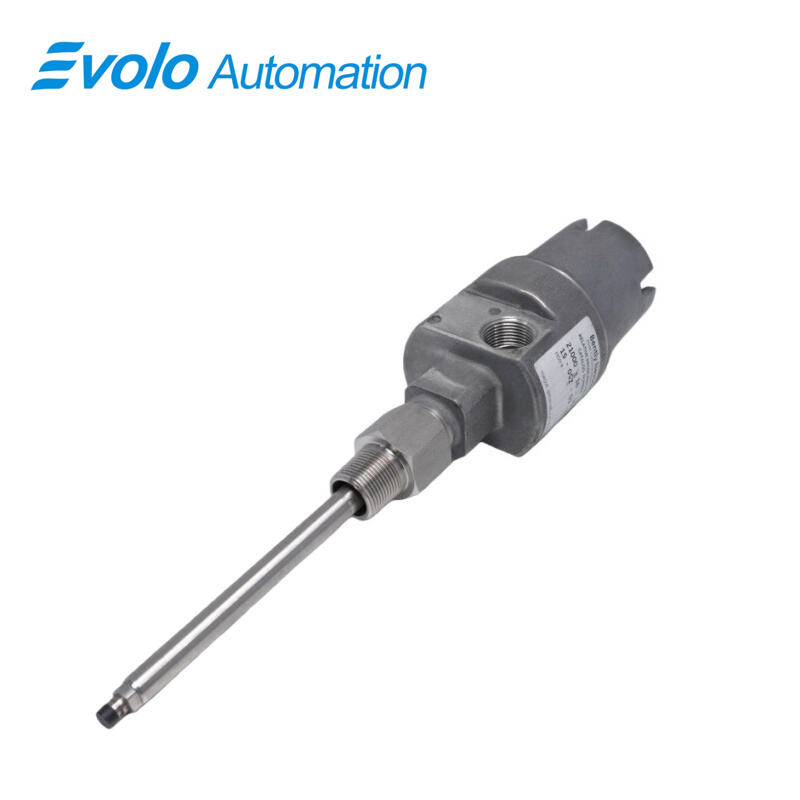

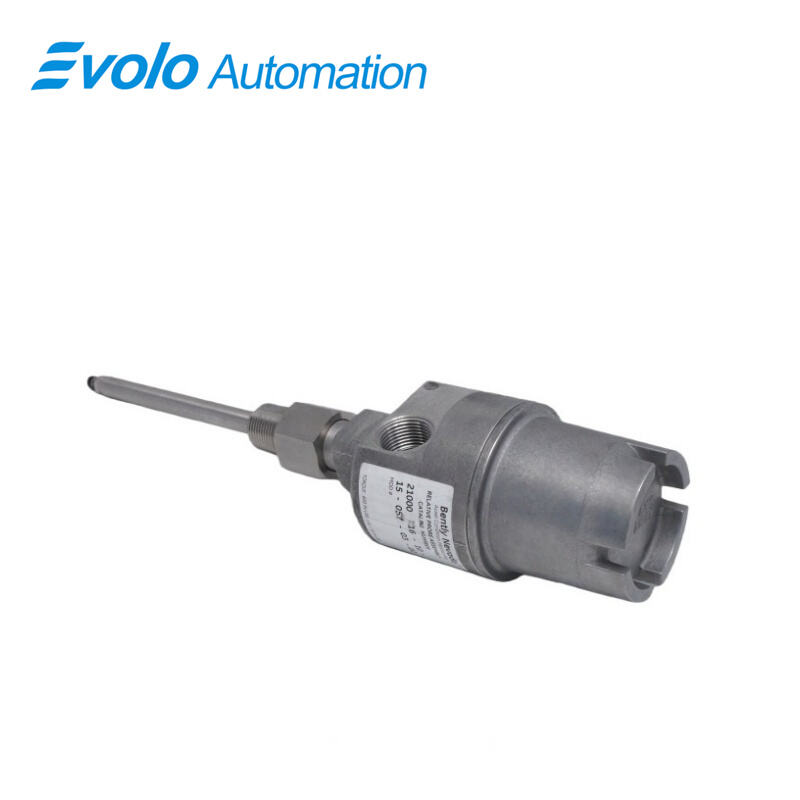

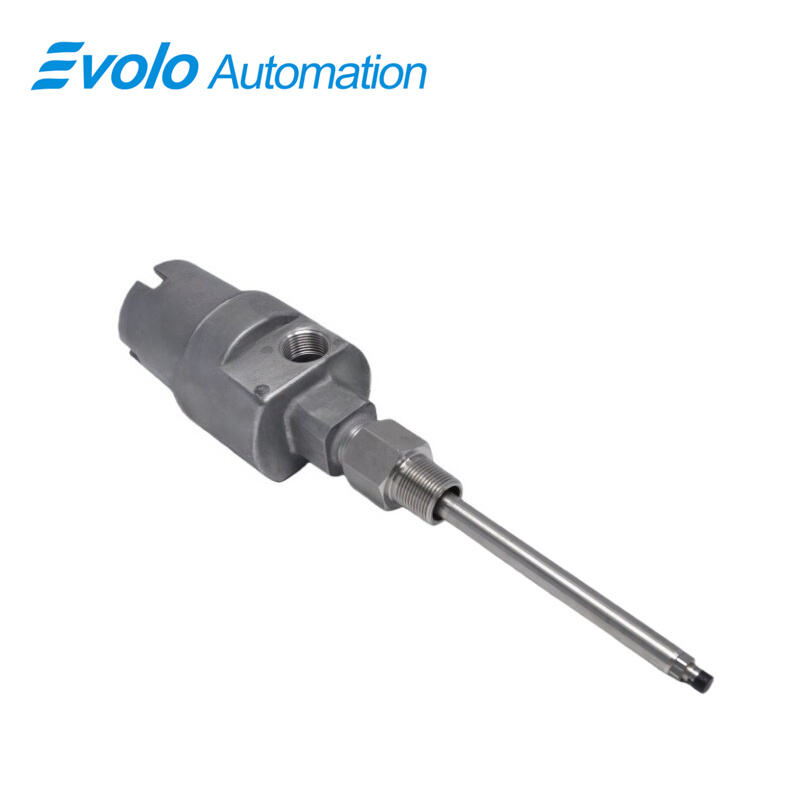

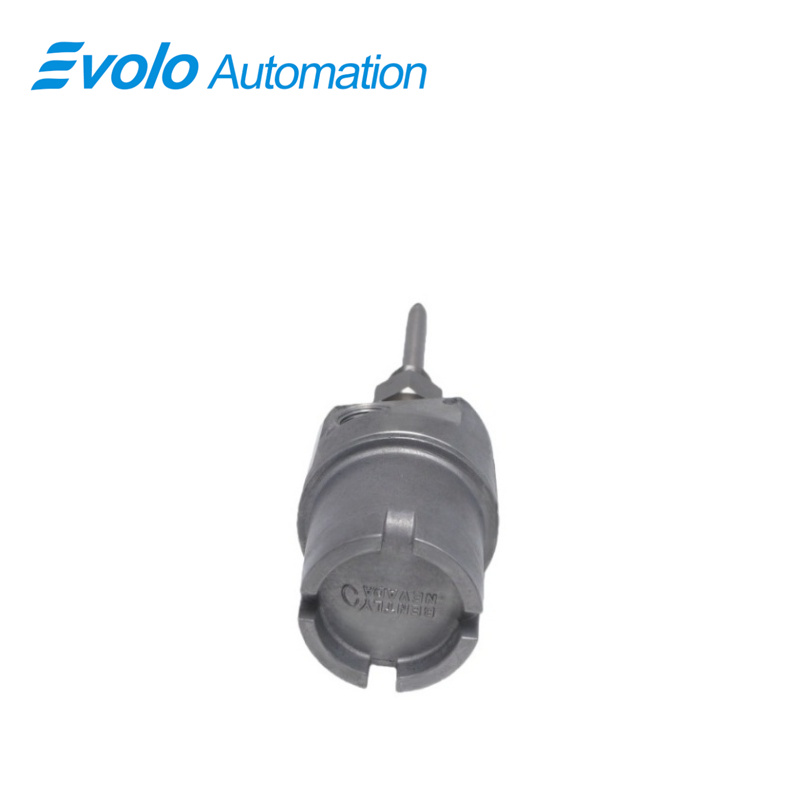

The 21000-16-05-00-077-03-02 Proximity Probe Housing Assembly provides a robust solution for externally mounting 3300 XL 8mm probes in industrial automation systems. Featuring a 0.5 m (20 in) probe cable and a 7.7 in probe penetration, the 21000-16-05-00-077-03-02 housing includes a threaded 3/4-14 NPT mount, aluminum body, and 304 stainless steel sleeve for corrosion resistance. Fittings include a 3/4-14 NPT plug, a 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip supporting 1/8–3/8 inch cables. The assembly contains a dome cover, O-rings, and a reverse mount probe, ensuring secure installation. Certified CSA Type 4 and compliant with API 670 standards, the 21000-16-05-00-077-03-02 supports intrinsically safe and hazardous area applications. Optional standoff adapters and conduit fittings allow flexible configuration. Sleeve length is adjustable based on installation, and additional sleeve support is available for lengths exceeding 12 inches. The 21000-16-05-00-077-03-02 ensures precise probe positioning for vibration and displacement monitoring in automation, offering a ready-to-install housing solution for process control and machinery protection.

Applications

Mount 3300 XL probes inside the 21000-16-05-00-077-03-02 housing on rotating machinery to monitor shaft vibration and displacement. The 7.7 in probe penetration allows accurate measurement of shaft movement in high-speed equipment.

Install 21000-16-05-00-077-03-02 in pumps and compressors for continuous equipment condition monitoring. The 0.5 m probe cable enables flexible routing in tight industrial spaces.

Use 21000-16-05-00-077-03-02 in process control systems for real-time proximity readings in hazardous areas. CSA Type 4 and API 670 compliance ensures safe operation in explosive environments.

Integrate 21000-16-05-00-077-03-02 with automation systems for predictive maintenance of turbines and motors. Optional standoff adapters and sleeve supports allow precise probe alignment for long sleeves exceeding 12 inches.

Specifications

Competitive Advantage

The 21000-16-05-00-077-03-02 allows quick installation using its threaded 3/4-14 NPT mount and dome cover for secure probe placement.

Flexible wiring is supported by the 21000-16-05-00-077-03-02 cable seal grips accommodating 1/8 to 3/8 inch cables.

CSA and API 670 certifications of 21000-16-05-00-077-03-02 enable safe deployment in hazardous areas and compliance with process control standards.

Aluminum body with 304 stainless steel sleeve in 21000-16-05-00-077-03-02 provides corrosion resistance for long-term use in industrial environments.

Adjustable sleeve lengths and optional supports in 21000-16-05-00-077-03-02 ensure precise probe positioning and reduce vibration effects for accurate monitoring in high-speed machinery.
