Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
200350-09-00-01 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Mounting Stud : |
No mounting stud |
|
Tolerance: |
100 mV/g ± 20% (10.2 mV/m/s^2 ±20%) |
|
Approvals: |
CSA, ATEX, IECEx |
|
Dimension: |
5.1x2x2cm |
|
Weight: |
0.05kg |
Description

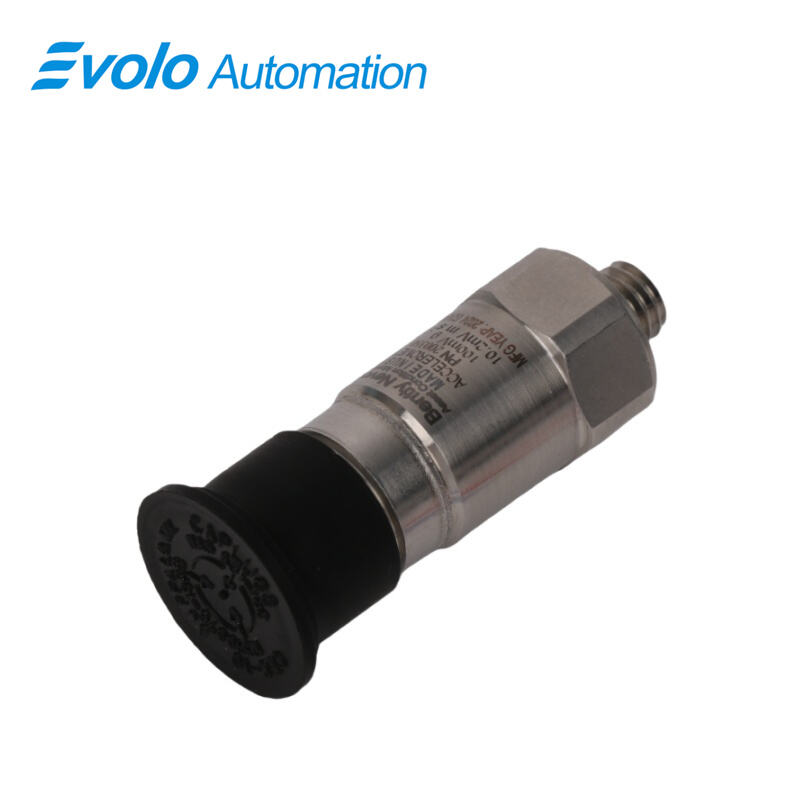

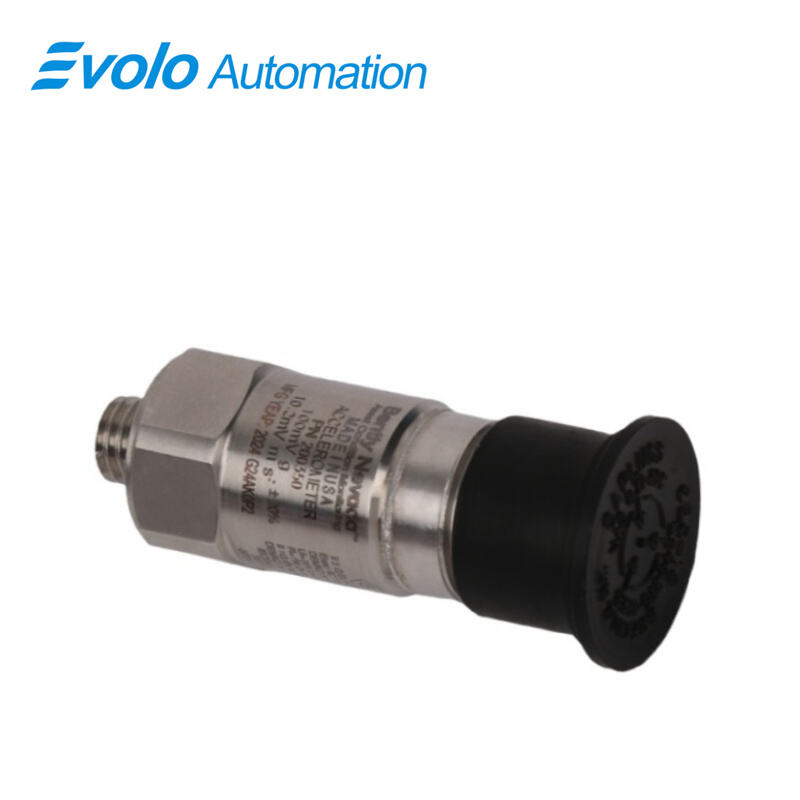

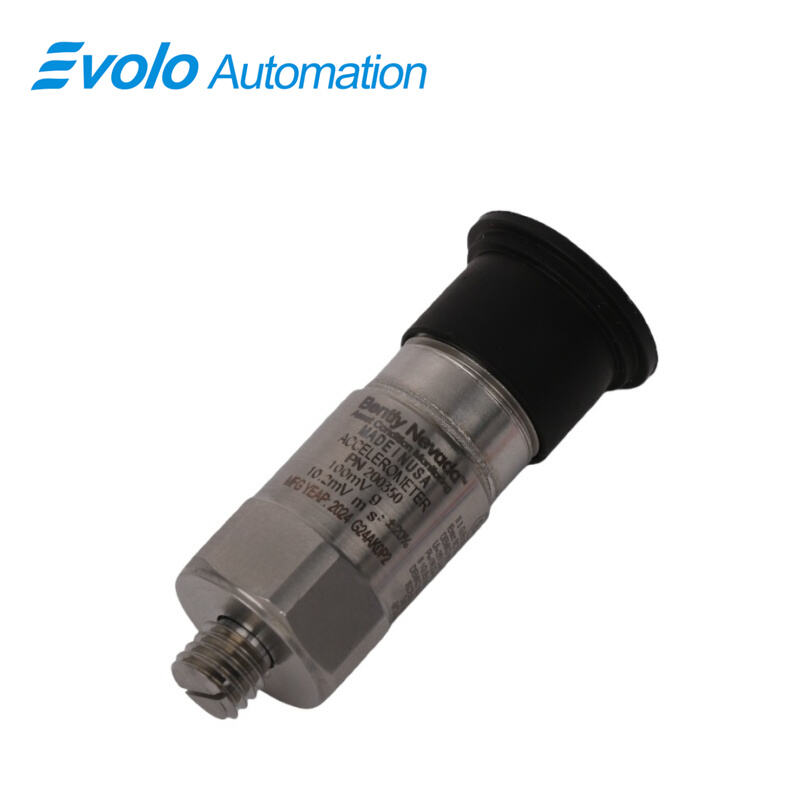

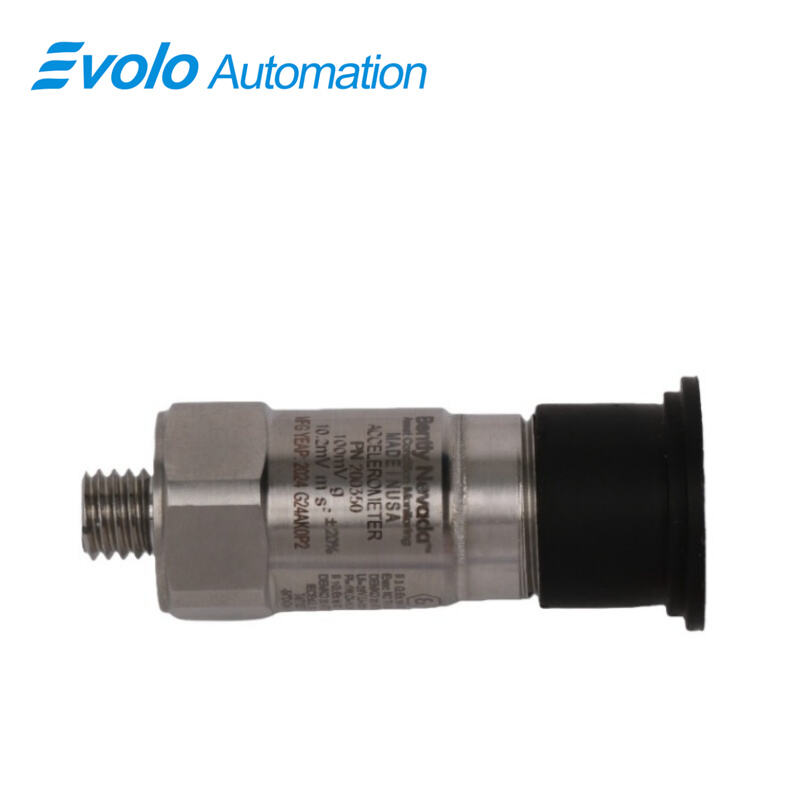

The 200350-09-00-01 Accelerometer is a case-mounted piezoelectric transducer designed for automated vibration monitoring in industrial machinery. The 200350-09-00-01 Accelerometer features 100 mV/g (10.2 mV/m/s²) sensitivity, ±50 g measurement range, 30–10,000 Hz frequency response, and ≤7% transverse sensitivity. Its hermetically sealed stainless steel housing with ¼-28 mounting hole and MIL-C5015 2-pin connector allows direct integration with Trendmaster Pro or Seismic Direct Input Cards. Operating from -54°C to +121°C and surviving 5,000 g shock, the 200350-09-00-01 Accelerometer provides real-time acceleration data for automated condition monitoring, predictive maintenance, and vibration analysis, simplifying sensor installation and improving automated system control.
Applications
Measure Fan and Motor Vibrations
The 200350-09-00-01 Accelerometer monitors vibration on industrial fans and motors, using its 100 mV/g (10.2 mV/m/s²) sensitivity and 30–10,000 Hz frequency response to provide precise real-time data for automated control and predictive maintenance.
Track Pump and Compressor Acceleration
The 200350-09-00-01 Accelerometer captures acceleration signals from pumps and compressors up to ±50 g, feeding automated monitoring systems to detect abnormal vibration patterns and enabling immediate operational adjustments.
Integrate with Automated Condition Monitoring Systems
The 200350-09-00-01 Accelerometer outputs a 100 mV/g signal through its MIL-C5015 2-pin connector, compatible with Trendmaster Pro and Seismic Direct Input Cards, allowing automated systems to directly process vibration data without additional conversion.
Analyze Structural Vibrations in Industrial Equipment
Using the 200350-09-00-01 Accelerometer, automated systems measure vibration amplitudes across equipment casings, leveraging ±1% amplitude linearity and ≤7% transverse sensitivity to adjust machinery operation in real time.
Specifications
|
Sensitivity: |
100 mV/g ±20% (10.2 mV/m/s^2 ±20%) |
|
Frequency Range (±3 dB) : |
30-600,000 cpm (0.5- 10,000 Hz) |
|
Measurement Range: |
± 50 g |
|
Transverse Sensitivity: |
≤ 7% |
|
Amplitude Linearity : |
± 1% |
|
Mounted Resonant Frequency: |
1500 kcpm (25 kHz) |
|
Broadband Electrical Noise (1-10kHz) : |
350 µg (3,434 µm/s2) |
|
Output Bias Voltage: |
8 to 12 VDC |
|
Excitation Voltage: |
18 to 28 VDC |
|
Constant Current Excitation： |
2 to 20 mA |
|
Settling Time (within 1% of bias)： |
≤ 2.0 sec |
|
Operating Temperature Range： |
-65°F to +250 ºF (-54°C to +121 ºC) |
|
Shock Survivability： |
5,000 g pk |
Competitive Advantage
High-Precision Acceleration Data
The 200350-09-00-01 Accelerometer provides ±50 g measurement range, 30–10,000 Hz frequency response, and ±1% amplitude linearity, delivering precise acceleration signals for automated monitoring.
Rugged Construction for Harsh Environments
Hermetically sealed 316L stainless steel housing and 5,000 g shock survivability make the 200350-09-00-01 Accelerometer suitable for direct mounting in industrial automation applications.
Easy Installation and Replacement
The 200350-09-00-01 Accelerometer features a ¼-28 mounting hole and MIL-C5015 2-pin connector, simplifying integration into automated systems and reducing downtime during sensor replacement.
Direct Integration with Automation Controllers
The 200350-09-00-01 Accelerometer outputs a standardized 100 mV/g signal compatible with Trendmaster Pro and Seismic Direct Input Cards, enabling real-time automated control without additional signal conversion.
