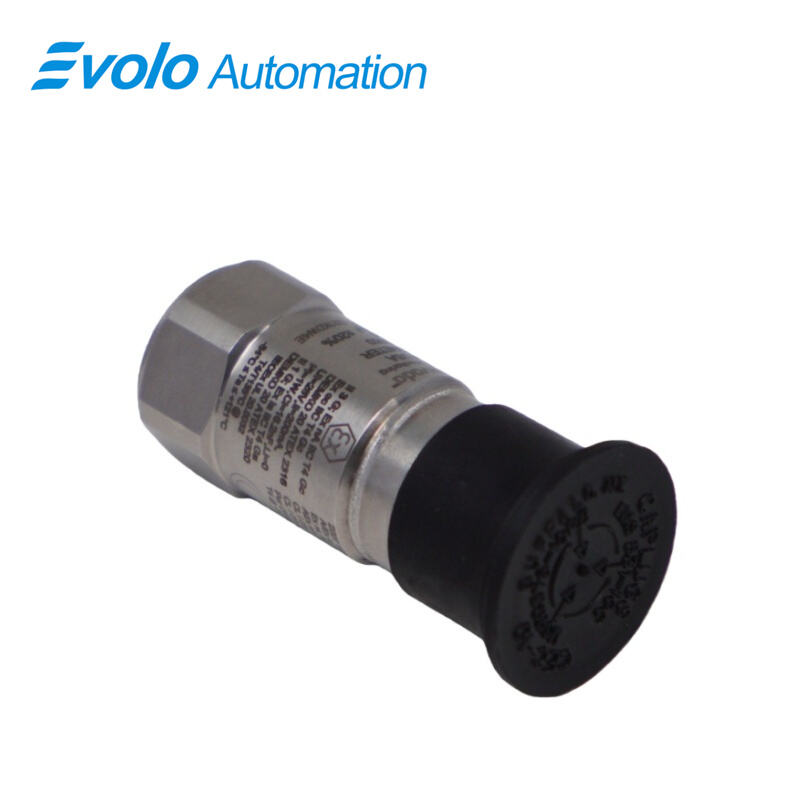

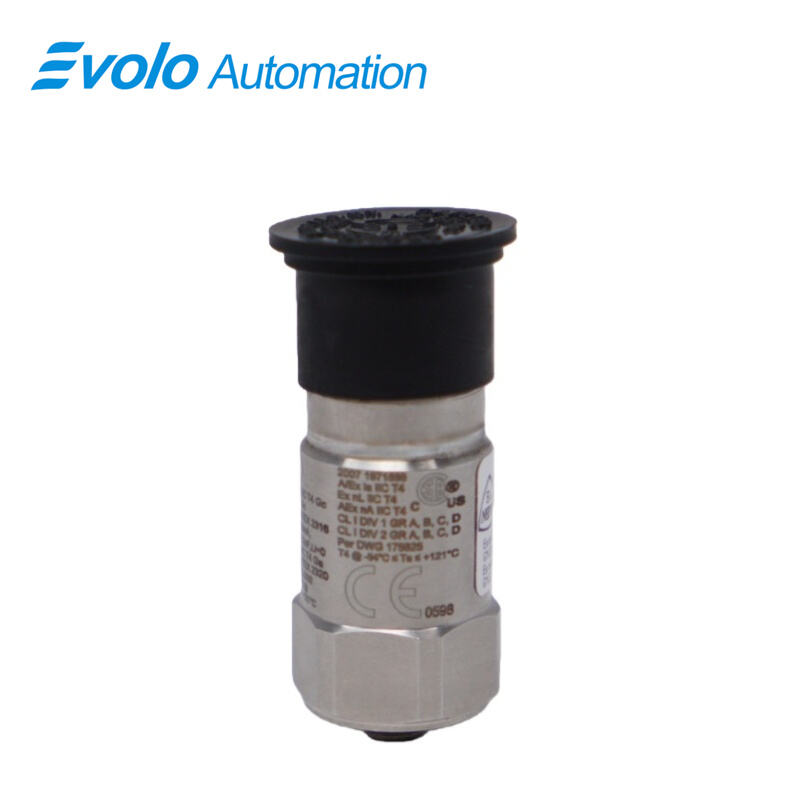

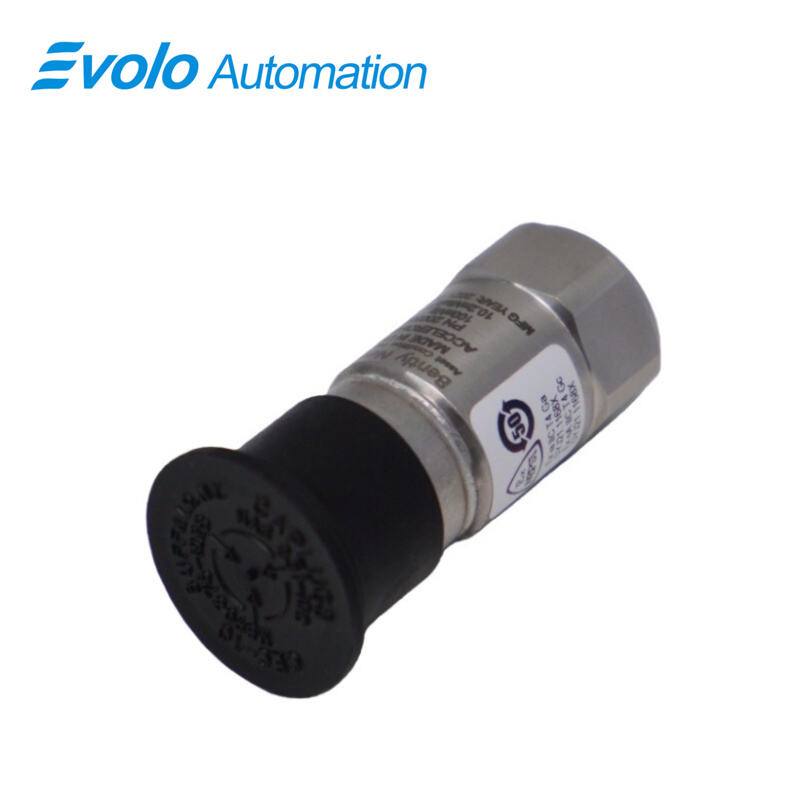

200350-02-00-01 Accelerometer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	200350-02-00-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 200350-02-00-01 Accelerometer is a high-performance sensor engineered for industrial automation and predictive maintenance in critical machinery. Designed to measure casing acceleration, vibration, and structural dynamics, it offers a sensitivity of 100 mV/g ±20% (10.2 mV/m/s² ±20%) and a measurement range of ±50 g, making it ideal for detecting subtle vibration changes in gearboxes, motors, and compressors. The accelerometer supports a broad frequency range of 0.5–10,000 Hz (30–600,000 cpm), with transverse sensitivity ≤7% and amplitude linearity ±1%, ensuring precise, repeatable measurements. Constructed from stainless steel with a ¼-28 to M8 x 1.25 mounting stud, it withstands extreme conditions from -54°C to +121°C (-65°F to +250°F) and survives shocks up to 5,000 g peak, guaranteeing durability in high-stress environments. Certified to CSA, ATEX, and IECEx standards, the 200350-02-00-01 is suitable for hazardous locations. With a mounted resonant frequency of 25 kHz (1,500 kcpm), low broadband electrical noise of 350 µg (3,434 µm/s²), and fast settling time ≤2 sec, this accelerometer delivers reliable vibration data for automated control systems, machinery protection, and predictive maintenance applications.

Applications

1. Gearbox Condition Monitoring
Measures acceleration on gearbox casings to detect misalignment, gear wear, or tooth mesh faults with high sensitivity (100 mV/g), enabling predictive maintenance.

2. Motor and Compressor Vibration Analysis
Monitors motors and centrifugal compressors within -54°C to +121°C, ensuring operational stability and detecting imbalance or bearing issues early.

3. High-Speed Rotating Equipment Diagnostics
Supports frequency ranges up to 10,000 Hz, ideal for high-speed shafts, turbines, and fans to track dynamic vibration behavior.

4. Hazardous Environment Machinery Monitoring
Certified CSA, ATEX, IECEx, suitable for oil & gas or chemical plants requiring explosion-proof sensors for safety compliance.

5. Structural Health Monitoring
Detects casing and frame vibrations in large machinery, providing data for automated control systems to prevent mechanical failures.

Specifications

Competitive Advantage

1. High Sensitivity and Accuracy
With 100 mV/g sensitivity and ±1% amplitude linearity, the accelerometer captures fine vibration variations critical for predictive maintenance.

2. Broad Frequency Range
Operates across 0.5–10,000 Hz, enabling use on both low-speed and high-speed rotating machinery.

3. Extreme Durability
Shock survivability up to 5,000 g and operating temperature -54°C to +121°C ensures reliability in harsh industrial environments.

4. Hazardous Area Compliance
Certifications CSA, ATEX, IECEx allow installation in explosive or high-risk environments without additional protective housings.

5. Low Electrical Noise and Fast Response
Broadband noise 350 µg and ≤2 sec settling time deliver precise, immediate vibration data for real-time monitoring and automated control systems.
