Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
190501-00-00-04 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Mounting Hardware Option: |
No stud |
|
Connection Option: |
MIL-C-5015 connection interface |
|
Agency Approval Option: |
CSA/NRTL/C (Class I, Division 1), ATEX/IECEx/CSA (Class I, Zone 0/1) |
|
Dimension: |
8.3x3.5x3.2cm |
|
Weight: |
0.3kg |
Description

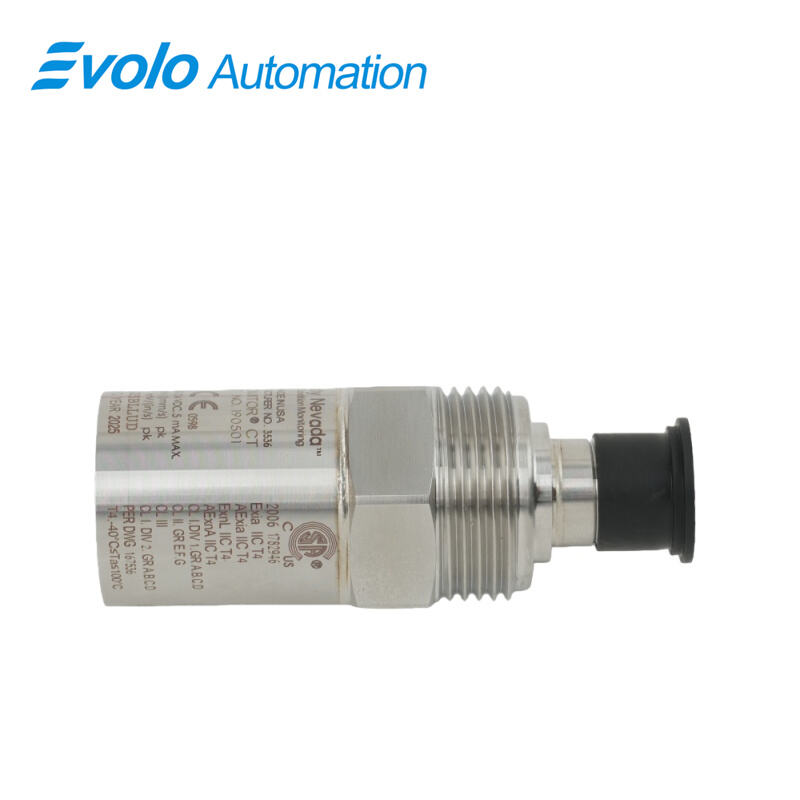

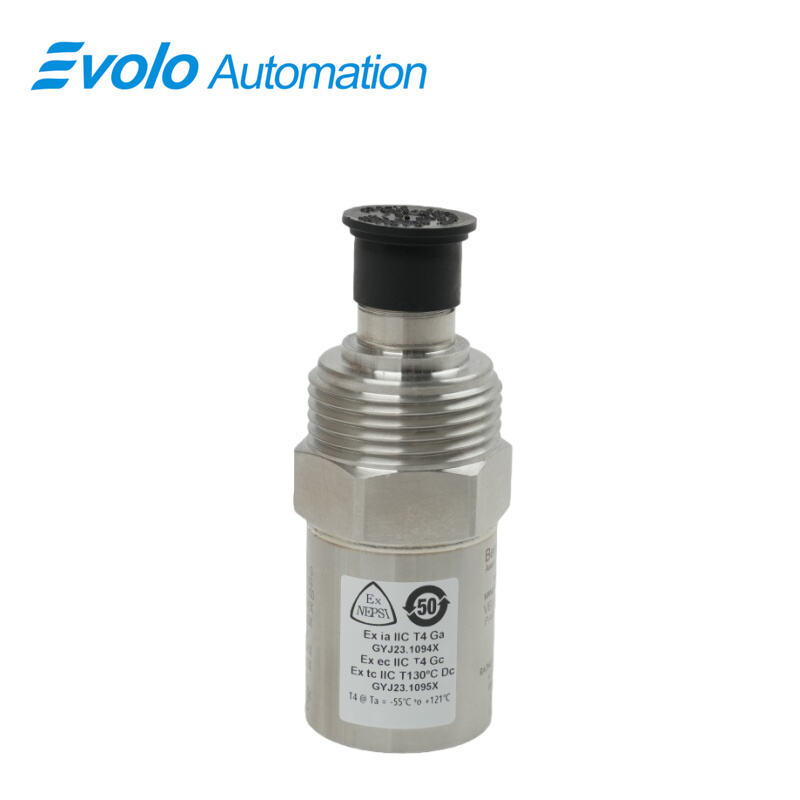

The 190501-00-00-04 Velomitor CT Velocity Transducer is a low-frequency velocity sensor designed for automated vibration monitoring on cooling tower and air-cooled heat exchanger fans. The 190501-00-00-04 Velomitor CT Velocity Transducer features a 3.94 mV/mm/s sensitivity, 3 Hz to 900 Hz frequency response, and 316L stainless steel housing with MIL-C-5015 2-pin connector. Operating from -40°C to +85°C, the 190501-00-00-04 Velomitor CT Velocity Transducer measures fan casing vibration and motor-generated frequencies up to 300 rpm. With 5000 g shock resistance and 100% condensing humidity tolerance, this transducer integrates directly into automated monitoring systems, providing real-time vibration velocity data for predictive maintenance and fan performance control.
Applications
Measure Fan Casing Vibration on Cooling Towers
The 190501-00-00-04 Velomitor CT Velocity Transducer captures vibration velocity of fan casings at 100–300 rpm, providing real-time data to automated monitoring systems and enabling immediate detection of abnormal fan operation.
Monitor Air-Cooled Heat Exchanger Fans
Using the 190501-00-00-04 Velomitor CT Velocity Transducer, automated systems can track fan vibration amplitudes generated by motor and speed reducer operation, supporting predictive maintenance and performance optimization.
Integrate with Automated Fan Control Systems
The 190501-00-00-04 Velomitor CT Velocity Transducer outputs a 3.94 mV/mm/s signal via MIL-C-5015 connection, directly feeding industrial automation controllers to adjust fan speed or shut down equipment if vibration thresholds are exceeded.
Detect Motor Imbalances in Rotating Equipment
The 190501-00-00-04 Velomitor CT Velocity Transducer measures low-frequency vibrations caused by motor imbalances, enabling automated corrective actions before mechanical damage occurs.
Specifications
|
Sensitivity: |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Frequency Response: |
3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB or 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB |
|
Temperature Sensitivity: |
-8% to +5% typical over the operating temperature range |
|
Case Material: |
316L stainless steel |
|
Connector: |
2-pin 316L stainless steel MIL-C-5015, top |
|
Mounting Torque： |
4.5 N-m ± 0.6 N-m (40 in– lbf ± 5 in-lbf) |
|
Mounting Angle： |
Any orientation |
|
Mounting Surface： |
33 mm diameter (1.3 in diameter) |
|
Operating Temperature: |
-40°C to +85°C (-40°F to +185°F) |
|
Storage Temperature: |
-40°C to +100°C (-40°F to +212°F) |
|
Shock Limit: |
5000 g pk, maximum |
|
Humidity Limit: |
100% condensing, non-submerged |
Competitive Advantage
High-Precision Velocity Measurement
The 190501-00-00-04 Velomitor CT Velocity Transducer provides accurate 3.94 mV/mm/s output and 3 Hz to 900 Hz frequency response, capturing low-frequency fan and motor vibrations for automation control.
Durable Construction for Industrial Environments
The 316L stainless steel housing of the 190501-00-00-04 Velomitor CT Velocity Transducer withstands -40°C to +85°C, 5000 g shocks, and 100% condensing humidity, ensuring reliable operation in automated monitoring setups.
Easy Mounting and Connection
With a 33 mm mounting surface, 3/4-14 NPT or torque-controlled installation, and MIL-C-5015 2-pin connector, the 190501-00-00-04 Velomitor CT Velocity Transducer simplifies integration into existing automated systems.
