1900/65A 172323-01 General Purpose Equipment Monitor
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Quick Detail
- Description
- Applications
- Specifications
- Competitive Advantage
- Recommended Products
Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
1900/65A 172323-01 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Transducer Inputs: Channels 1-4 configurable for acceleration, velocity, or displacement transducers |
Transducer Inputs: Channels 1-4 configurable for acceleration, velocity, or displacement transducers |
|
Vibration Variable Filter Range: 0.5 Hz – 25 kHz, 4-pole high-pass, 4-pole low-pass |
Vibration Variable Filter Range: 0.5 Hz – 25 kHz, 4-pole high-pass, 4-pole low-pass |
|
Enveloping High-Pass Filter: 25 Hz – 5 kHz, 4-pole, configurable |
Enveloping High-Pass Filter: 25 Hz – 5 kHz, 4-pole, configurable |
|
Enveloping Low-Pass Filter: 125 Hz – 25 kHz, 2-pole, configurable |
Enveloping Low-Pass Filter: 125 Hz – 25 kHz, 2-pole, configurable |
|
Enveloped Variable High-Pass Filter: 0.1 Hz min, 2-pole, must be greater than Enveloped Variable low-pass |
Enveloped Variable High-Pass Filter: 0.1 Hz min, 2-pole, must be greater than Enveloped Variable low-pass |
|
Enveloped Variable Low-Pass Filter: > Enveloped Variable high-pass and < Enveloping high-pass, 4-pole |
Enveloped Variable Low-Pass Filter: > Enveloped Variable high-pass and < Enveloping high-pass, 4-pole |
|
Bias Filter: 0.01 Hz, 1-pole low-pass |
Bias Filter: 0.01 Hz, 1-pole low-pass |
|
OK Filter: 2.4 kHz, 1-pole low-pass |
OK Filter: 2.4 kHz, 1-pole low-pass |
|
Full Scale Vibration Range: 20 – 500 m/s² (2 – 50 g), peak and RMS |
Full Scale Vibration Range: 20 – 500 m/s² (2 – 50 g), peak and RMS |
|
Full Scale Enveloped Range: 20 – 500 m/s² (2 – 50 g), peak and RMS |
Full Scale Enveloped Range: 20 – 500 m/s² (2 – 50 g), peak and RMS |
|
Full Scale Integrated Range: 10 – 100 mm/s (0.4 – 4 in/s), peak and RMS |
Full Scale Integrated Range: 10 – 100 mm/s (0.4 – 4 in/s), peak and RMS |
|
Bias Voltage: -24 V |
Bias Voltage: -24 V |
|
Vibration Variable Accuracy: ±1% of full scale range |
Vibration Variable Accuracy: ±1% of full scale range |
|
Input Impedance 3-Wire Voltage Mode: 10 kΩ |
Input Impedance 3-Wire Voltage Mode: 10 kΩ |
|
Alarm Status Time Delay Minimum: 0.1 second |
Alarm Status Time Delay Minimum: 0.1 second |
|
Alarm Status Time Delay Maximum: 60 seconds |
Alarm Status Time Delay Maximum: 60 seconds |
|
Alarm Adjustment Resolution: 0.1 second |
Alarm Adjustment Resolution: 0.1 second |
|
Status LED: Indicates when the monitor is functioning properly |
Status LED: Indicates when the monitor is functioning properly |
|
Dimension: |
19.8x16.2x10.8cm |
|
Weight: |
1.35 kg |
Description

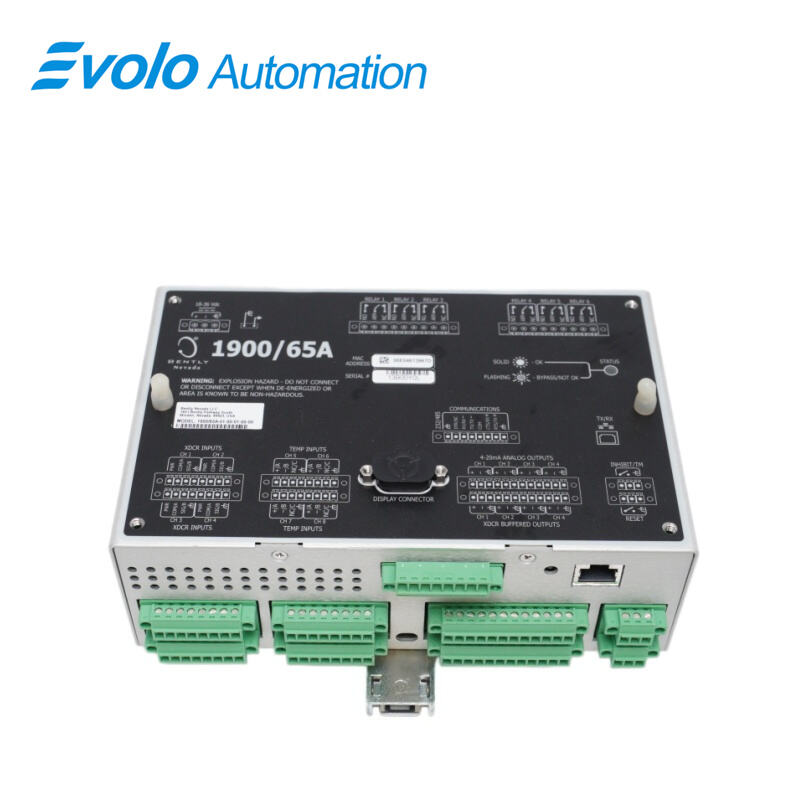

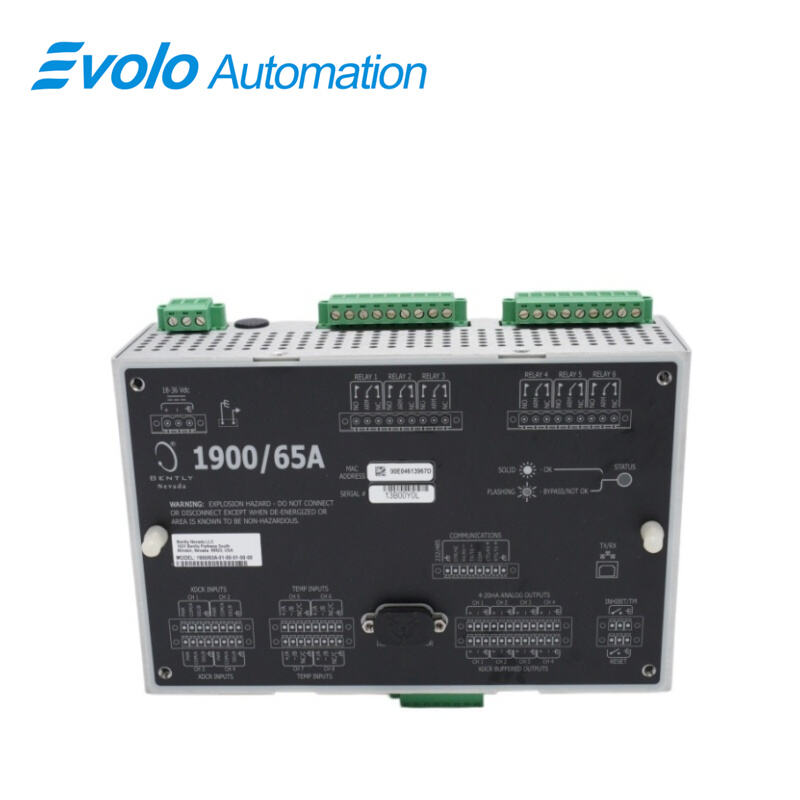

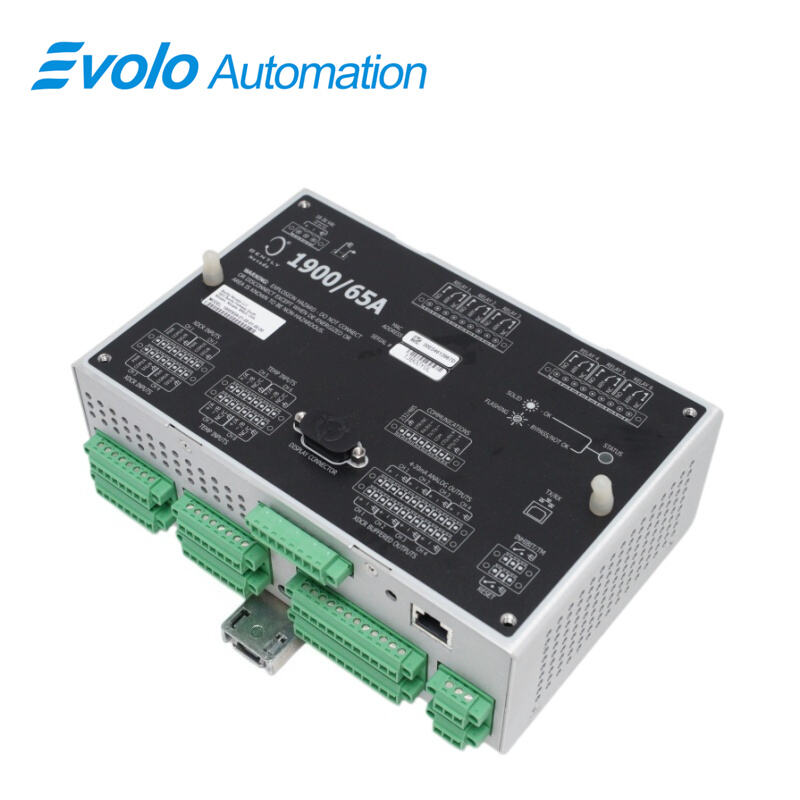

The 1900/65A 172323-01 General Purpose Equipment Monitor provides four configurable transducer inputs for acceleration, velocity, or displacement sensors and four temperature inputs supporting Type E, J, K, T thermocouples and 2- or 3-wire RTDs. Each channel is programmable using 1900/65A 172323-01 Configuration Software to drive six relay outputs, four 4-20 mA recorder outputs, and a dedicated buffered output. Vibration measurement ranges from 20–500 m/s² (2–50 g) with ±1% full-scale accuracy, and integrated velocity ranges 10–100 mm/s (0.4–4 in/s). 1900/65A 172323-01 operates at -20°C to +70°C, stores configuration in non-volatile memory, and communicates via Modbus over Ethernet or RS232/485. Alarm status delays are adjustable from 0.1 to 60 s. The monitor supports DIN rail, bulkhead, or NEMA 4X/IP66 fiberglass housing mounting, with optional display up to 75 m from the module. With fast response times, configurable filters, and multiple outputs, 1900/65A 172323-01 is optimized for continuous monitoring and protection of general-purpose machinery in automated systems, providing real-time data for DCS, SCADA, or PLC integration.
Applications
Configure transducer inputs for vibration monitoring
1900/65A 172323-01 allows Channels 1–4 to accept acceleration, velocity, or displacement inputs, with ranges from 20–500 m/s² (2–50 g) peak and RMS, enabling precise condition monitoring of rotating machinery in industrial automation.
Monitor temperature on multiple machine points
Each 1900/65A 172323-01 module supports four temperature inputs using Type E, J, K, T thermocouples or 2-/3-wire RTDs, measuring -20°C to +70°C and providing user-programmable alarm setpoints to prevent equipment overheating.
Drive relay outputs for alarm and control actions
The six relay outputs and four 4-20 mA recorder outputs on 1900/65A 172323-01 allow automated control actions, triggering emergency stops or alert systems when thresholds are exceeded.
Integrate with SCADA and DCS systems
1900/65A 172323-01 communicates via Modbus over Ethernet or RS232/485, feeding real-time vibration, temperature, and alarm data to Distributed Control Systems, PLCs, and Supervisory Control systems.
Deploy remote monitoring with optional display
The optional 1900/65A 172323-01 display/keypad can be mounted up to 75 m from the module, allowing operators to visualize channel data and configure settings without direct rack access.
Specifications
|
Operating Temperature: -20°C to +70°C (-4°F to +158°F) |
Operating Temperature: -20°C to +70°C (-4°F to +158°F) |
|
Storage Temperature: -30°C to +90°C (-22°F to +194°F) |
Storage Temperature: -30°C to +90°C (-22°F to +194°F) |
|
Operating Humidity: 95% non-condensing, maximum |
Operating Humidity: 95% non-condensing, maximum |
|
Storage Humidity: 95% non-condensing, maximum |
Storage Humidity: 95% non-condensing, maximum |
|
DIN Rail Mounting Option: 35 mm DIN rail |
DIN Rail Mounting Option: 35 mm DIN rail |
|
Bulkhead Mounting Option: Bulkhead mounting plate |
Bulkhead Mounting Option: Bulkhead mounting plate |
|
Weatherproof Enclosure Option: NEMA 4X/IP66 Fiberglass Housing with window, 300.2 mm x 249.4 mm x 209.8 mm (11.82 in x 9.82 in x 8.26 in) |
Weatherproof Enclosure Option: NEMA 4X/IP66 Fiberglass Housing with window, 300.2 mm x 249.4 mm x 209.8 mm (11.82 in x 9.82 in x 8.26 in) |
Competitive Advantage
High-accuracy vibration and velocity measurement
1900/65A 172323-01 provides ±1% full-scale accuracy for vibration (20–500 m/s²) and integrated velocity (10–100 mm/s), ensuring precise measurement for automated machinery protection.
Fast alarm response with adjustable delays
With configurable alarm delays from 0.1 to 60 seconds, 1900/65A 172323-01 enables rapid detection and response to deviations in machine behavior.
Flexible mounting options
DIN rail, bulkhead, or NEMA 4X/IP66 fiberglass housing options allow 1900/65A 172323-01 installation in varied industrial environments without additional modifications.
Multi-channel and multi-sensor support
The four transducer and four temperature channels of 1900/65A 172323-01 support diverse sensor types, allowing users to monitor multiple variables in a single automated system.
