Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
177230-01-02-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Measurement Range: |
0 – 25.4 mm/s (0 – 1.0 in/s) |
|
Frequency : |
3 Hz to 1 kHz (180 to 60 kcps) peak |
|
Approvals : |
Multiple Approvals (CSA/NRTL/C,ATEX/IECEx) |
|
SettlingTime: |
Less than 13 seconds within 2% of final value |
|
Case Material : |
316L stainless steel |
|
Dimension: |
6.8x2.8x2.8cm |
|
Weight: |
0.12kg |
Description

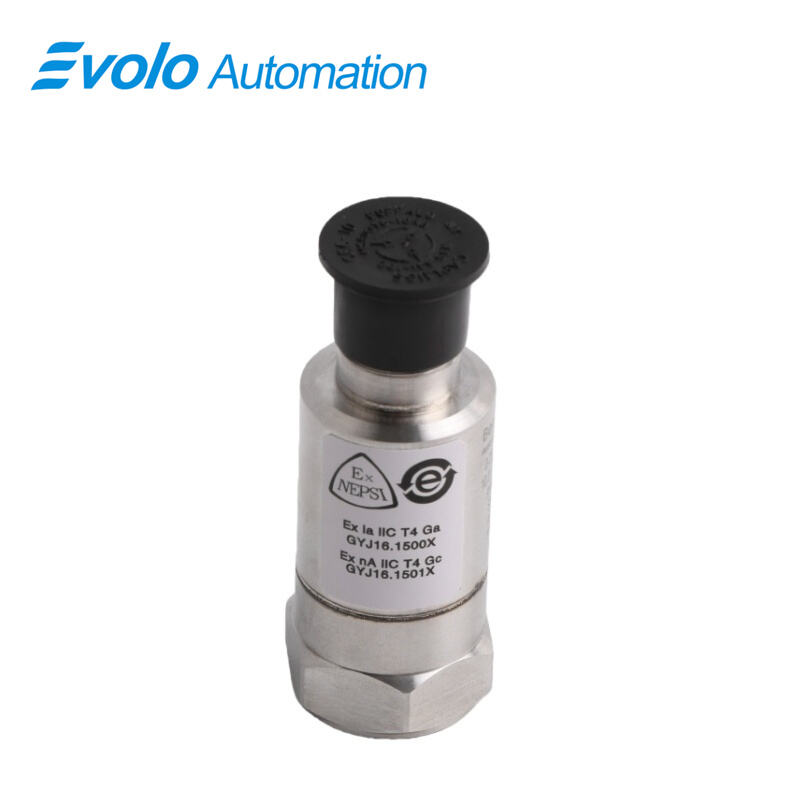

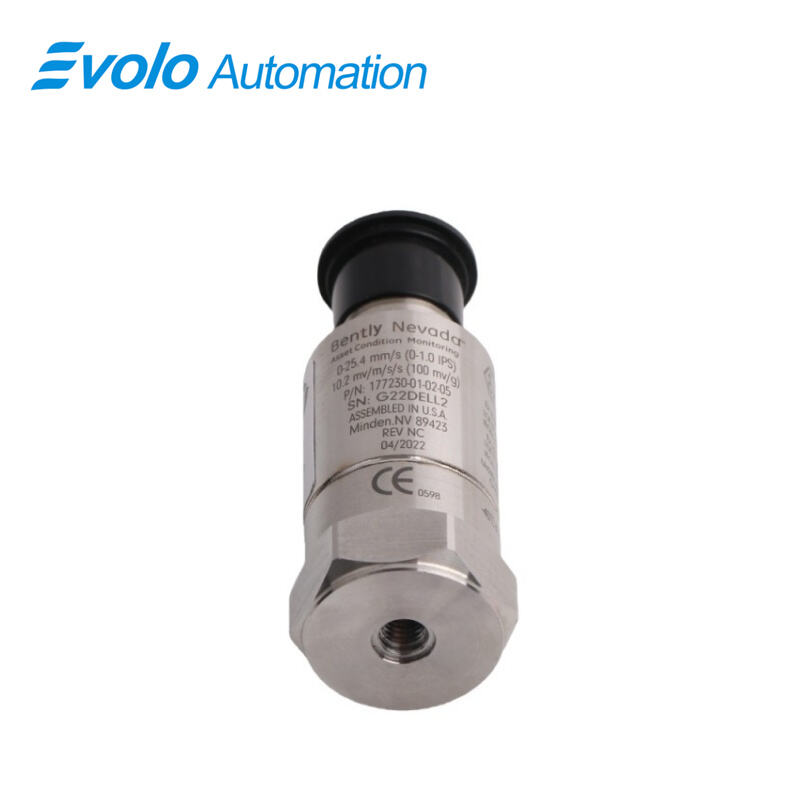

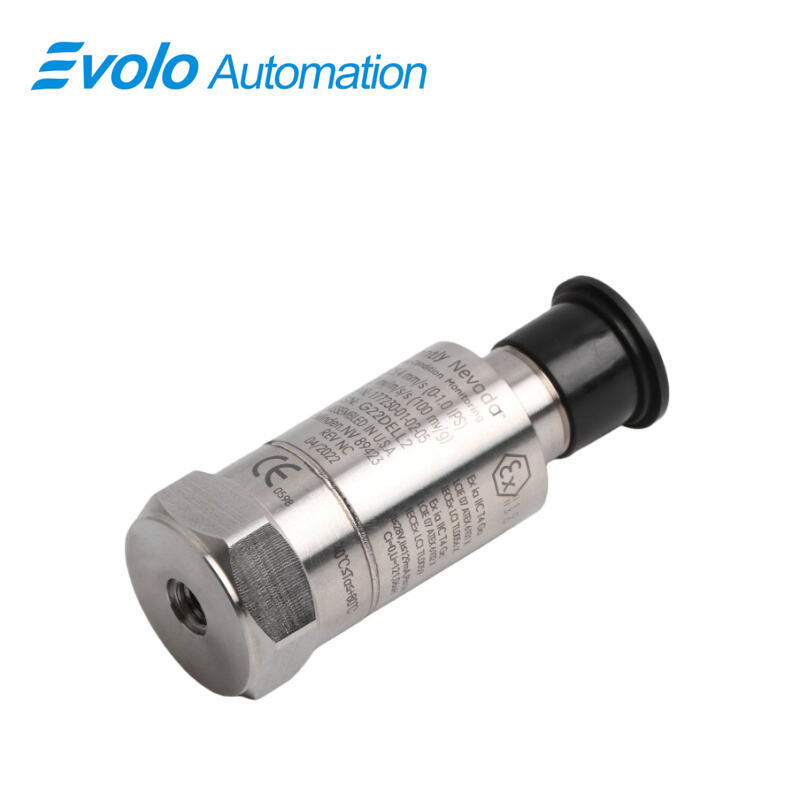

177230-01-02-05 Seismic Transmitter is a loop-powered device designed for quick integration into automated monitoring systems, including PLCs, DCS, and SCADA. The transmitter measures vibration within a range of 0 – 25.4 mm/s (0 – 1.0 in/s) and operates at frequencies from 3 Hz to 1 kHz (180 to 60 kcps peak), with a settling time of less than 13 seconds within 2% of the final value. The sensing element is ceramic/shear, housed in 316L stainless steel, and rated for operation from -40°C to +85°C (-40°F to +185°F). 177230-01-02-05 supports up to 100% non-submerged relative humidity, withstands 9.810 m/s² (1 g) shock, and provides electrical isolation above 10⁸ ohms. Installation uses M6 X 1, M8 x 1.25, or ¼-28 UNF mounting, with isolation breakdown voltage of 600 Vrms.
Applications
Measure Vibration on Rotating Equipment
177230-01-02-05 captures radial and axial vibrations on pumps, motors, and compressors, supporting automated detection of imbalance, misalignment, or bearing wear. Its 0 – 25.4 mm/s range and 3 Hz to 1 kHz frequency bandwidth ensure Detect Early Mechanical Failures
With less than 2 mV supply sensitivity per volt input change and transverse sensitivity below 5%, 177230-01-02-05 delivers repeatable signals, enabling automated systems to identify machinery wear before failure occurs.
precise readings for fluid-film bearing machines.
Enable Hazardous Area Operation
Certified to CSA, ATEX, and IECEx, 177230-01-02-05 can be installed in explosive or high-risk environments, providing safe vibration monitoring without manual intervention.
Specifications
|
Operating Temperature Range: |
-40°C to +85°C (-40°F to +185°F) |
|
Mounting Torque : |
M6 X 1 SI M8 x 1.25 SI ¼-28 UNF |
|
Relative Humidity of Transmitter : |
To 100% non-submerged |
|
Sensor Seal: |
Hermetically sealed |
|
Shock Survivability : |
9.810 m/s2 (1.000 g peak), maximum drop test |
|
Isolation Breakdown Voltage : |
600 Vrms with less than 1 mA leakage current |
|
Electrical Isolation : |
Greater than 108 ohms |
|
Transverse Sensitivity: |
Less than 5% of sensitivity |
|
Sensing Element Type: |
Ceramic / Shear |
Competitive Advantage
Competitive Advantage: Quick Installation
Loop-powered design and standardized connectors enable 177230-01-02-05 to be installed rapidly with minimal additional components or adjustments.
Competitive Advantage: Data Accuracy
Hermetically sealed ceramic/shear sensor and transverse sensitivity below 5% ensure 177230-01-02-05 delivers repeatable, high-quality vibration signals for analysis and verification.
Competitive Advantage: Hazardous Area Access
The 177230-01-02-05 transmitter meets CSA, ATEX, and IECEx approvals, enabling safe deployment in environments with explosive atmospheres.
