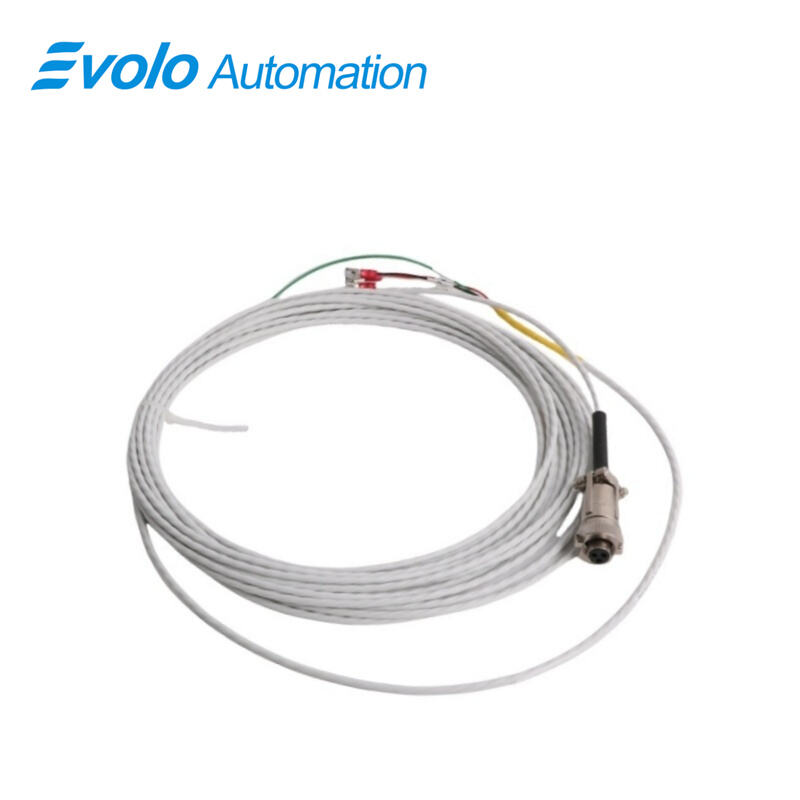

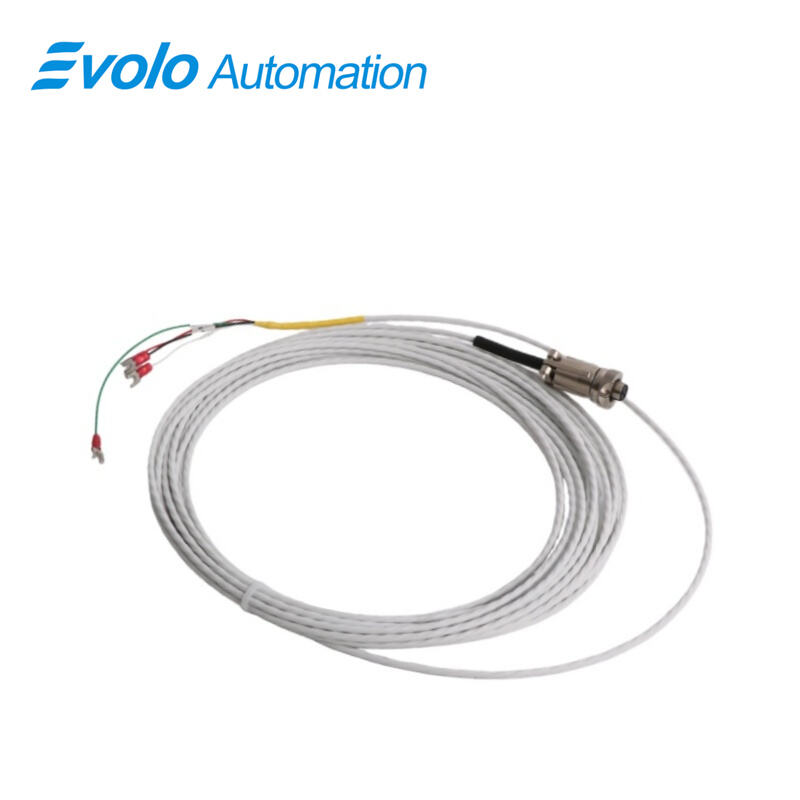

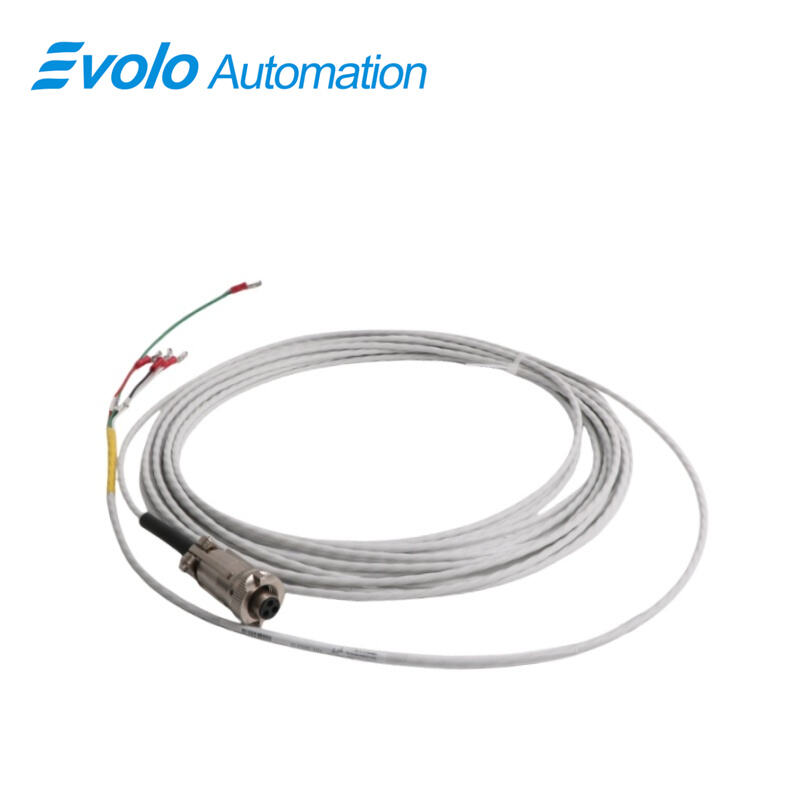

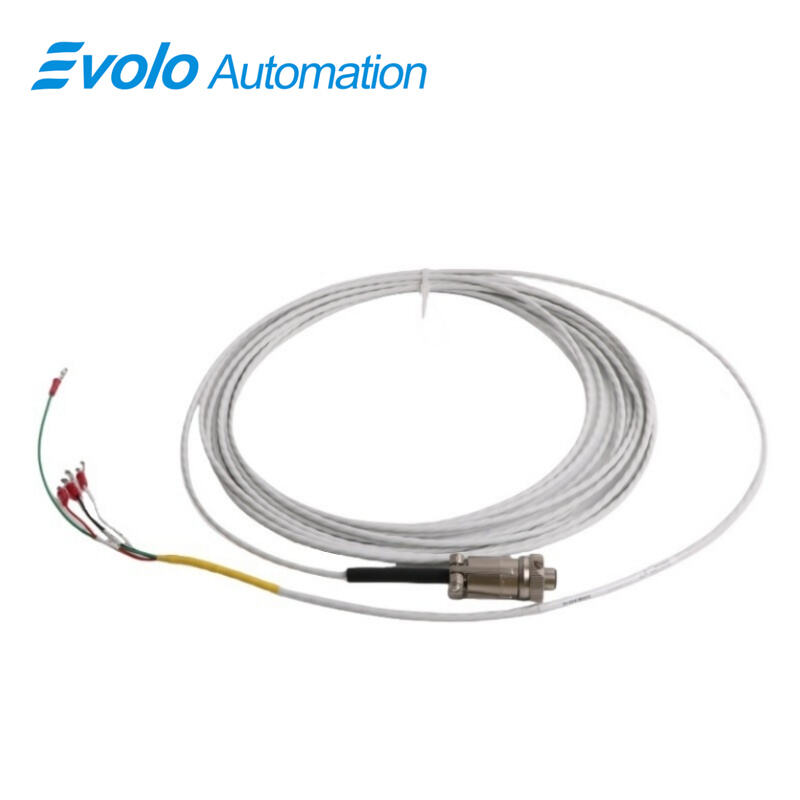

16925-66 Interconnect Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	16925-66
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 16925-66 Interconnect Cable is designed for industrial automation systems requiring precise low-level analog signal transmission. This 16925-66 Interconnect Cable features 3 conductors of 22 AWG stranded tinned copper, providing reliable signal conduction over a nominal length of 66 ft with ±5% tolerance. The cable includes PVC insulation and a 100% overall foil shield with drain wire, ensuring effective EMI protection for sensitive analog signals. The characteristic impedance of 50 Ω and capacitance of less than 60 pF/ft between conductor and shield maintain signal integrity over long runs. Rated for 300 V operation and an operating temperature range of -40°C to +105°C, the 16925-66 Interconnect Cable supports automated equipment in harsh environments. Connector options include factory-terminated sensor connector at End A and flying leads or terminal lugs at End B, simplifying integration into monitoring systems. The minimum bend radius of 10 × cable diameter allows safe routing in confined spaces. The 16925-66 Interconnect Cable is ideal for transmitting high-precision analog signals between sensors, controllers, and monitoring devices in automated production lines.

Applications

Connect Sensors to Controllers Using 16925-66: The 16925-66’s 3 × 22 AWG stranded tinned copper conductors and PVC insulation enable reliable low-level analog signal transmission from sensors to automation controllers.

Transmit Low-Level Analog Signals Accurately: The 50 Ω characteristic impedance and capacitance < 60 pF/ft of 16925-66 maintain signal integrity over the full 66 ft nominal length, ensuring precise data collection in automated processes.

Integrate Equipment in EMI-Prone Environments: The 100% foil shield with drain wire in 16925-66 reduces electromagnetic interference for connected sensors and monitors.

Install Safely in Tight Industrial Panels: The minimum bend radius of 10 × cable diameter allows 16925-66 to be routed through compact spaces without degrading performance.

Specifications

Competitive Advantage

High Signal Accuracy: With 50 Ω impedance and <60 pF/ft capacitance, 16925-66 ensures consistent analog signal transfer, reducing measurement errors in automation.

EMI Protection for Industrial Systems: The 100% foil shield with drain wire of 16925-66 prevents interference from motors, drives, or nearby high-power devices.

Wide Operating Temperature Coverage: Rated from -40°C to +105°C, 16925-66 performs reliably in extreme temperature zones within automated plants.

Durable Installation Flexibility: The minimum bend radius specification ensures 16925-66 can be routed around obstacles without damaging the conductors.

Versatile Connection Options: End A factory-terminated sensor connectors and End B flying leads/terminal lugs allow 16925-66 to be directly integrated into automation panels and monitoring systems.
