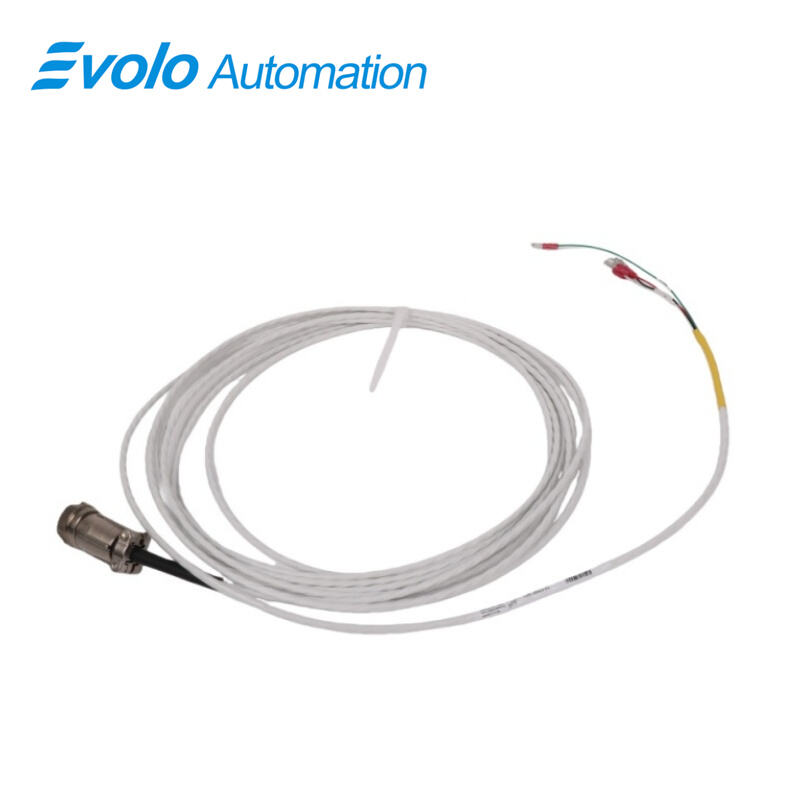

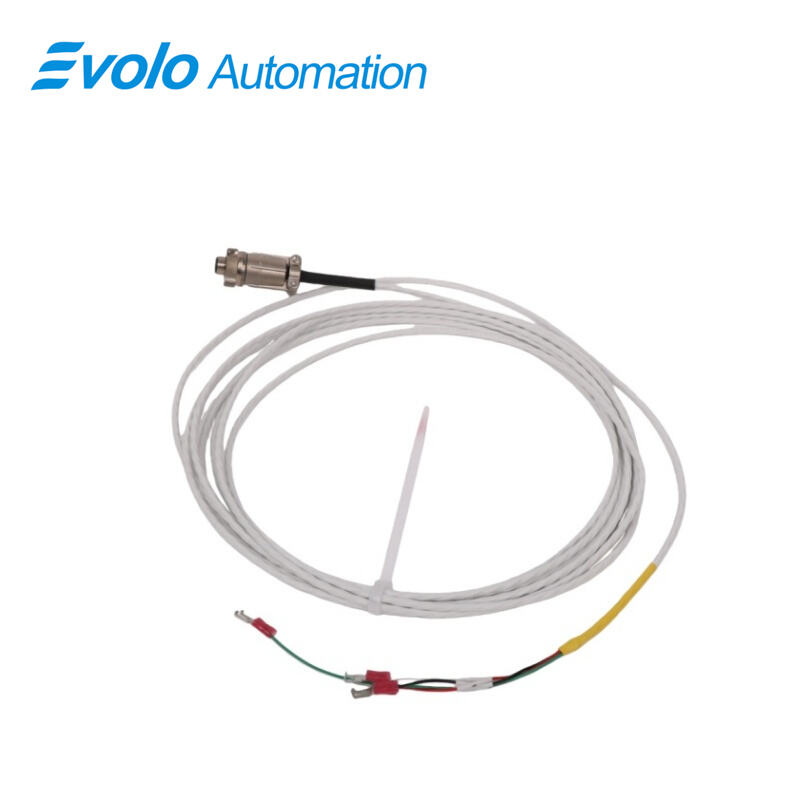

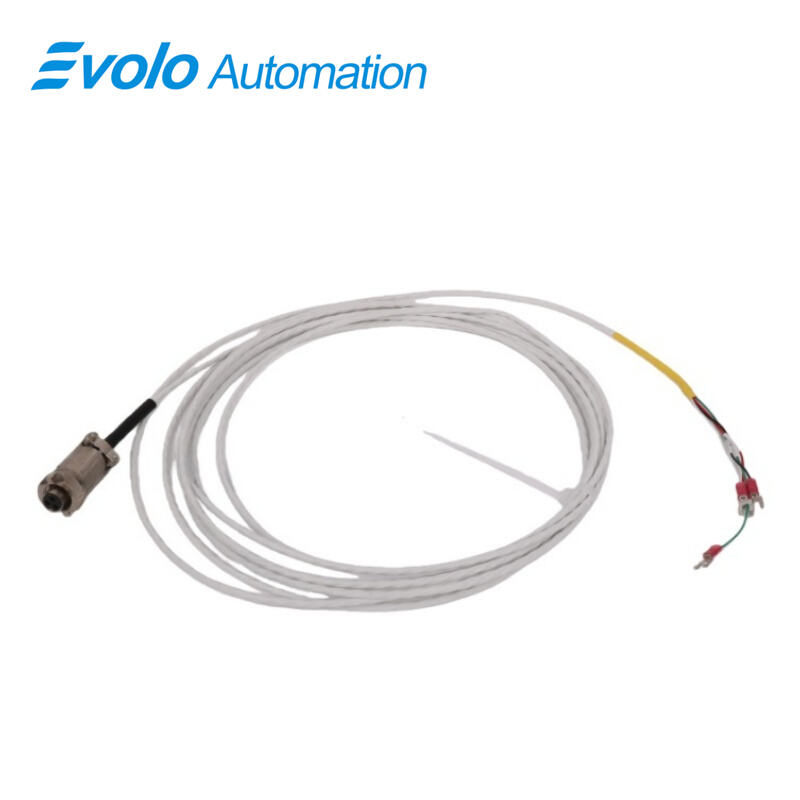

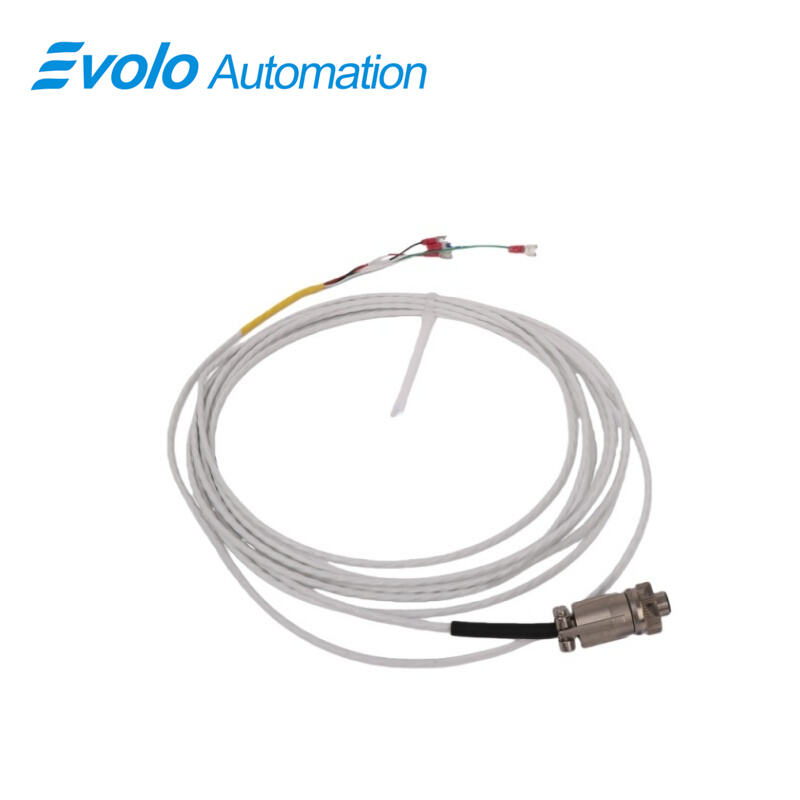

16925-26 Electrical Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	16925-26
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 16925-26 Electrical Cable is a 2-conductor, 22 AWG stranded copper cable designed for industrial automation systems requiring precise signal transmission. Each conductor is insulated with durable PVC, and the cable features an overall braided shield covering ≥85% to reduce electromagnetic interference, ensuring reliable data and power delivery. Rated for 300 V and 5 A, the 16925-26 Electrical Cable operates safely across a temperature range of -20 °C to +80 °C. With an outer diameter of approximately 6.5 mm and a minimum bending radius of six times the cable diameter, the 16925-26 Electrical Cable is easy to route through control panels and machinery. Its insulation resistance of ≥20 MΩ·km and capacitance ≤120 pF/m allow consistent signal integrity over long runs. The cable comes in a 26 ft length option, compatible with PLCs, sensors, actuators, and other automation devices. The robust braided shield and PVC jacket provide mechanical protection and minimize signal noise, making the 16925-26 Electrical Cable suitable for high-accuracy control and monitoring applications in industrial automation environments.

Applications

Signal Transmission for PLC Modules
Use the 16925-26 Electrical Cable to connect PLC modules to I/O devices, maintaining voltage levels and signal clarity over 26 ft runs. Its 22 AWG copper conductors and low capacitance (≤120 pF/m) enable precise control signal transmission.

Connecting Sensors and Actuators
The 16925-26 Electrical Cable is ideal for linking field sensors and actuators in automated machinery. The cable’s braided shield (≥85% coverage) reduces interference, ensuring accurate actuation and sensor feedback.

Industrial Control Panel Wiring
Install the 16925-26 Electrical Cable in control panels or distributed automation systems. Its 6.5 mm diameter and flexible bending radius simplify routing and reduce installation time while maintaining electrical integrity.

Specifications

Competitive Advantage

Interference Suppression
The 16925-26 Electrical Cable braided shield minimizes electromagnetic interference, protecting sensitive signals in industrial environments with multiple electrical devices.

Temperature-Tolerant Performance
Rated for -20 °C to +80 °C, the 16925-26 Electrical Cable ensures reliable operation in heated enclosures or cooler outdoor automation settings.

Easy Routing in Automation Systems
With a 6.5 mm outer diameter and a minimum bending radius six times the cable diameter, the 16925-26 Electrical Cable can be routed through tight spaces and complex machinery layouts.

Long-Term Signal Accuracy
The 16925-26 Electrical Cable maintains insulation resistance ≥20 MΩ·km and low capacitance ≤120 pF/m, providing consistent voltage and current transmission for automation controls and reducing signal loss over extended cable lengths.
