16710-30 Interconnect Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	16710-30
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

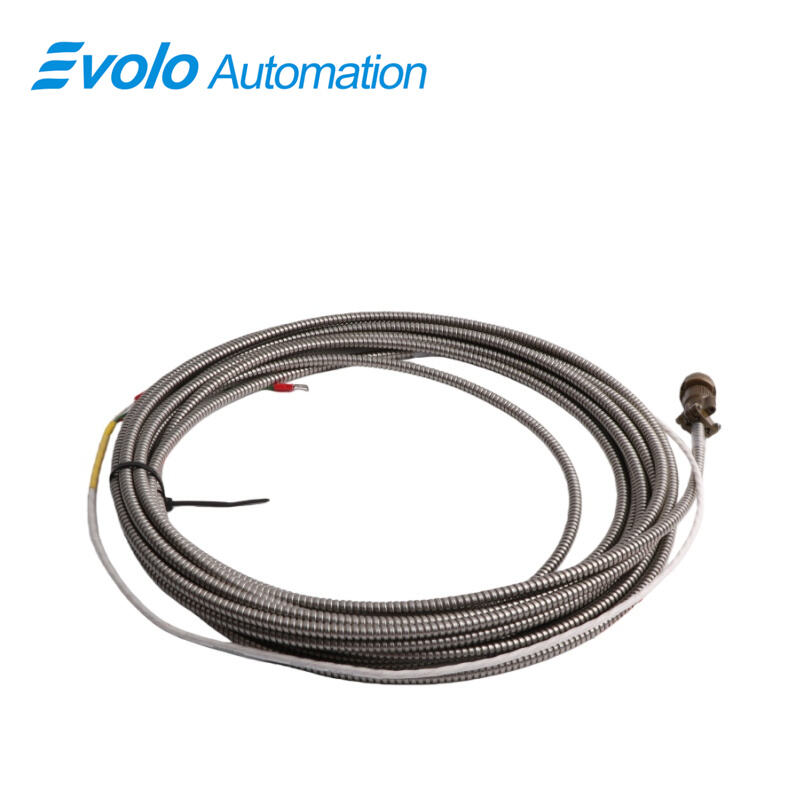

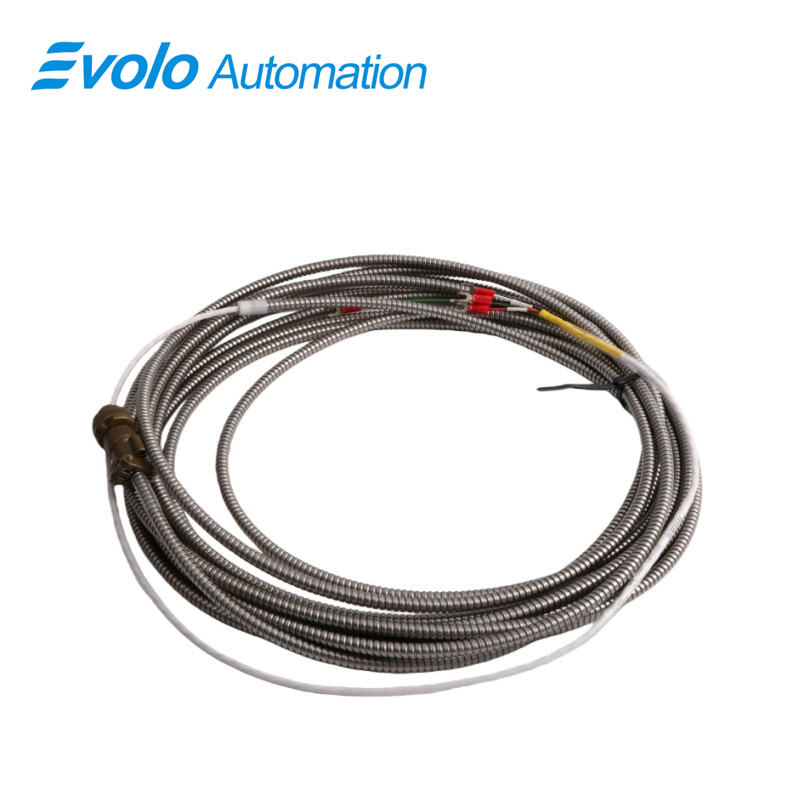

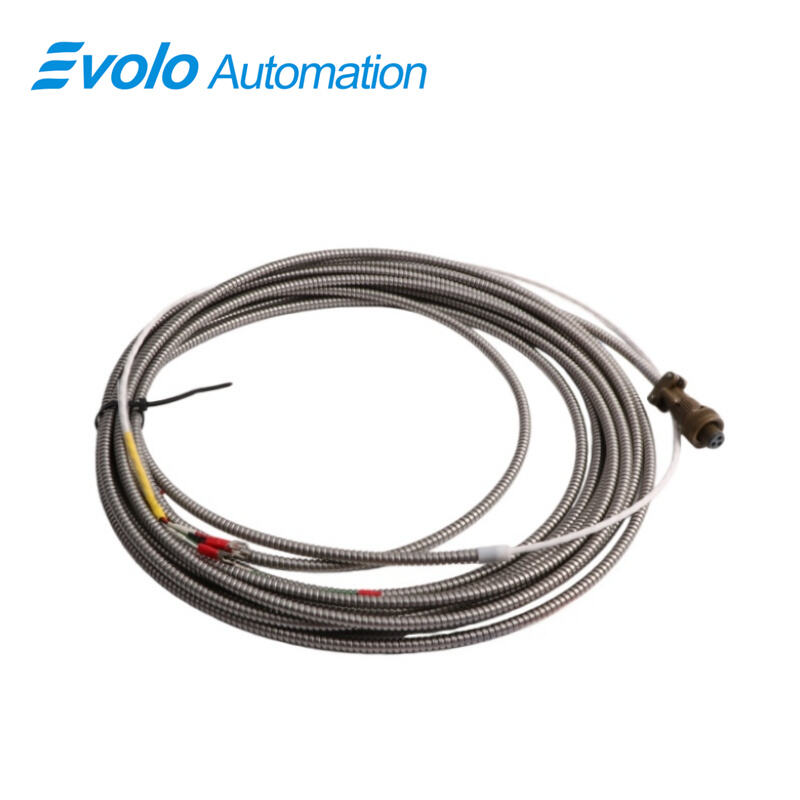

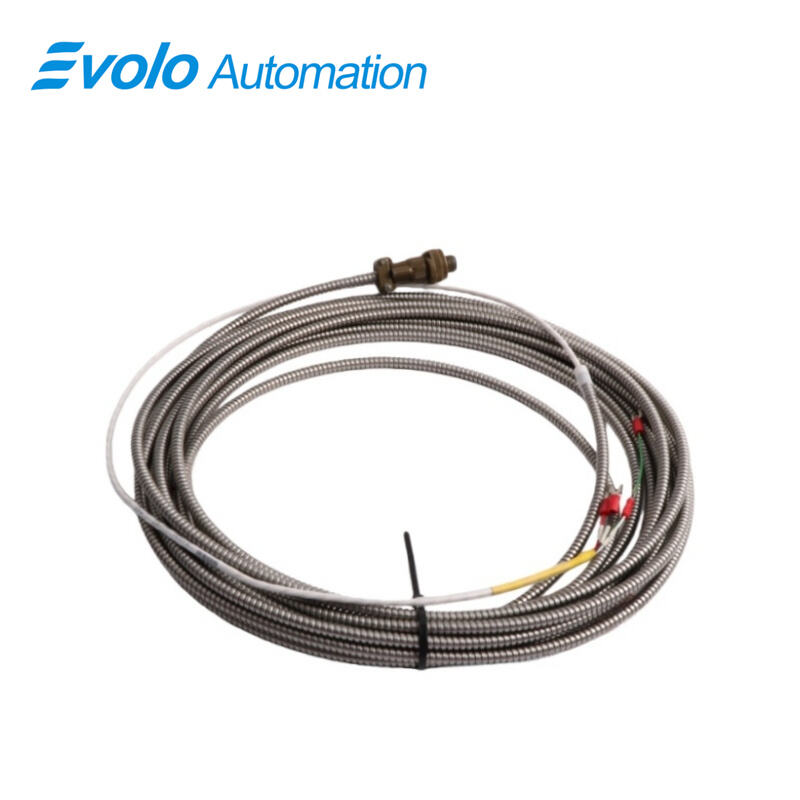

The 16710-30 Interconnect Cable is a 3-conductor shielded armored cable designed for industrial automation systems, providing reliable signal transmission between sensors and control units. With 22 AWG (0.5 mm²) conductors and a durable FEP jacket, the 16710-30 Interconnect Cable operates across a wide temperature range from -49 to 350°F (-45 to 177°C), making it suitable for both high-heat and cold environments. The cable features a 3-socket plug on one end and terminal lugs on the other, supporting automated wiring and fast connections. The 16710-30 Interconnect Cable comes in a standard 30 ft (9.0 m) length, with a flexible range from 3.0 to 99 ft (0.9 to 30 m) to accommodate varied installation setups. Its -200 mV/mil (-7.87 V/mm) sensitivity ensures accurate signal transmission for sensors in dynamic monitoring systems. Engineered for integration with 3300 XL probes and other Proximitor sensors, the 16710-30 Interconnect Cable delivers consistent electrical performance in automated machinery applications.

Applications

Connect 3300 XL Probes to Control Systems
The 16710-30 Interconnect Cable transmits precise sensor signals from 3300 XL probes to control units, ensuring position and vibration data are accurately delivered in automated fluid-film bearing machines.

Route Signals Through Harsh Environments
With an FEP jacket and armored design, the 16710-30 Interconnect Cable can be installed in areas exposed to high temperatures or mechanical abrasion, maintaining uninterrupted signal flow.

Customize Cable Lengths for Automation Layouts
The 16710-30 Interconnect Cable can be cut or ordered in lengths from 3.0 to 99 ft, enabling flexible deployment across complex plant layouts without additional splicing or connectors.

Integrate Multiple Sensor Signals
The 3-conductor design of the 16710-30 Interconnect Cable allows simultaneous connection of multiple Proximitor outputs to a single control module, optimizing wiring efficiency.

Specifications

Competitive Advantage

Maintain Signal Accuracy with High Sensitivity
The -200 mV/mil (-7.87 V/mm) sensitivity of the 16710-30 Interconnect Cable ensures that vibration and position signals from 3300 XL probes reach controllers with minimal loss, supporting precise automated monitoring.

Protect Cables During Industrial Installation
Armored construction and robust FEP insulation prevent damage from sharp edges, heavy components, or environmental exposure, keeping the 16710-30 Interconnect Cable operational without additional protection.

Enable Fast Installation in Automation Systems
The 3-socket plug and terminal lug ends of the 16710-30 Interconnect Cable reduce installation time for machinery control panels, simplifying sensor integration and maintenance.

Support Extended Distances Between Sensors and Controllers
With lengths up to 99 ft (30 m) and standard 30 ft (9.0 m) configurations, the 16710-30 Interconnect Cable can span large automation areas while maintaining consistent signal quality.
