Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
146031-01 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Parameter |
Value |
|
Power Consumption |
10.5 Watts |
|
Front Panel |
USB-B, 10Base-T/100Base-TX |
|
I/O |
10Base-T or 100Base-TX Ethernet, autosensing |
|
100Base-FX I/O |
100Base-FX Fiber-Optic Ethernet |
|
Front Panel LEDs |
OK, TX/RX, TM, CONFIG OK |
|
OK LED |
Indicates when the 3500/22M is operating properly |
|
TX/RX LED |
Indicates communication with other modules in the rack |
|
TM LED |
Indicates 3500 rack is in Trip Multiply mode |
|
CONFIG OK LED |
Indicates 3500 rack has a valid configuration |
|
Trip Multiply |
Description: Place 3500 rack in Trip Multiply |
|
Trip Multiply Maximum Current |
<1 mAdc, Dry Contact to Common |
|
Alarm Inhibit |
Description: Inhibit all alarms in 3500 rack |
|
Alarm Inhibit Maximum Current |
<1 mAdc, Dry Contact to Common |
|
Rack Reset |
Description: Clear latched alarms and Timed OK Channel Defeat |
|
Rack Reset Maximum Current |
<1 mAdc, Dry Contact to Common |
|
BN Host Protocol |
Communication with 3500 Configuration, Data Acquisition, Display Software |
|
BN TDI Protocol |
Communication with System 1 Condition Monitoring and Diagnostic Software |
|
Front Panel Communications |
USB-B |
|
Protocol Supported |
BN Host Protocol |
|
Dimension: |
2.5x11.2x24.2cm |
|
Weight: |
0.4kg |
Description

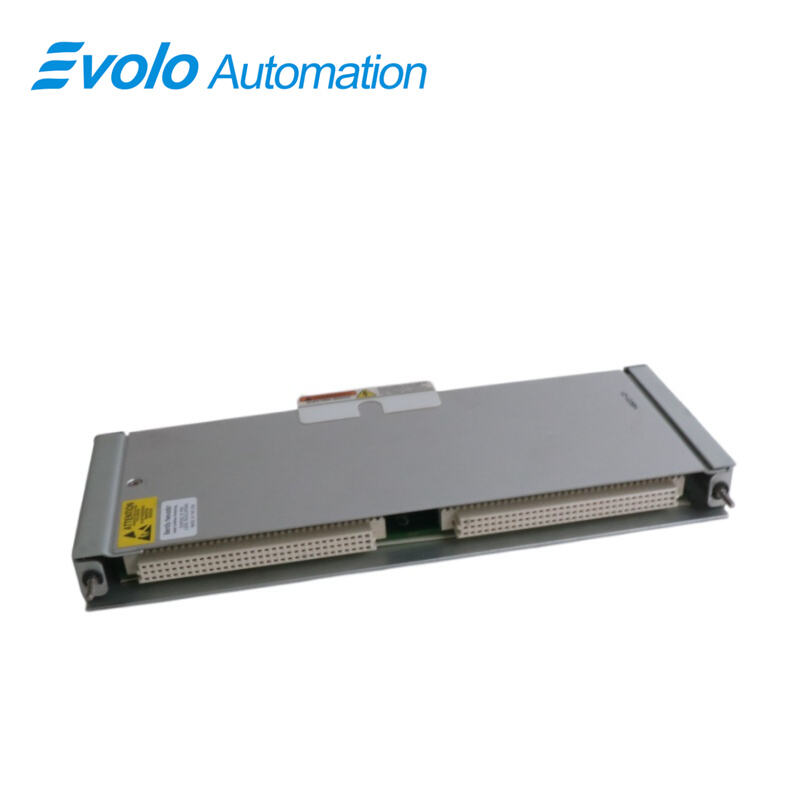

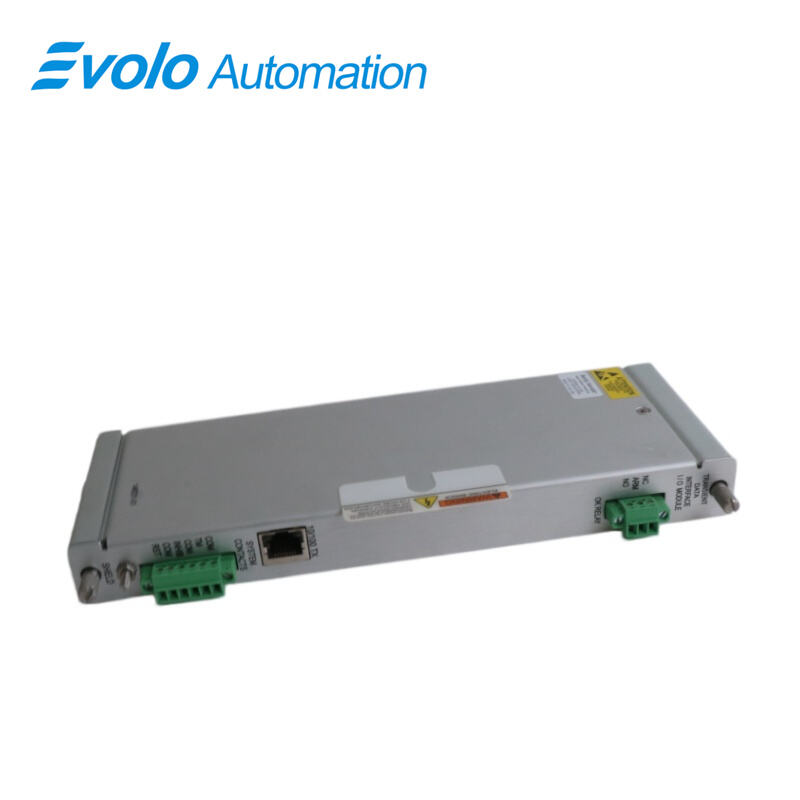

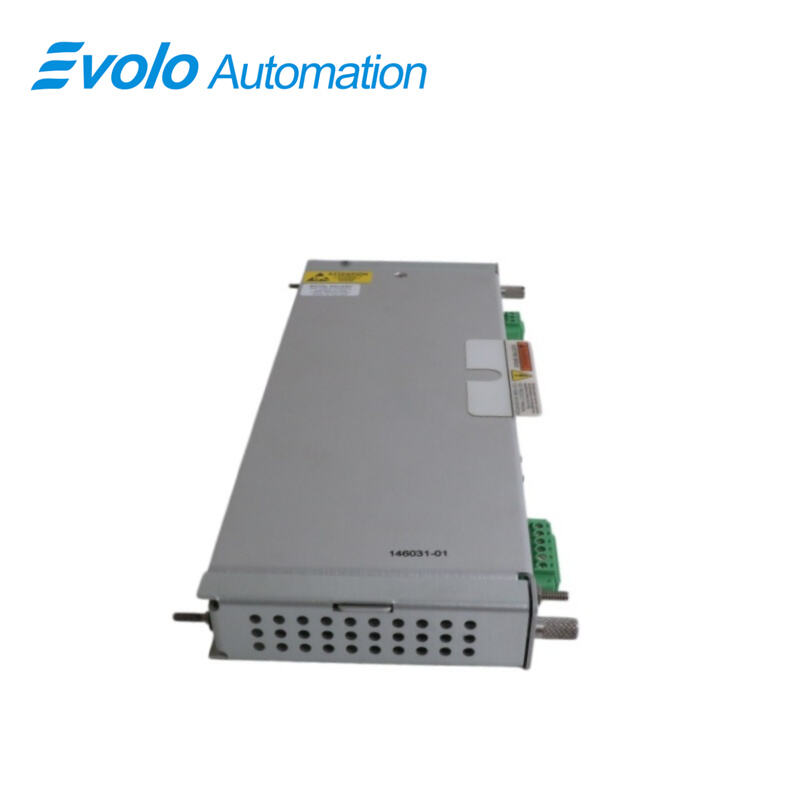

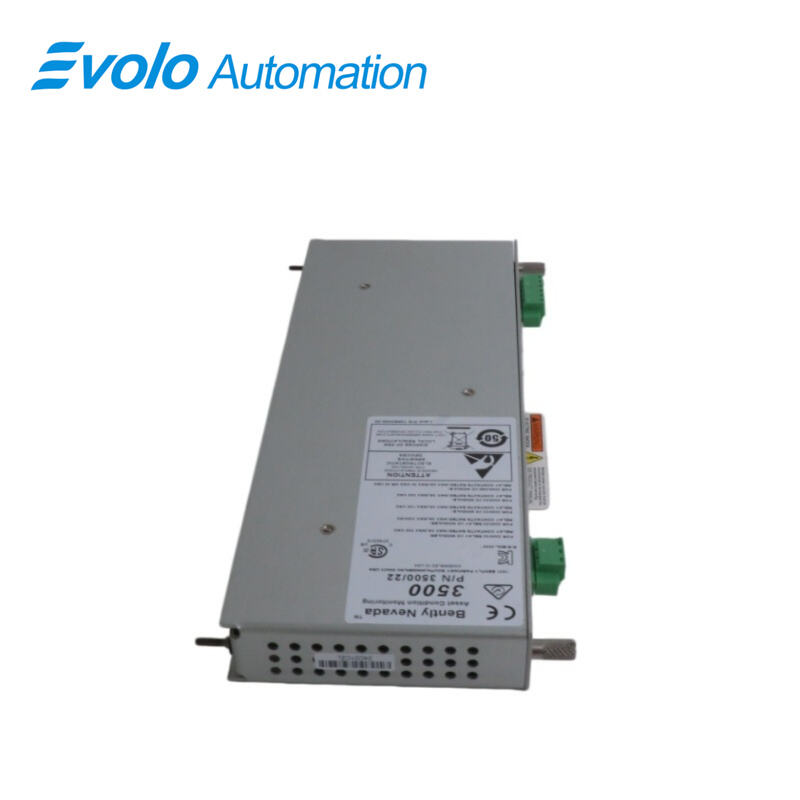

The 146031-01 10 Base-T/100 Base-TX I/O Module is designed for the Bently Nevada 3500/22M Transient Data Interface (TDI) to link 3500 monitoring racks with System 1 Condition Monitoring and 3500 Configuration software. The 146031-01 10 Base-T/100 Base-TX I/O Module supports 10Base-T or 100Base-TX Ethernet autosensing and 100Base-FX fiber-optic connections for high-speed data transfer. It captures both steady-state and transient waveform data from M-series monitors, providing USB-B front panel communication and LEDs for OK, TX/RX, TM, and CONFIG OK status.
Power consumption is 10.5 W, with USB cable support up to 5 meters. The 146031-01 10 Base-T/100 Base-TX I/O Module operates from –30°C to +65°C, with 95% non-condensing humidity, and battery life up to 38 years when powered. It supports BN Host Protocol for software communication, trip multiply, alarm inhibit, and rack reset functions. Positioned in Slot 1 next to the power supply, the 146031-01 10 Base-T/100 Base-TX I/O Module enables automated data acquisition and real-time monitoring in industrial control systems.
Applications
Application for Real-Time Turbine Data Acquisition
The 146031-01 10 Base-T/100 Base-TX I/O Module collects transient data from 3500/40M and 3500/42M monitors in turbines. With 115.2 kbaud maximum transfer and 100Base-TX autosensing, the module ensures that high-resolution waveform data, updated every 100 ms, reaches System 1 software to trigger automated alarm trips when turbine vibration exceeds configured thresholds.
Application for Compressor Condition Monitoring
By linking up to 4 M-series monitors, the 146031-01 10 Base-T/100 Base-TX I/O Module delivers steady-state and transient vibration and pressure data from compressors. Its USB-B interface and fiber-optic 100Base-FX output reduce data latency, allowing automated detection of pressure spikes above 1.45 mV/mBar (100 mV/psi) and immediate control actions.
Application for Pump Vibration and Pressure Analysis
The 146031-01 10 Base-T/100 Base-TX I/O Module captures transient vibration and pressure waveform data from high-speed pumps, with 10.5 W power consumption and 5 m maximum USB cable length. The 100 ms update rate enables calculation of peak-to-peak vibration amplitudes and pressure variations in real-time for automated pump protection.
Application for Rack-Wide Automation Integration
Installed in Slot 1 next to the power supply, the 146031-01 10 Base-T/100 Base-TX I/O Module consolidates Ethernet communication for multiple 3500 monitors. Its 100Base-TX and 100Base-FX outputs allow simultaneous data acquisition from up to 4 channels per monitor, reducing rack wiring complexity and improving automation response times.
Specifications
|
Baud Rate |
115.2 kbaud maximum (auto-baud capable) |
|
USB Cable Length |
5 meters maximum (3 m included) |
|
Connector |
USB-B |
|
Operating Temperature |
-30°C to +65°C (-22°F to +149°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
95%, non-condensing |
|
Battery Life Powered TDI |
38 years @ 50°C (122°F) |
|
Battery Life Unpowered TDI |
12 years @ 50°C (122°F) |
Competitive Advantage
Competitive Advantage in High-Speed Data Transmission
The 146031-01 10 Base-T/100 Base-TX I/O Module provides 10Base-T/100Base-TX autosensing and 100Base-FX fiber links, ensuring transient waveform data reaches System 1 software at 115.2 kbaud maximum, with updates every 100 ms for fast alarm triggering.
Competitive Advantage in Multi-Function Rack Control
The 146031-01 10 Base-T/100 Base-TX I/O Module supports trip multiply (<1 mAdc), alarm inhibit (<1 mAdc), and rack reset (<1 mAdc) functions, enabling operators to control alarms and reset racks without interrupting continuous data acquisition.
Competitive Advantage in Long-Term Operation
The 146031-01 10 Base-T/100 Base-TX I/O Module operates in –30°C to +65°C environments, with powered battery life of 38 years at 50°C and unpowered battery life of 12 years, supporting decades of continuous industrial automation monitoring.
Competitive Advantage in Seamless Software Integration
The 146031-01 10 Base-T/100 Base-TX I/O Module communicates using BN Host Protocol and BN TDI Protocol, allowing automated acquisition of both steady-state and transient high-resolution data, integrating directly with System 1 and 3500 Configuration software for precise machinery monitoring.
