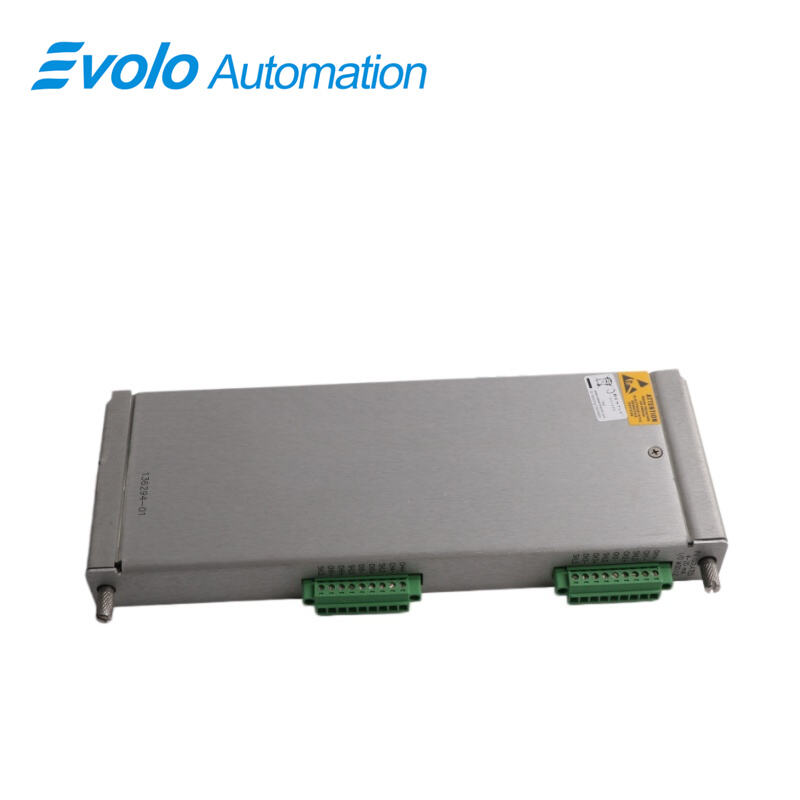

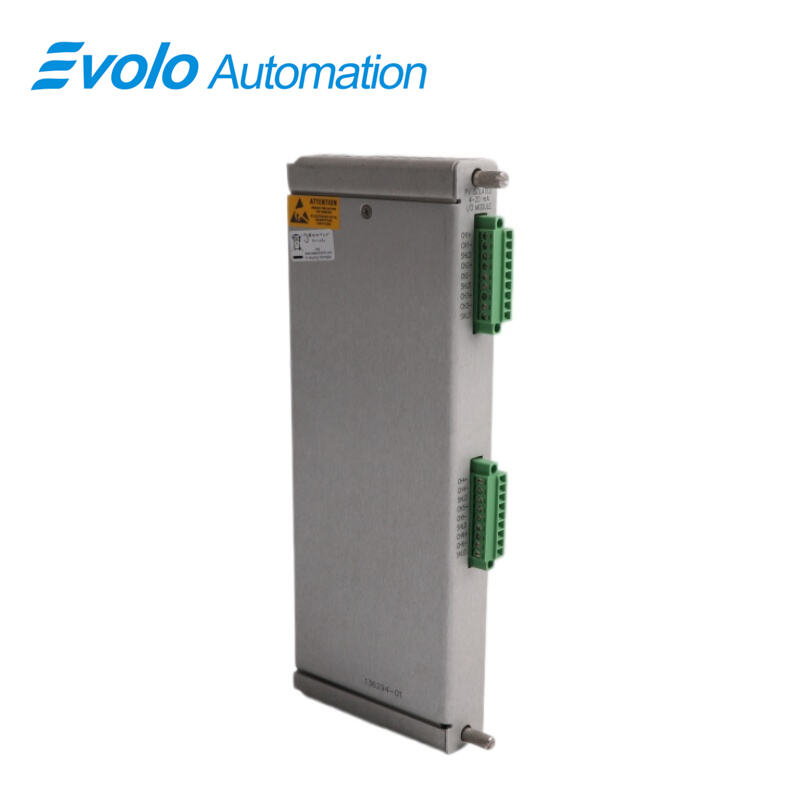

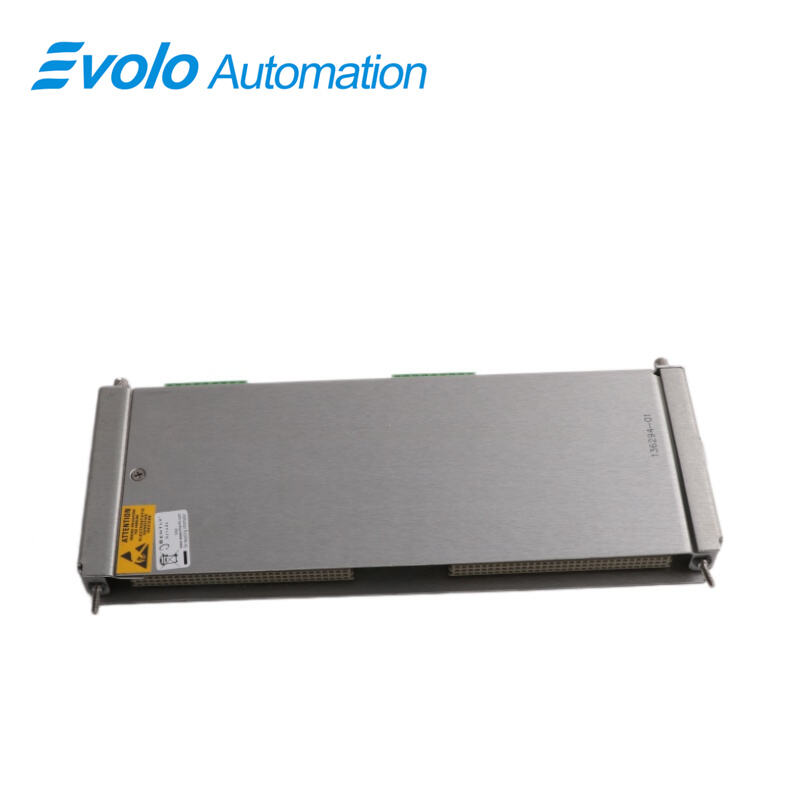

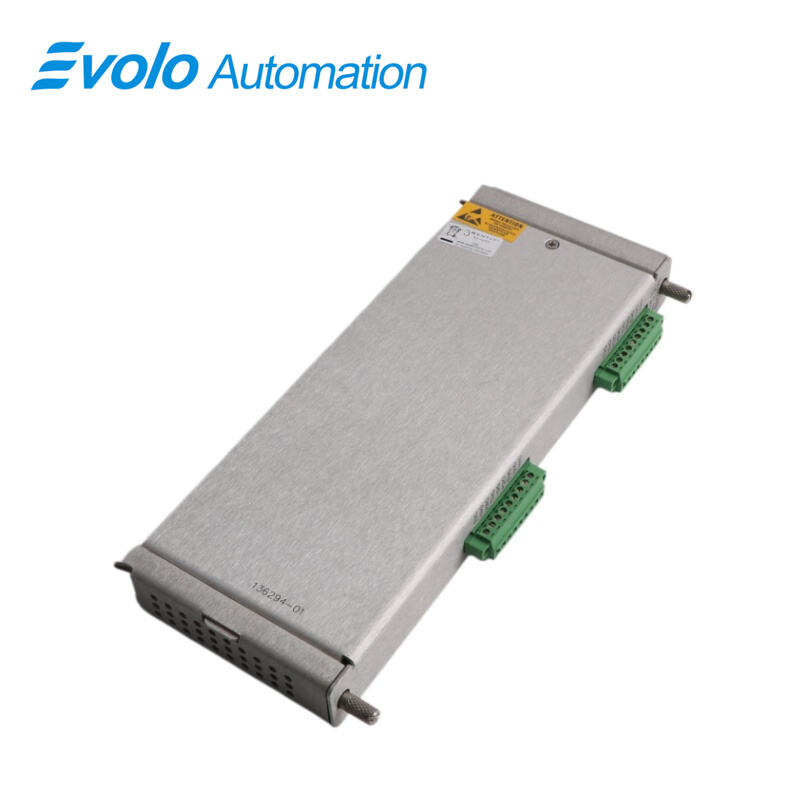

136294-01 Isolated +4 to +20 mA I/O Module

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	136294-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The Bently Nevada 136294-01 Isolated +4 to +20 mA I/O Module is part of the 3500/62 Process Variable Monitor, processing six critical channels for pressures, flows, temperatures, and levels. The 136294-01 Module accepts 4–20 mA DC or ±10 Vdc inputs, providing 50 Ω input impedance for isolated signals and 500 V isolation. The 136294-01 Isolated +4 to +20 mA I/O Module conditions signals and compares them to user-programmed alarm setpoints, triggering alerts with 1–60 s delay. Operating from -30°C to +65°C, consuming 7 W, and occupying one full-height rear slot, the 136294-01 Module supplies external +24 Vdc power for internal barrier transducers and displays operation, TX/RX, and bypass LEDs for automated monitoring and real-time process control in industrial systems.

Applications

Continuous Pressure Monitoring
The Bently Nevada 136294-01 Isolated +4 to +20 mA I/O Module processes 4–20 mA current inputs from pressure sensors with 50 Ω input impedance and 500 V isolation. The 136294-01 Module continuously compares measured pressures against user-programmed alarm setpoints, enabling automated alerts and machine protection.

Flow Rate Control
The Bently Nevada 136294-01 Isolated +4 to +20 mA I/O Module monitors flow sensors with input ranges of 4–20 mA or ±10 Vdc. The 136294-01 Module conditions signals and sends them to the 3500/62 Process Variable Monitor, supporting automated control and reporting of flow rates in pipelines and industrial systems.

Temperature and Level Monitoring
The Bently Nevada 136294-01 Isolated +4 to +20 mA I/O Module accepts six channels for temperatures or level transducers, with full-scale range up to 20,000 units and ±0.33% typical accuracy. The 136294-01 Module drives alarms and communicates data to operators for automated process adjustments.

Intrinsically Safe Sensor Integration
The Bently Nevada 136294-01 Isolated +4 to +20 mA I/O Module supplies external +24 Vdc to barrier I/O transducers. The 136294-01 Module enables safe installation of 4–20 mA sensors in hazardous areas while maintaining accurate, automated signal monitoring.

Specifications

Competitive Advantage

High Accuracy Signal Conditioning
The Bently Nevada 136294-01 Isolated +4 to +20 mA I/O Module provides ±0.33% typical accuracy and full-scale ranges up to 20,000 units. The 136294-01 Module delivers precise automated readings for pressure, flow, temperature, and level measurements.

Isolated Channel Protection
The Bently Nevada 136294-01 Isolated +4 to +20 mA I/O Module offers 500 V isolation per channel and 50 Ω input impedance. The 136294-01 Module prevents cross-channel interference, ensuring reliable automated monitoring in multi-channel industrial systems.

Flexible Signal Compatibility
The Bently Nevada 136294-01 Isolated +4 to +20 mA I/O Module accepts 4–20 mA and ±10 Vdc inputs. The 136294-01 Module allows operators to connect diverse transducers and implement automated monitoring without changing hardware.

Rack-Friendly Installation
The Bently Nevada 136294-01 Isolated +4 to +20 mA I/O Module occupies one full-height rear slot and works with 3500/62 monitor front slots. The 136294-01 Module enables quick installation and automated integration into existing 3500 rack systems.

Alert and Communication Indicators
The Bently Nevada 136294-01 Isolated +4 to +20 mA I/O Module has front panel OK, TX/RX, and Bypass LEDs. The 136294-01 Module provides operators with immediate automated feedback on signal processing and rack communication status.
