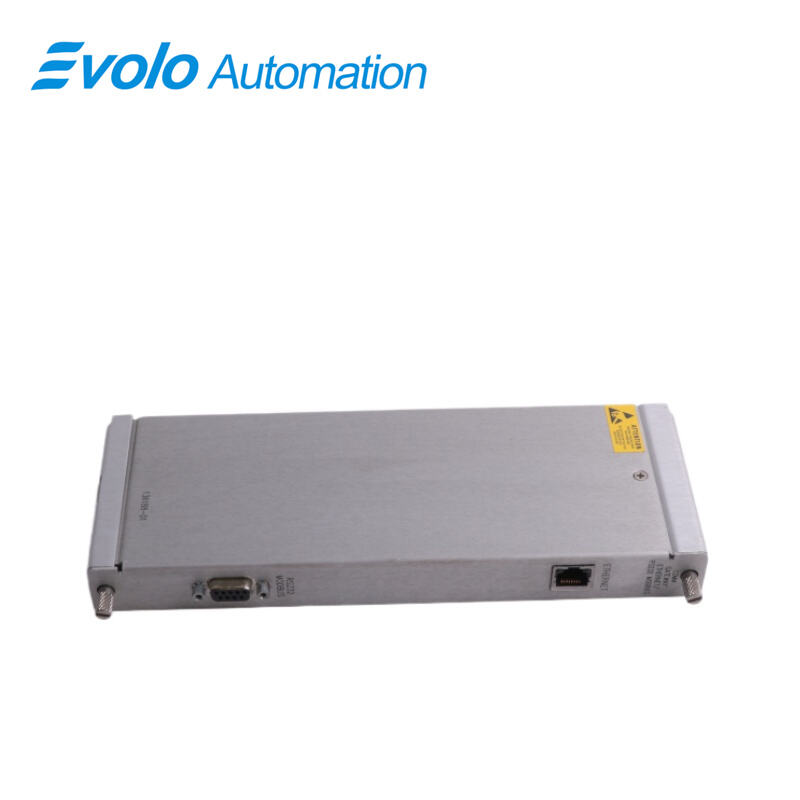

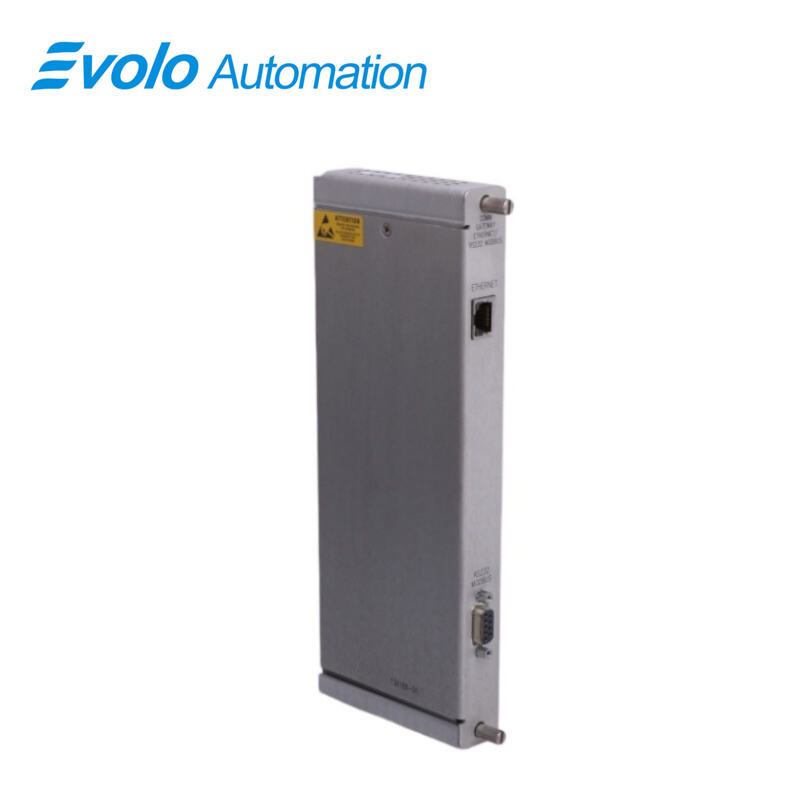

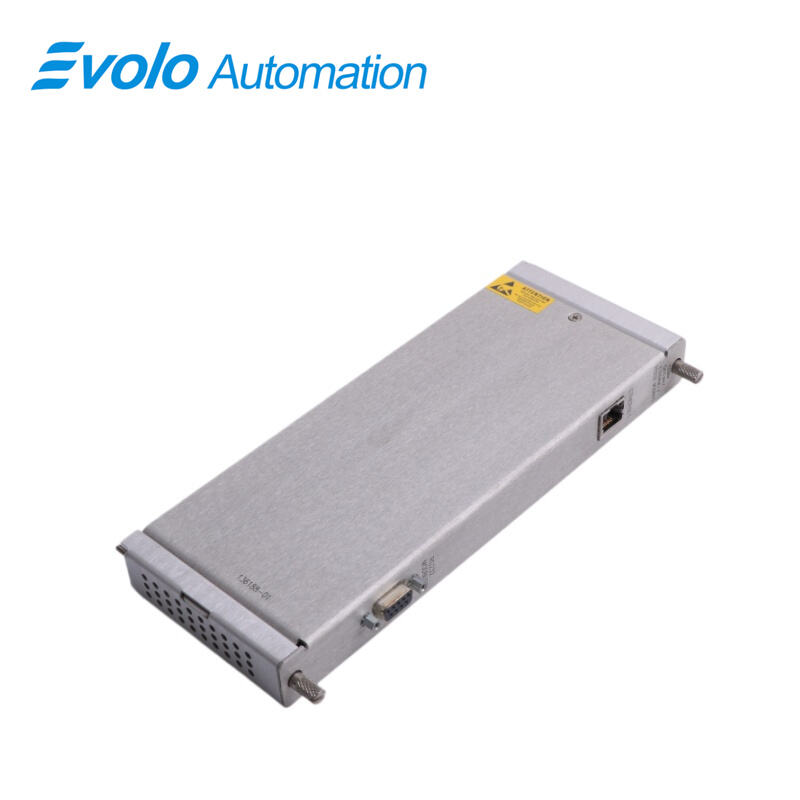

136188-01 Ethernet/RS232 Modbus I/OModule

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	136188-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The Bently Nevada 136188-01 Ethernet/RS232 Modbus I/O Module enables communication between 3500 rack monitored values and automation systems via Ethernet TCP/IP or serial RS232/RS422/RS485. The 136188-01 Module supports Modbus RTU, Modbus/TCP, and proprietary Bently Nevada protocols, integrating with 3500 Rack Configuration and Data Acquisition Software. Operating from -30°C to +65°C with 5.0–5.6 W power consumption, the 136188-01 Ethernet/RS232 Modbus I/O Module fits a single full-height rear slot and provides OK and TX/RX LEDs for operation and communication status. The 136188-01 Module features a configurable Modbus register utility, RJ-45 Ethernet connection at 10 Mbps, and 95% non-condensing humidity tolerance, supporting automated data collection, process control, and real-time monitoring in industrial systems.

Applications

Integrate 3500 Rack Data with Process Control Systems
The Bently Nevada 136188-01 Ethernet/RS232 Modbus I/O Module sends monitored values and statuses from the 3500 rack over Ethernet TCP/IP or serial RS232/RS422/RS485. The 136188-01 Module supports Modbus RTU and Modbus/TCP protocols, enabling automated process control and centralized data logging in industrial automation systems.

Remote Monitoring via Ethernet or Serial Connection
The Bently Nevada 136188-01 Ethernet/RS232 Modbus I/O Module provides an RJ-45 Ethernet connection at 10 Mbps and serial communication links. The 136188-01 Module allows operators to access real-time system data up to 100 meters away from the rack, or up to 4000 feet with proper cabling and external power, supporting remote monitoring of multiple machines.

Automated Data Acquisition and Logging
The Bently Nevada 136188-01 Ethernet/RS232 Modbus I/O Module uses a configurable Modbus register utility to map monitored values efficiently. The 136188-01 Module collects data from multiple channels with power consumption of 5.0–5.6 W and communicates directly with 3500 Data Acquisition and Display Software for automated recording of machine events.

Environmental Condition Monitoring
The Bently Nevada 136188-01 Ethernet/RS232 Modbus I/O Module operates from -30°C to +65°C and tolerates up to 95% non-condensing humidity. The 136188-01 Module maintains continuous operation in industrial environments while providing automated communication of critical system values.

Specifications

Competitive Advantage

Flexible Protocol Integration
The Bently Nevada 136188-01 Ethernet/RS232 Modbus I/O Module supports Modbus RTU, Modbus/TCP, and proprietary Bently Nevada protocols. The 136188-01 Module enables automated integration of 3500 rack data with multiple control systems and software platforms.

Real-Time Data Transmission
The Bently Nevada 136188-01 Ethernet/RS232 Modbus I/O Module delivers monitored values over Ethernet at 10 Mbps or via serial RS232/RS422/RS485. The 136188-01 Module ensures high-speed, automated transmission of process data for immediate analysis and control actions.

Easy Rack Installation
The Bently Nevada 136188-01 Ethernet/RS232 Modbus I/O Module fits a single full-height rear slot in the 3500 rack. The 136188-01 Module allows operators to install communication interfaces without modifying existing system layouts, supporting automated deployment of monitoring networks.

Status Indication for Operations
The Bently Nevada 136188-01 Ethernet/RS232 Modbus I/O Module includes OK and TX/RX LEDs. The 136188-01 Module provides operators with immediate visual feedback on module operation and communication status, reducing manual checks during automated monitoring.

Power-Efficient Communication
The Bently Nevada 136188-01 Ethernet/RS232 Modbus I/O Module consumes 5.0 W with Modbus RS232/RS422 and 5.6 W with Modbus RS485. The 136188-01 Module enables continuous automated operation while minimizing energy consumption in industrial systems.
