Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
133827-01 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Inputs Signal |
Accepts from 1 to 6 RTD or TC transducer signals |
|
Input Impedance |
Greater than 10 MW for each lead input. |
|
Tranducers |
Isolated TC I/O modules have 250 Vdc of isolation between channels |
|
Voltage Compliance (current output) |
0 to +12 Vdc range across load. Load resistance is 0 to 600 W. |
|
Resolution |
0.3662 µA per bit ±0.15% error at room temperature ±0.4% error over temperature range. |
|
Signal Conditioning |
Full-scale range for each channel is set in the field via 3500 Configuration Software. No calibration is required |
|
Operating Temperature |
-30 °C to +65 °C (-22 °F to +150 °F) when used with Internal/External/Termination I/O Modules |
|
Dimension: |
2.5x11x24cm |
|
Weight: |
0.4kg |
Description

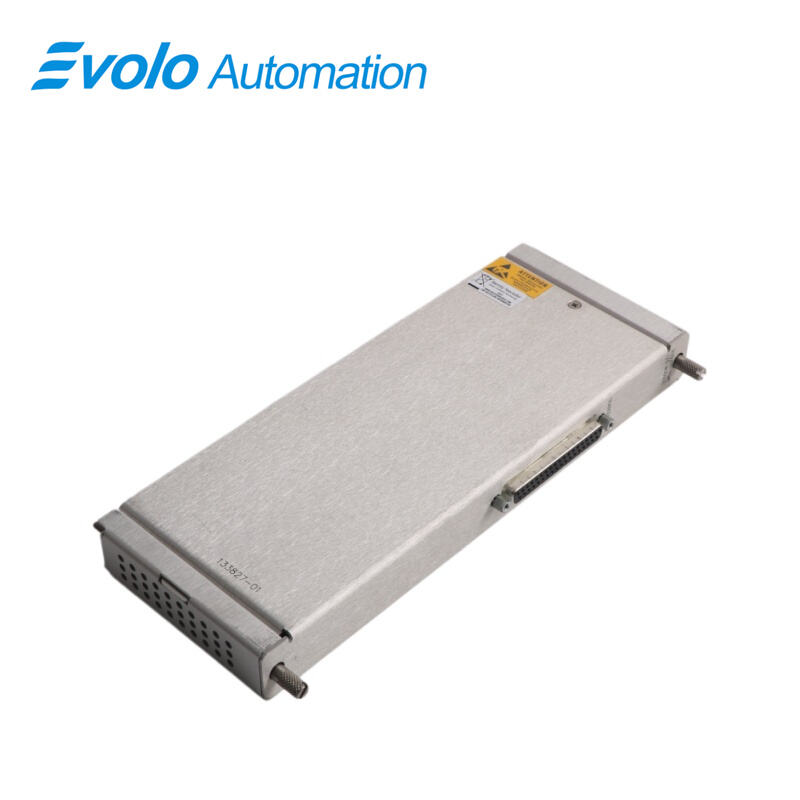

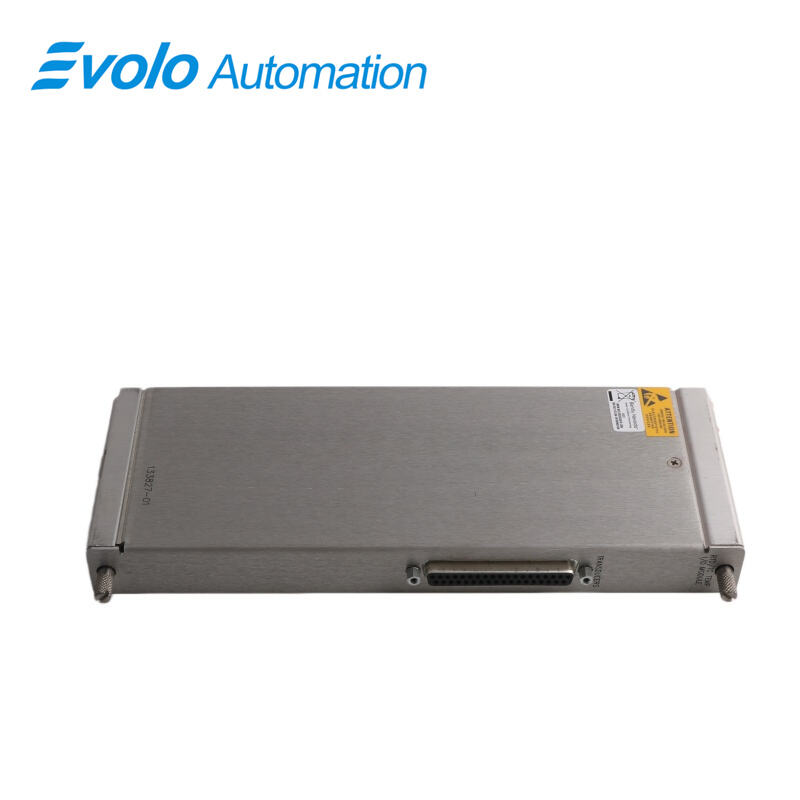

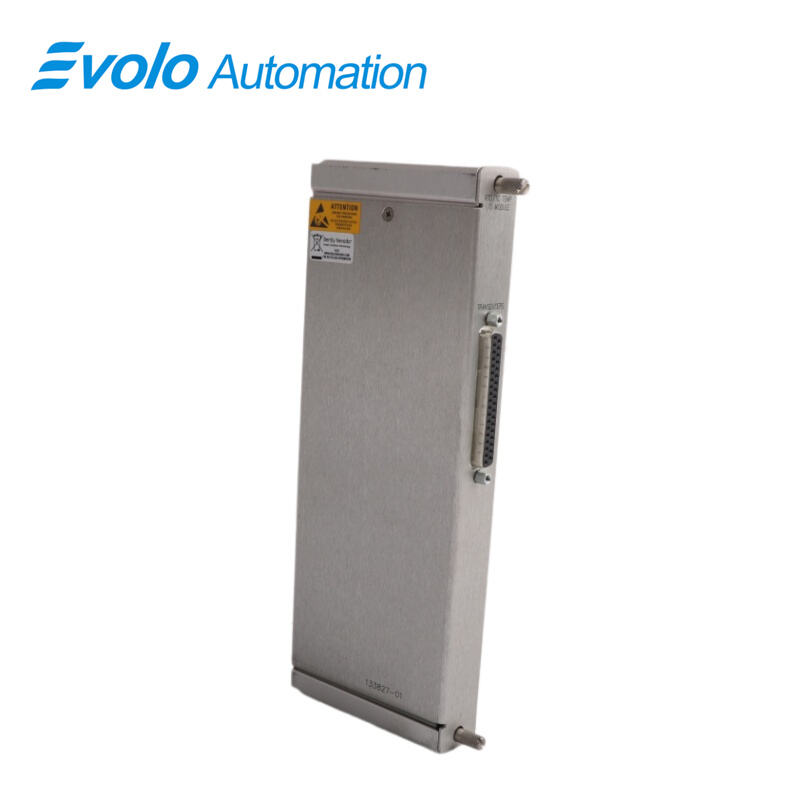

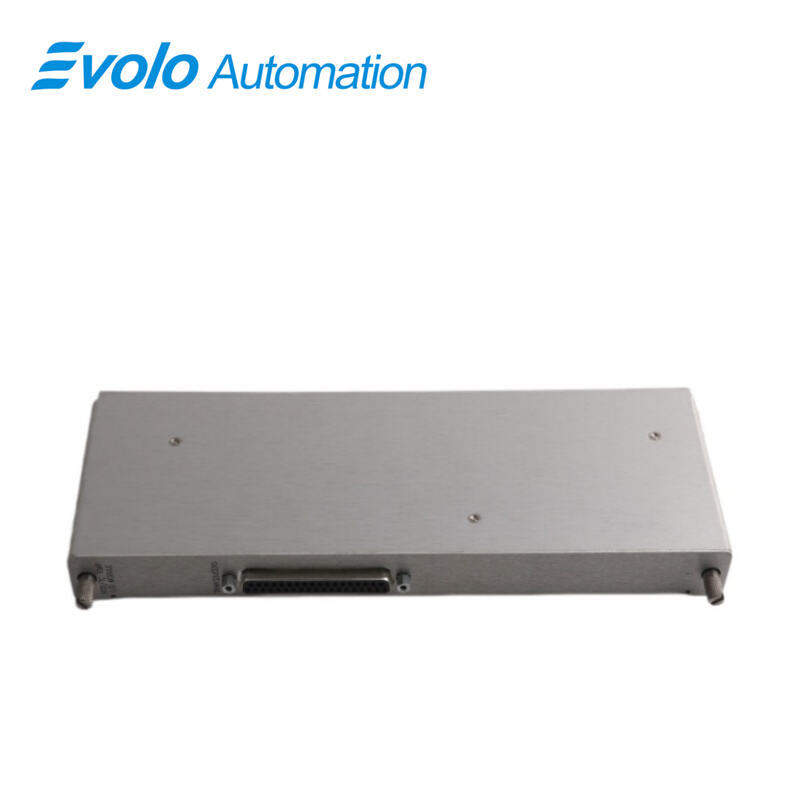

The Bently Nevada 133827-01 3500/60 RTD/TC Non-Isolated I/O Module provides six channels for temperature monitoring in automated systems, accepting RTD or thermocouple inputs with input impedance above 10 MΩ. The 133827-01 3500/60 Module conditions signals and compares them to user-programmed alarm setpoints via 3500 Configuration Software. It supplies 4–20 mA recorder outputs per channel with 0–12 Vdc voltage compliance and 0.3662 µA resolution. The 133827-01 3500/60 I/O Module operates from -30 °C to +65 °C, powers 3- or 4-wire RTDs at 925 ±15 µA per transducer, and requires 1 full-height rear slot in the rack. Ideal for RTD/TC automation, TMR setups, and continuous process monitoring, the 133827-01 3500/60 Module ensures precise, real-time temperature measurements for industrial control systems.
Applications
Continuous Temperature Monitoring
The Bently Nevada 133827-01 3500/60 I/O Module accepts up to six RTD or TC signals, providing continuous temperature readings from -30 °C to +65 °C. The 133827-01 3500/60 Module outputs 4–20 mA recorder signals with 0.3662 µA resolution, allowing automated control systems to monitor process temperatures in real time.
RTD Current Supply and Measurement
The Bently Nevada 133827-01 3500/60 I/O Module powers 3- and 4-wire RTDs at 925 ±15 µA per transducer. The 133827-01 3500/60 Module conditions these inputs, enabling accurate temperature readings for industrial ovens, heat exchangers, or chemical reactors.
Thermocouple Signal Conditioning
The Bently Nevada 133827-01 3500/60 I/O Module conditions thermocouple inputs with voltage compliance of 0–12 V across 0–600 Ω load. The 133827-01 3500/60 Module ensures precise signal conversion for automated alarms and process control in temperature-critical applications.
Recorder Output Integration
The Bently Nevada 133827-01 3500/60 I/O Module delivers proportional 4–20 mA outputs for each channel with ±0.4% error over temperature range. The 133827-01 3500/60 Module feeds these signals to SCADA or DCS systems for automated process recording and control.
Specifications
|
Rack Space Requirements |
1 full-height rear slot. |
|
Internal Barrier I/O Module |
Consult the 3500Internal Barrier specification sheet(part number 141495-01) if thelnternal Barrier Option is selected. |
|
RTD Current Source Value |
925 ±15 mA @ 25° C per transducer (single supply for the 4-wire RTD and two supplies for the 3-wire). |
|
Recorder |
+4 to +20 mA. Values are proportional to monitor full-scale. Individual recorder values are provided for each channel. Monitor operation is unaffected by short circuits on recorder outputs |
|
Voltage Compliance (current output) |
0 to +12 Vdc range across load. Load resistance is 0 to 600 W. |
|
Resolution |
0.3662 µA per bit ±0.15% error at room temperature ±0.4% error over temperature range. |
|
RTDs and TCs (except for 10W Copper RTDs) Resolution |
1°C or 1°F |
|
Accuracy(Internal Termination Non-Isolated） |
Bulkhead Rack ±3 °C at 25 °C (±5.4 °F at 77 °F)；Standard Rack: ±3 °C at 25 °C (±5.4 °F at 77 °F). |
Competitive Advantage
High-Resolution Temperature Measurement
The Bently Nevada 133827-01 3500/60 I/O Module offers 0.3662 µA per bit resolution and ±0.15% error at room temperature. The 133827-01 3500/60 Module ensures precise RTD and thermocouple readings, enhancing automated temperature-based decision-making.
Configurable Channel Inputs
The Bently Nevada 133827-01 3500/60 I/O Module accepts any combination of up to six RTD or TC inputs. The 133827-01 3500/60 Module enables flexible channel configuration for mixed sensor types in automated temperature monitoring setups.
Recorder Output Support
The Bently Nevada 133827-01 3500/60 I/O Module provides individual 4–20 mA outputs per channel with 0–12 Vdc voltage compliance. The 133827-01 3500/60 Module allows automated process control systems to record real-time temperature data without additional signal converters.
Compact Rack Installation
The Bently Nevada 133827-01 3500/60 I/O Module occupies 1 full-height rear slot. The 133827-01 3500/60 Module installs efficiently in 3500 racks, supporting automated system integration with minimal space usage.
