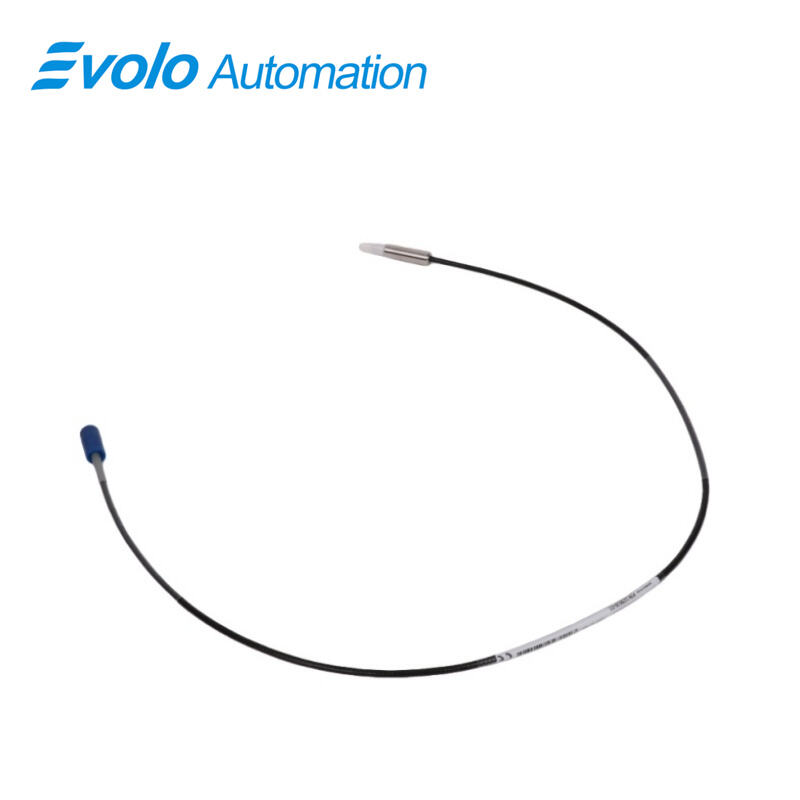

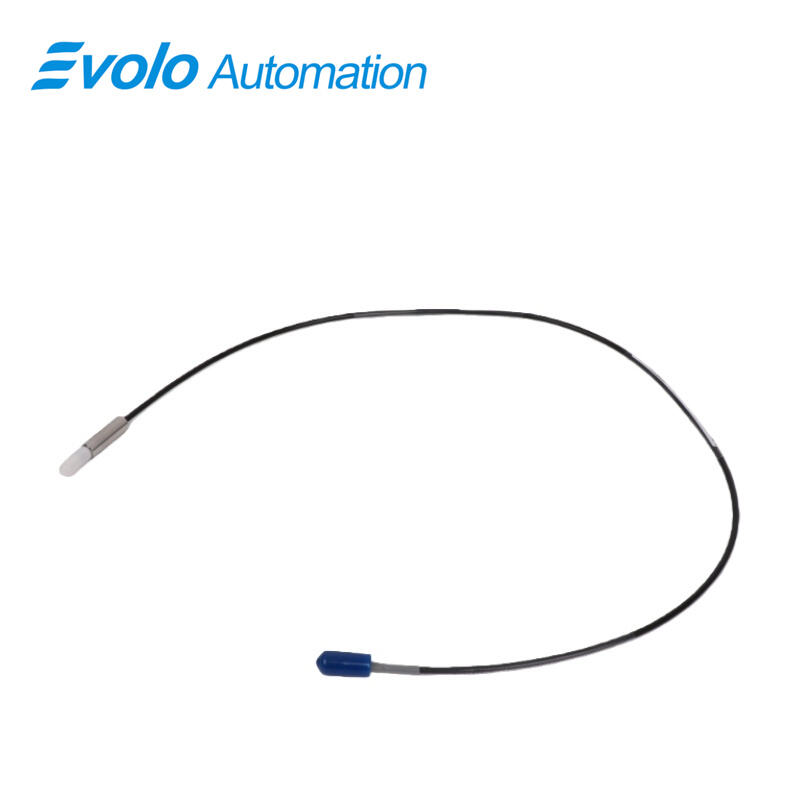

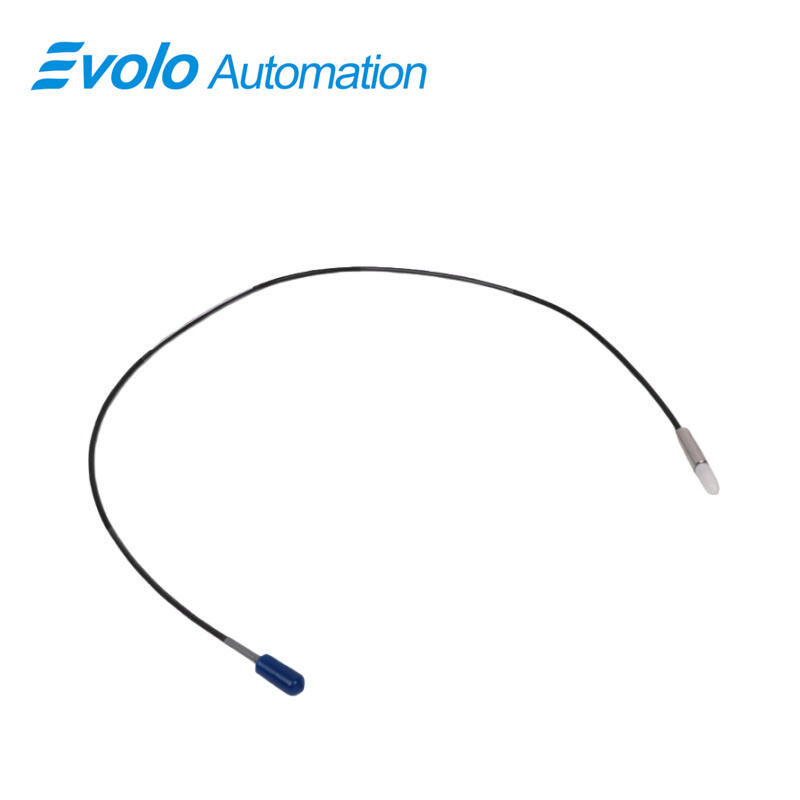

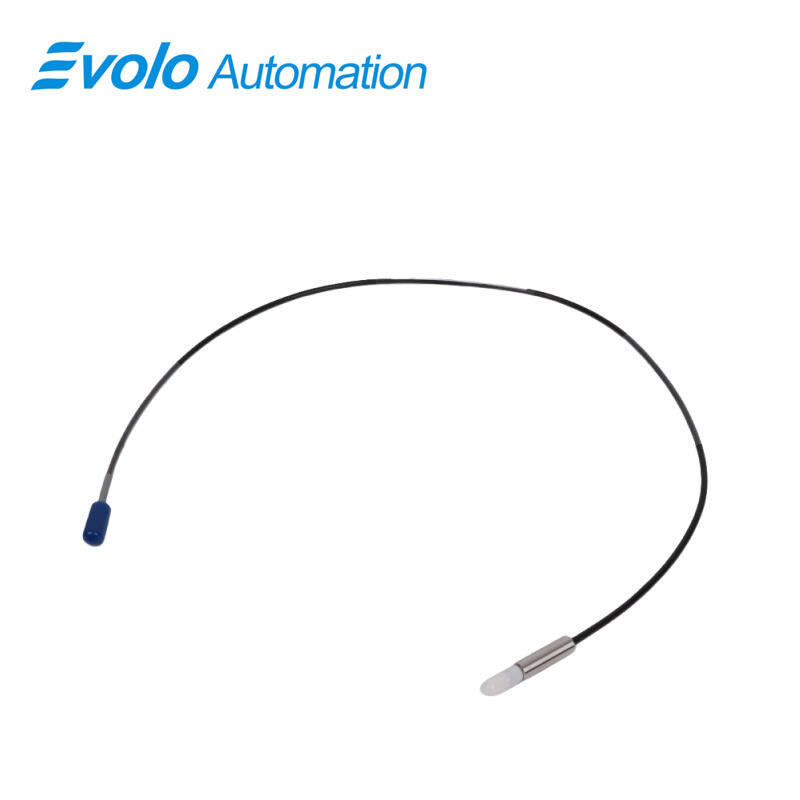

123616-01 3300XL NSv Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	123616-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 123616-01 3300XL NSv Proximitor Sensor is designed for high-precision monitoring with 3300 XL NSv Proximity Probes in automated machinery. It provides a nominal sensitivity of 7.87 mV/µm (200 mV/mil) and an output signal range of -24 VDC to +24 VDC, with a usable linear output range from -17 VDC to -1 VDC. The 123616-01 3300XL NSv Proximitor Sensor supports a linear measurement range of 2.0 mm and resolution below 0.01 µm, ensuring accurate position and vibration data. It operates from -51 °C to +177 °C and works with 3300 XL NSv Extension Cables up to 9 meters, maintaining low noise levels below 10 mV RMS and output impedance under 1 Ω. With a frequency response from 0 Hz to 10 kHz, the 123616-01 3300XL NSv Proximitor Sensor integrates seamlessly into PLC, DCS, and SCADA systems for automated monitoring, data logging, and predictive maintenance. Target materials include AISI 4140 steel or equivalents. The sensor tolerates 95% non-condensing humidity and exhibits temperature drift under ±0.01%/°C, ensuring consistent automated signal acquisition in demanding industrial environments.

Applications

Radial Vibration Monitoring on Shafts: The 123616-01 3300XL NSv Proximitor Sensor, paired with 3300 XL NSv Proximity Probes, measures radial vibration on shafts smaller than 51 mm (2 in). Its high nominal sensitivity of 7.87 mV/µm ensures accurate automated detection of small shaft displacements, allowing precise condition monitoring and vibration analysis.

Axial (Thrust) Position Measurement: The 123616-01 3300XL NSv Proximitor Sensor captures axial position on flat targets as small as 15 mm (0.6 in) with linear output up to 2.0 mm. Integration into PLC or SCADA systems enables automated thrust measurement for compressors and fluid-film bearing machines.

Tachometer and Keyphasor Signal Generation: With frequency response up to 10 kHz, the 123616-01 3300XL NSv Proximitor Sensor outputs clean signals for zero-speed detection and phase reference. This allows automated speed monitoring and synchronization in high-speed rotating equipment.

Predictive Maintenance Automation: Using the 123616-01 3300XL NSv Proximitor Sensor with 3300 XL NSv extension cables up to 9 m provides precise, low-noise (<10 mV RMS) data. Automated systems can analyze this data to schedule maintenance based on actual machine conditions, minimizing unplanned downtime.

Specifications

Competitive Advantage

High-Precision Linear Measurement: The 123616-01 3300XL NSv Proximitor Sensor supports a 2.0 mm linear range with resolution <0.01 µm, enabling automated detection of minute positional changes for shafts and machinery.

Wide Operating Range: Operating from -51 °C to +177 °C and tolerating 95% non-condensing humidity, the 123616-01 3300XL NSv Proximitor Sensor performs reliably in extreme industrial environments, ensuring continuous automated monitoring.

Seamless Integration: Fully compatible with 3300 XL NSv Proximity Probes and extension cables, the 123616-01 3300XL NSv Proximitor Sensor easily integrates into PLCs, DCS, and SCADA systems, reducing installation time and simplifying automated data acquisition.

Low-Noise, Accurate Output: With output impedance <1 Ω and noise <10 mV RMS, the 123616-01 3300XL NSv Proximitor Sensor delivers stable, high-quality signals for automated vibration and position analysis, improving diagnostic accuracy.

Flexible System Layout: Supports up to 9 meters of extension cable, allowing the 123616-01 3300XL NSv Proximitor Sensor to be positioned optimally within automated monitoring setups without signal loss or distortion.
