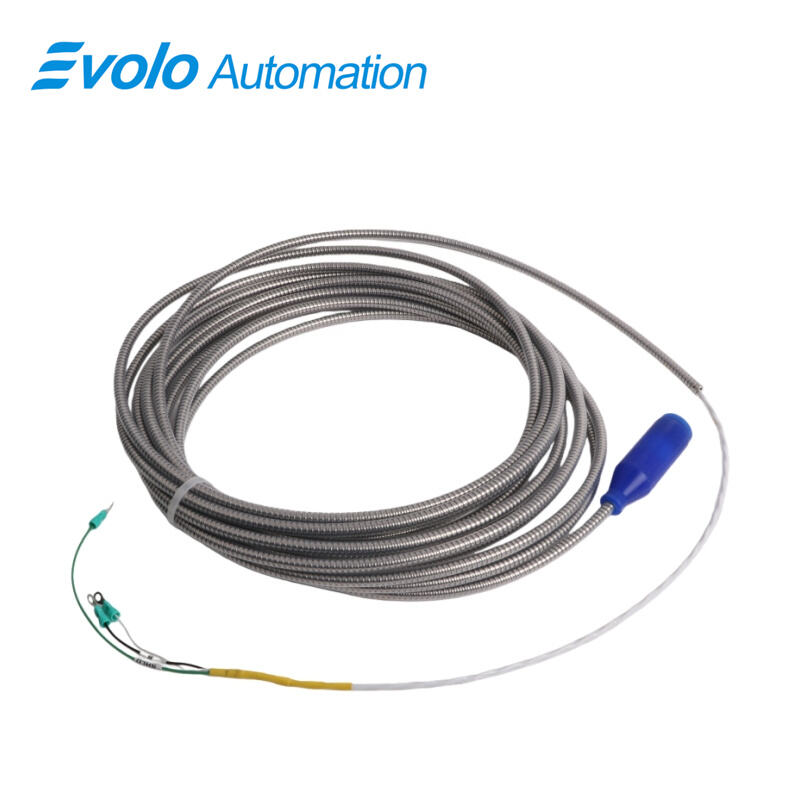

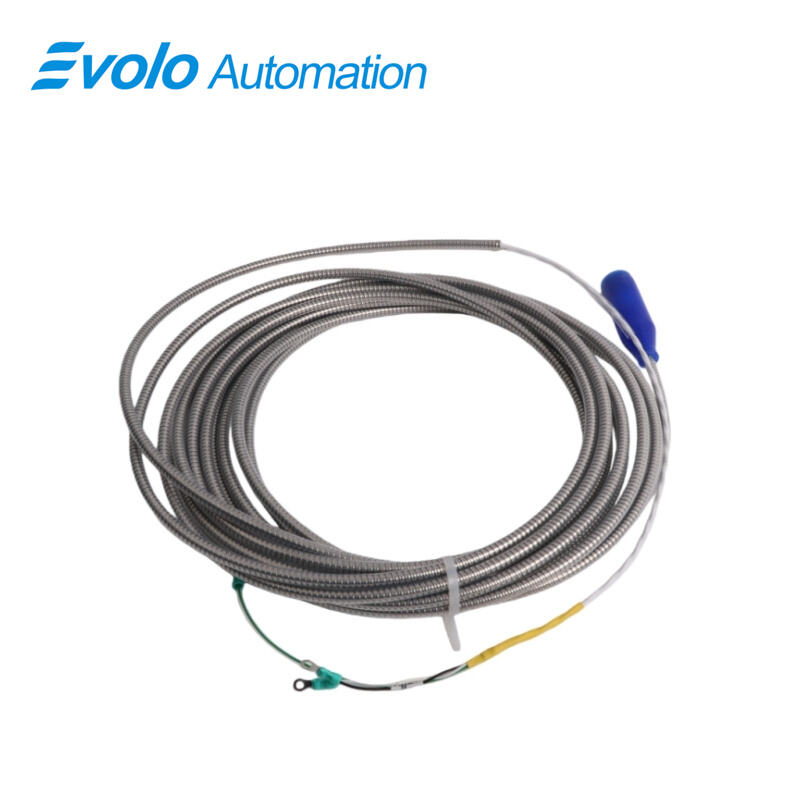

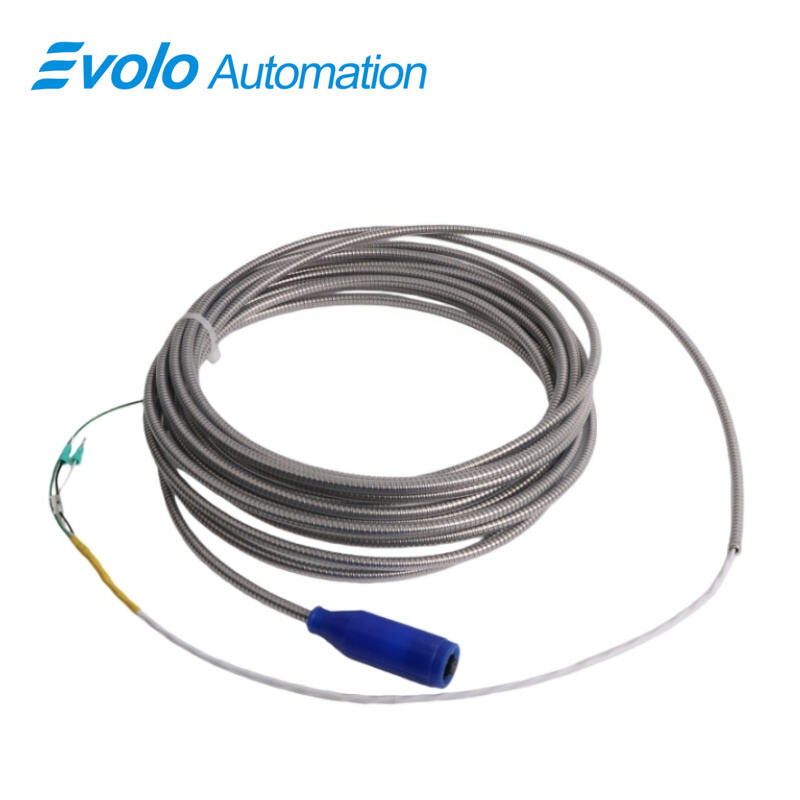

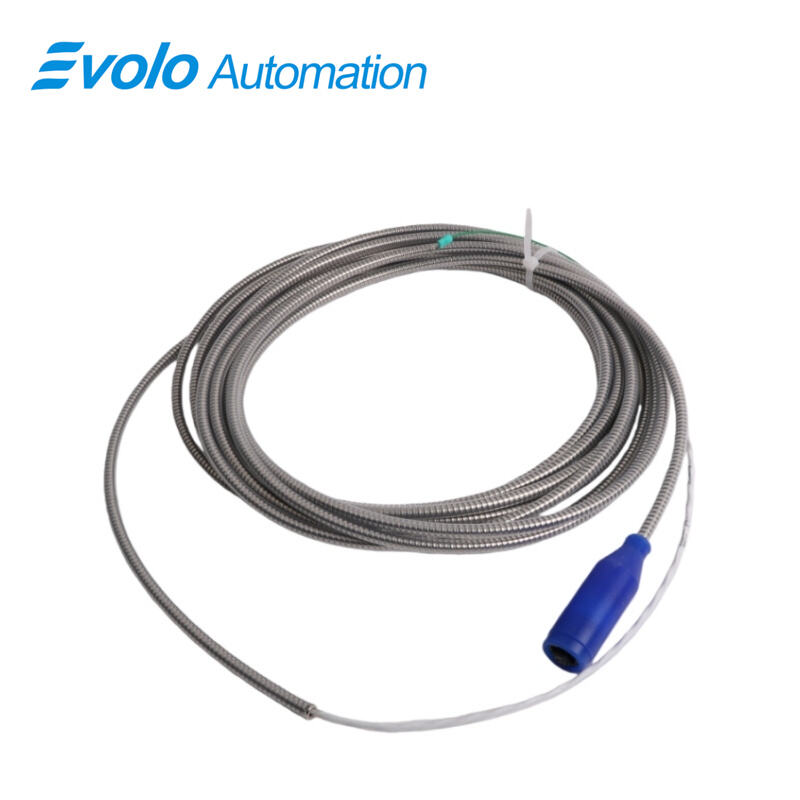

106765-10 Interconnect Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	106765-10
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The Bently Nevada 330525 Series Velomitor Asset Condition Monitoring XA Piezo-Velocity Sensors are ruggedized versions of Bently Nevada's 330500 Velomitor Sensor. Its 316L stainless steel case and unique, weatherproof connector and cable assembly permit mounting without a housing. The Velomitor XA Sensor cable assembly is suitable for use in moist environments, and the Velomitor XA Sensor design meets the requirements of IP-65 and NEMA 4X when properly installed with a mating extension cable.

106765-10 Interconnect Cable is a ruggedized signal transmission cable designed for automation and machinery condition monitoring systems. 106765-10 features a fixed 10-meter cable length and supports a −24 V DC rating, making it suitable for direct connection between piezo-velocity sensors and monitoring or control modules. With a defined signal scale of 7.87 V/mm (200 mV/mil), 106765-10 enables accurate delivery of vibration and velocity data to automation platforms without additional signal conditioning.

Built with a 316L stainless steel cable assembly and a weatherproof connector, 106765-10 is intended for use in moist, dusty, and outdoor industrial environments. The twisted pair stranding combined with braided or foil shielding reduces external electrical noise during data transmission up to 10 Mbps. 106765-10 uses polyurethane or Teflon insulation to protect conductors against oil exposure and temperature variation commonly found in rotating equipment zones.

Designed for ruggedized sensor installations, 106765-10 supports direct mounting without protective housings and meets IP-65 and NEMA 4X requirements when properly installed. This makes 106765-10 well suited for automation applications in power generation, oil and gas, and heavy industrial machinery monitoring systems.

Applications

Connect Piezo-Velocity Sensors to Monitoring Systems
The 106765-10 interconnect cable links Velomitor XA or similar piezo-velocity sensors to PLCs, vibration monitors, or DCS systems. With a 10-meter length and −24 V DC rating, 106765-10 ensures accurate transmission of velocity signals at 7.87 V/mm (200 mV/mil), allowing automation systems to track rotating equipment performance in turbines, pumps, and compressors.

Extend Sensor Signals in Outdoor or Moist Environments
The 106765-10 cable’s weatherproof connector, PU/Teflon insulation, and 316L stainless steel case permit installation in damp or outdoor areas. Automation teams can route 106765-10 directly from sensors to control cabinets without additional housings, ensuring reliable operation in high-moisture or exposed industrial zones.

Support High-Speed Data Transmission
With twisted pair conductors and braided or foil shielding, 106765-10 supports data transfer rates up to 10 Mbps. This allows real-time vibration data from sensors to reach condition monitoring or automation controllers without signal degradation over the 10-meter span.

Facilitate Direct Mounting for Ruggedized Sensors
106765-10 allows Velomitor XA sensors to be installed without extra protective housings, maintaining mechanical access while meeting IP-65 and NEMA 4X requirements. This simplifies field installation and reduces automation system wiring complexity.

Specifications

Competitive Advantage

Durable Construction for Industrial Automation
The 316L stainless steel case of 106765-10 and ruggedized weatherproof connector resist mechanical damage and corrosion, enabling use around rotating machinery, high-moisture environments, and chemical exposure.

Shielded Cable for Clean Signal Transmission
Twisted pair conductors with braided or foil shielding in 106765-10 minimize electrical noise, providing accurate vibration and velocity readings to automation and monitoring systems.

Simplified Installation for Automation Systems
106765-10 can be routed directly between sensors and control modules, with IP-65 and NEMA 4X compliance when installed properly. This reduces the need for additional housings or protective conduits, saving time and installation cost.

Supports Fast and Accurate Data Collection
With a 10-meter length and up to 10 Mbps transmission rate, 106765-10 ensures automation systems receive timely, precise signals from multiple Velomitor XA sensors, enabling real-time machine condition tracking.
