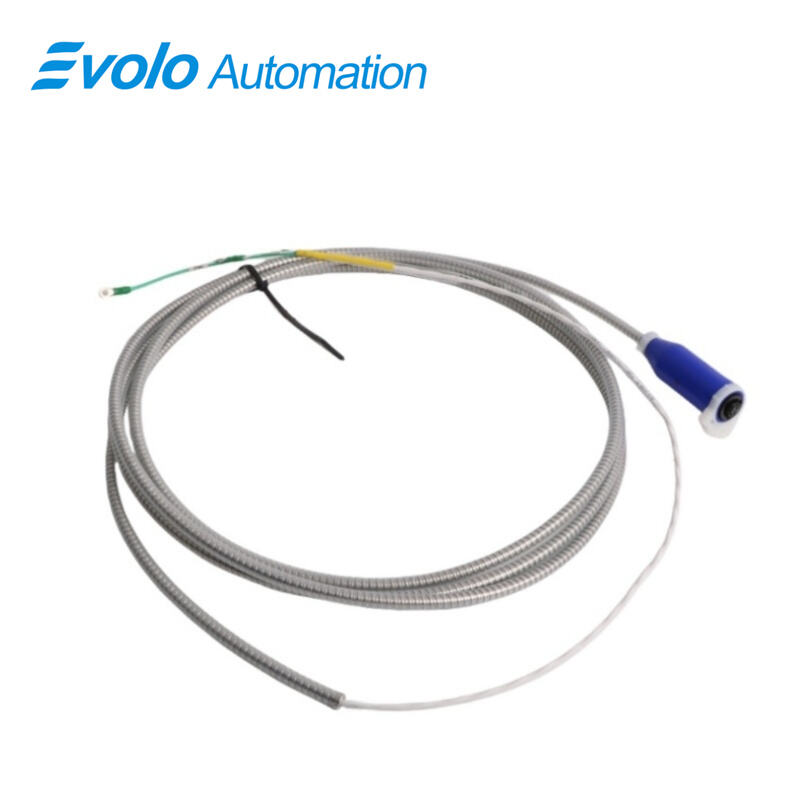

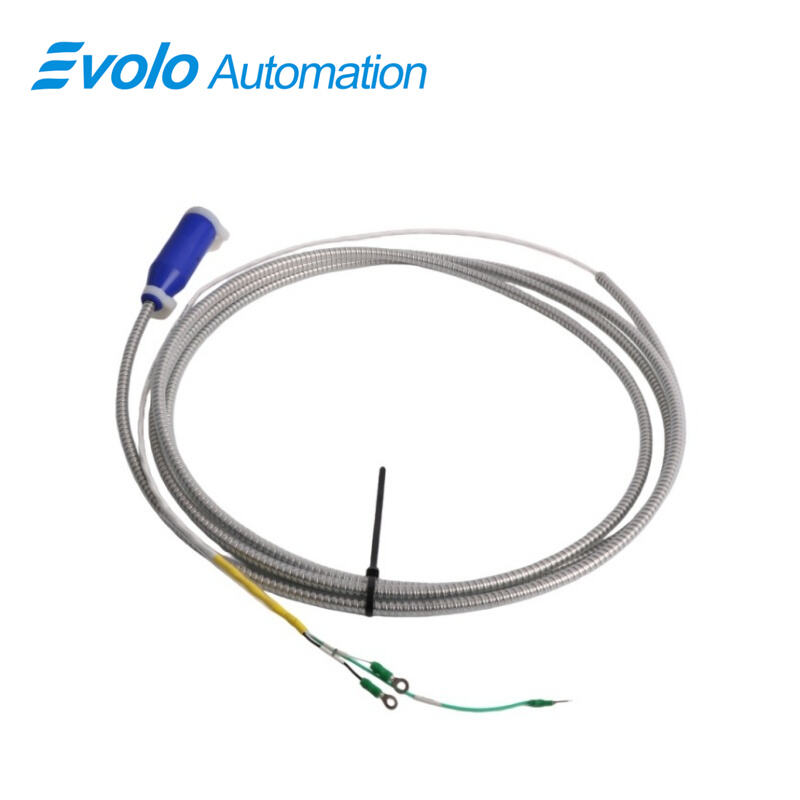

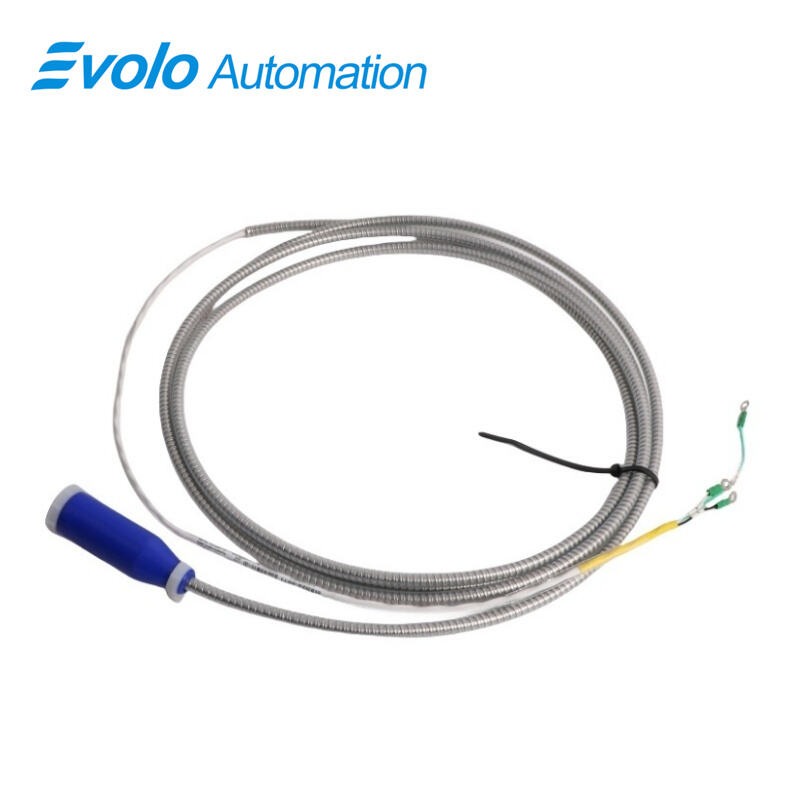

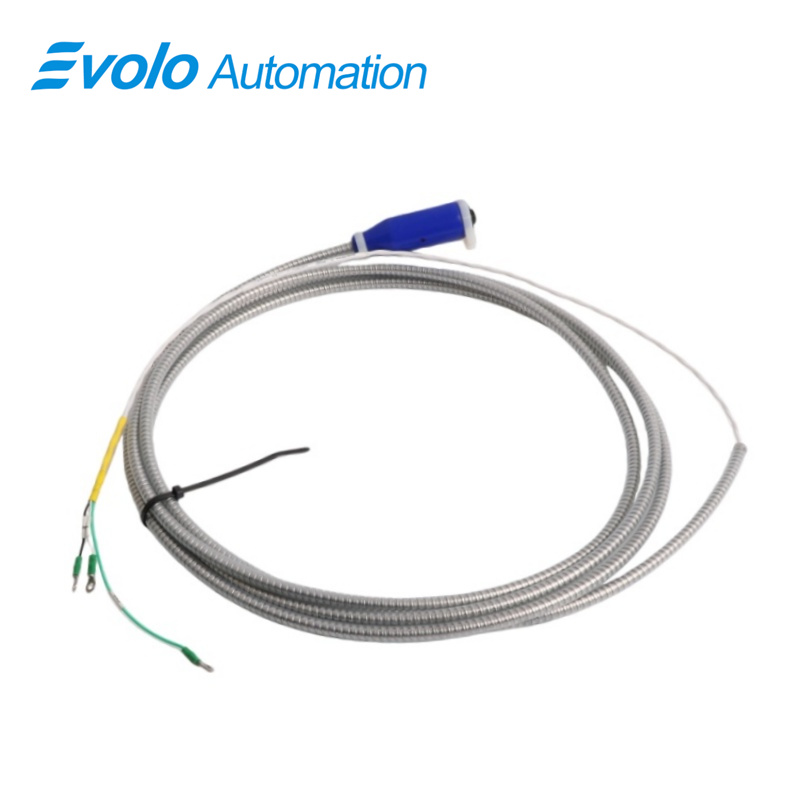

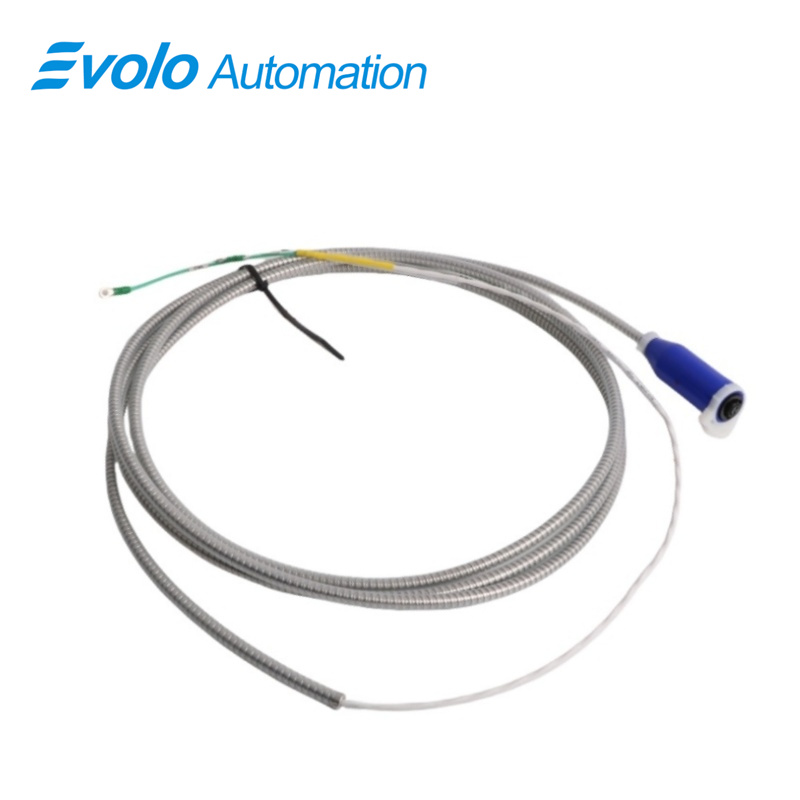

106765-04 Interconnect Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	106765-04
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 106765-4 Interconnect Cable is a high-performance multi-conductor cable designed for industrial automation and control systems. With four 18 AWG copper conductors and robust PVC insulation, this cable ensures reliable signal and data transmission in a variety of automation environments. Its 3-meter length ±10% provides flexibility for connecting proximity probes, sensors, and other field devices to monitoring systems. The cable is shielded with foil and braided layers, reducing electromagnetic interference and ensuring data integrity in electrically noisy environments. Rated for 300 V and temperatures from -20°C to 80°C, it can operate reliably under typical industrial conditions. The cable’s PVC jacket provides durability, mechanical protection, and resistance to abrasion, while the 8 mm outer diameter and minimum 5× bend radius ensure ease of installation in confined or complex routing paths. The 106765-4 cable complies with UL VW-1 flame rating, making it suitable for safe use in critical automation applications where fire safety is a concern. This interconnect cable is ideal for connecting sensors, transducers, and controllers in industrial process control, rotating machinery monitoring, and other automated systems.

Applications

Proximity Sensor Connections
Used to connect proximity probes to monitoring systems, supporting precise distance and vibration measurements in rotating machinery.

Data Transmission in Automation Systems
Ensures reliable signal transfer between sensors and PLCs or DCS controllers in process automation.

Industrial Environment Operation
With temperature range -20°C to 80°C, suitable for indoor and moderately harsh outdoor environments.

EMI-Sensitive Installations
Foil and braided shielding protects data integrity in electrically noisy environments, such as motor control centers or variable frequency drive systems.

Custom Machinery Wiring
Multi-conductor design allows flexible wiring of up to four signals in compact industrial setups without the need for multiple separate cables.

Specifications

Competitive Advantage

High-Quality Copper Conductors
18 AWG copper conductors provide low resistance and minimal signal loss, ensuring accurate and consistent measurements.

Robust Shielding
Foil and braided layers reduce electromagnetic interference, ensuring reliable operation in electrically noisy industrial environments.

Durable PVC Insulation and Jacket
Offers excellent mechanical protection, flexibility, and abrasion resistance, suitable for long-term use in industrial settings.

UL VW-1 Flame Rating
Meets industry safety standards, reducing fire hazards in control panels and machine installations.

Flexible Installation
3-meter length, 8 mm outer diameter, and minimum 5× bend radius allow easy routing in tight or complex machine layouts.
