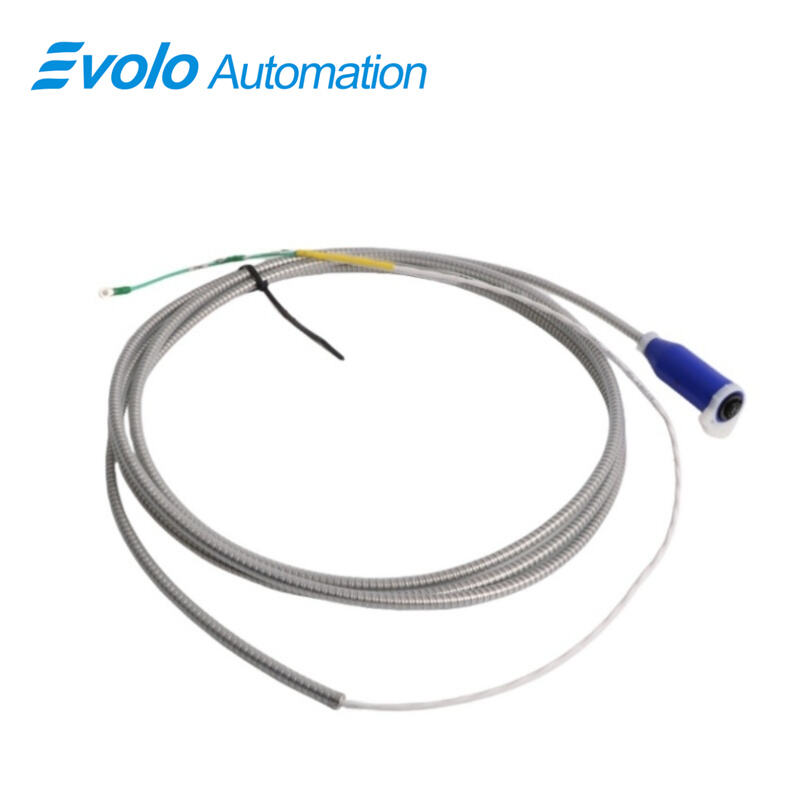

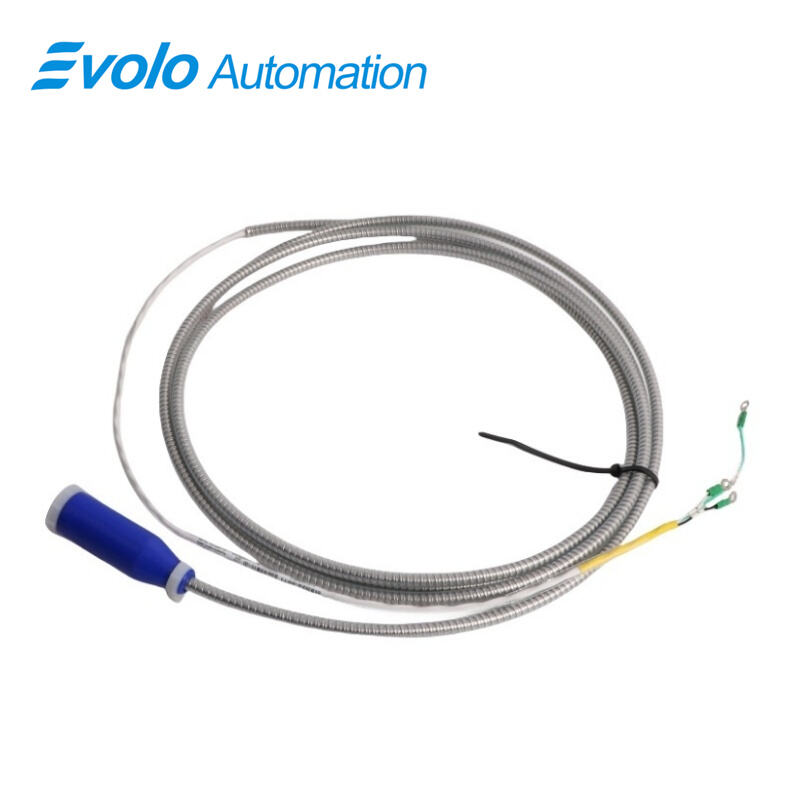

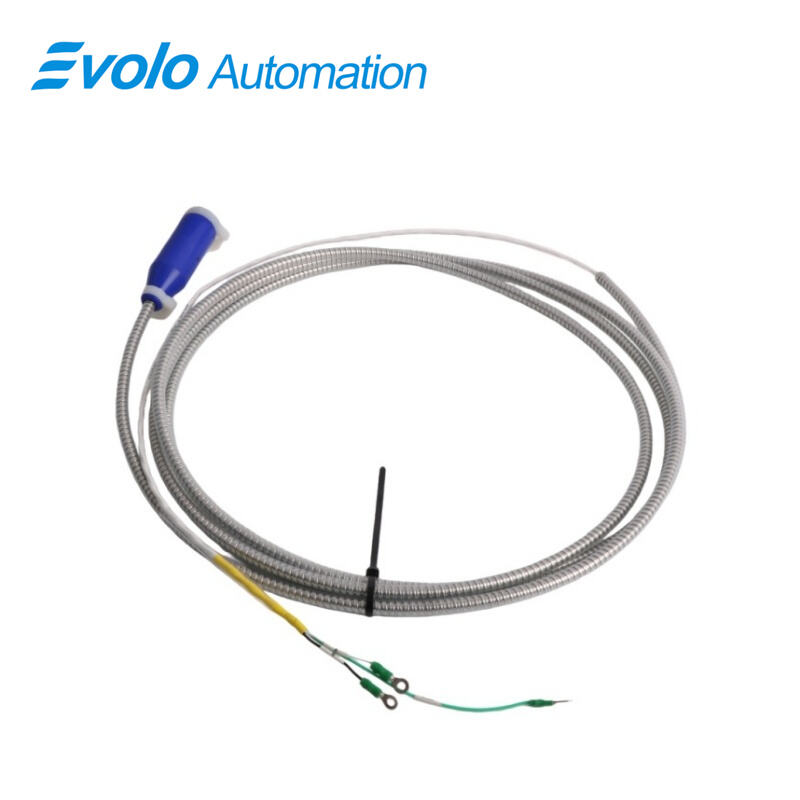

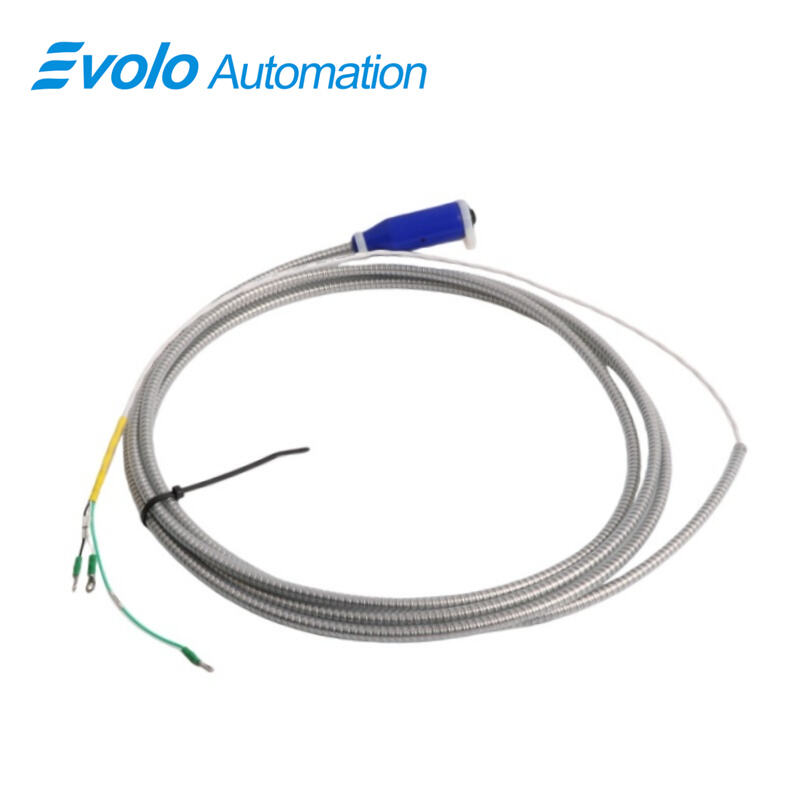

106765-01 Interconnect Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	106765-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 106765-01 Interconnect Cable is designed for industrial automation systems, providing reliable signal transmission between sensors, controllers, and monitoring devices. This shielded, multi-conductor cable uses 99.9% oxygen-free copper (OFC) to minimize signal loss and maintain high data integrity. The 106765-01 Interconnect Cable comes standard in a 10-metre length, with custom lengths available to suit specific automation layouts. It features gold-plated BNC connectors (two included) and an impedance of 75 Ω ±3% across 1 MHz to 500 MHz, ensuring low signal loss (<0.15 dB/m @100 MHz). The 106765-01 Interconnect Cable supports voltages up to 300 V and operates over a temperature range of -40°C to +105°C. Its double-layer foil and 85% braided shielding, combined with a minimum bend radius of 10× cable diameter, provide secure routing and interference protection for critical automation signals.

Applications

Application – Connect PLC Inputs and Outputs
Use the 106765-01 Interconnect Cable to link PLC I/O modules with sensors or actuators. Its 75 Ω ±3% impedance and signal loss <0.15 dB/m @ 100 MHz ensure reliable analog and digital signal transfer across automated systems.

Application – Link Vibration Sensors to Condition Monitoring Systems
The 106765-01 Interconnect Cable connects accelerometers, piezo-velocity sensors, and Proximitor modules to condition monitoring systems. With its double-layer foil plus 85% braid shielding, the 106765-01 Interconnect Cable minimizes electromagnetic interference for accurate vibration data acquisition.

Application – Integrate Control and Display Panels
The 106765-01 Interconnect Cable transmits signals between HMIs or control panels and automation controllers. Its 300 V rating and -40°C to +105°C operating range allow the 106765-01 Interconnect Cable to function in extreme industrial environments.

Specifications

Competitive Advantage

Competitive Advantage – Low Signal Loss for High-Frequency Automation
The 106765-01 Interconnect Cable maintains <0.15 dB/m loss at 100 MHz, supporting high-speed data transfer in precision automation networks.

Competitive Advantage – High Voltage and Temperature Endurance
Rated for 300 V and operating across -40°C to +105°C, the 106765-01 Interconnect Cable can be deployed in harsh industrial conditions without degradation.

Competitive Advantage – Enhanced Shielding for Critical Signals
With double-layer foil plus 85% braid coverage, the 106765-01 Interconnect Cable protects automation signals from EMI, ensuring accurate sensor-to-controller communication.
