102045-040-01 3300XL 8MM 4 Meter Armored Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	102045-040-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

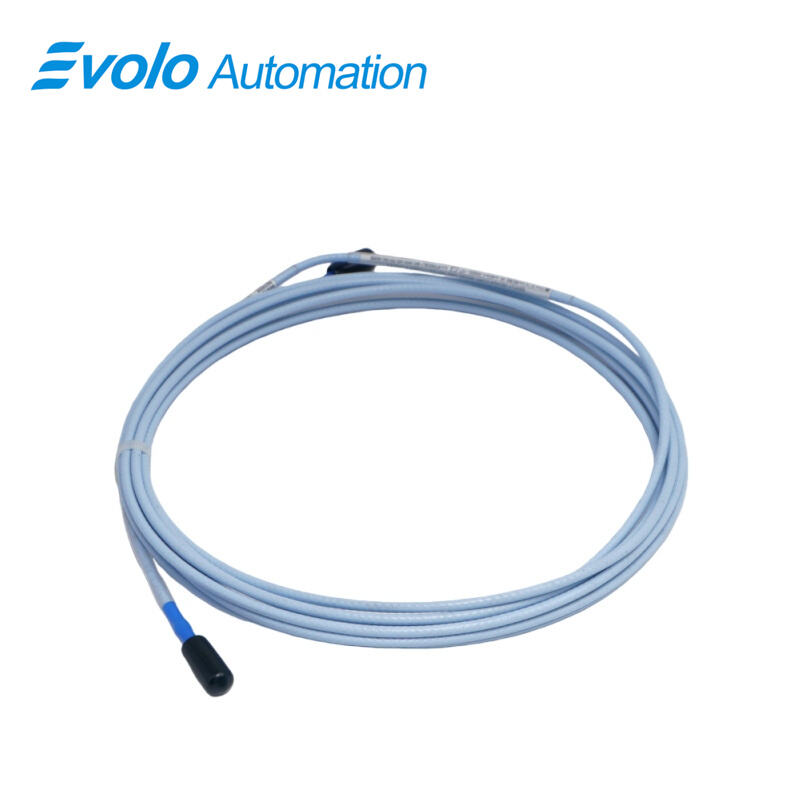

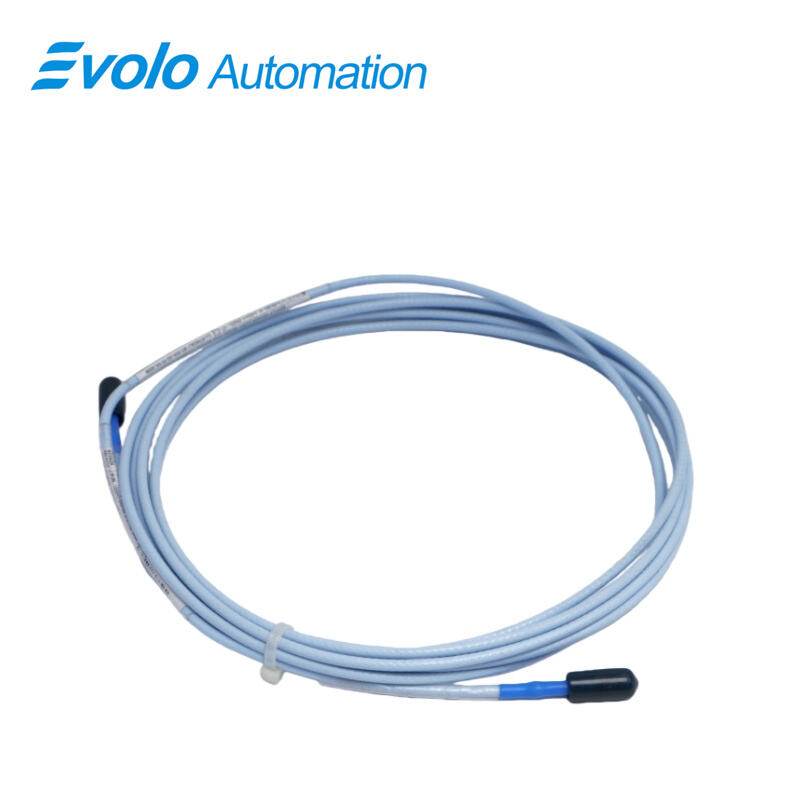

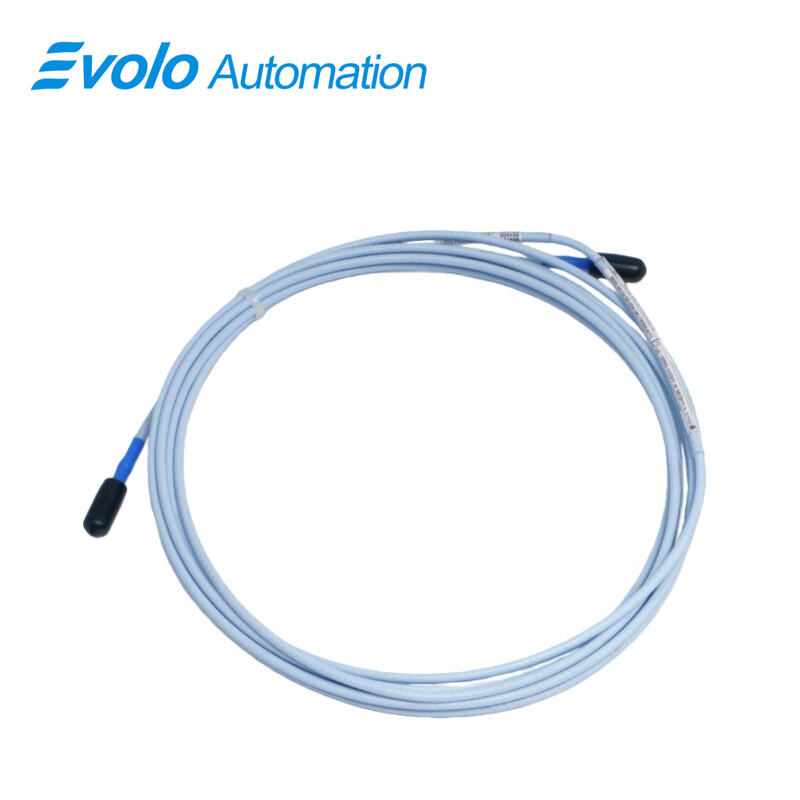

The 102045-040-01 3300 XL 8MM 4 Meter Armored Cable provides reliable signal transmission for 3300 XL Proximitor® Sensor systems in industrial automation applications. This 4-meter (13.1 ft) armored cable features a triaxial, shielded construction with a 22 AWG center signal conductor and dual braided and foil shielding to reduce electrical noise. The stainless steel armored jacket and industrial-grade fluoropolymer insulation protect the cable in harsh environments, ensuring accurate high-frequency proximity displacement signals. The 102045-040-01 3300 XL 8MM 4 Meter Armored Cable includes a threaded 3300 XL coaxial connector at the probe end and a quick-connect fitting at the monitor end for fast, secure installation. With a frequency response from DC to 10 kHz, the 102045-040-01 3300 XL 8MM 4 Meter Armored Cable supports real-time monitoring of rotor vibration, shaft position, and Keyphasor reference signals, providing essential data for automated control systems. Its robust design and precise signal handling make the 102045-040-01 3300 XL 8MM 4 Meter Armored Cable ideal for turbines, compressors, and industrial machinery where reliable distance and vibration measurements are critical.

Applications

Measure Rotor Vibration in Turbines Using 102045-040-01 3300 XL 8MM 4 Meter Armored Cable
The 102045-040-01 3300 XL 8MM 4 Meter Armored Cable transmits high-frequency signals from 3300 XL probes (DC to 10 kHz) to monitoring systems for real-time rotor vibration analysis in turbines, supporting automated condition monitoring.

Monitor Shaft Position with 102045-040-01 3300 XL 8MM 4 Meter Armored Cable
Use the 102045-040-01 3300 XL 8MM 4 Meter Armored Cable to convey precise axial and radial displacement data from 3300 XL proximity sensors. The cable’s 22 AWG center conductor and dual shielding minimize signal loss over the 4-meter length.

Transmit Keyphasor Signals via 102045-040-01 3300 XL 8MM 4 Meter Armored Cable
The 102045-040-01 3300 XL 8MM 4 Meter Armored Cable ensures accurate delivery of Keyphasor pulses from 3300 XL probes to control systems, enabling phase measurement for rotating equipment.

Specifications

Competitive Advantage

Protect Signals in Harsh Industrial Environments with 102045-040-01 3300 XL 8MM 4 Meter Armored Cable
The stainless steel armor, dual braided and foil shielding, and industrial-grade FEP insulation of the 102045-040-01 3300 XL 8MM 4 Meter Armored Cable prevent EMI interference and mechanical damage, ensuring consistent signal transmission.

Enable Quick and Secure Installation Using 102045-040-01 3300 XL 8MM 4 Meter Armored Cable
Threaded 3300 XL coaxial connectors and quick-connect fittings allow fast field installation or replacement of the 102045-040-01 3300 XL 8MM 4 Meter Armored Cable, reducing machine downtime.

Maintain High-Frequency Signal Accuracy via 102045-040-01 3300 XL 8MM 4 Meter Armored Cable
The 22 AWG center conductor, triaxial shielding, and DC to 10 kHz frequency response of the 102045-040-01 3300 XL 8MM 4 Meter Armored Cable guarantee precise analog output from 3300 XL Proximitor Sensors.

Support Long-Term Continuous Monitoring with 102045-040-01 3300 XL 8MM 4 Meter Armored Cable
Industrial-grade fluoropolymer insulation and stainless steel armor in the 102045-040-01 3300 XL 8MM 4 Meter Armored Cable enable reliable operation under temperature ranges of -52°C to +177°C, minimizing maintenance in extended industrial monitoring.
