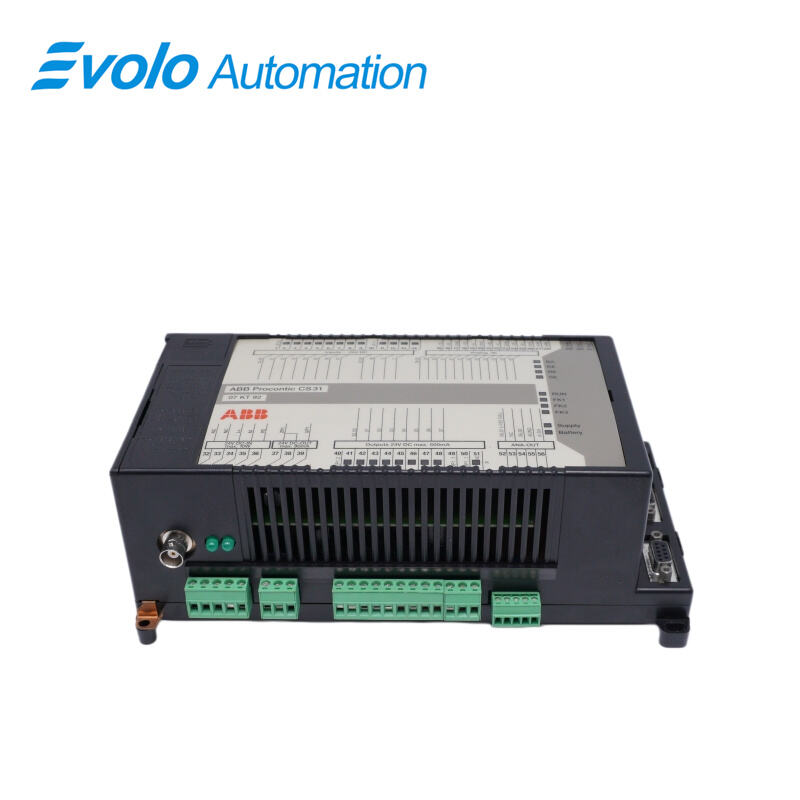

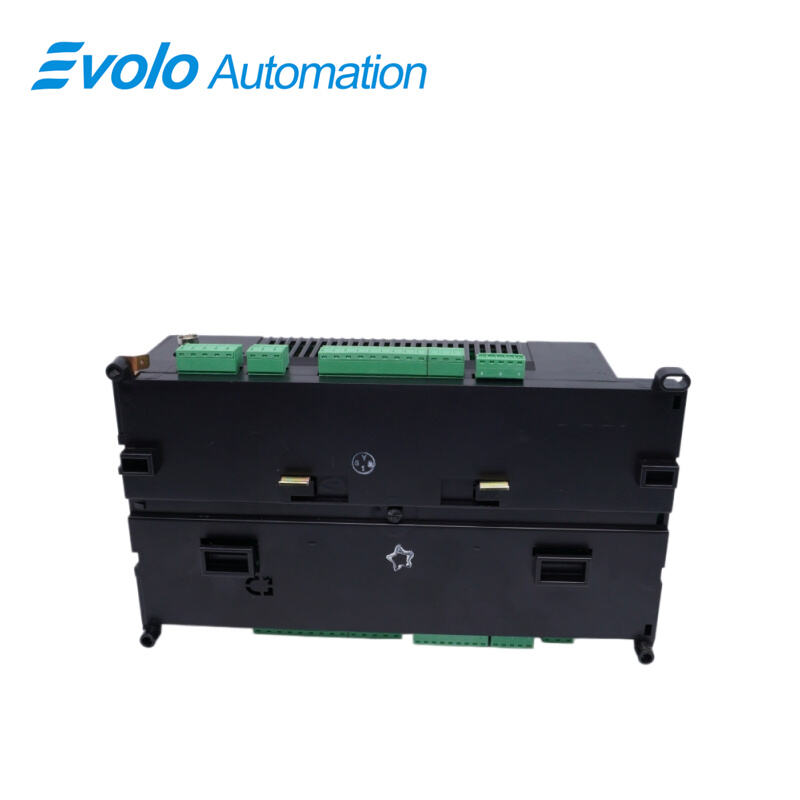

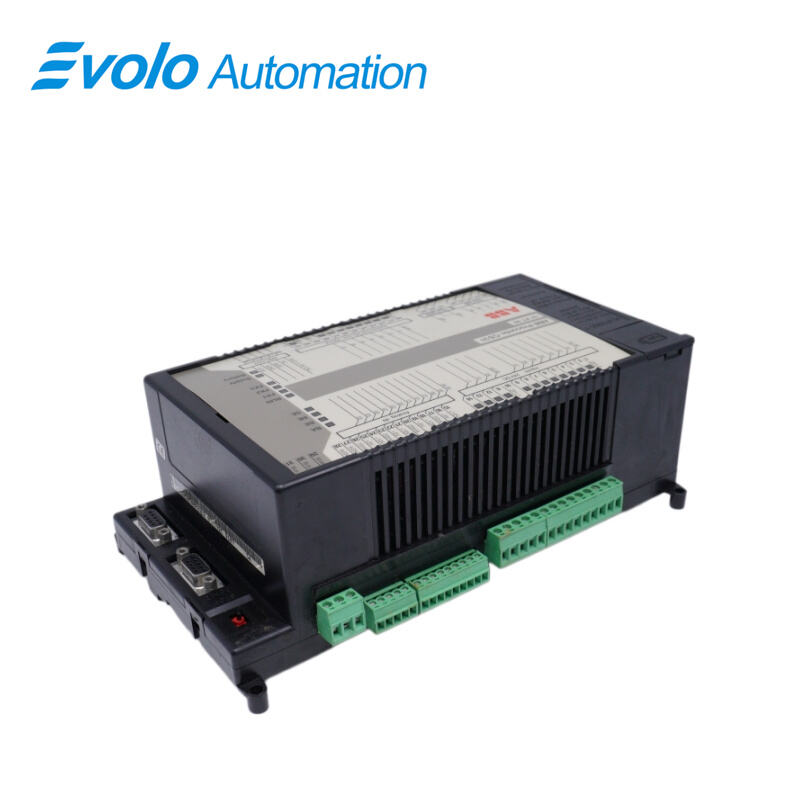

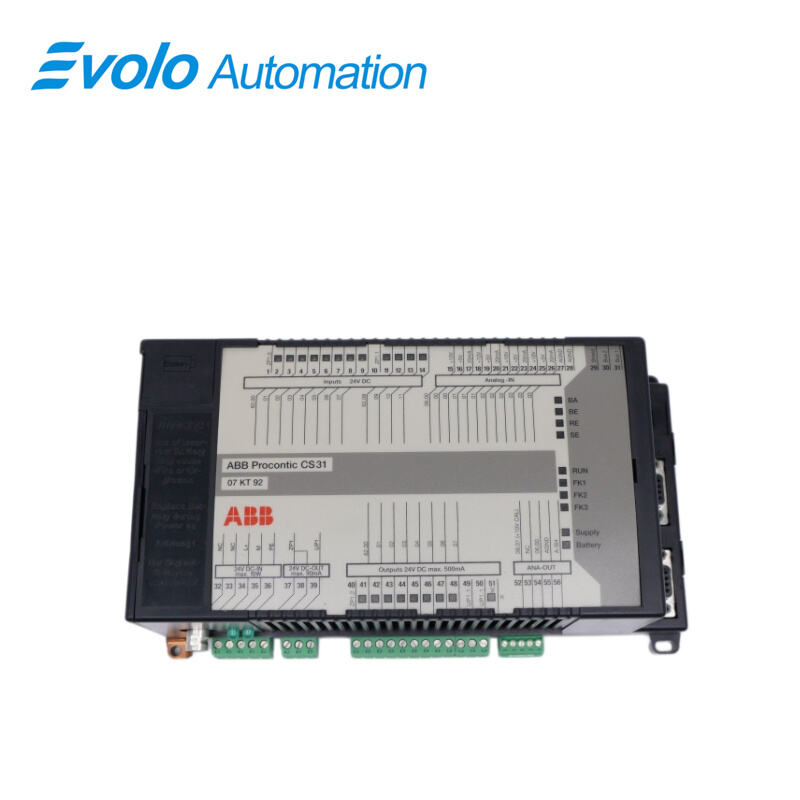

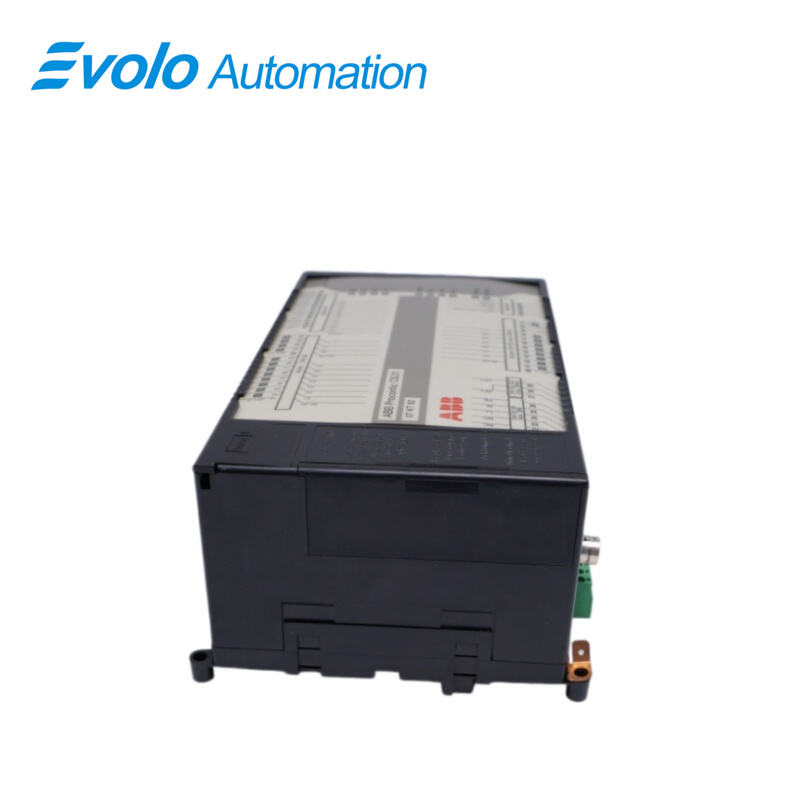

07KT92 GJR5250500R0262 Central Processing Unit, China 07KT92 GJR5250500R0262 Central Processing Unit Manufacturers, Suppliers, Factory

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	07KT92 GJR5250500R0262
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Model:	07KT92 GJR5250500R0262
Product Type:	Central Processing Unit
Processor Architecture:	Dual-core ARM Cortex-A9 @ 1.2 GHz
Processor Feature:	Supports hardware virtualization technology
Operating Voltage:	24 V DC (±15% tolerance)
Protection Circuit:	Built-in reverse polarity protection
Operating Temperature:	-20°C to +60°C
Storage Temperature:	-40°C to +85°C
Communication Interfaces:	2× Gigabit Ethernet, 2× RS485, 1× USB 3.0
Network Support:	TSN (Time-Sensitive Networking)
Protection Rating:	IP67
Housing Material:	Aluminum-magnesium alloy
Weight:	1.5 kg
Vibration Resistance:	Up to 5G acceleration

Description

The ABB 07KT92 GJR5250500R0262 central processing unit (CPU) is a core control unit in industrial automation. This high-performance processor is designed for complex industrial scenarios, featuring a high-efficiency computing architecture with nanosecond-level single-cycle instruction processing speeds. Combined with multi-channel data caching technology, it can achieve tens of millions of I/O data interactions per second. Its powerful real-time control capabilities can significantly improve production line efficiency, with typical applications seeing an 18%-25% increase in Overall Equipment Effectiveness (OEE). As a key component of ABB's industrial automation solutions, this processor has been successfully applied in over 30 sub-sectors, including automotive manufacturing, smart grids, and chemical production. It supports multiple industrial protocols such as Modbus TCP, PROFINET, and EtherCAT, and meets ISO 13849-1 PLC-level safety requirements.

Applications

Power system: Used for monitoring and control in power plants and power grids.

Oil and gas: used for production process control in oil and gas fields.

Chemical industry: For the automatic control of chemical production processes.

Manufacturing industry: Used for factory automation and production line control.

Building automation: Used for the control and management of building equipment.

Water treatment: It is used to monitor and control parameters such as water quality and liquid level in water treatment systems.

Pharmaceutical industry: Used for monitoring reaction processes, controlling temperature and humidity.

Transportation: Automation control for fields such as automobile manufacturing and rail transit.

Functions

As the intelligent control hub of the Industry 4.0 era, this 07KT92 GJR5250500R0262 adopts a modular design concept, supporting hot-swappable expansion modules. Its dual-core ARM Cortex-A9 architecture, combined with a real-time operating system, can simultaneously handle process control, motion control, and HMI display tasks. A unique hardware watchdog mechanism combined with a software-level fault diagnosis system achieves an MTBF (Mean Time Between Failures) of over 100,000 hours. Equipped with dual Gigabit Ethernet interfaces supporting the PRP redundancy protocol, network switching time is less than 50ms. The built-in network security chip supports TLS 1.3 encrypted communication, meeting the IEC 62443-3-3 industrial network security standard. Its compact design (only 120×90×60mm) is particularly suitable for space-constrained control cabinet installation, and its IP67 protection rating allows it to withstand harsh conditions such as dust and humidity.

Competitive Advantage

This 07KT92 GJR5250500R0262 central processing unit utilizes ABB's patented T-BOX technology architecture, exhibiting outstanding redundancy design: dual power inputs support seamless switching with a switching time of less than 10ms; the dual processor cores employ a lockstep operation mode, achieving microsecond-level difference detection through hardware-level comparators. Its unique heat dissipation design uses phase-change thermal conductive materials, ensuring stable operation even at an ambient temperature of 60℃. In terms of system compatibility, it not only supports integration with ABB's own AC800M system but also interconnects with heterogeneous systems from Siemens, Schneider Electric, and others via the OPC UA protocol. The equipped intelligent diagnostic system can monitor over 200 device status parameters in real time, achieving a predictive maintenance accuracy of 92%. For safety design, it is CC EAL4+ certified and supports protection mechanisms such as secure boot and firmware signature verification. Regarding electromagnetic compatibility, it meets the IEC 61000-6-2 industrial level 3 standard, with an electrostatic discharge immunity of ±8kV. Furthermore, its unique firmware hot-update technology allows for system upgrades without system downtime, ensuring the continuity of critical processes.
