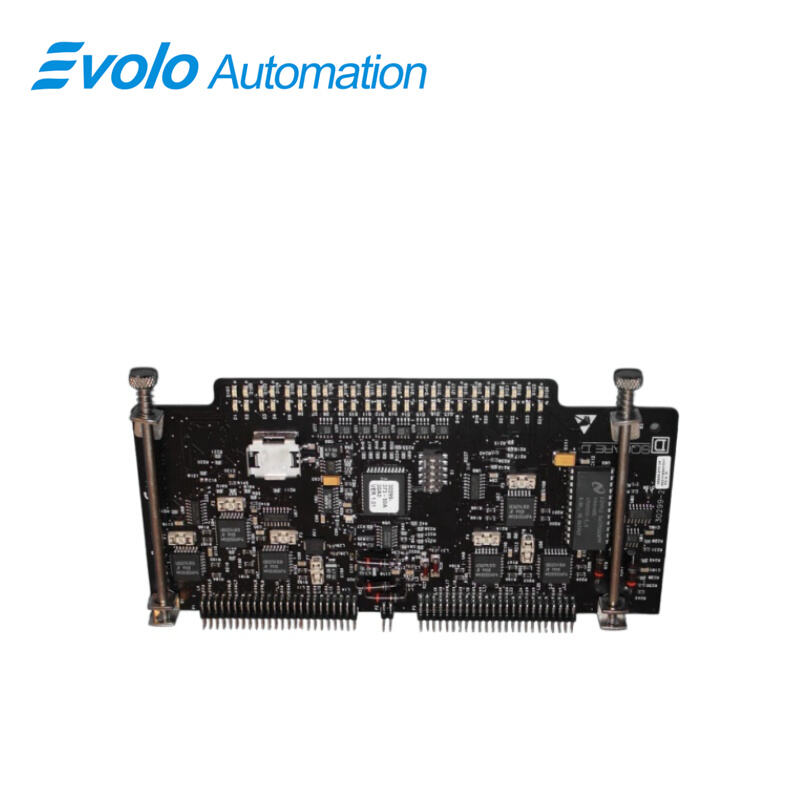

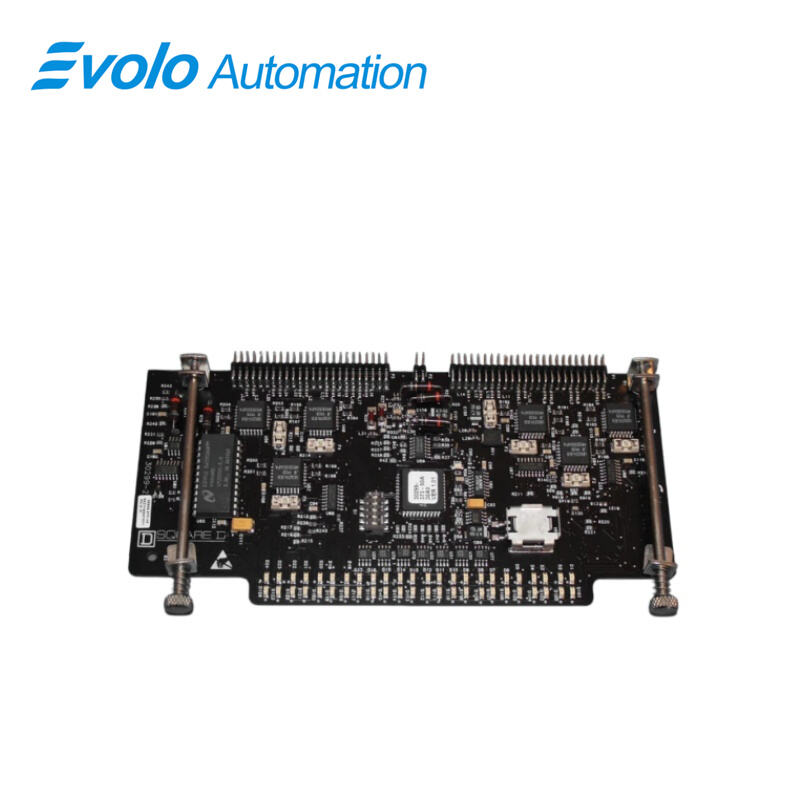

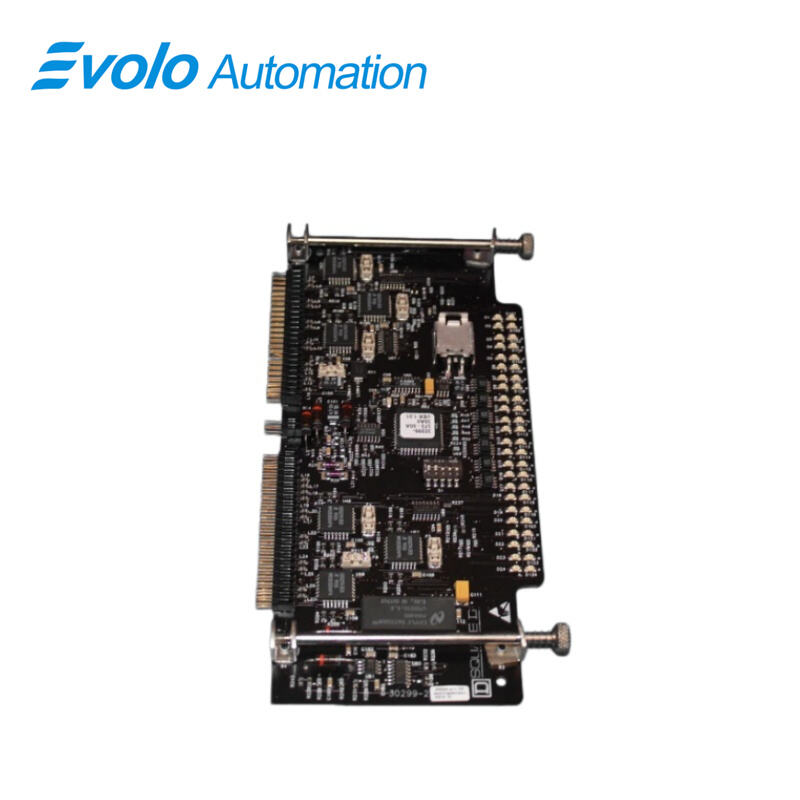

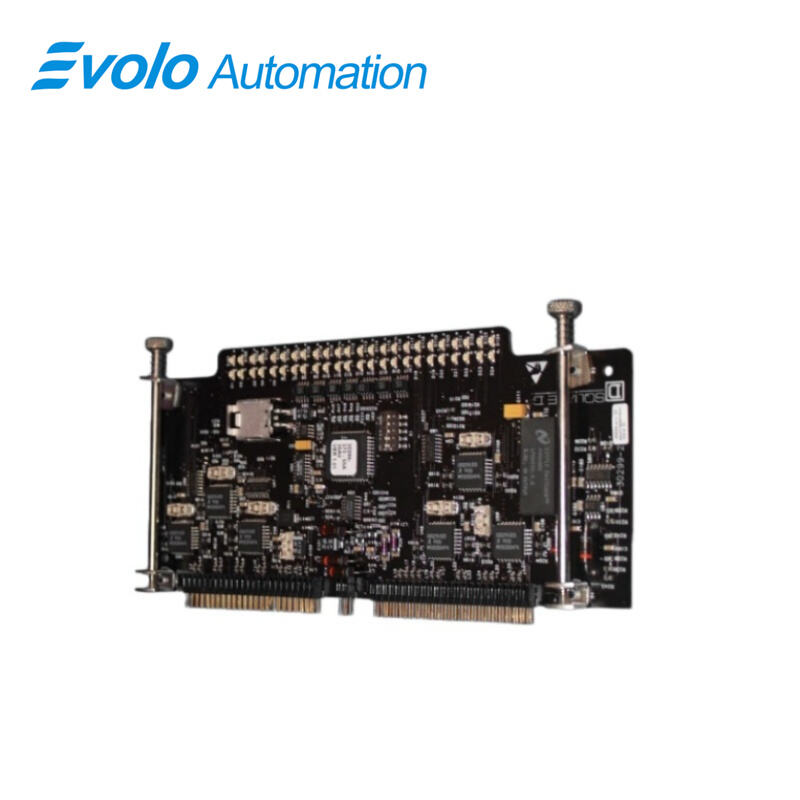

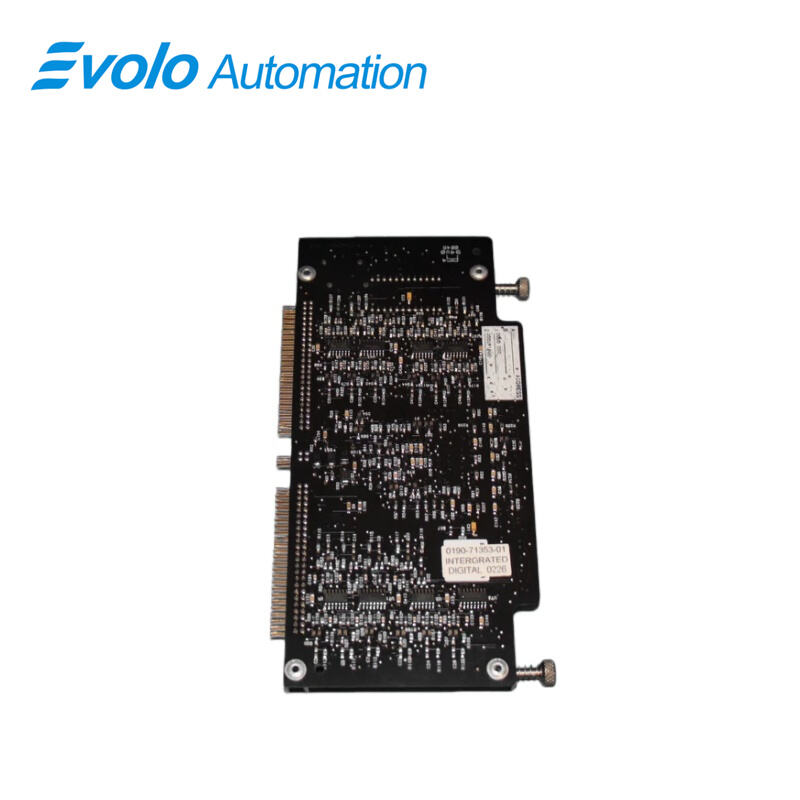

0190-71353-01 Integrated digital board, China 0190-71353-01 Integrated digital board Manufacturers, Suppliers, Factory

Overview

Place of Origin:	Germany
Brand Name:	AKT seriplex
Model Number:	0190-71353-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Model	0190-71353-01
Type	Integrated Digital Board
Operating Voltage	+5 VDC / +12 VDC
Power Consumption	≤ 5 W (varies by function and load)
Logic Level	TTL / CMOS compatible
Input Voltage Tolerance	±5 %
Maximum Digital Input Frequency	≥ 100 kHz
Digital Output Drive Capability	≥ 8 mA per channel (TTL level)
Isolation Type	Software / logic isolation
Board Dimensions	Standard PCB size (based on slot / backplane)

Description

The 0190-71353-01 Integrated Digital Board is a high-performance automation module designed for precise digital control and signal processing. Operating at +5 VDC / +12 VDC with power consumption ≤ 5 W, the 0190-71353-01 supports TTL/CMOS logic levels and digital input frequencies ≥ 100 kHz. Each channel delivers ≥ 8 mA output drive, and software/logic isolation ensures reliable signal management. The 0190-71353-01 board fits standard PCB slots with lightweight construction (50–150 g) and operates in temperatures from 0 °C to 55 °C, with storage up to -20 °C to 85 °C. Humidity tolerance ranges 10–90 % RH (non-condensing), and mounting is via plug-in backplane or screw installation. With integrated digital I/O and fast signal processing, the 0190-71353-01 board delivers precise automation control for industrial systems, enabling real-time process monitoring and multi-channel digital operations. This module ensures consistent operation in automation workflows while maintaining compact dimensions and low power requirements.

Applications

Semiconductor Wafer Fab: Applied to front-end processes (FEOL), such as thin film deposition (CVD/PVD), etching, and ion implantation.

Display Panel Manufacturing: Widely used in LCD, OLED, and touch panel production lines under the AKT brand (a subsidiary of AMAT).

Industrial Automation and Control: As a control module, responsible for voltage regulation, sensor data processing, or robotic arm positioning control within equipment.

Specifications

Weight	50 ~ 150 g
Operating Temperature	0 ~ 55 °C
Storage Temperature	-20 ~ 85 °C
Humidity	10 ~ 90 % RH (non-condensing)
Mounting	Plug-in backplane connection or screw-mounted installation

Competitive Advantage

Competitive Advantage 1: High-Speed Digital Performance
The 0190-71353-01 supports input frequencies ≥ 100 kHz, ensuring rapid digital signal processing for automated operations without delays.

Competitive Advantage 2: Low Power Consumption
With ≤ 5 W power usage, the 0190-71353-01 reduces energy requirements while maintaining full functionality for multi-channel digital operations.

Competitive Advantage 3: Flexible Installation
The board mounts via plug-in backplane or screws, allowing easy replacement or expansion in industrial automation setups.

Competitive Advantage 4: Wide Environmental Range
Operating from 0 °C to 55 °C and storage from -20 °C to 85 °C, the 0190-71353-01 can be deployed in diverse industrial environments without additional cooling or heating systems.

FAQ

Is 0190-71353-01 brand new or refurbished?

It is brand new and comes with a one-year warranty.

How long will it take for the 0190-71353-01 to arrive after I place an order?

Once payment is confirmed, we ship immediately. Delivery typically takes 3–5 days from China to your location.

Do you offer any discounts?

Yes! For discounts on 0190-71353-01, please contact John for the best offer.

Do you have it in stock?

Yes, right now we have 0190-71353-01 in stock ready for shipment. We can support video inspection.

Do you provide warranty as standard?

We provide a full 12-month warranty for the 0190-71353-01. So, if you have any problems within 12 months from the date of delivery, you can contact our team, who will be happy to help and explain what your next steps should be.
