531X191RTBAJG1 Relay terminal board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	531X191RTBAJG1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

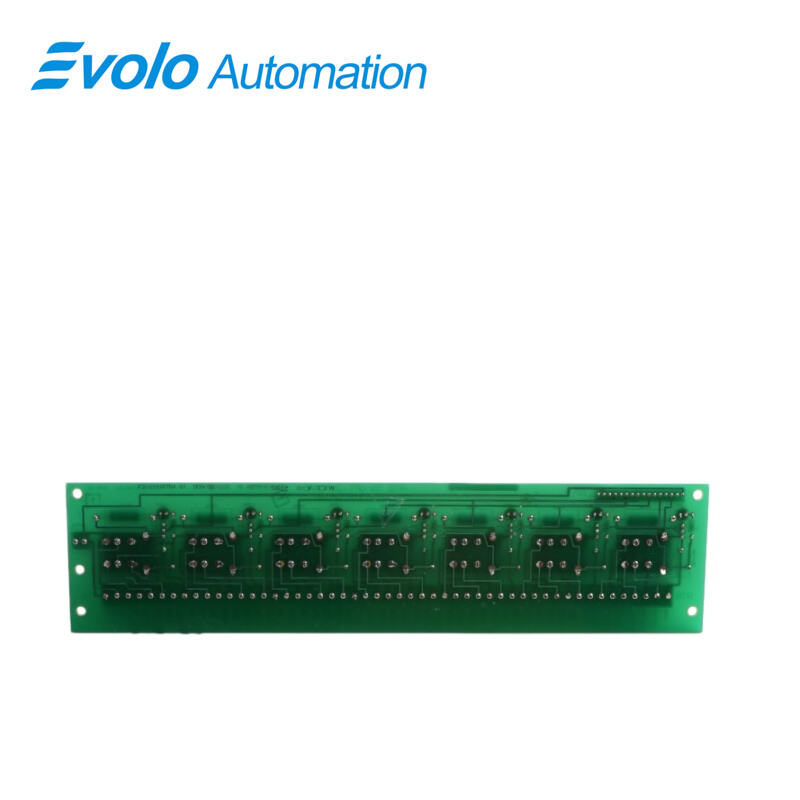

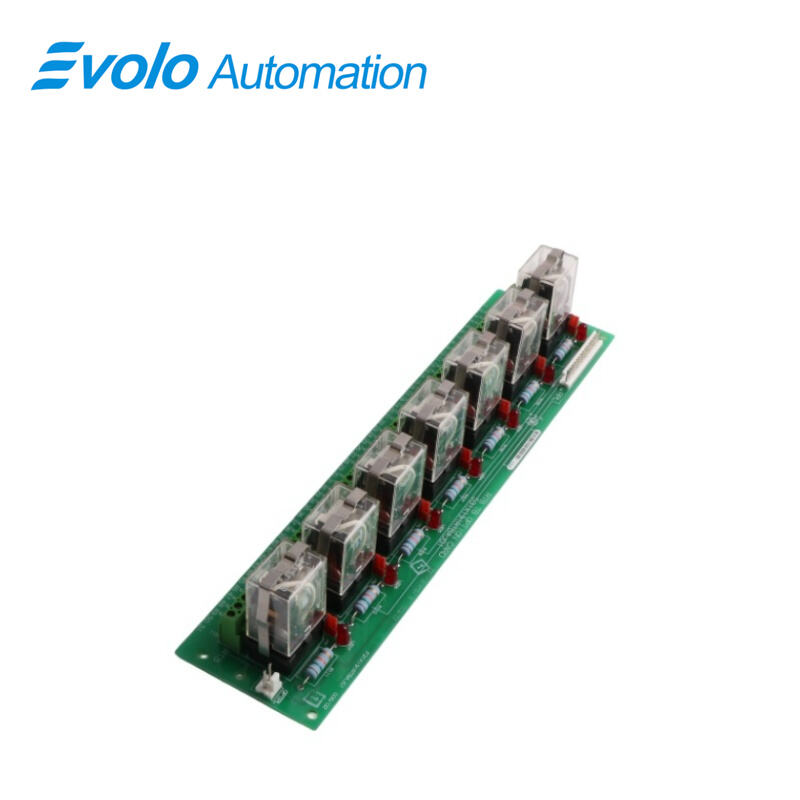

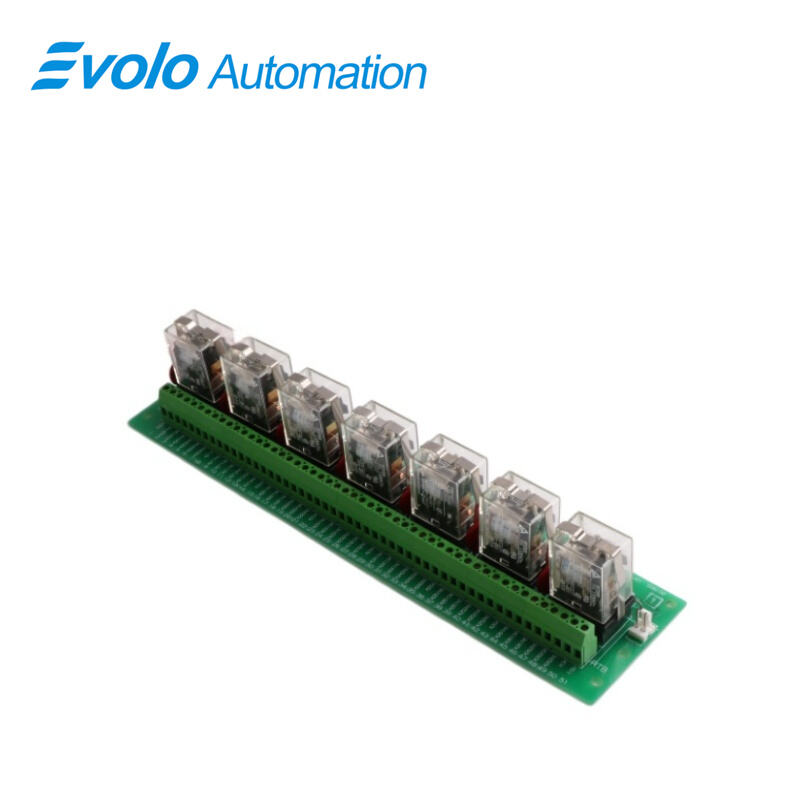

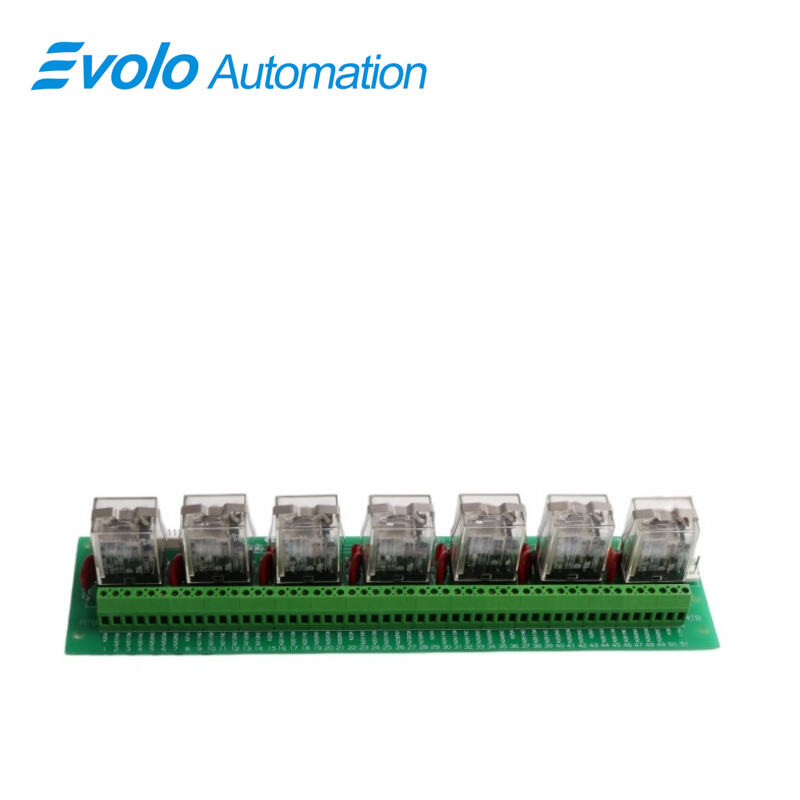

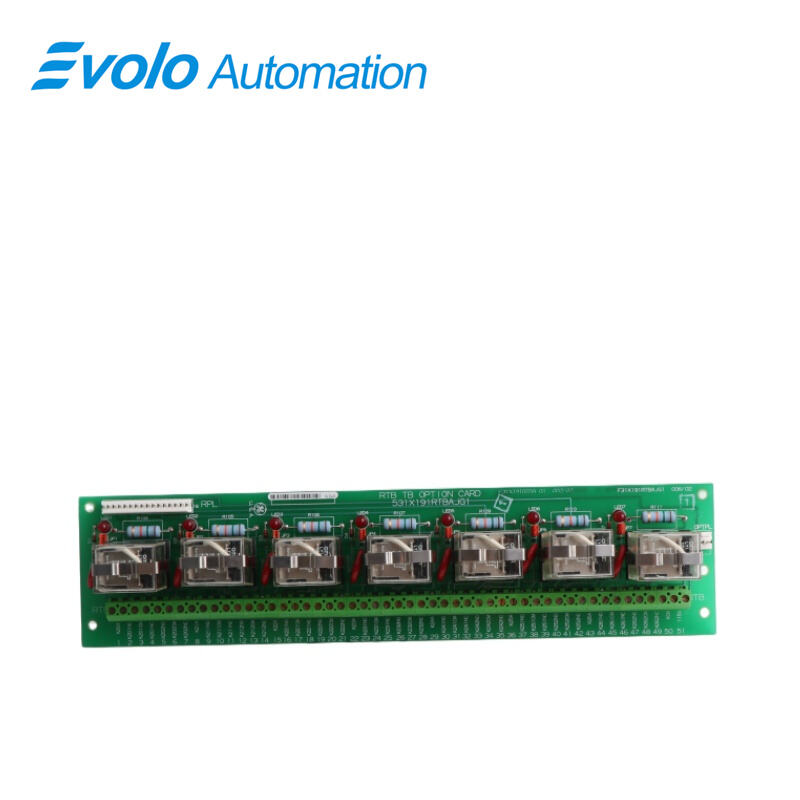

The General Electric 531X191RTBAJG1 is a relay terminal board used in GE drive and exciter systems. It provides relay-based control of external circuits through seven onboard relays and terminal access to relay coils and contacts. This board supports reliable interface control in industrial drive applications.

Applications

Precision machining plant: Serves as a remote I/O station, responsible for collecting signals from limit switches and sensors on each axis of CNC machine tools.

Automated assembly plant: Deployed in control boxes on the production line side, enabling signal interaction between manual control buttons and the main PLC.

Petrochemical plant: Acts as a terminal distribution center in long-distance signal transmission links, utilizing its excellent anti-interference performance to ensure data accuracy.

Large thermal power plant: Integrated into the turbine or boiler control cabinet, managing feedback from numerous field pressure and temperature transmitters.

Food packaging plant: Used for signal aggregation in multi-station sorting systems, simplifying field wiring and improving system maintenance efficiency.

Key Features

Seven onboard relays: Enables control of multiple external circuits.

Relay terminal access: Provides direct access to relay coils and contacts.

Integrated LED indicators: Each relay includes an LED for energized status monitoring.

Industrial-grade construction: Built for continuous-duty drive control environments.

531X family compatibility: Designed for GE replacement drive and exciter platforms.

Installation and Safety

Must follow manufacturer installation manual and wiring guide

Designed for qualified personnel only

Untrained handling is strictly discouraged

Improper installation may lead to equipment damage or personal injury

FAQ

Q: Can the coil of the 531X191RTBAJG1 be connected to 220V AC power?
A: No. Coil is rated 115 VAC; 220V will burn it out.

Q: Is there performance difference between the 531X191RTBAJG1 and 50Hz mains frequency?
A: No. Supports 50/60 Hz with stable auto-adaptation.

Q: Can the 7 relays of the 531X191RTBAJG1 independently control different loads?
A: Yes. Each relay has an independent path for separate load control up to 105 VDC.

Q: What are the benefits of the 9 mA holding current in the 531X191RTBAJG1?
A: Low current reduces coil heating, ensuring stable long-term operation.
